C1751
DTC C1751/51 Continuous Electric Current to Height Control CompressorDESCRIPTION
The signal from the suspension control ECU operates the air suspension relay, and the height control compressor motor starts. The height control compressor assembly operates until the targeted vehicle height is reached. Then the height control sensor sub-assembly sends the signal to the suspension control ECU, and stops the height control compressor.
INSPECTION PROCEDURES

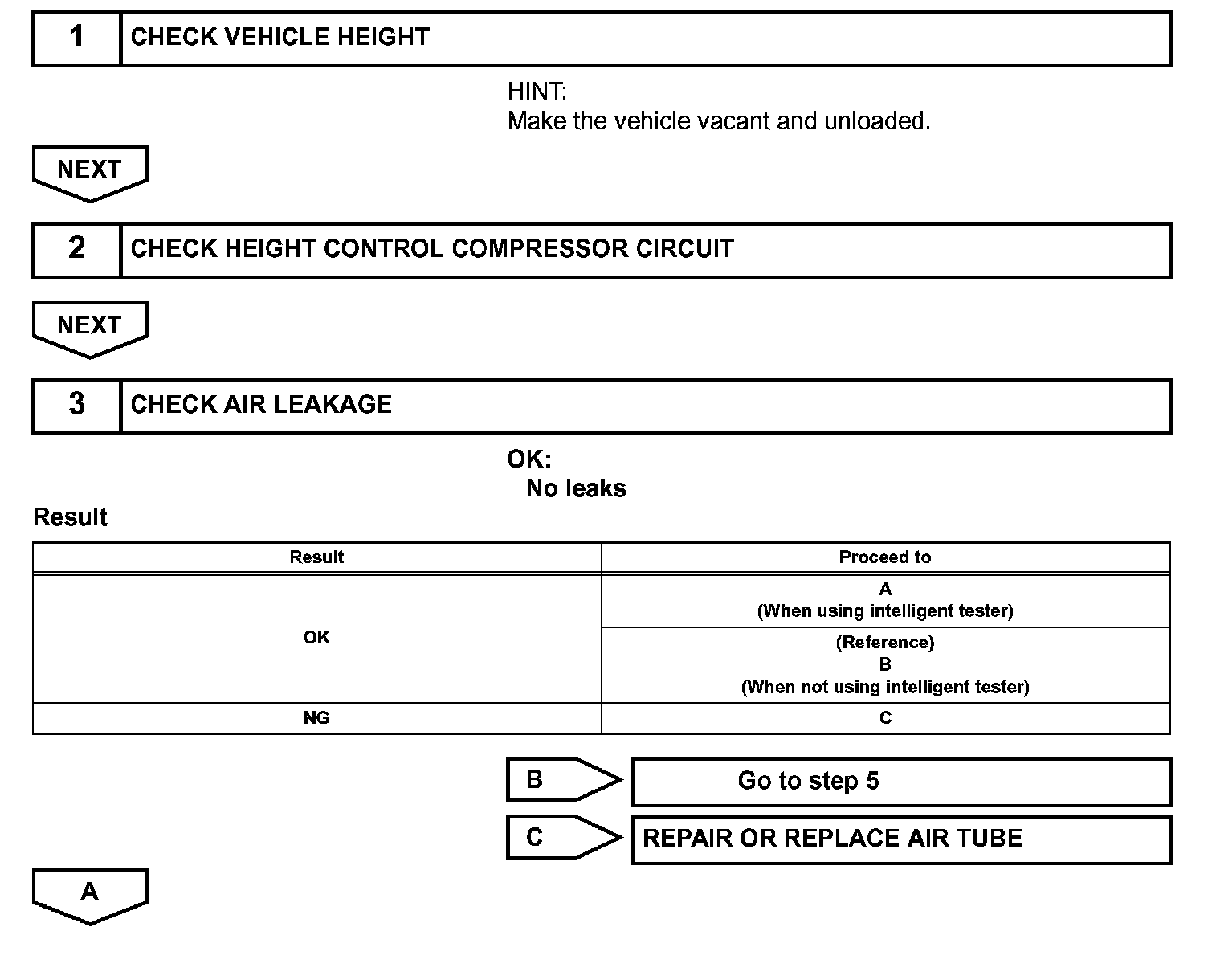

Steps 1-3:
Steps 4-5:
Step 5(continued):

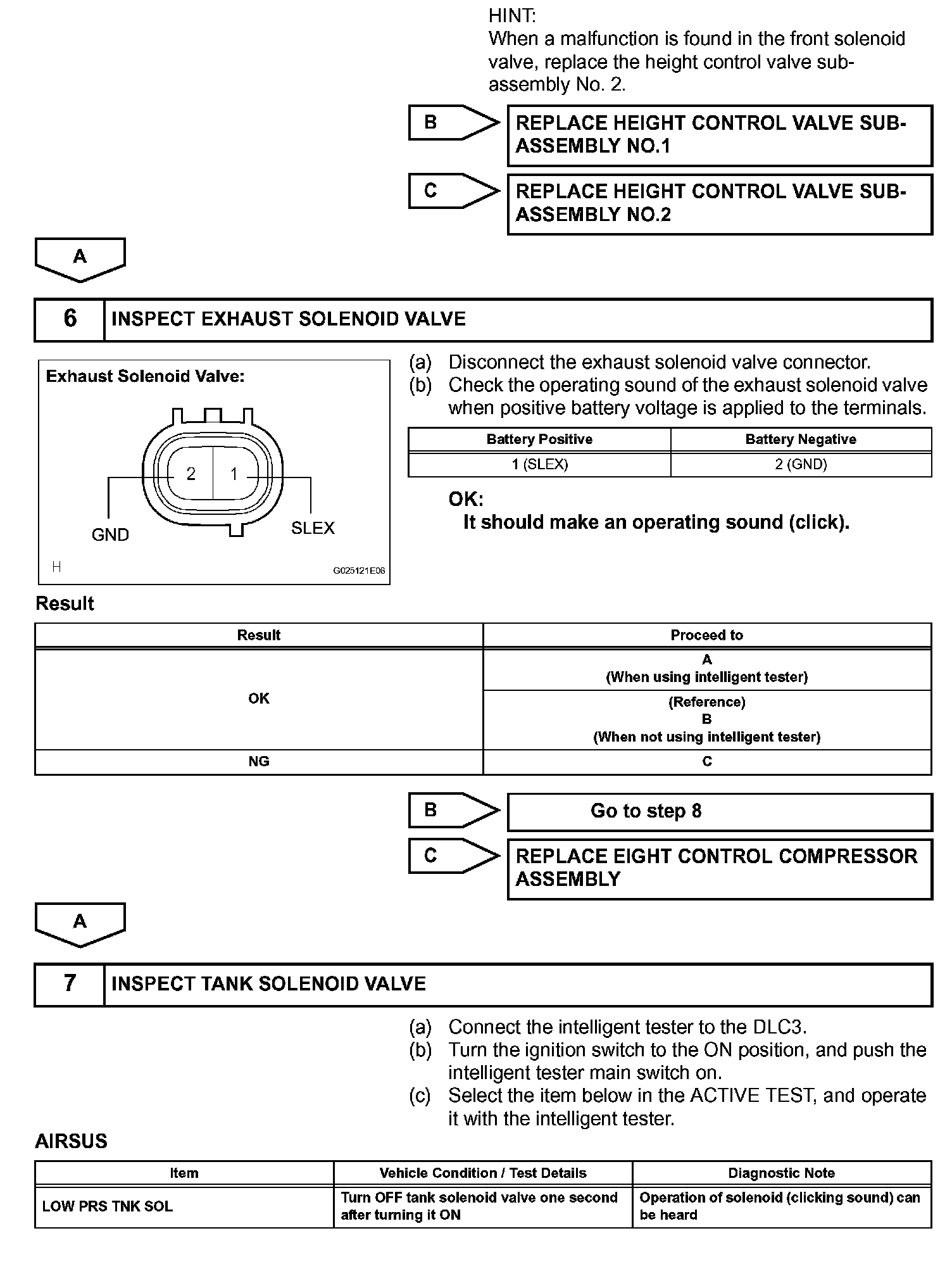

Steps 5(continued)-7:

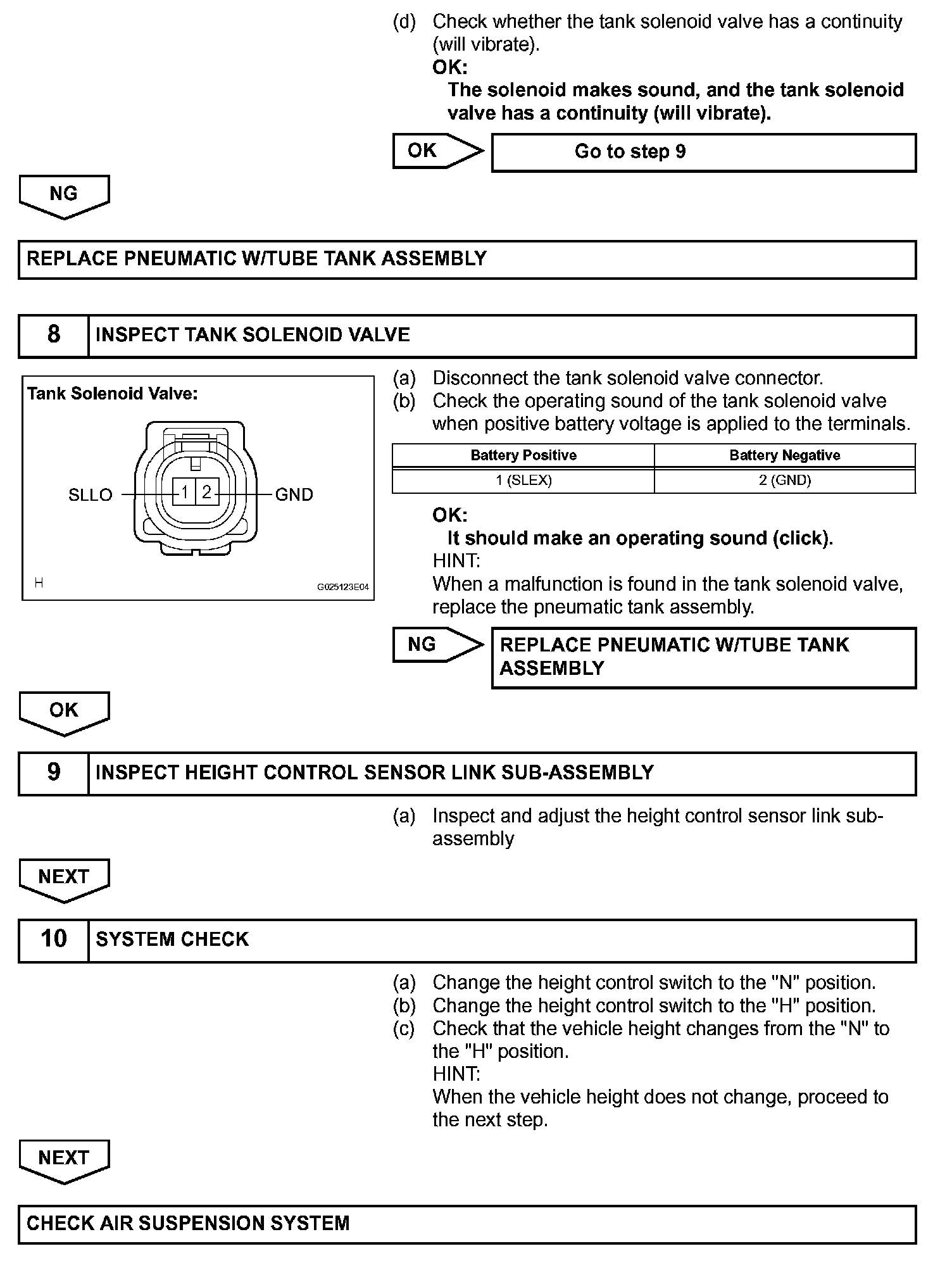

Steps 7(continued)-10:
