C1774

DTC C1774/74 Power Source Circuit

DESCRIPTION





Battery voltage is constantly applied to the +B terminal of the suspension control ECU. It is applied to the IG terminal when the ignition switch is on.

Wiring Diagram:

INSPECTION PROCEDURES

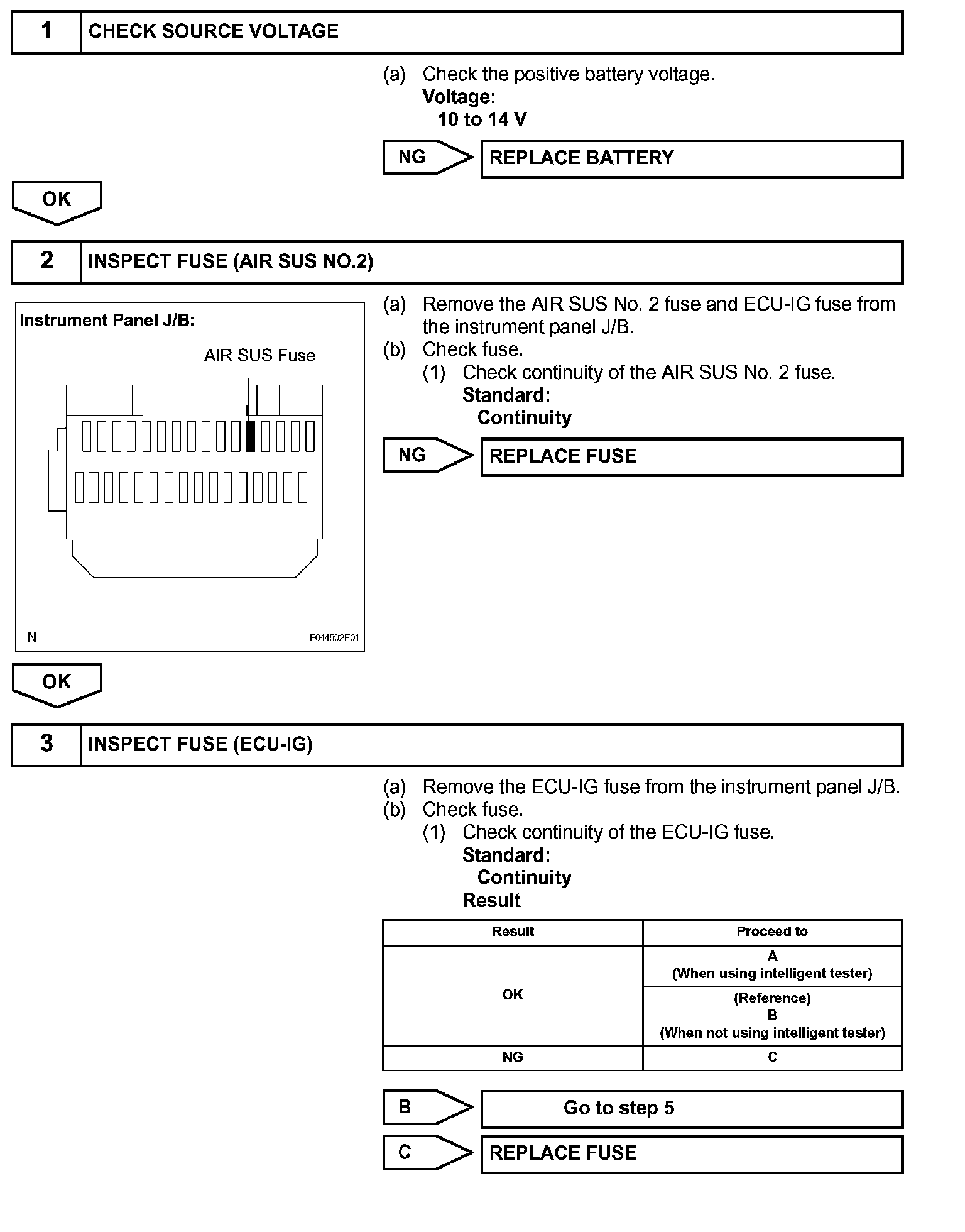

Steps 1-3:

Steps 3(continued)-5:

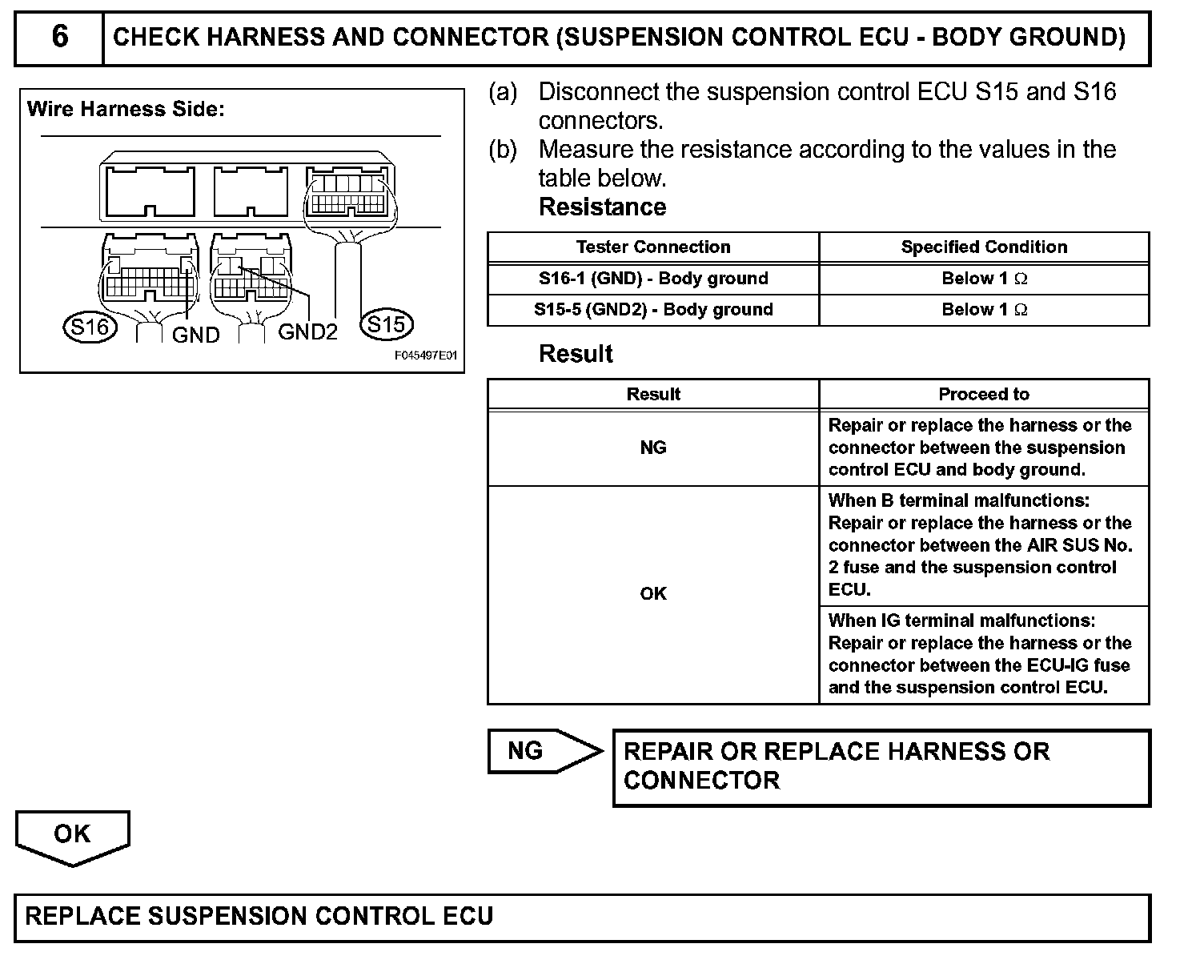

Step 6:
