C1786

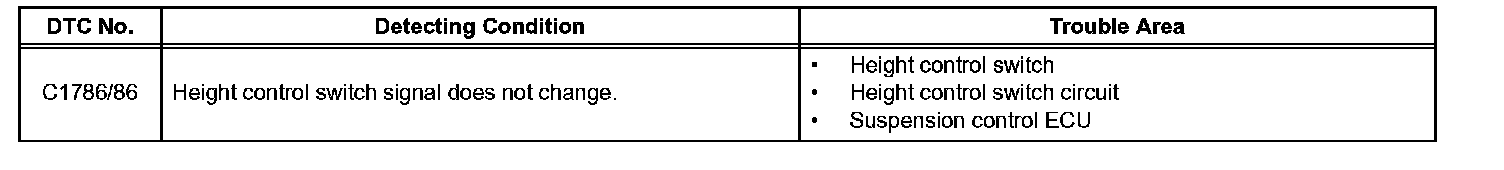

DTC C1786/86 Height Control Switch Circuit

DESCRIPTION





By controlling the height control switch, the vehicle height can beset 30 mm (1.18 inch) higher in "HI mode" and 15 mm (0.59 inch) lower in "LO mode" than normal vehicle height. Even though the vehicle is operated in normal mode, the vehicle height is set approximately 7.5 mm (0.295 inch) lower than normal vehicle height while driving at high speed.

HINT: Driving in the "HI mode" is only possible when the vehicle's speed is less than 30 km/h (19 mph).

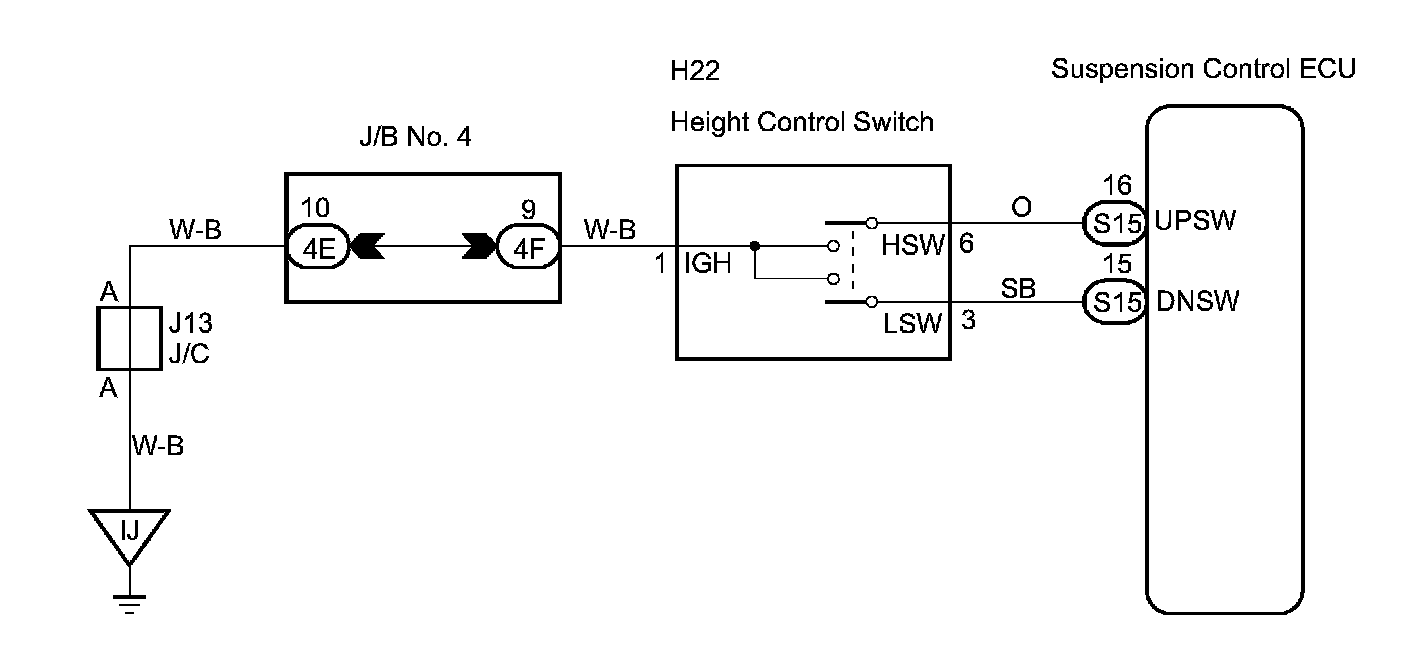

Wiring Diagram:

HINT: Start the inspection from step 1 when using the intelligent tester, and start from step 2 when not using the intelligent tester.

INSPECTION PROCEDURES

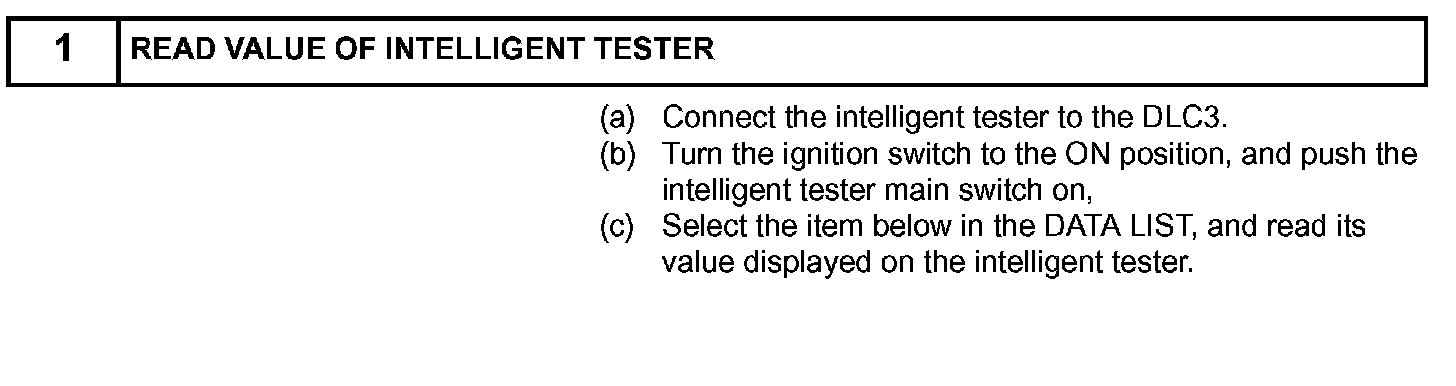

Step 1:

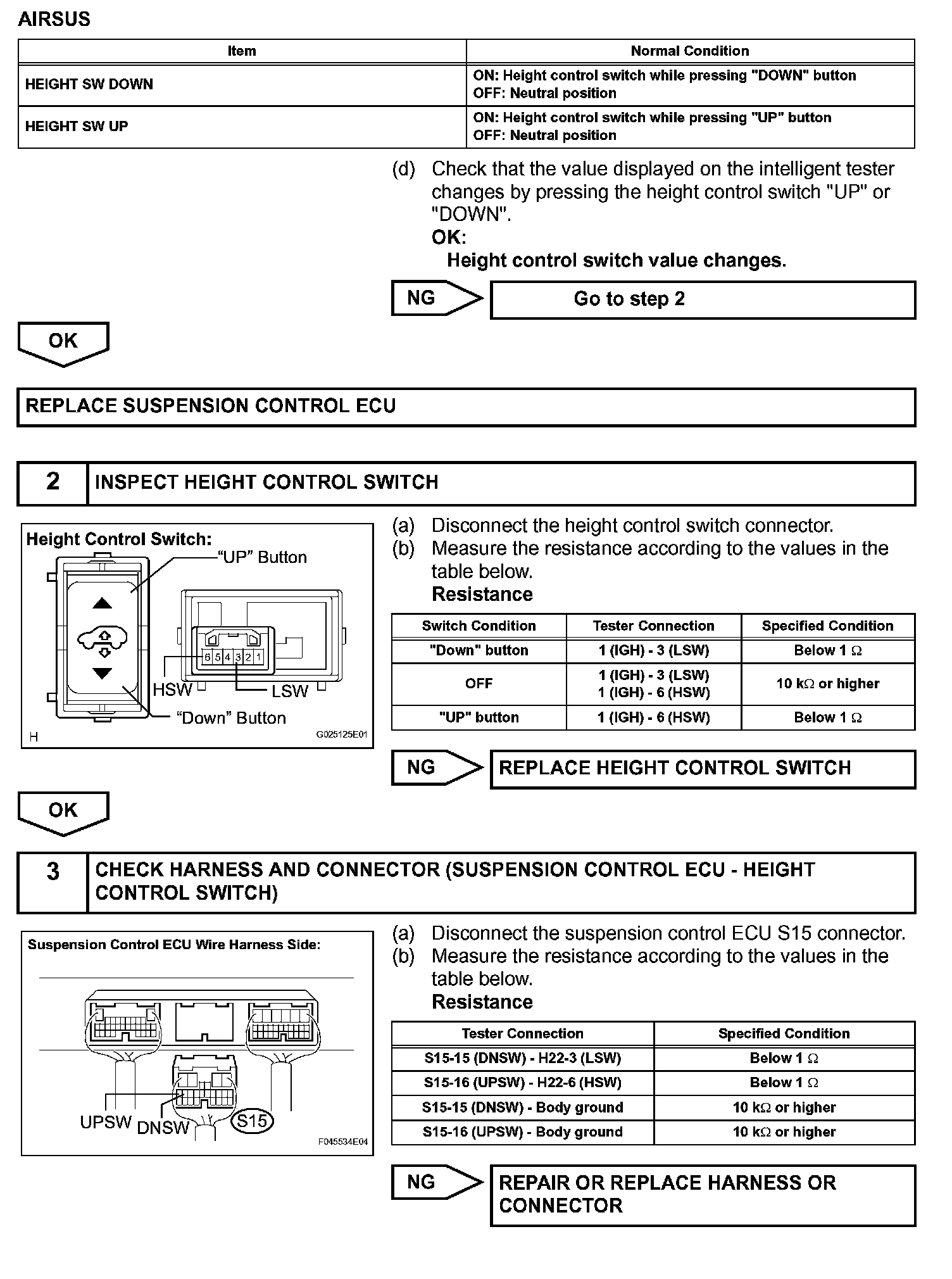

Steps 1(continued)-3:

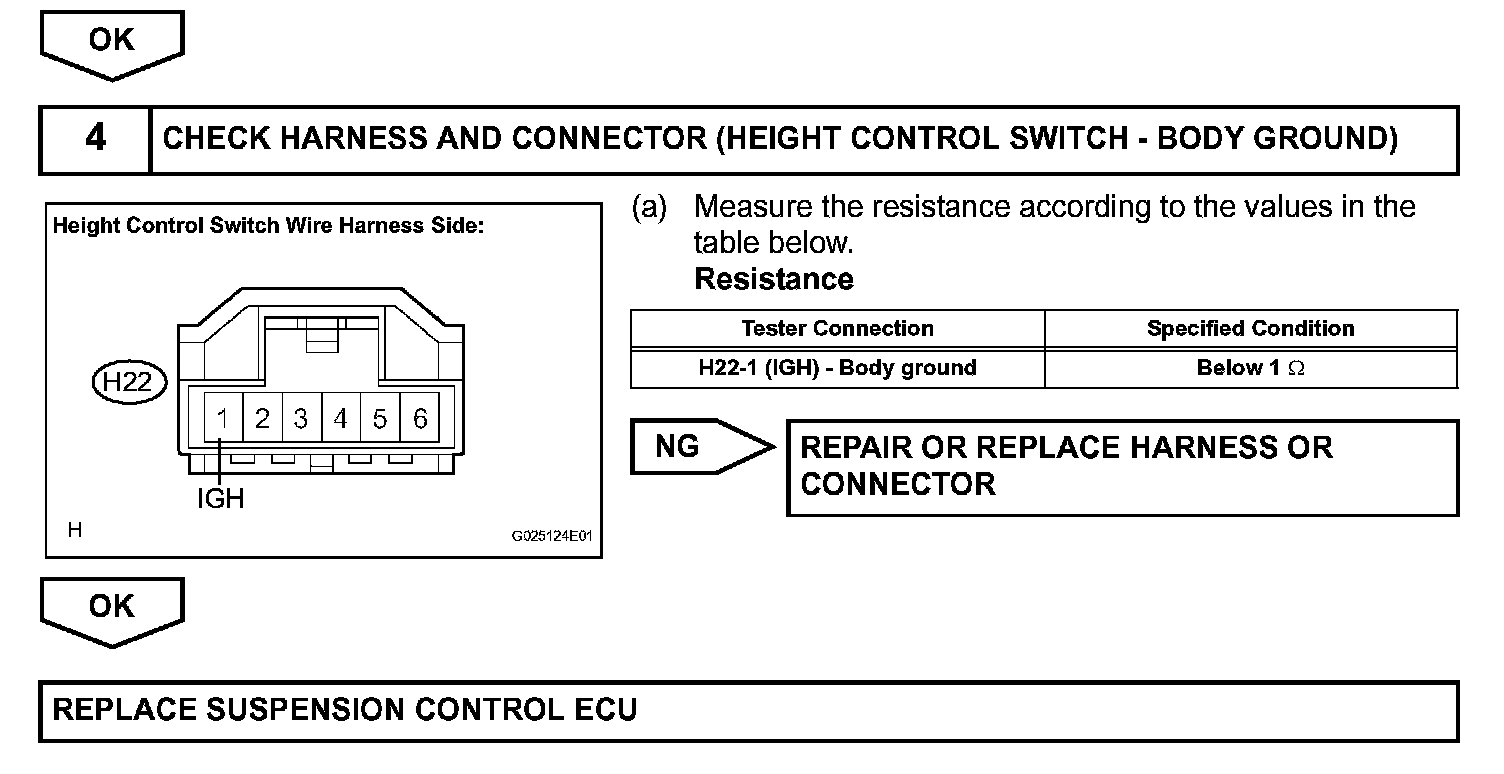

Steps 3(continued)-4:
