C1788

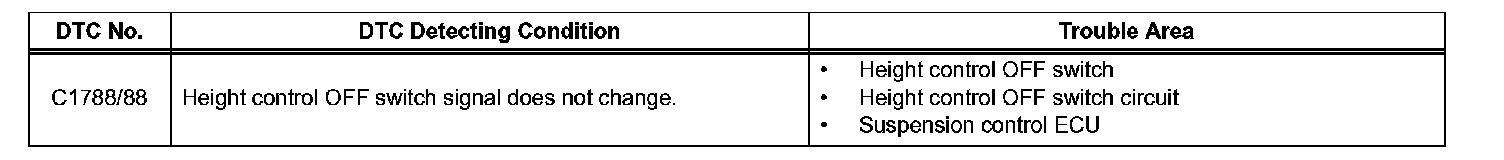

DTC C1788/88 Height Control OFF Switch Circuit

DESCRIPTION





When selecting the height control OFF switch, all the vehicle height controls are suspended. Do not work under the vehicle, when the height control OFF switch does not operate properly. Disallowance of the vehicle height control is recorded even when the minus terminal of the battery is disconnected.

Wiring Diagram:

HINT: Start the inspection from step 1 when using the intelligent tester, and start from step 2 when not using the intelligent d tester.

INSPECTION PROCEDURES

Step 1:

Steps 1(continued)-3:

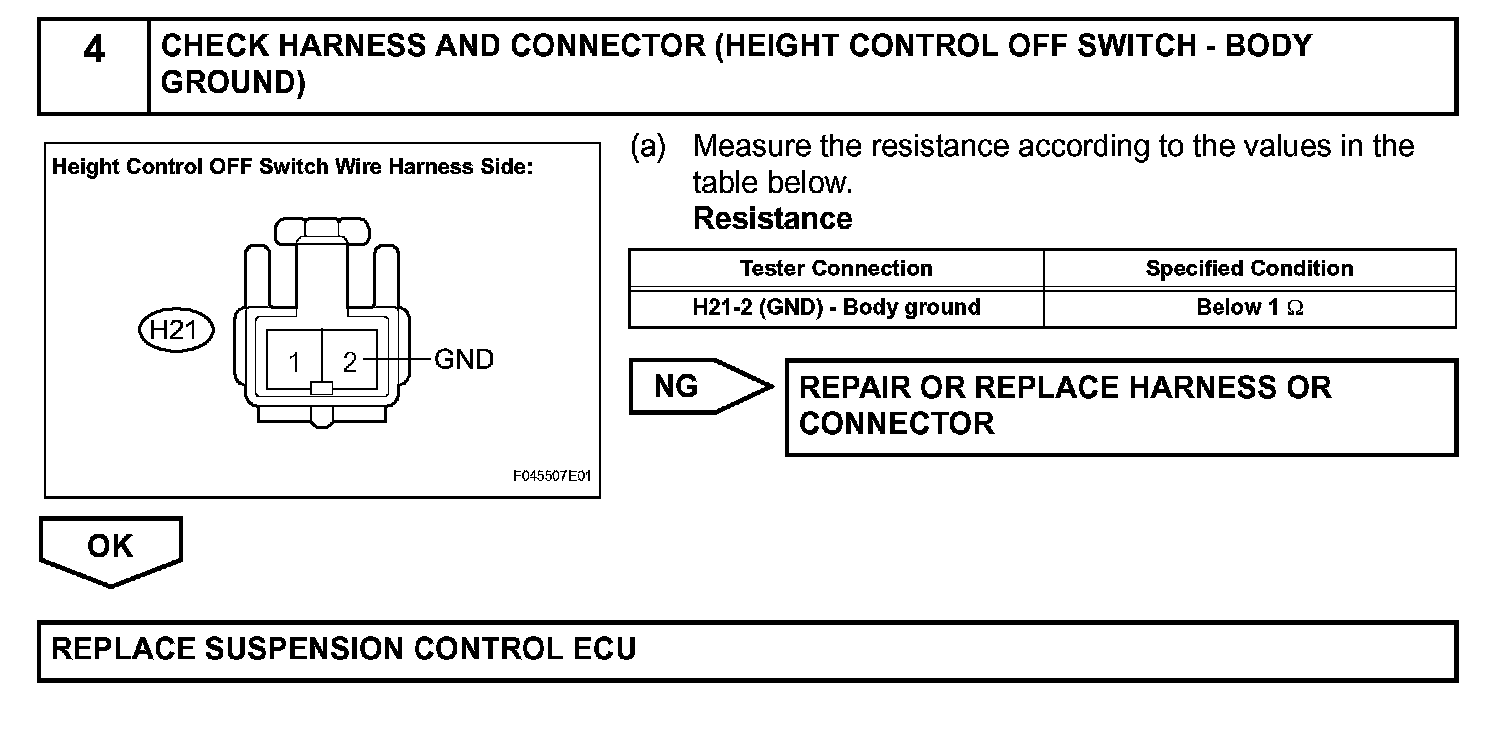

Step 4:
