C1799

DTC C1799/99 Access Mode Switch Circuit

DESCRIPTION





By selecting the access mode switch, the vehicle's height is set approximately 25 mm (0.98 inch) (approximately 30 mm (1.18 inch) for 4WD) lower than normal vehicle height. While driving, vehicle height returns to the previously selected position.

HINT: If the vehicle height mode is set in "HI mode", the access mode can not be operated.

Wiring Diagram:

HINT: Start the inspection from step 1 when using the intelligent tester, and start from step 2 when not using the intelligent tester.

INSPECTION PROCEDURES

Step 1:

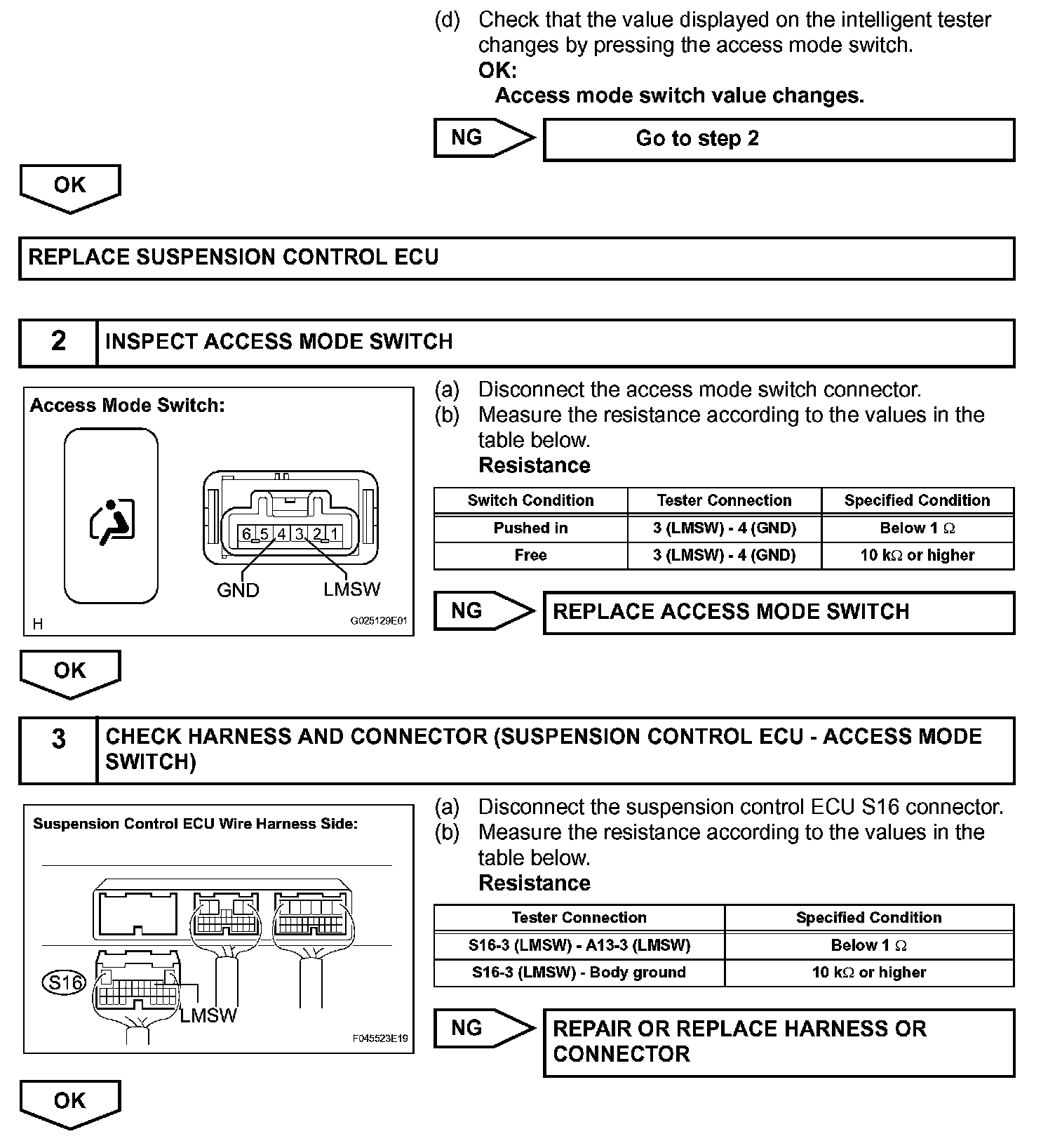

Steps 1(continued)-3:

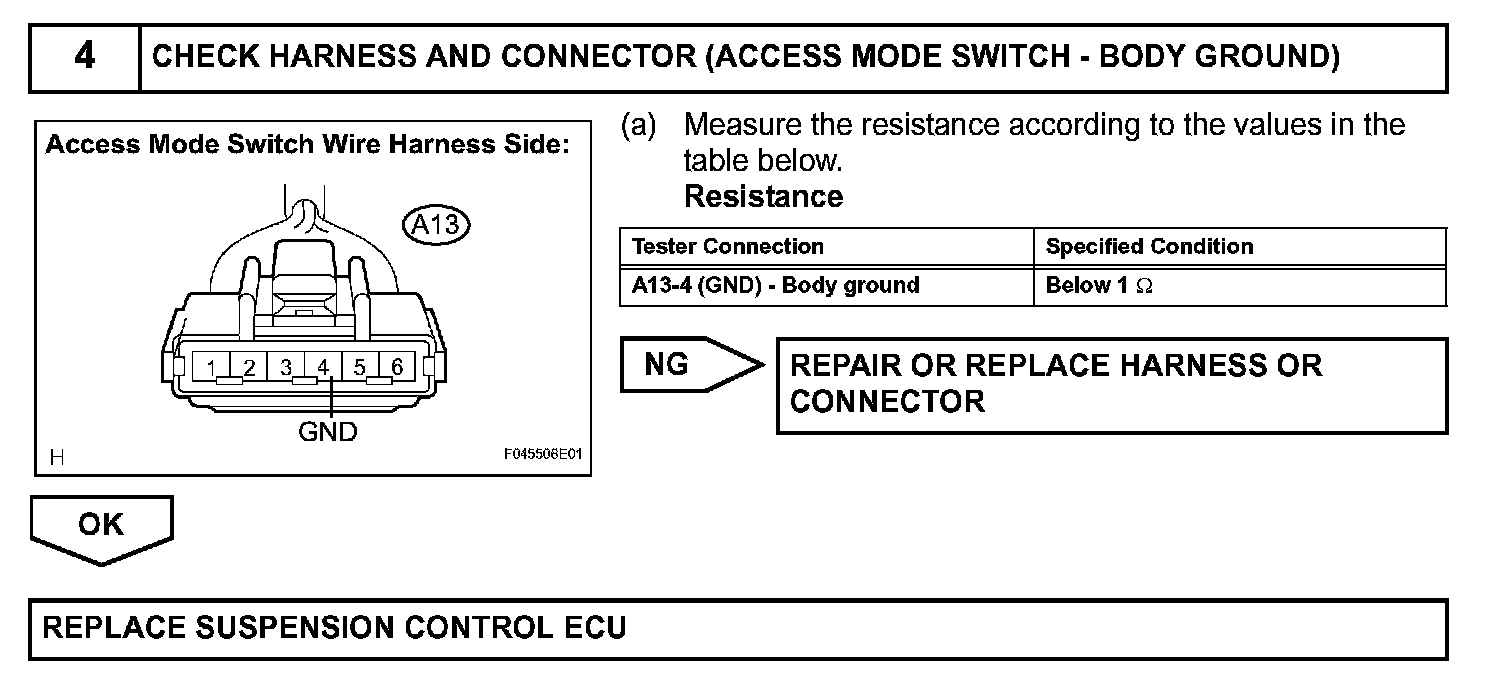

Step 4:
