C2106

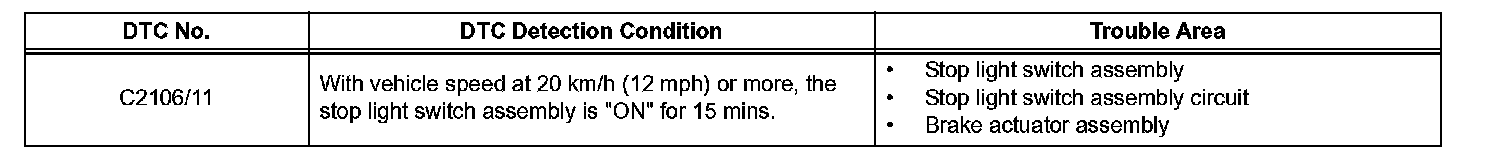

DTC C2106/11 Stop Lamp Switch Constant on Malfunction

DESCRIPTION





When the stop light switch is ON (brake pedal depressed), the skid control ECU suspends the tire pressure warning system.

Wiring Diagram:

INSPECTION PROCEDURES

Step 1:

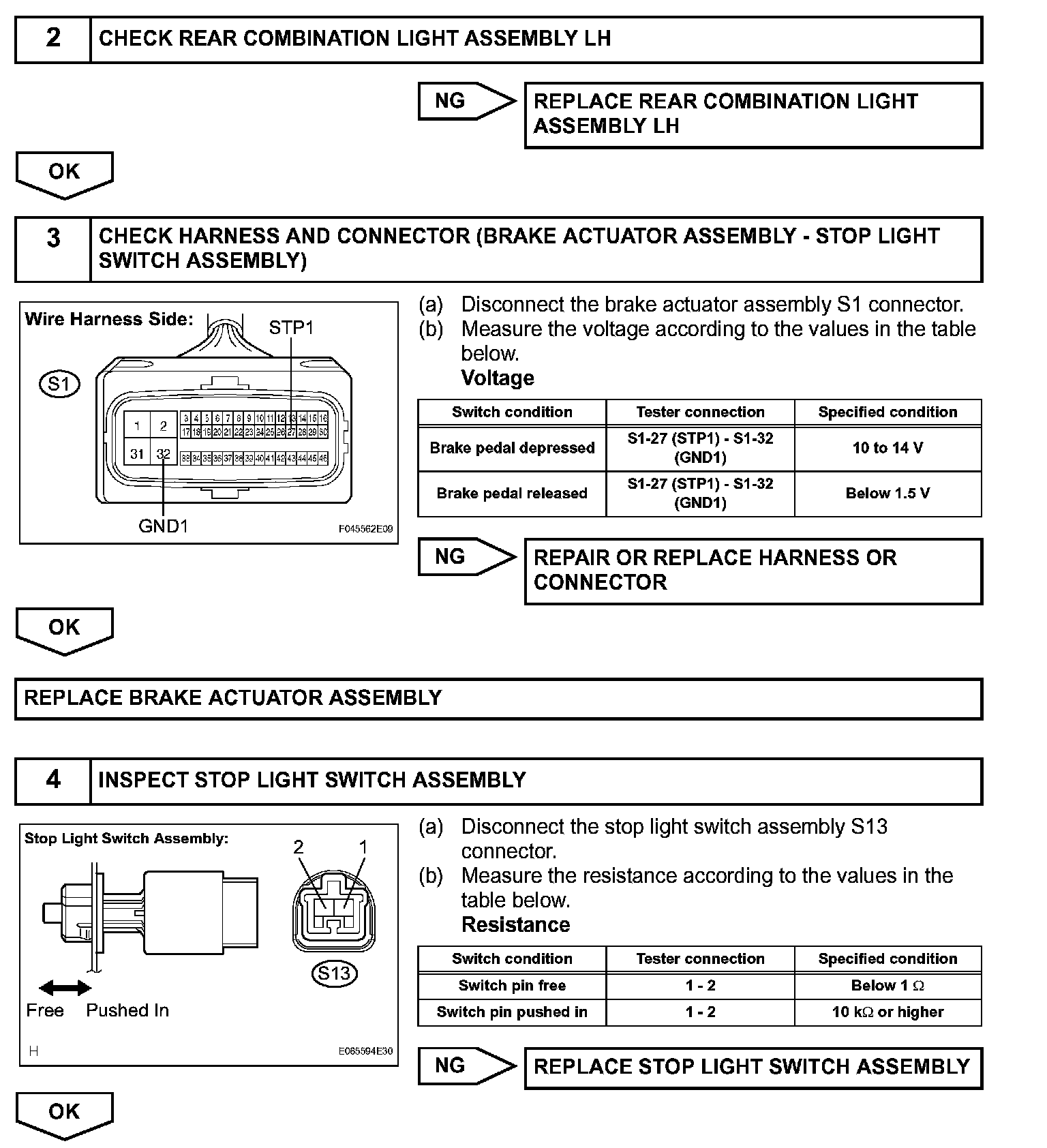

Steps 2-4:

Step 5:
