Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn the "DTC No" in the DTC chart.

B2780-B2798:

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

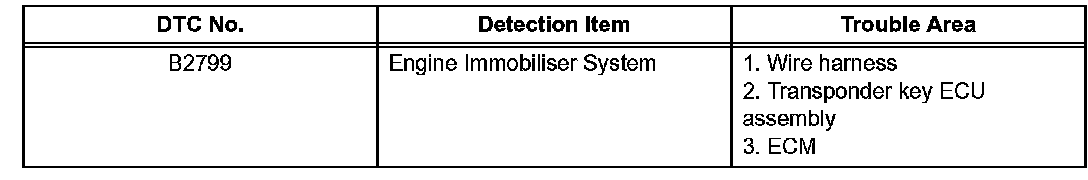

B2799:

2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTE: The DTC for the immobilizer system is specified above. If other codes are output, check the DTC chart for the hybrid control system.
