SFI System

DIAGNOSTIC TROUBLE CODE CHART

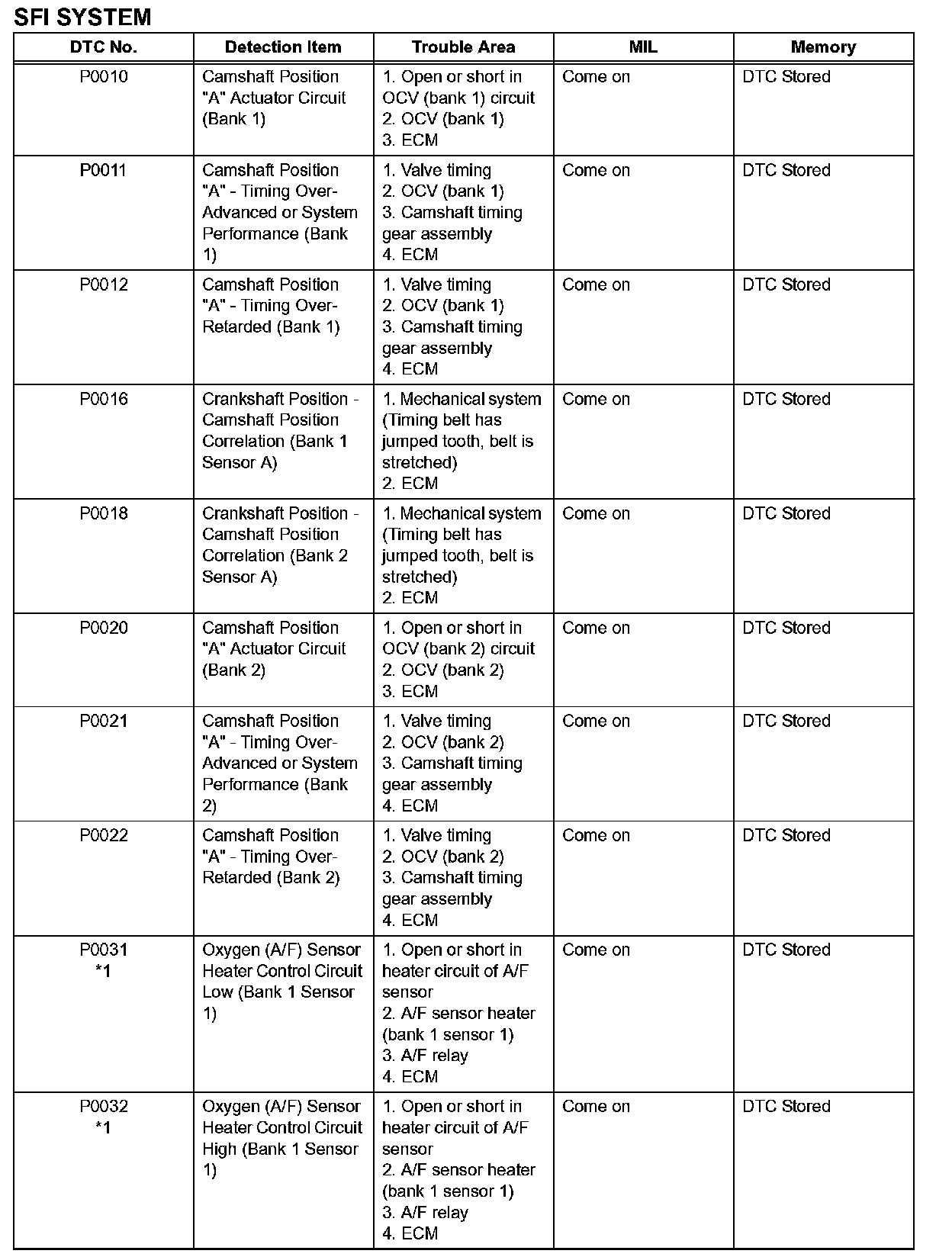

P0010-P0032:

P0037-P0103:

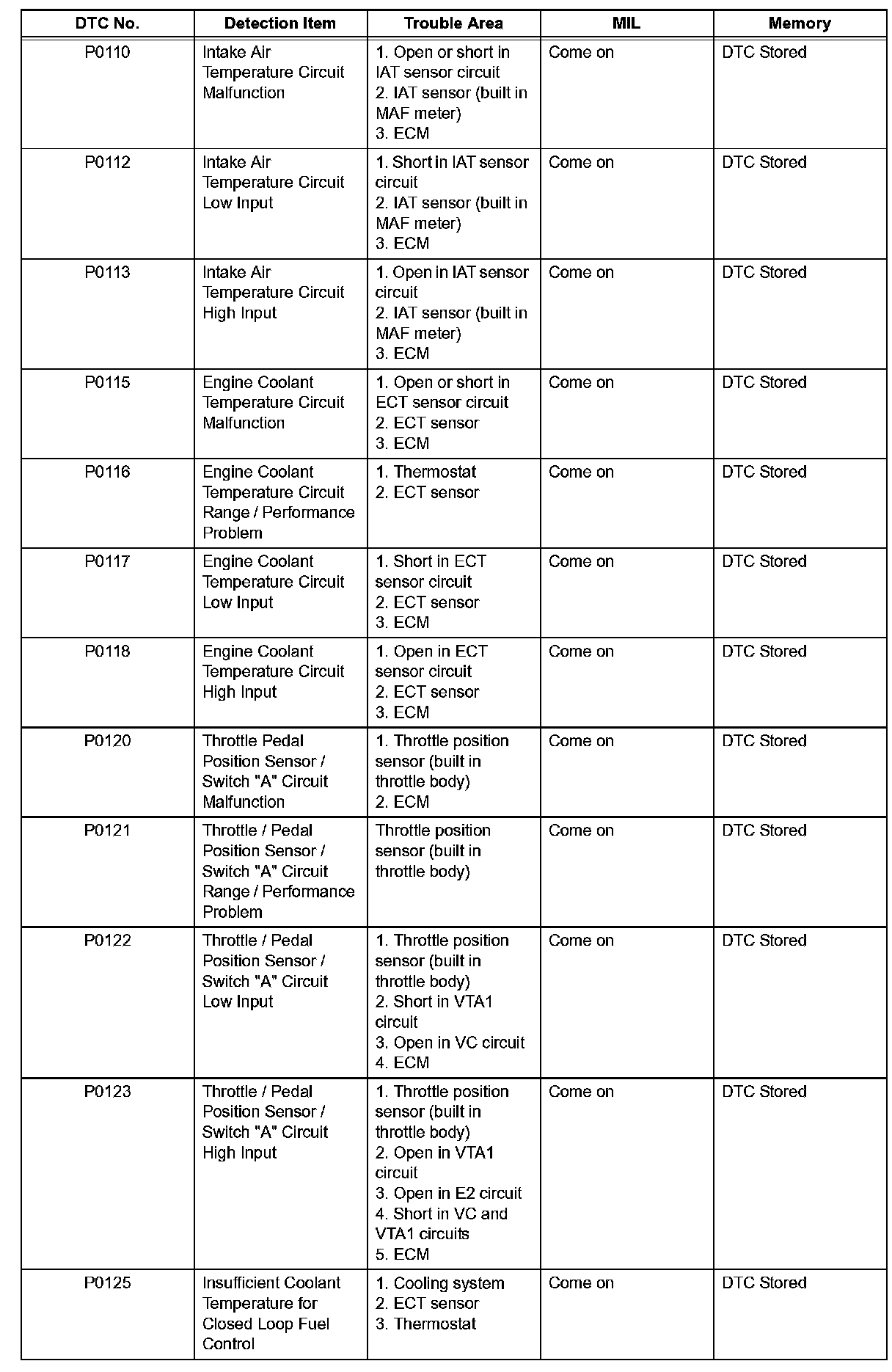

P0110-P0125:

P0128-P0157:

P0158-P0172:

P0174-P0223:

P0300-P0302:

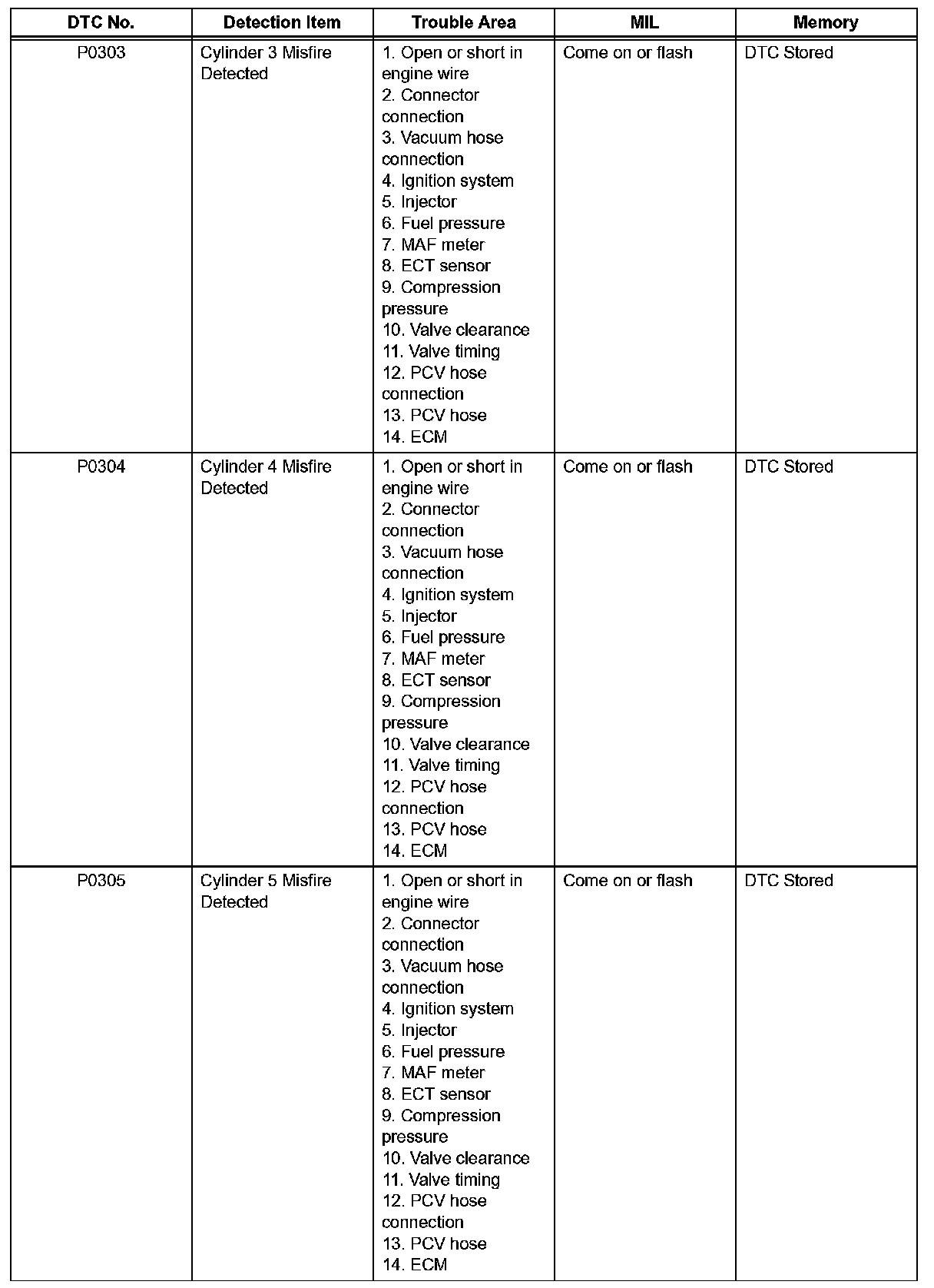

P0303-P0305:

P0306-P0340:

P0341-P0354:

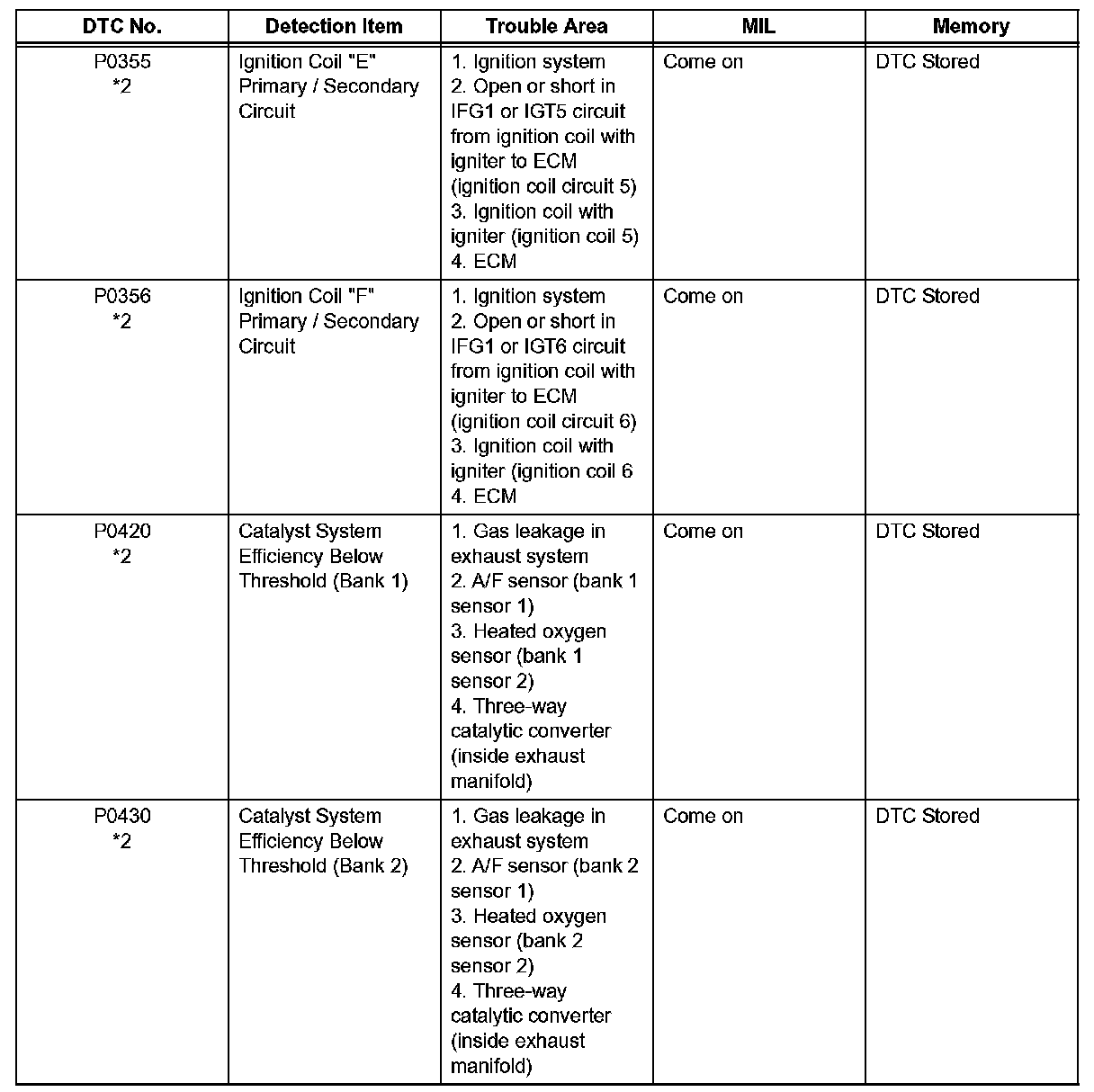

P0355-P0430:

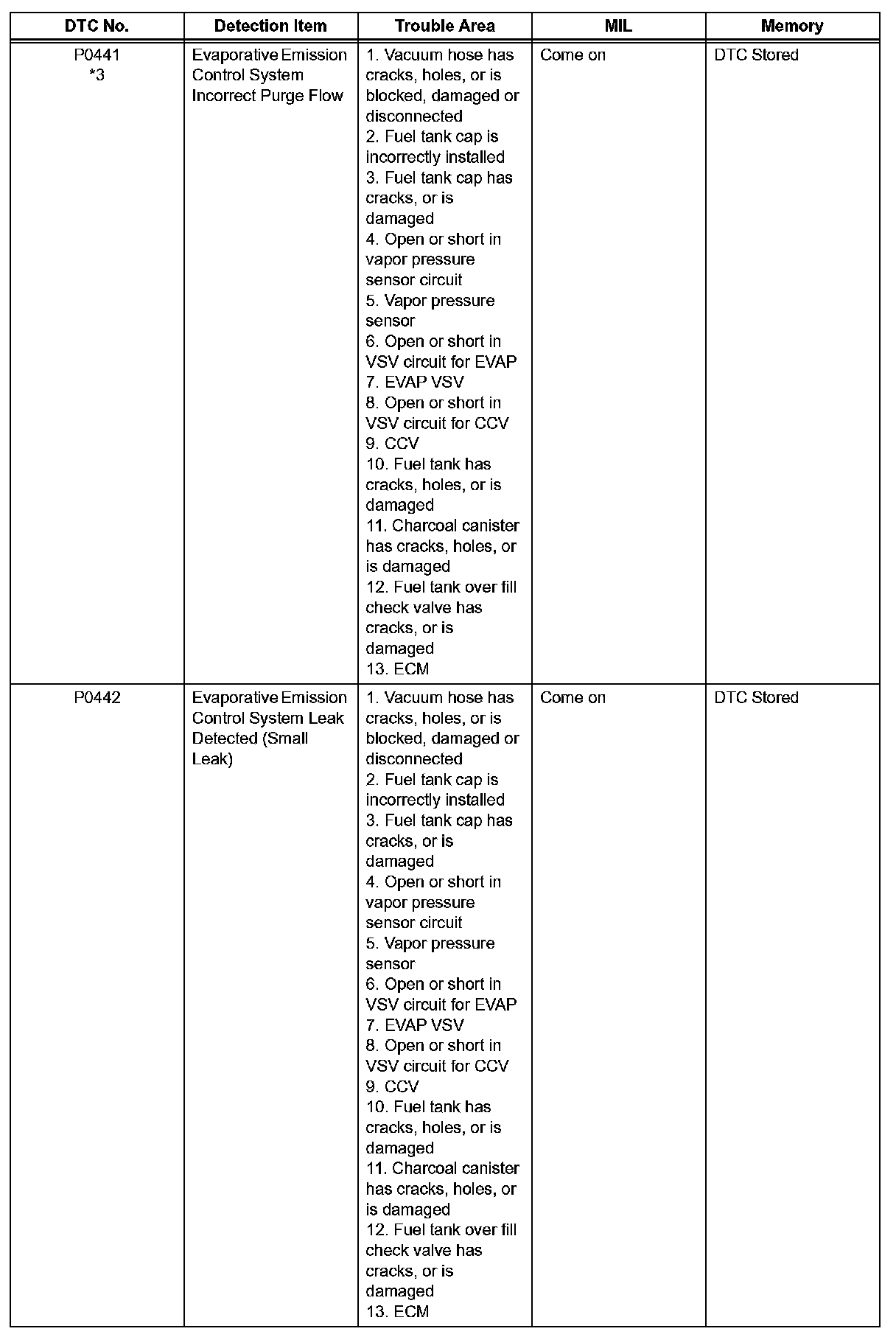

P0441-P0442:

P0446-P0453:

P0455-P0500:

P0503-P2111:

P2112-P2138:

P2195-P2198:

P2238-P2252:

P2253-P2A00:

P2A03:

HINT: Parameters listed in the chart may be different from your readings depending on the type of instruments and other factors.

If any DTCs are displayed during check mode, check the circuit for the DTCs listed in the table. For details of each DTC, refer to the respective "DTC No." in the DTC chart.
