Trip Computer: Testing and Inspection

ODO/TRIP Switch Malfunction

Wiring Diagram:

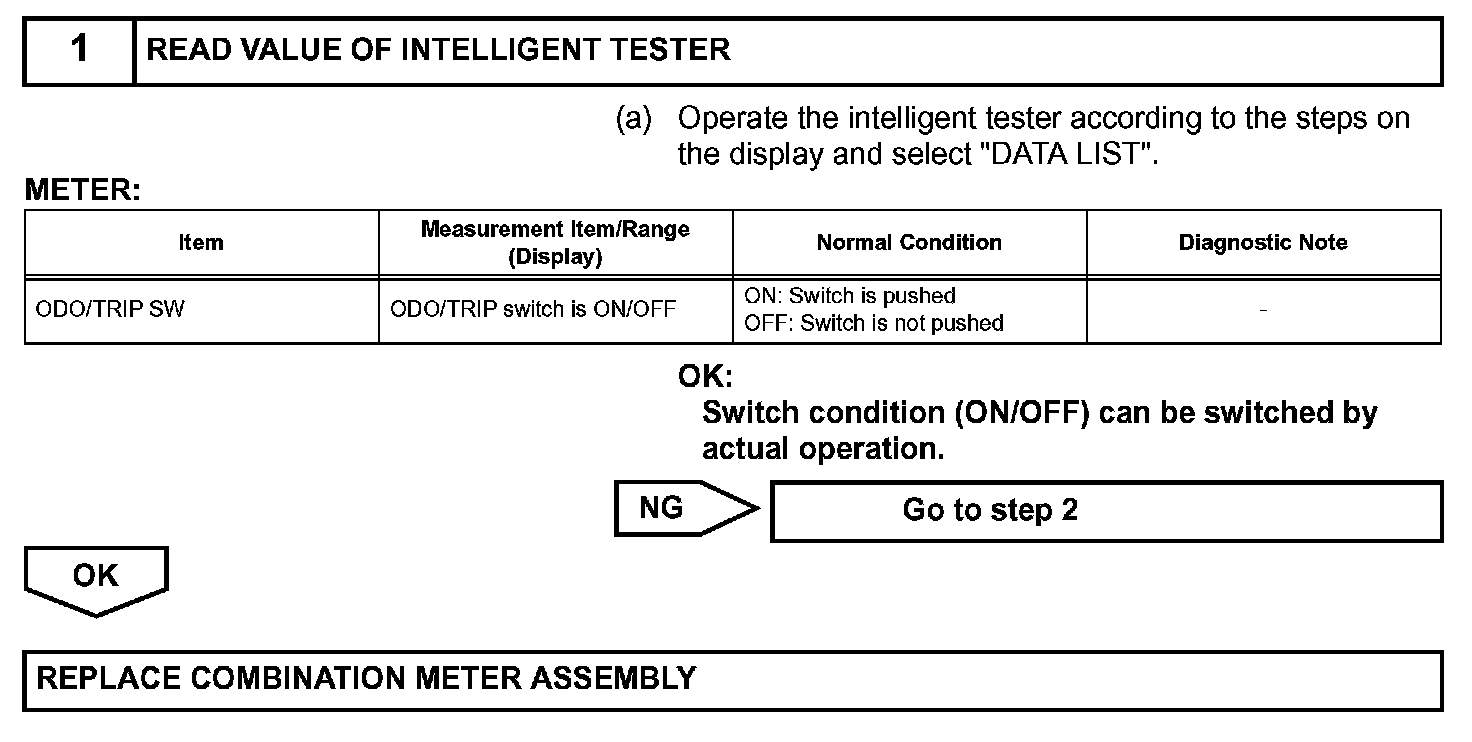

Step 1:

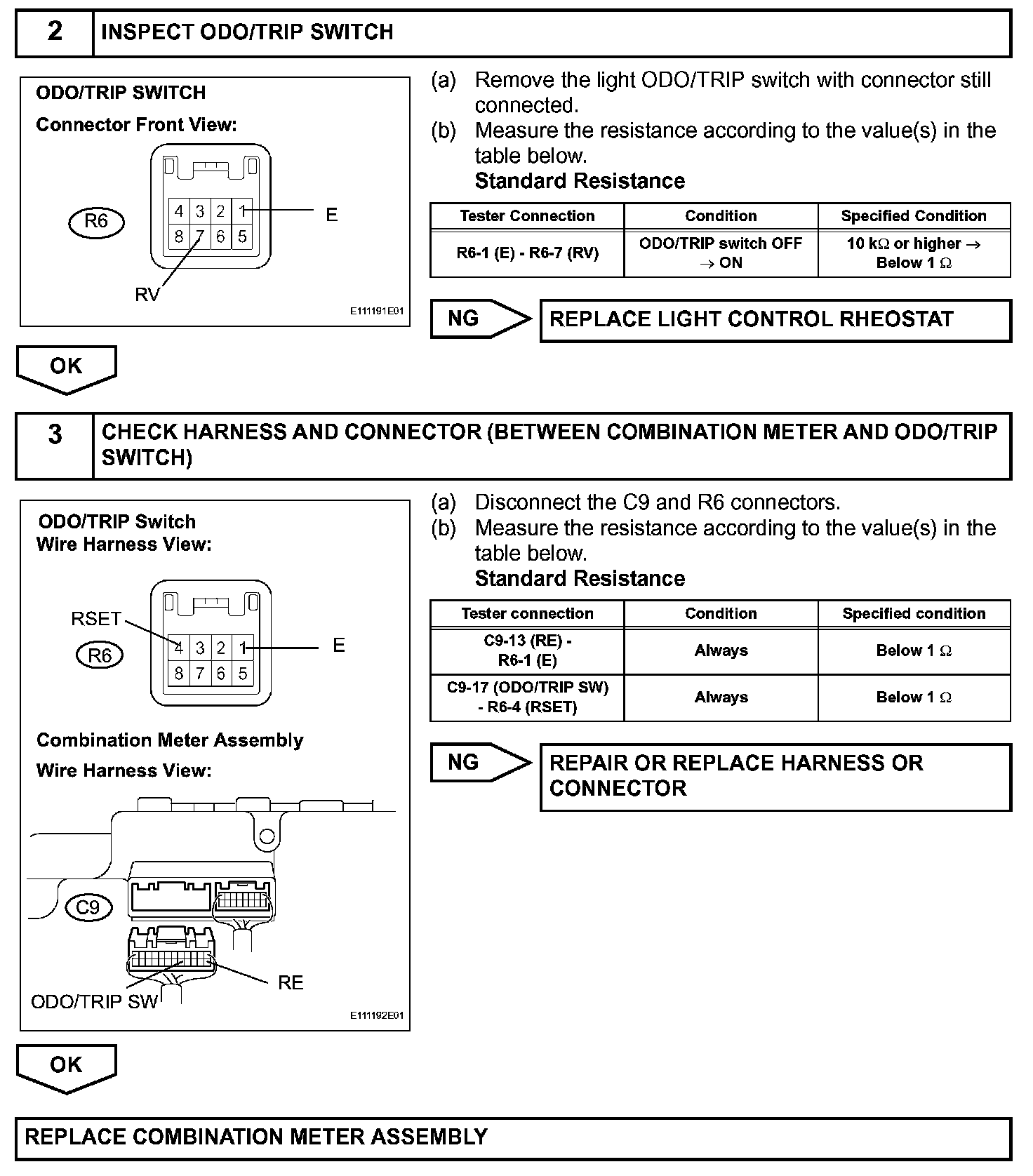

Step 2-3:

INSPECTION PROCEDURE

HINT:
- The whole light control rheostat should be replaced if the ODO/TRIP switch has a malfunction because this part is not identically supplied.
- Start the inspection from step1 when using the intelligent tester and start from the step 4 when not using intelligent tester.
