Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2006
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Position of Parts In Body
Position of Parts In Body
Ba - Hi:

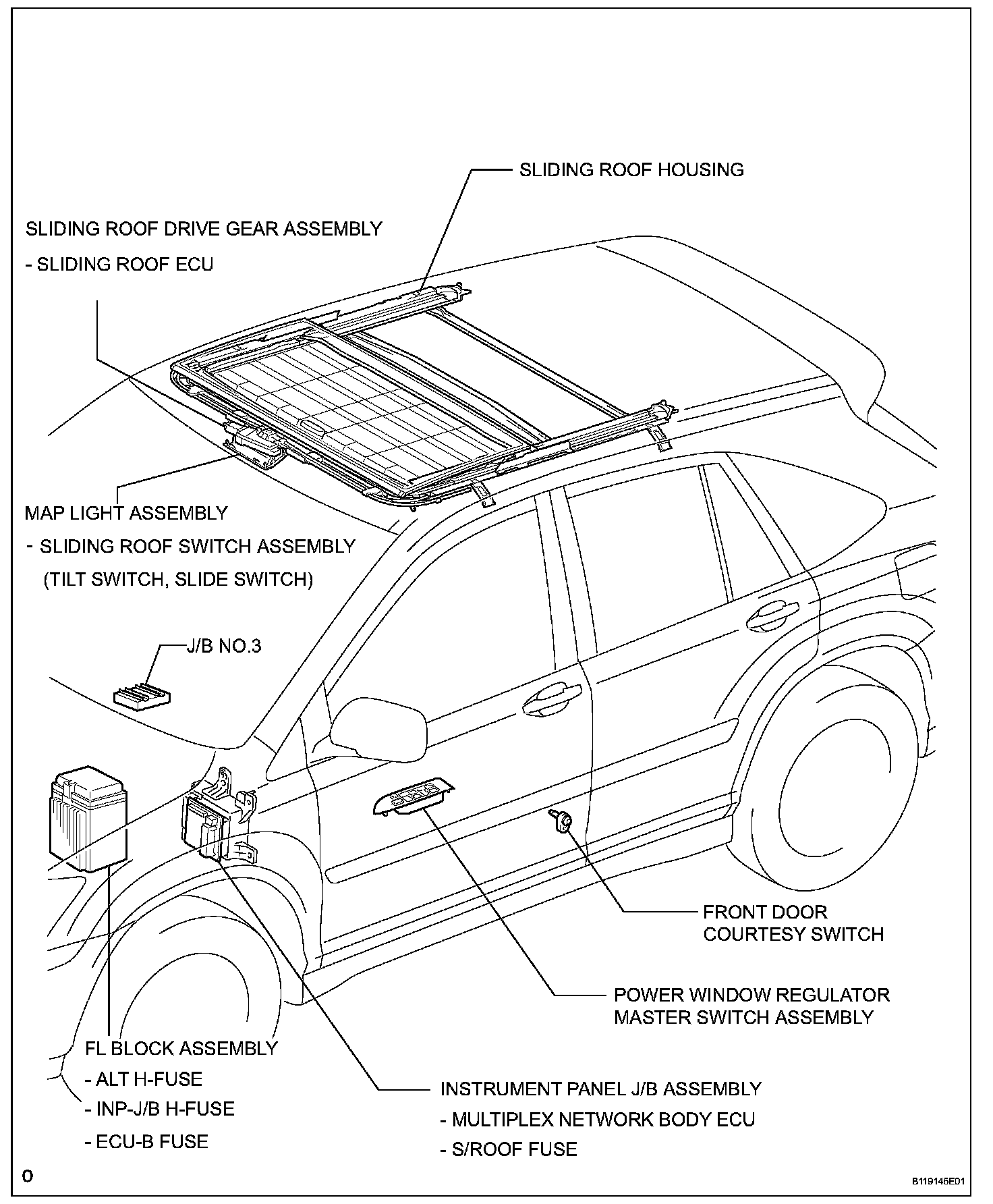

Sliding Roof System (Standard):
Lighting System:
Back Door Closer System:

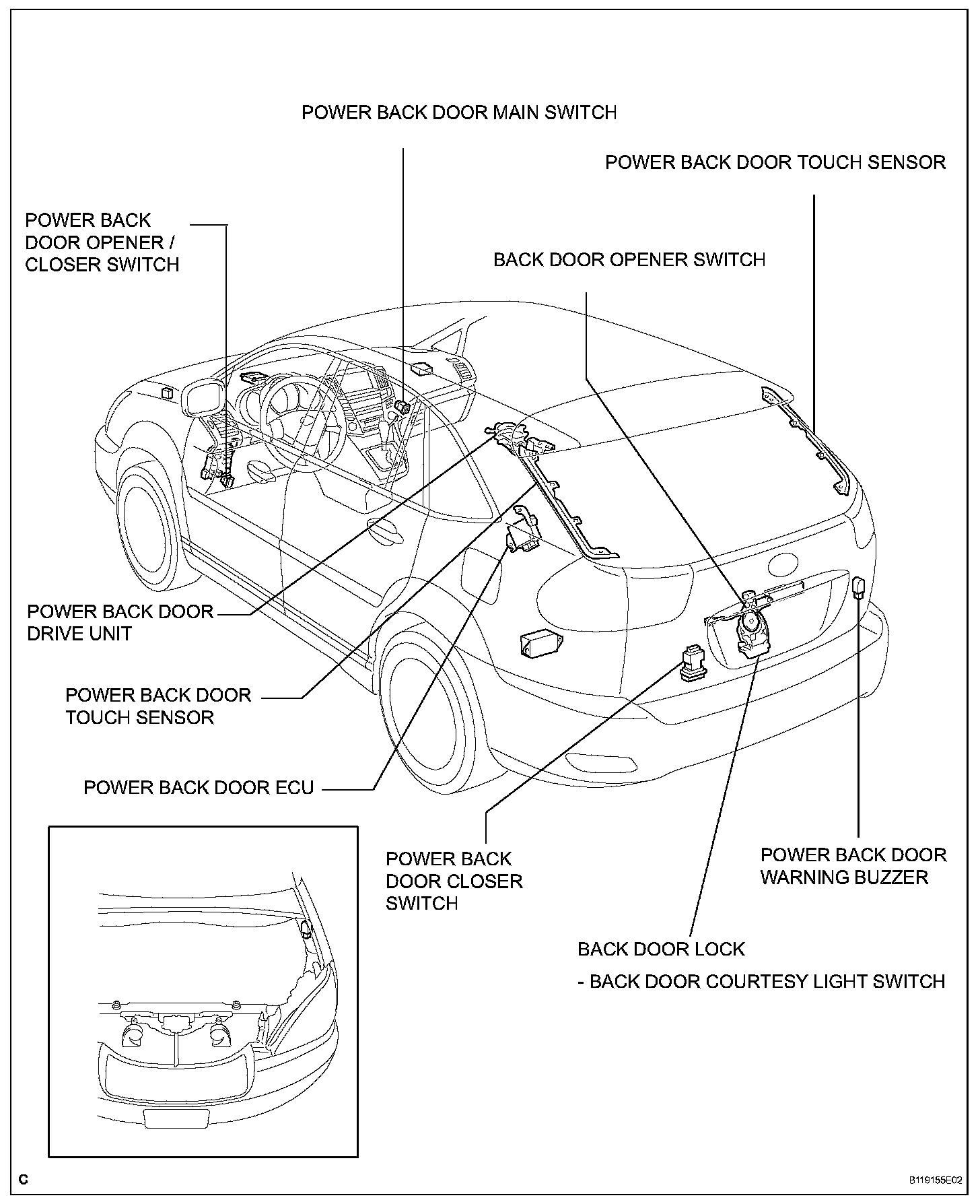

Power Back Door System:

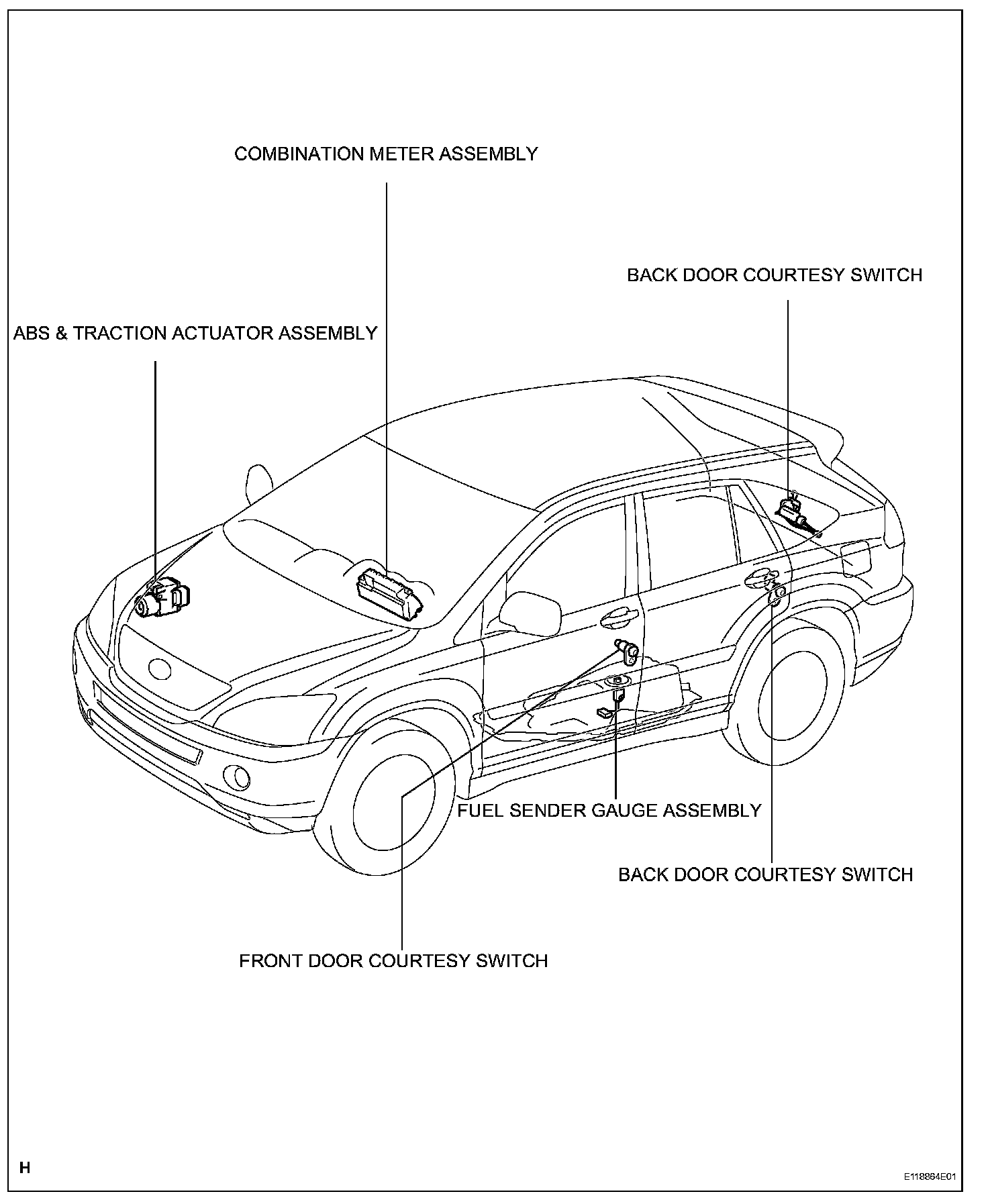

Meter/Gauge System:
