Engine Control Module
Engine Control Module

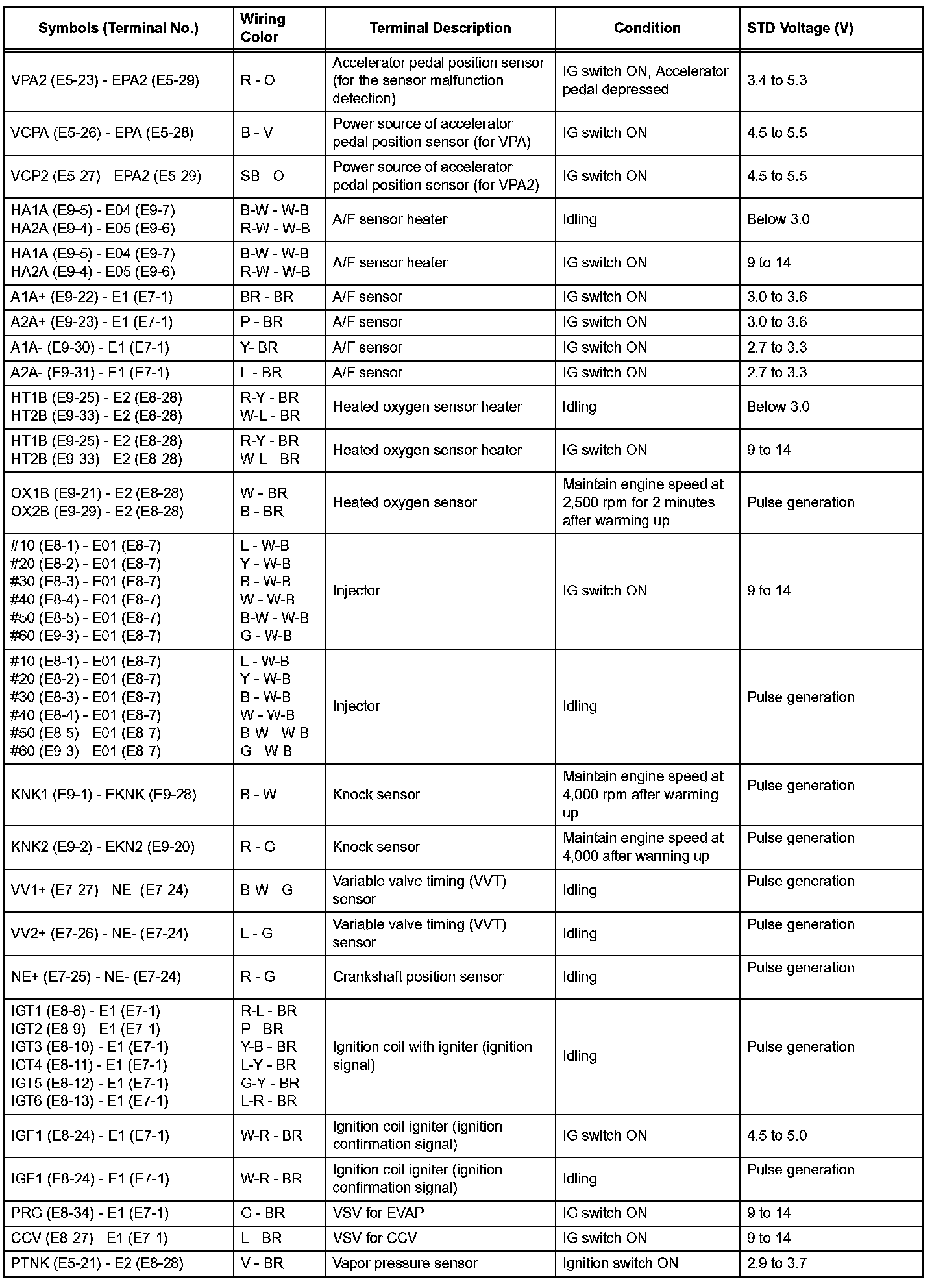

Terminals Of ECM/Pinouts (Part 1):
Terminals Of ECM/Pinouts (Part 2):
Terminals Of ECM/Pinouts (Part 3):
