Suspension Control ( Automatic - Electronic )

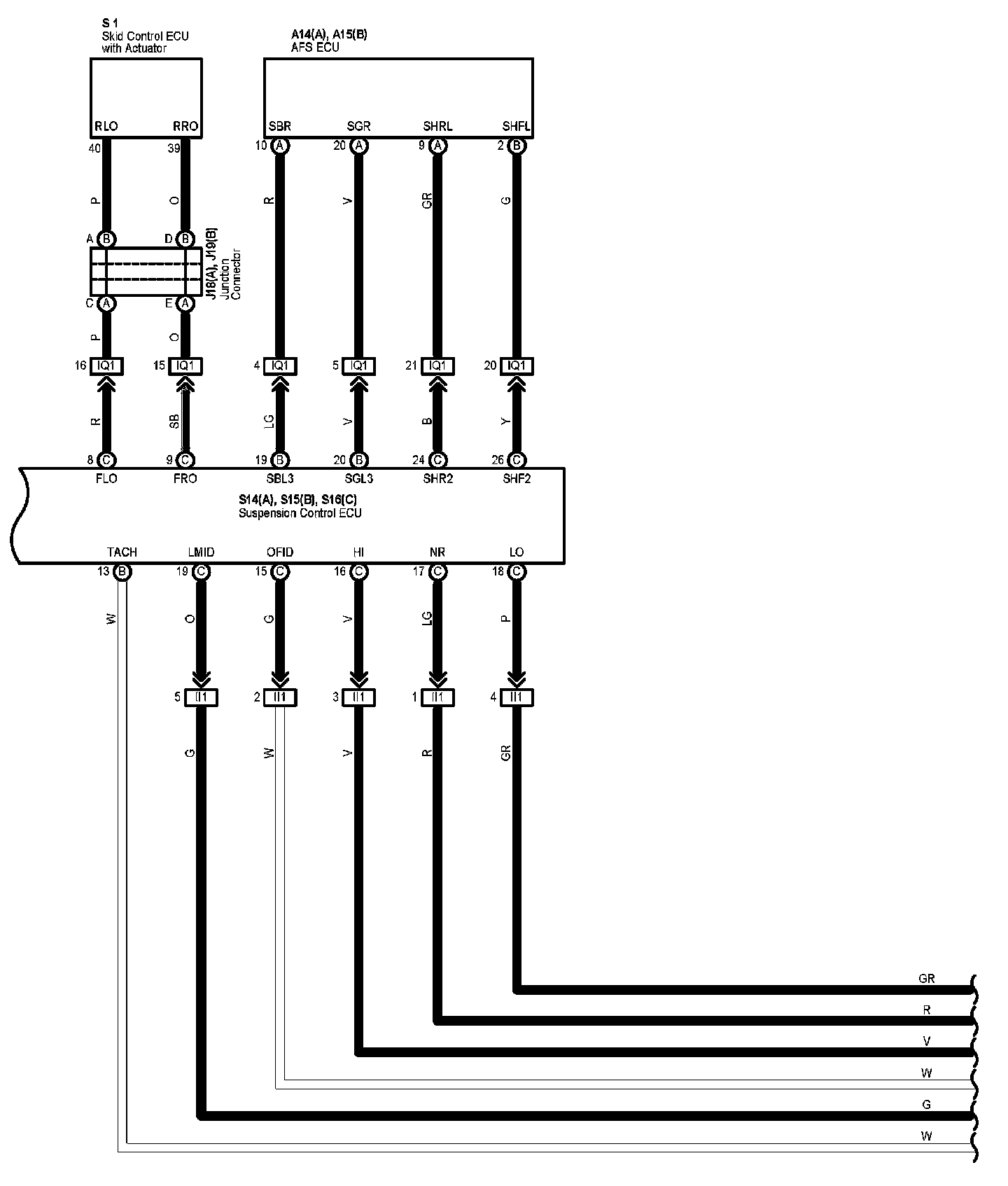

Air Suspension System (Part 1):

Air Suspension System (Part 2):

Air Suspension System (Part 3):

Air Suspension System (Part 4):

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connector referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
