Lexus Truck
>>
2006
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

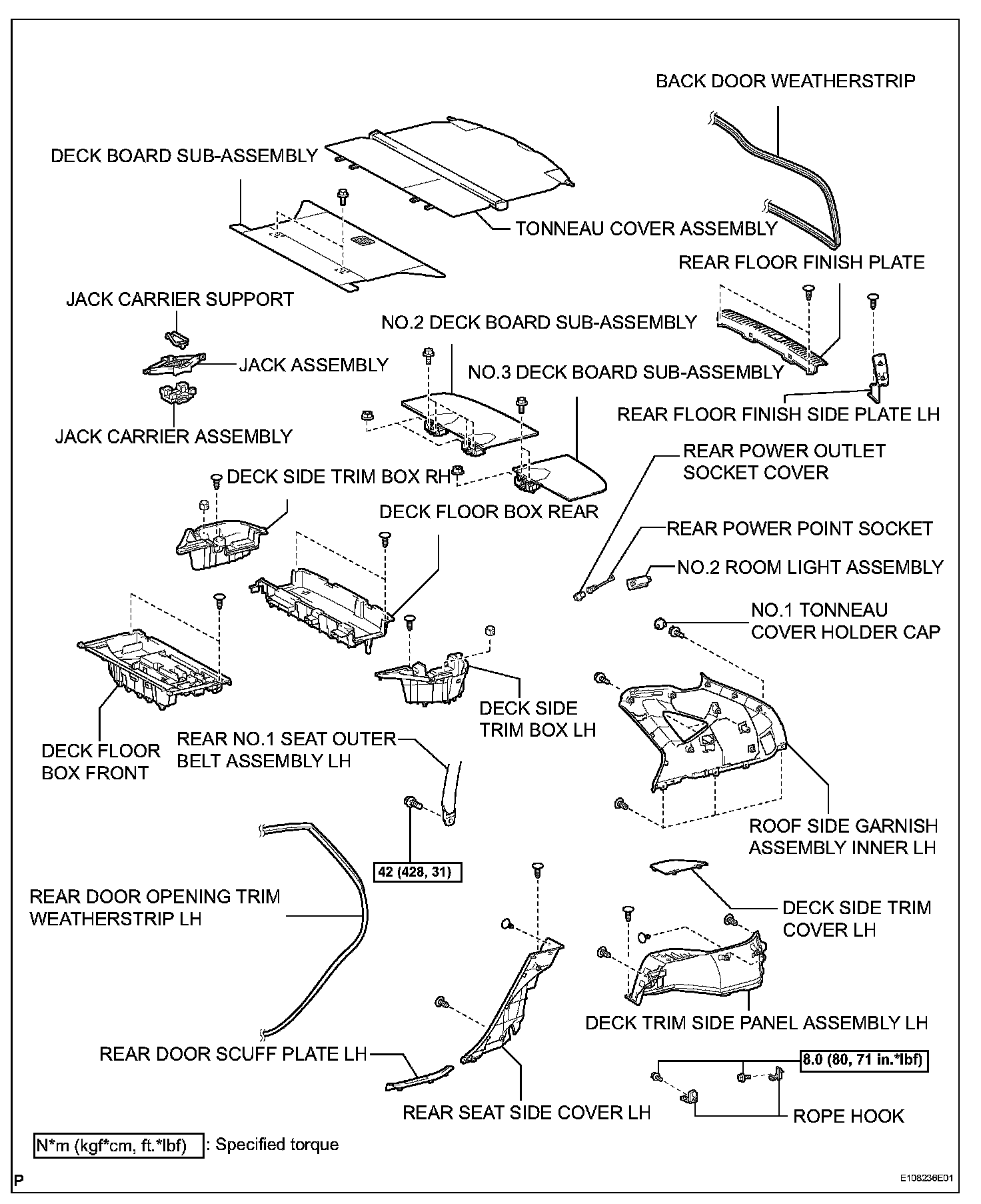

Exploded Views
>>
Auxiliary Power Outlet
Auxiliary Power Outlet
Power Point Socket:
No. 2 Power Point Socket:
Rear Power Point Socket:
