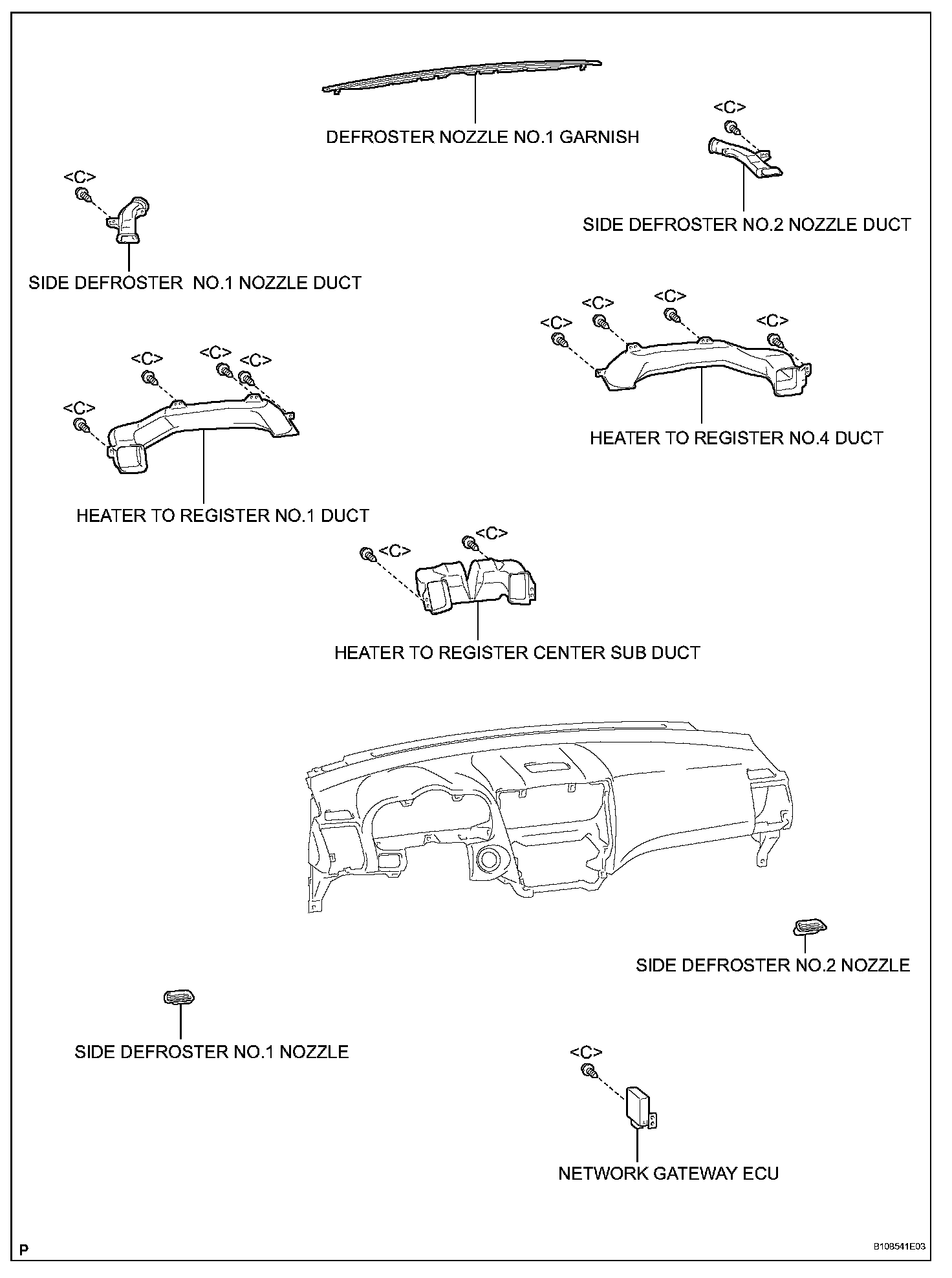

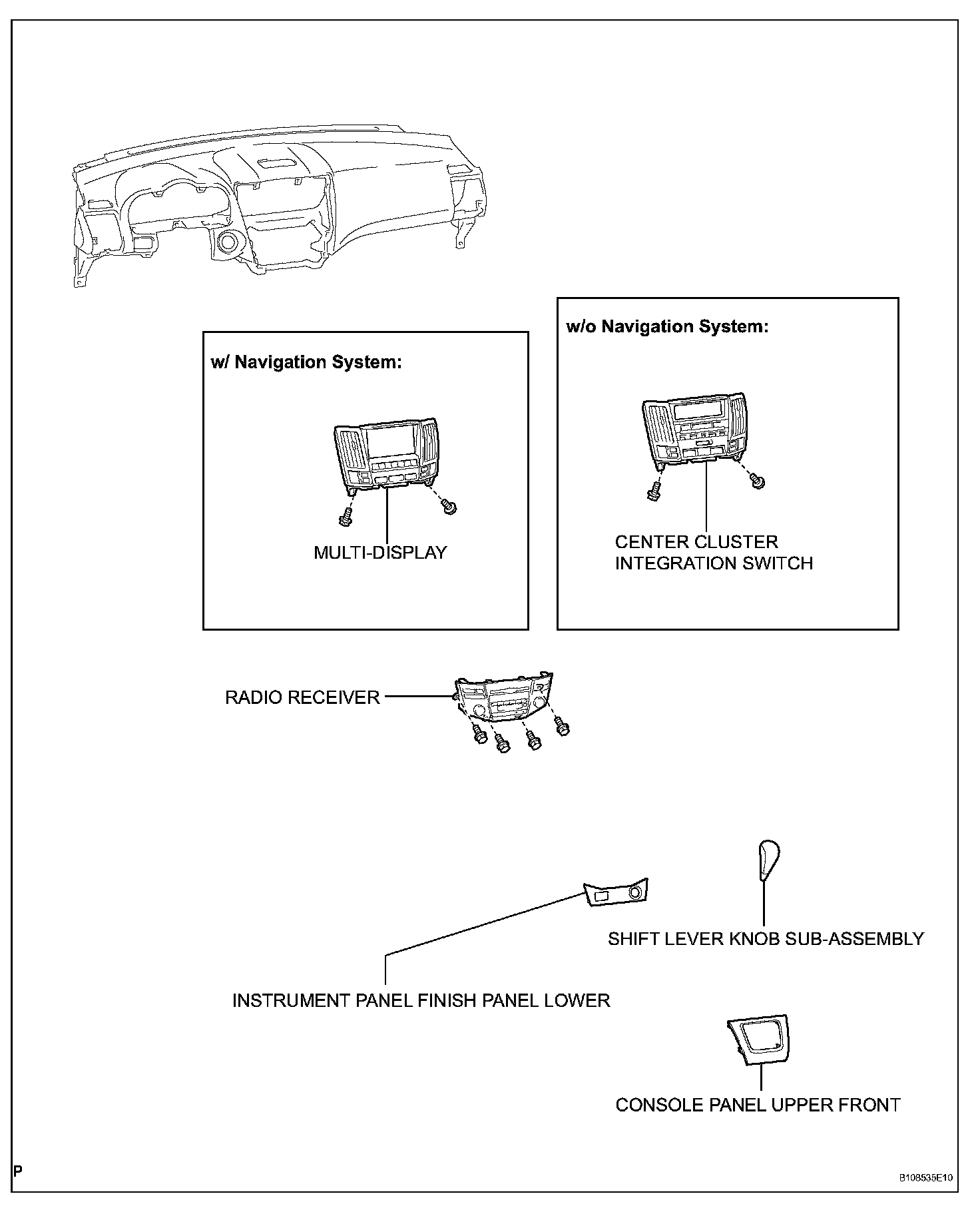

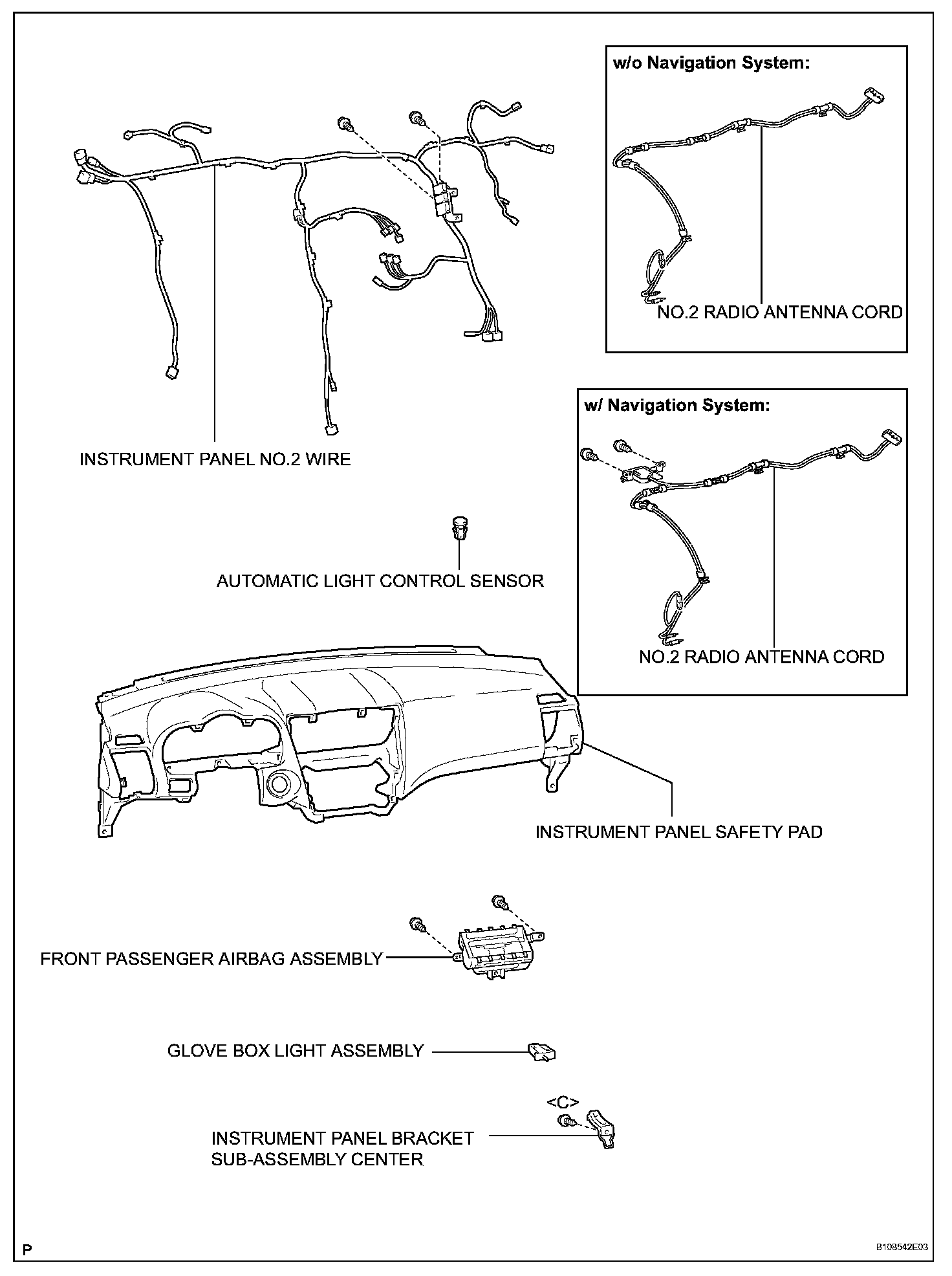

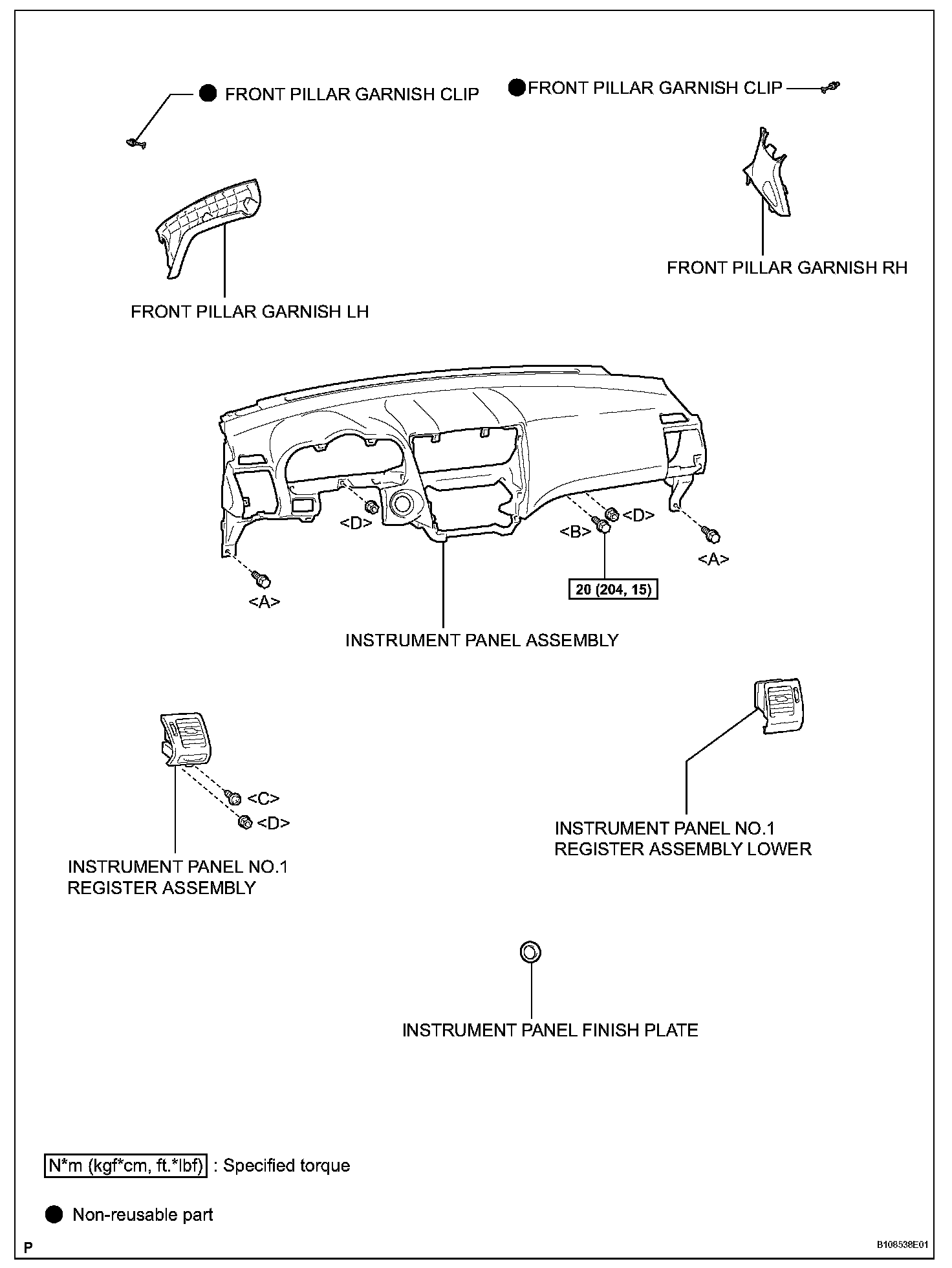

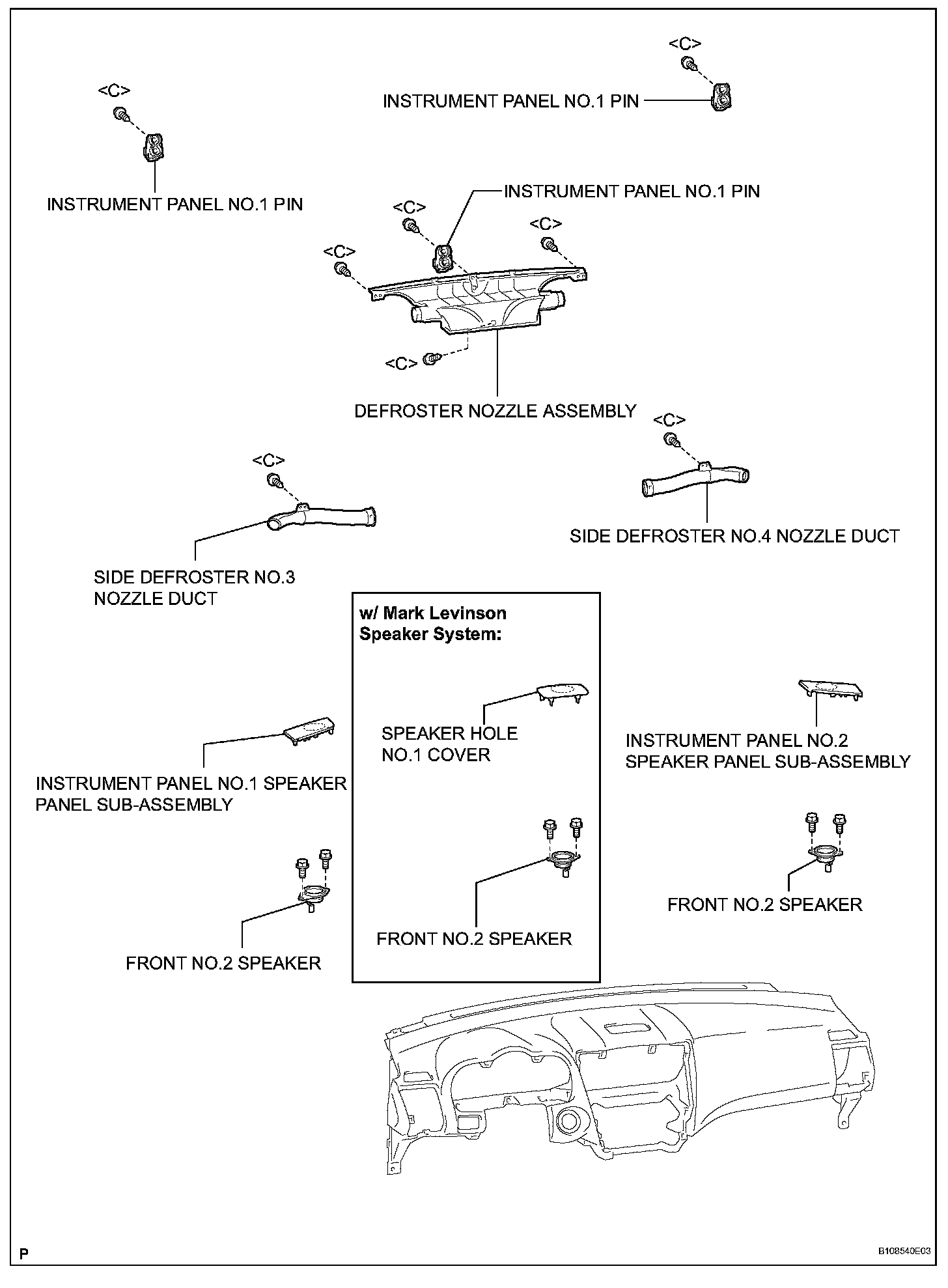

Dashboard / Instrument Panel

Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:
