Seats

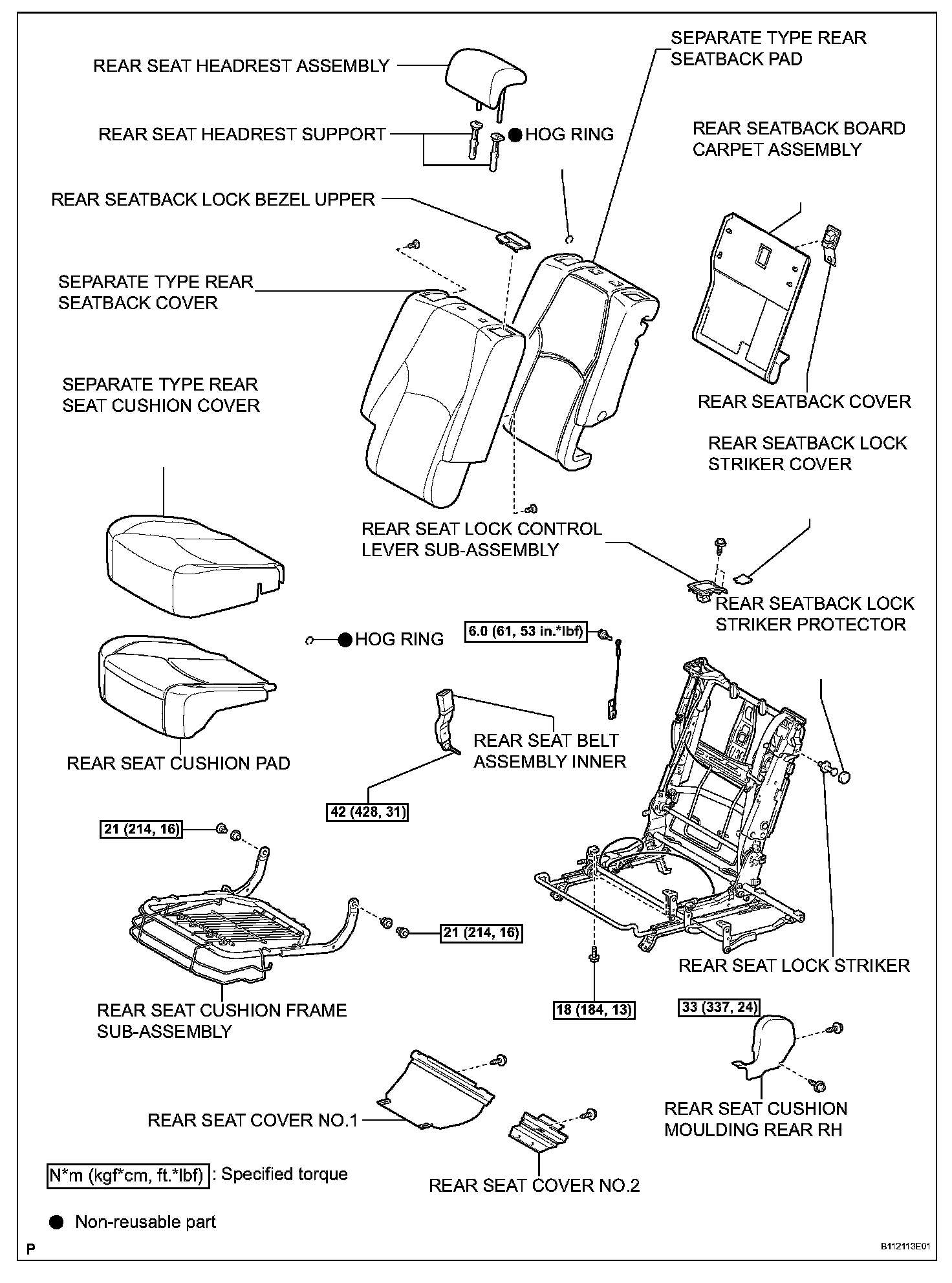

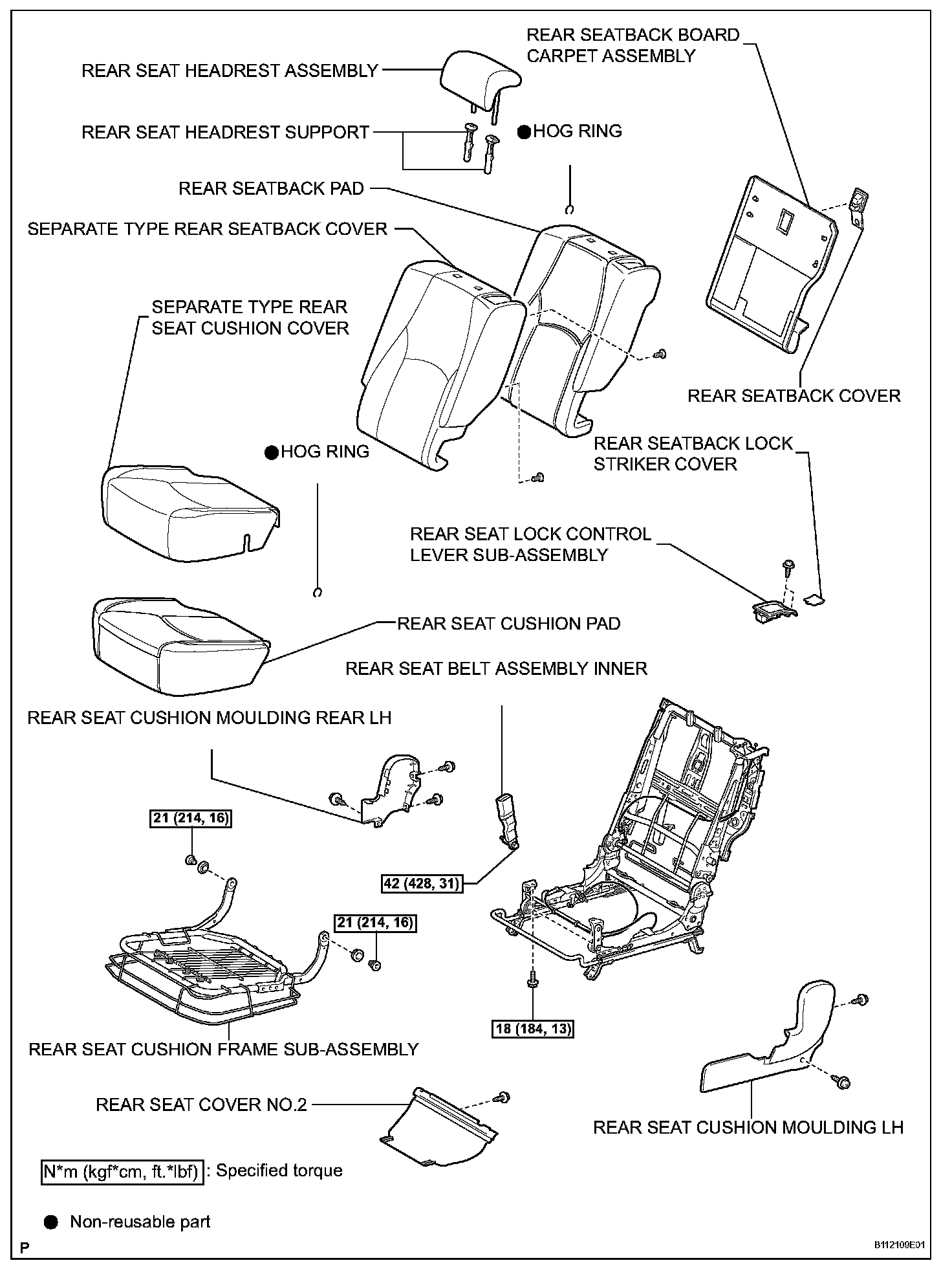

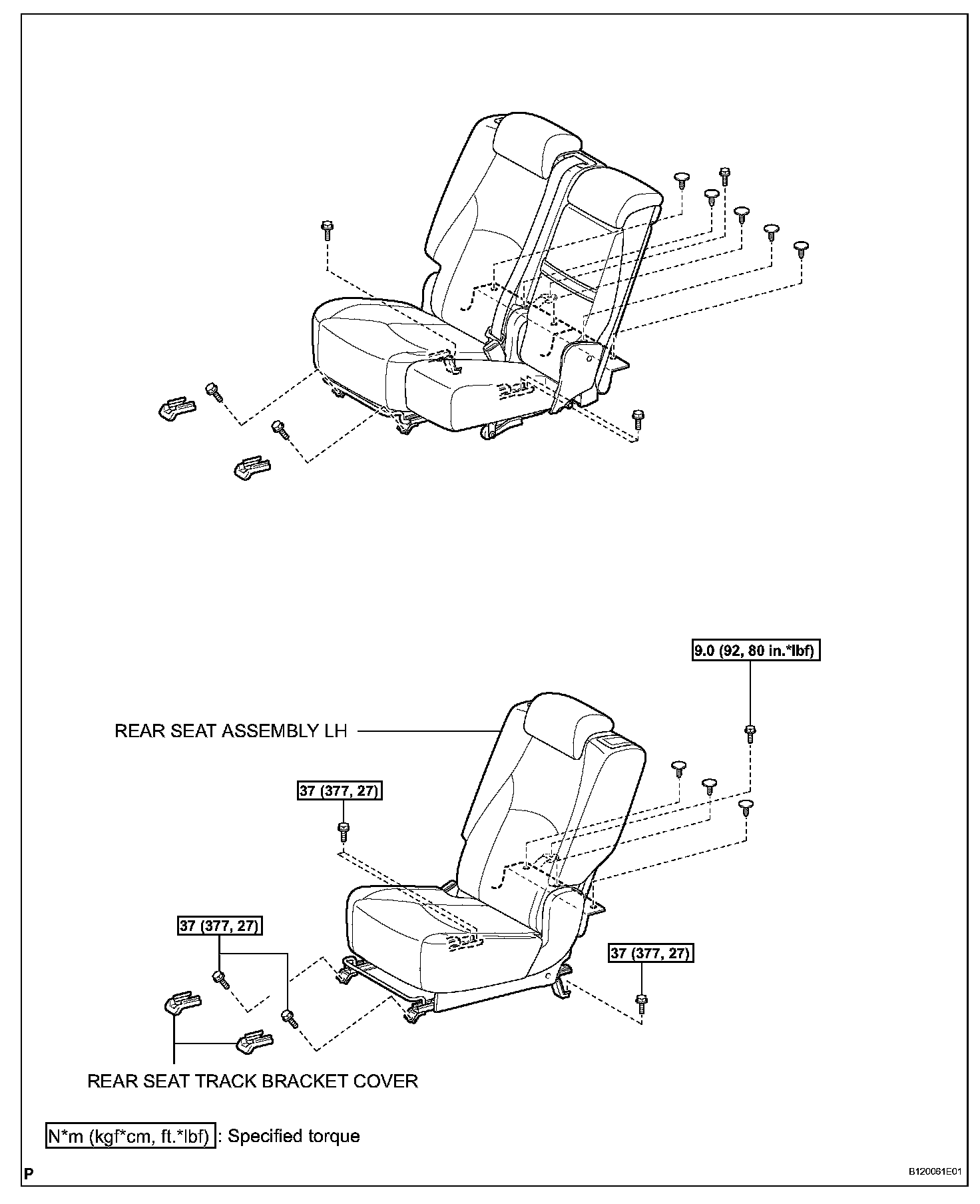

Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):

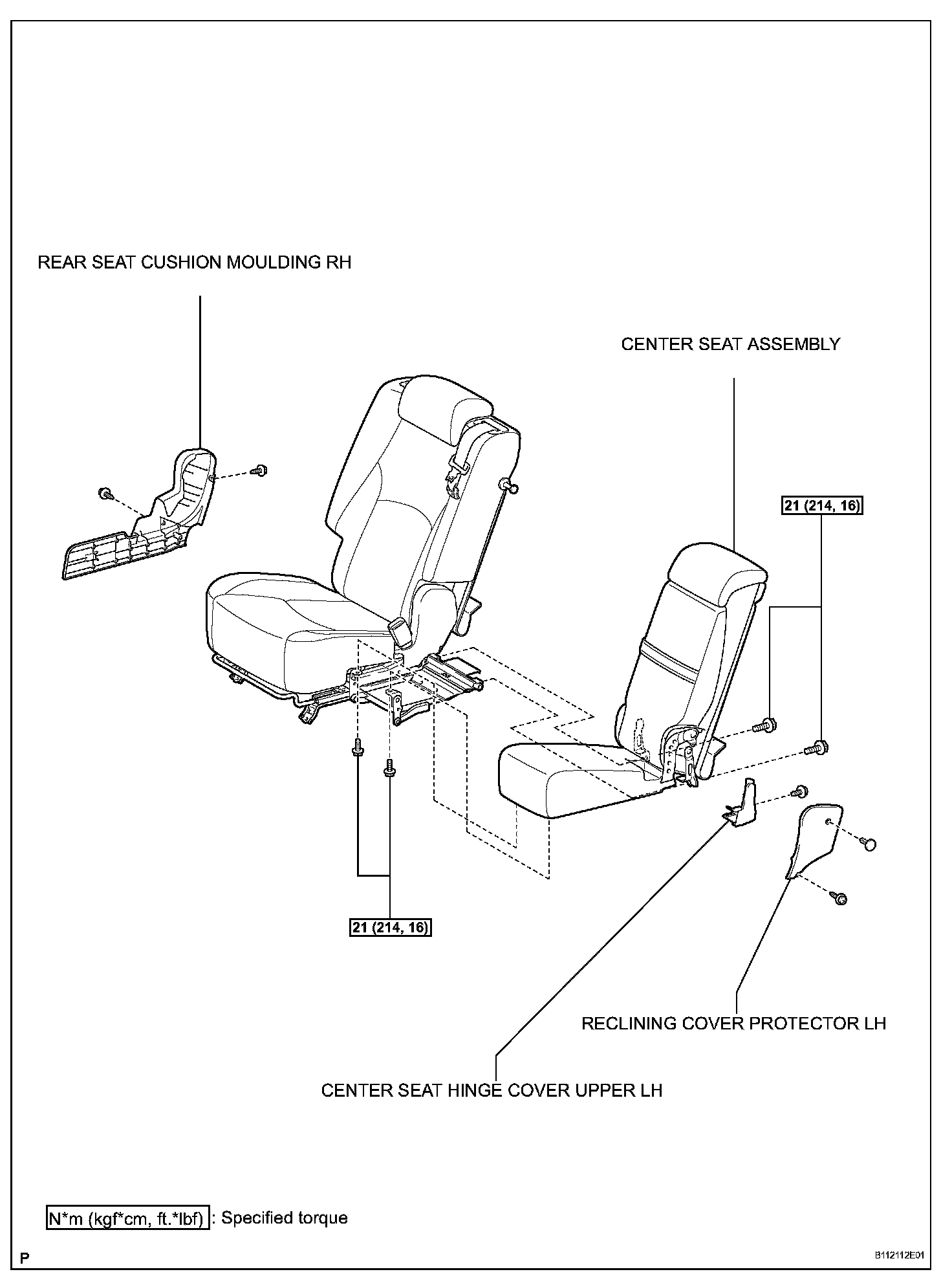

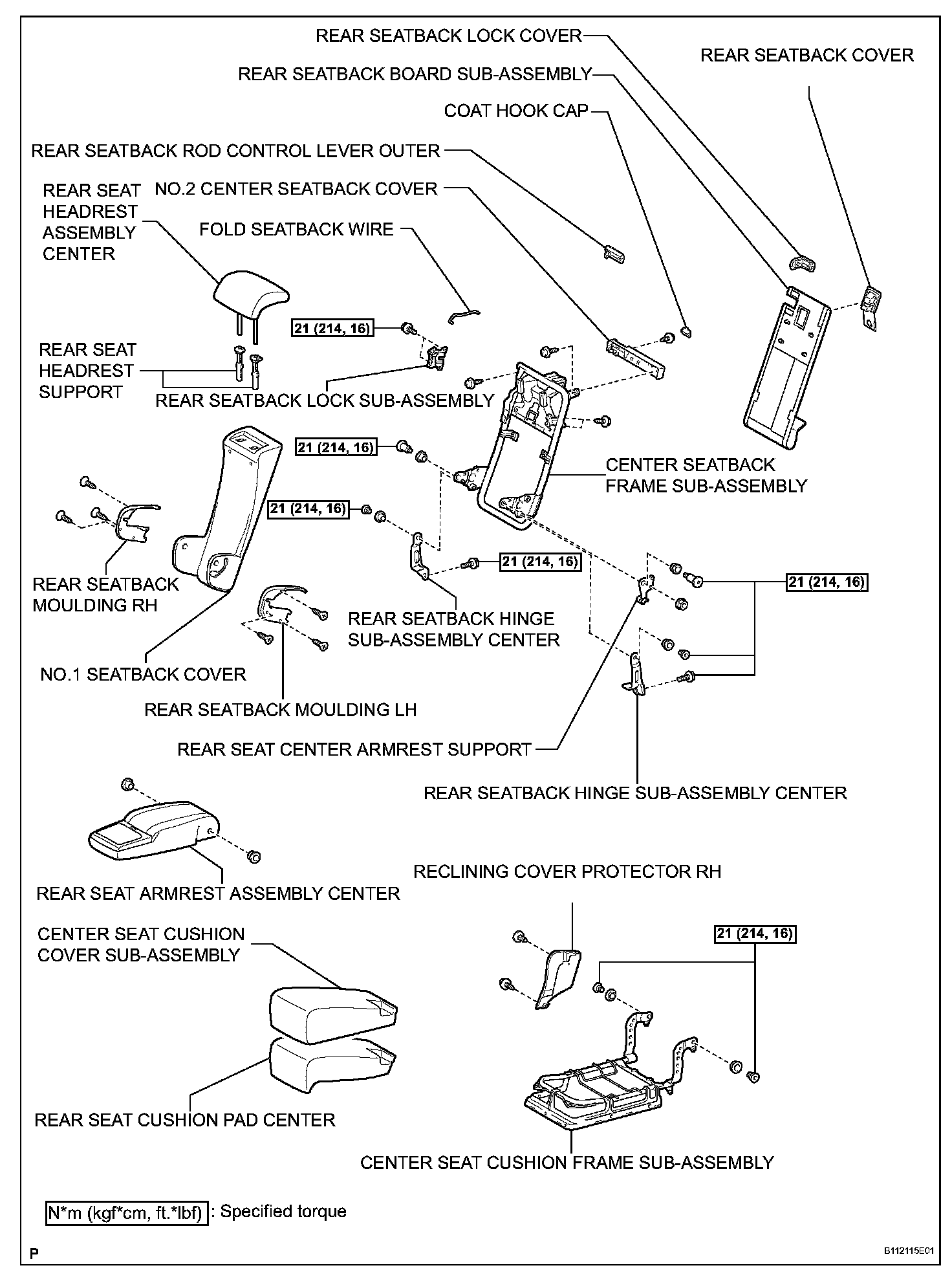

Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):

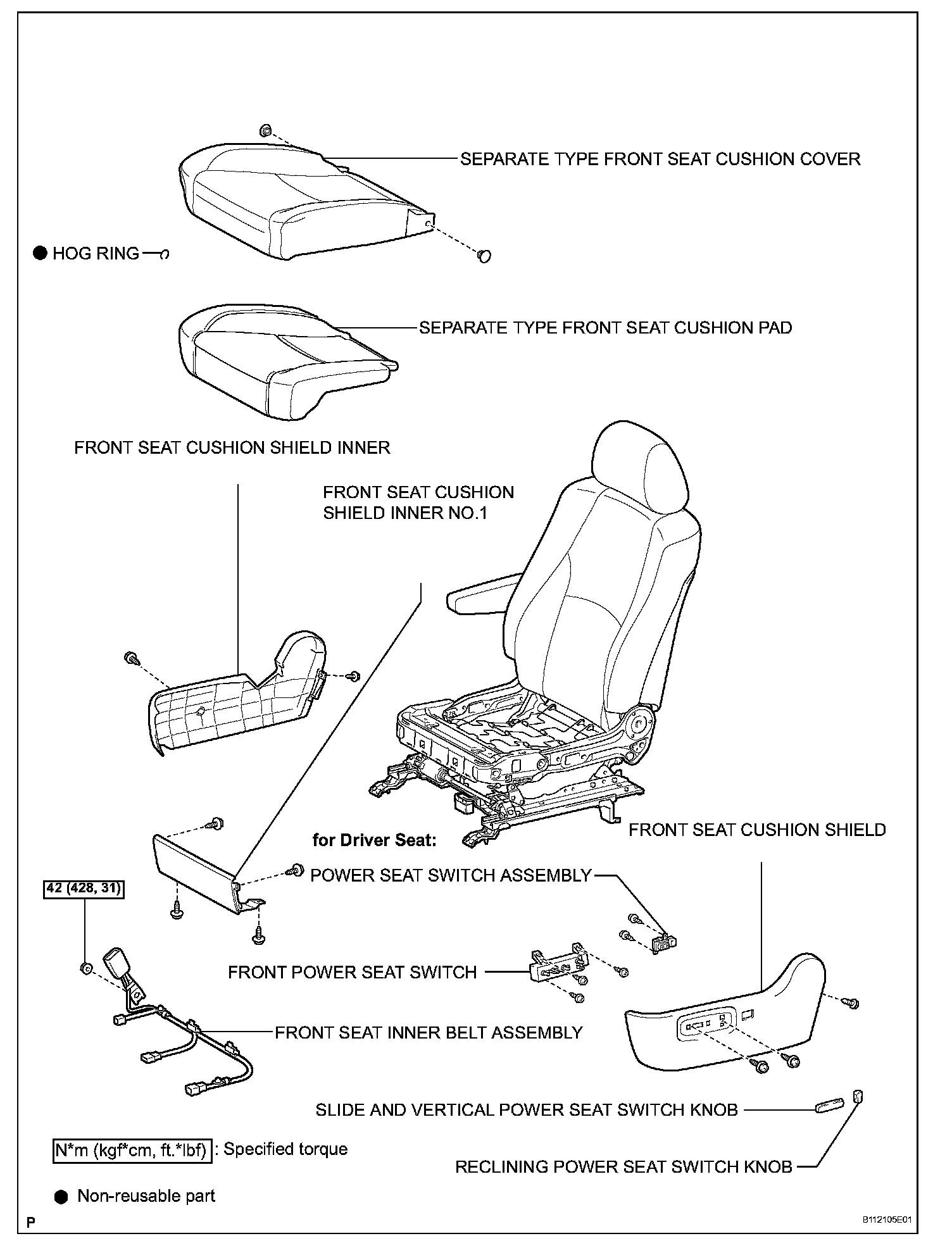

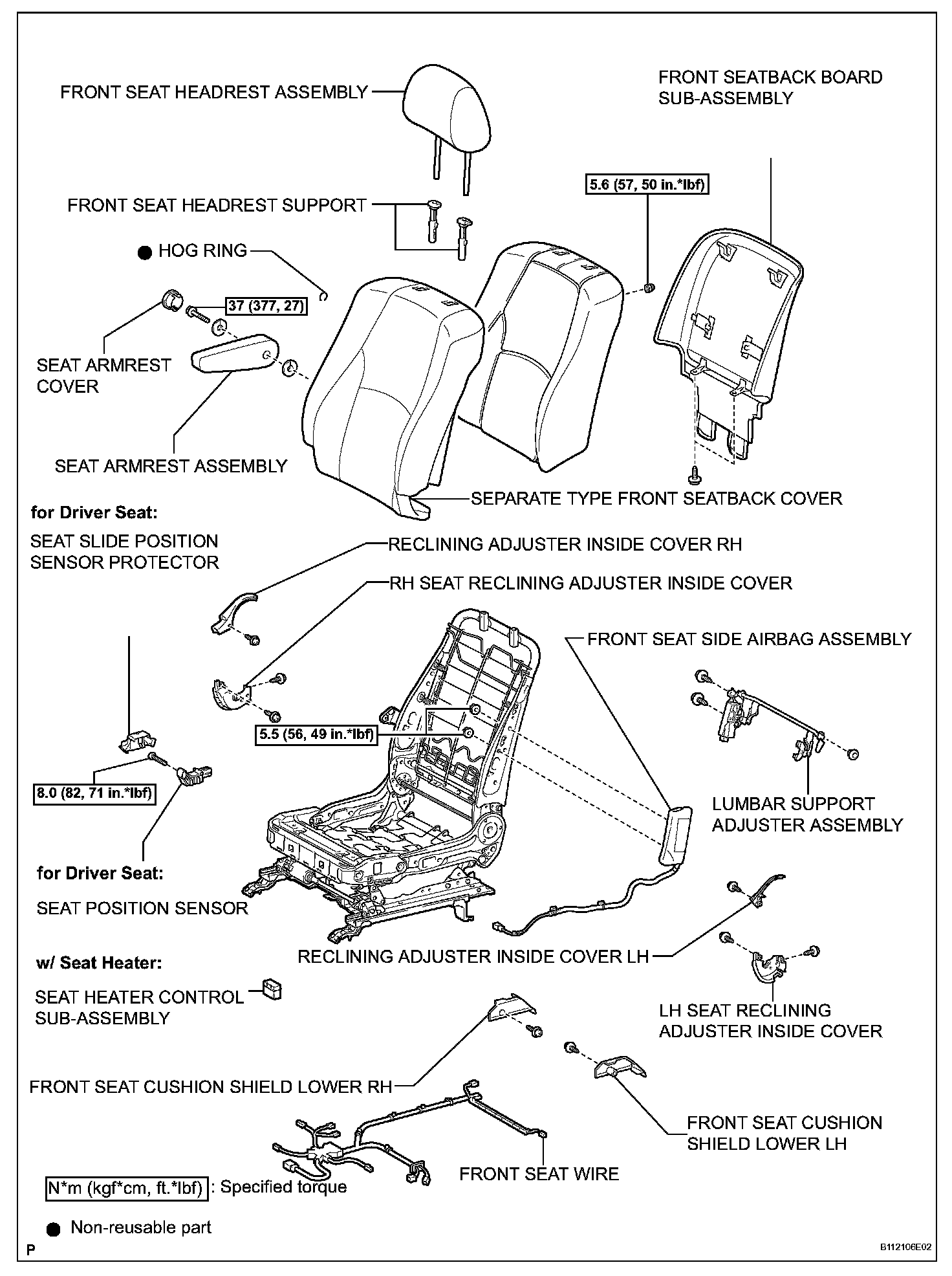

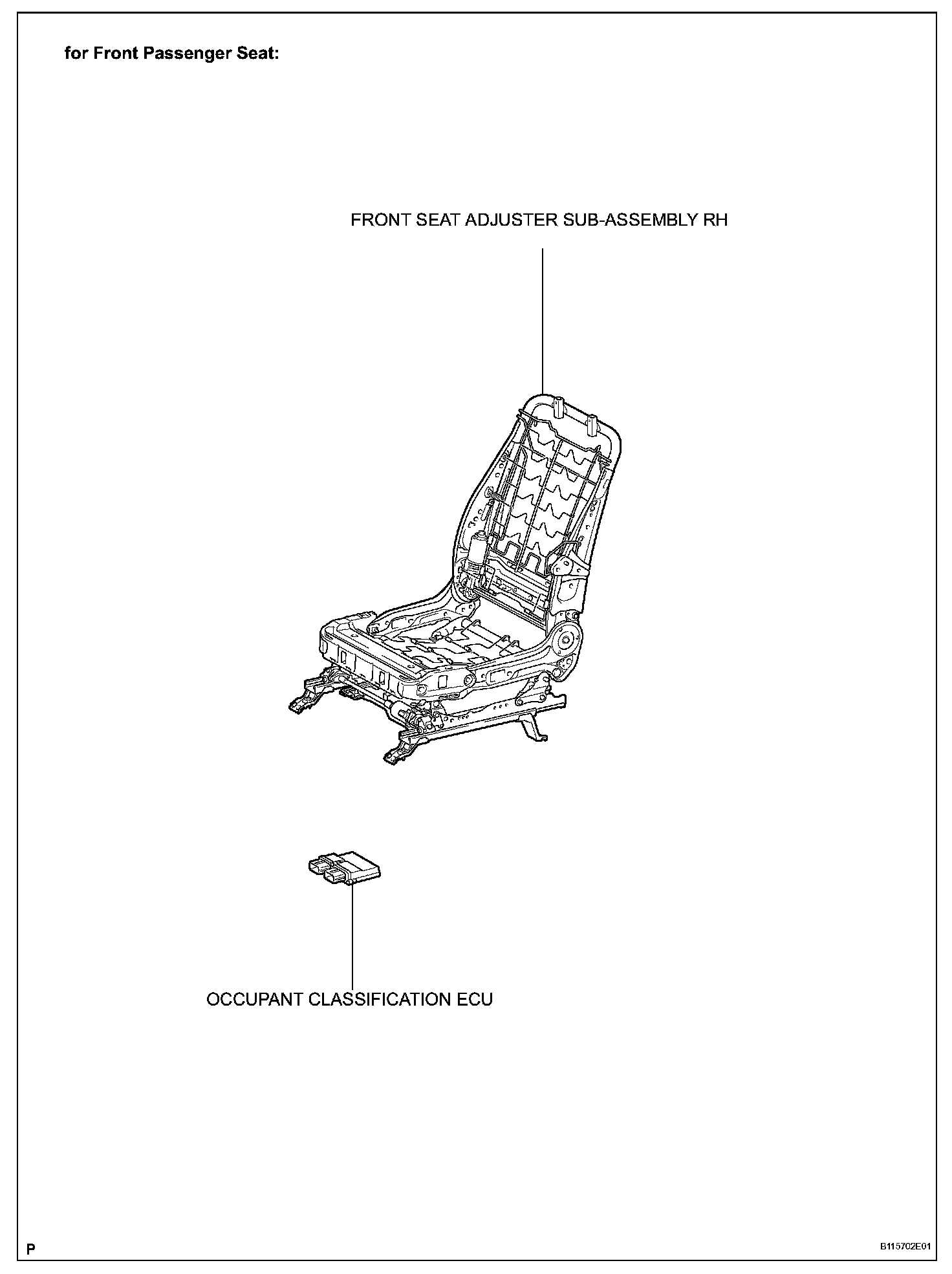

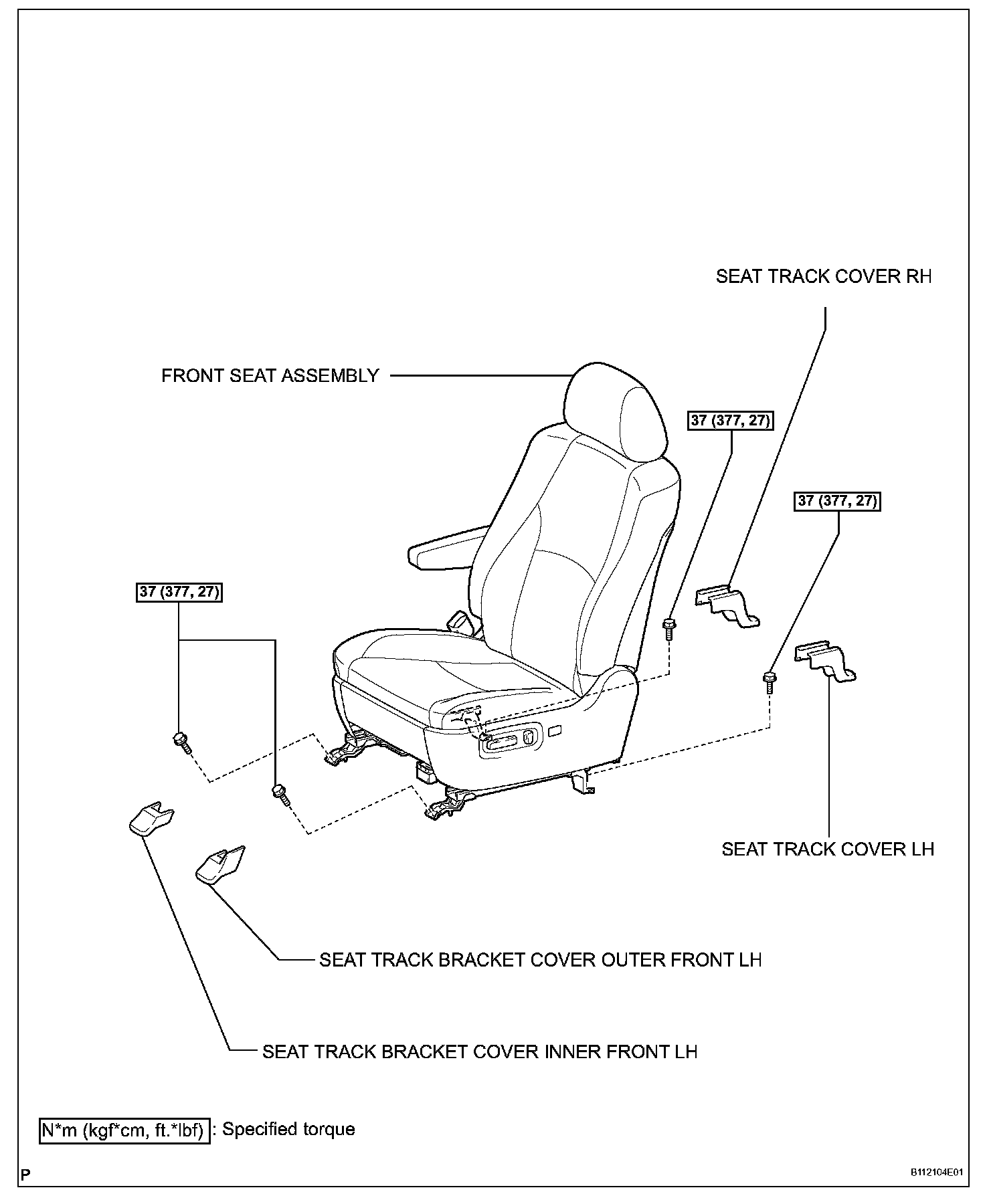

Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:
