Blower Motor Relay: Testing and Inspection

ON-VEHICLE INSPECTION

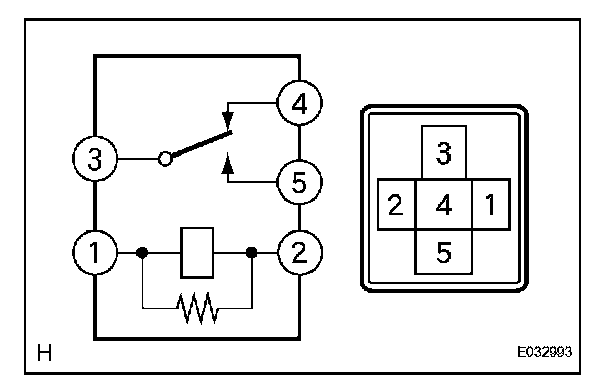

INSPECT HEATER RELAY




a. Remove the heater relay from the instrument panel J/B.




b. Measure the resistance according to the value(s) in the table.

If the resistance is not as specified, replace the heater relay.

NOTE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
