Blower Motor: Testing and Inspection
BLOWER MOTORON-VEHICLE INSPECTION
1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN
a. Remove the cooling unit motor sub-assembly w/fan.

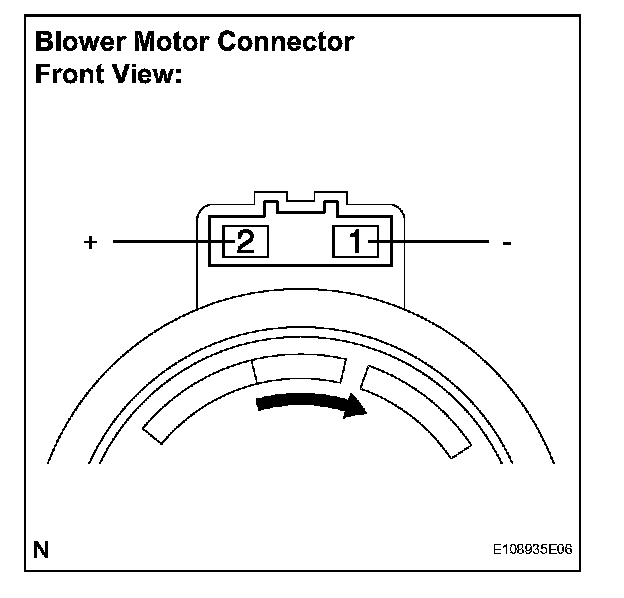

b. Connect the negative (-) lead connected to terminal 1 of the blower motor connector, the positive (+) lead to terminal 2.
OK: Blower motor operates smoothly.
