Heating and Air Conditioning: Service and Repair

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
4. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
5. REMOVE ECM

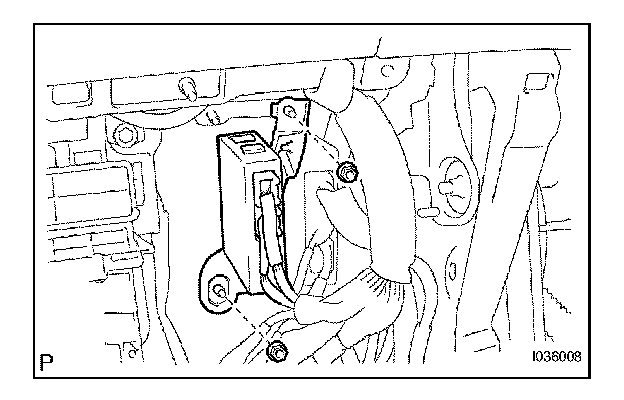

6. REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY
a. Disconnect the connectors.
b. Remove the 2 nuts and air conditioner amplifier assembly.

7. REMOVE SUSPENSION CONTROL ECU

INSTALLATION

1. INSTALL SUSPENSION CONTROL ECU
2. INSTALL ECM
