Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

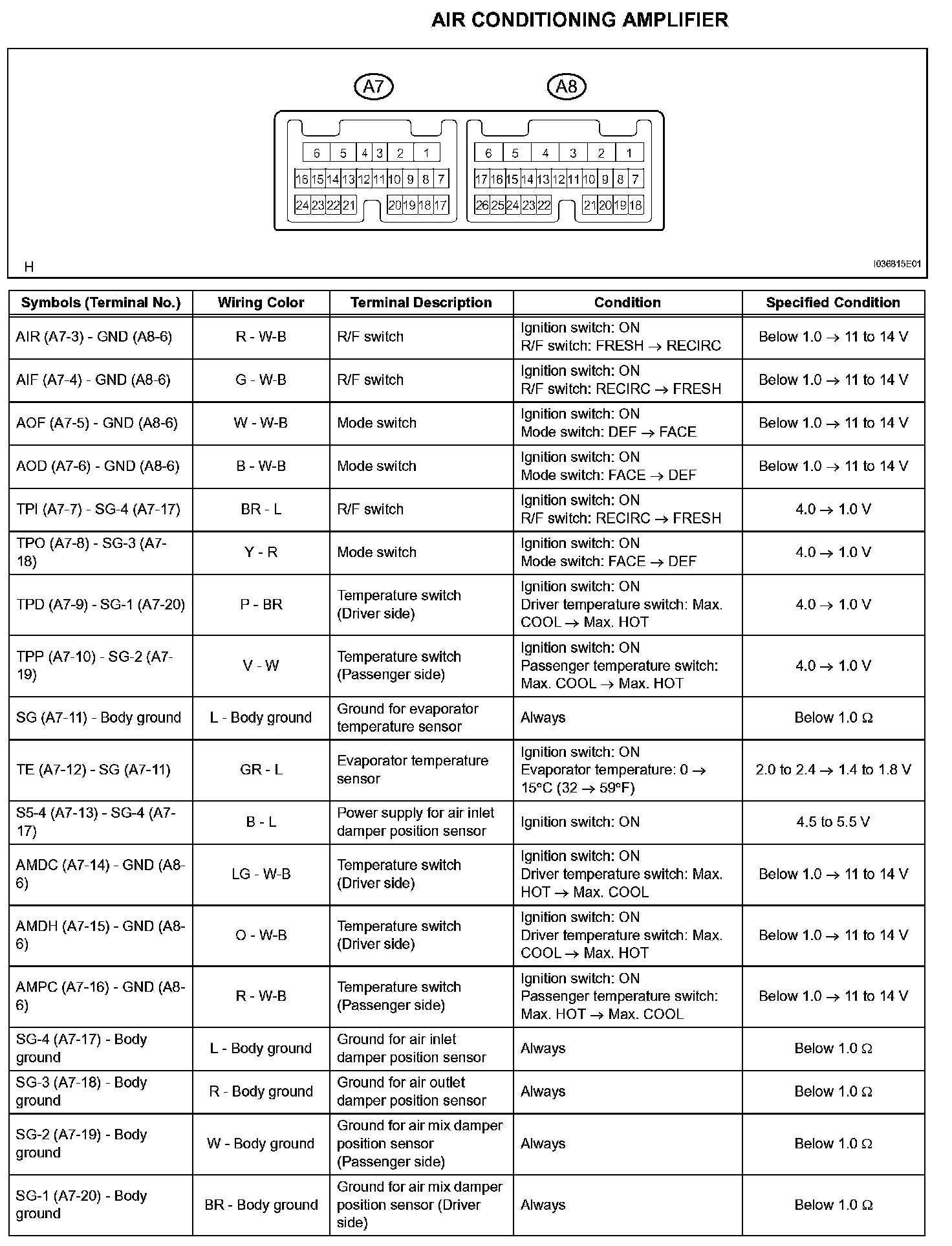

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 1):

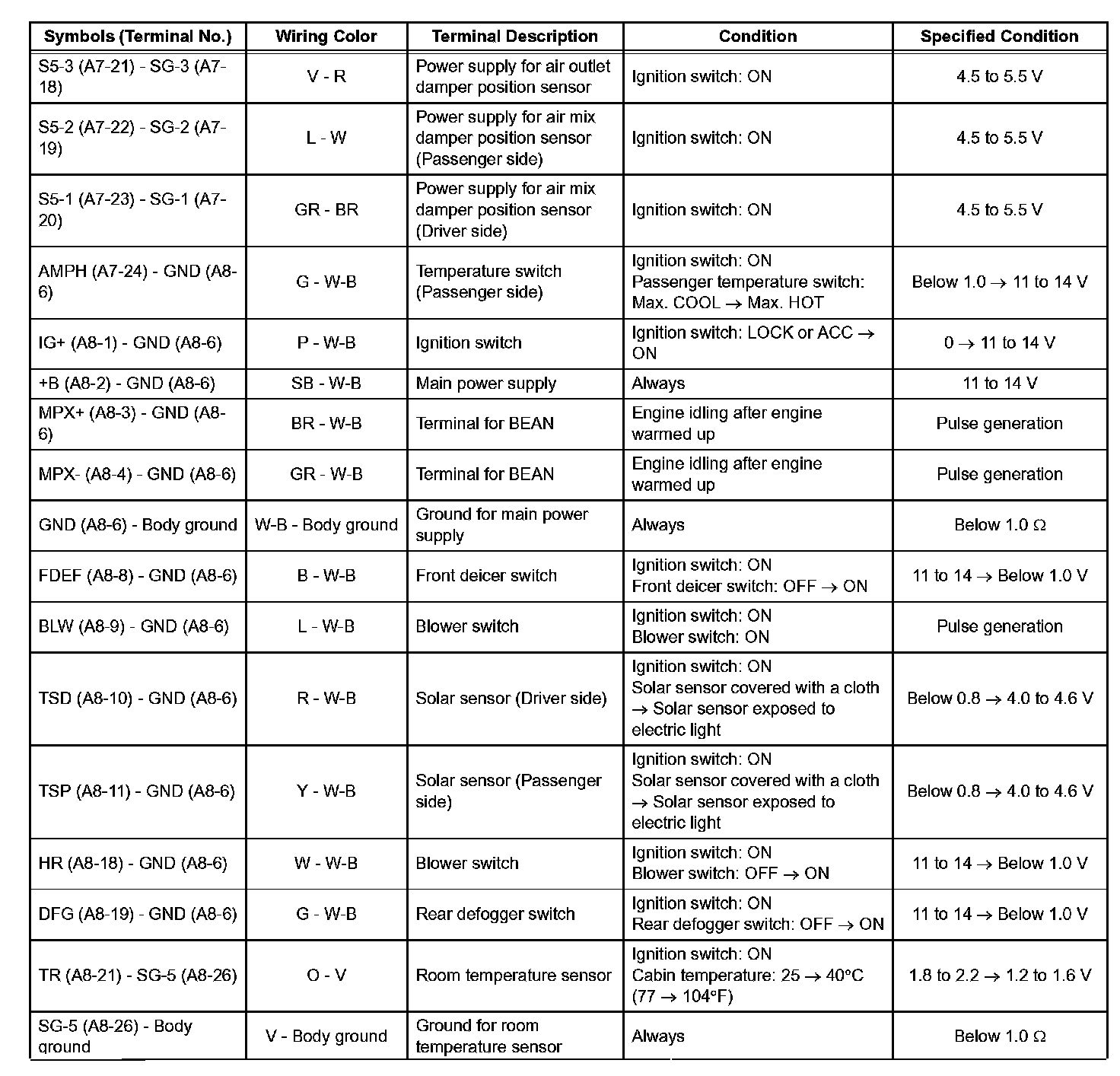

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 2):

1. AIR CONDITIONING AMPLIFIER

Terminals Of Control Module/Pinouts - ECM (Part 1):

Terminals Of Control Module/Pinouts - ECM (Part 2):

2. ECM

Terminals Of Control Module/Pinouts - Center Cluster Integration (W/O LEXUS Navigation System):

3. CENTER CLUSTER INTEGRATION (W/O LEXUS NAVIGATION SYSTEM)

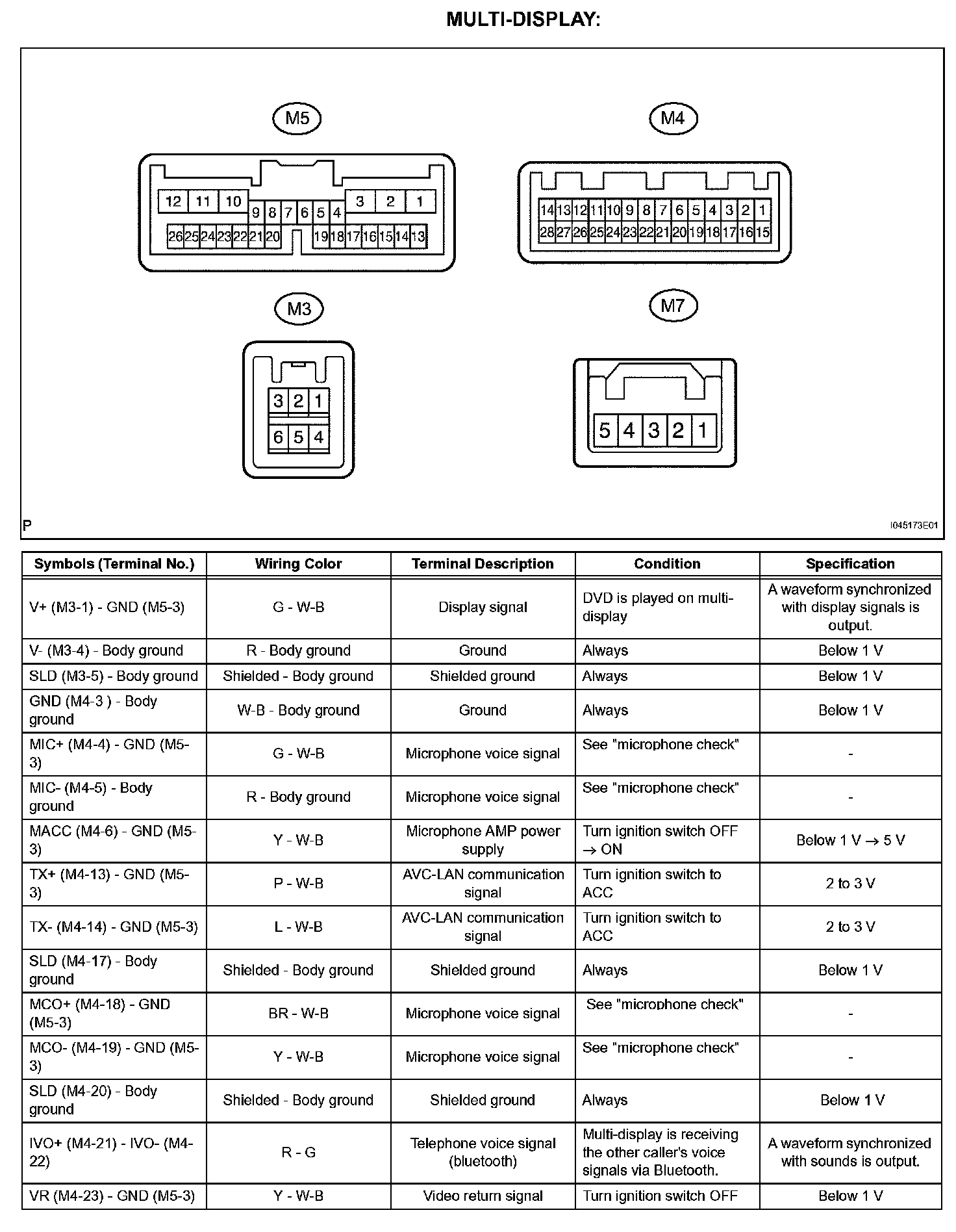

Terminals Of Control Module/Pinouts - Multi-Display (Part 1):

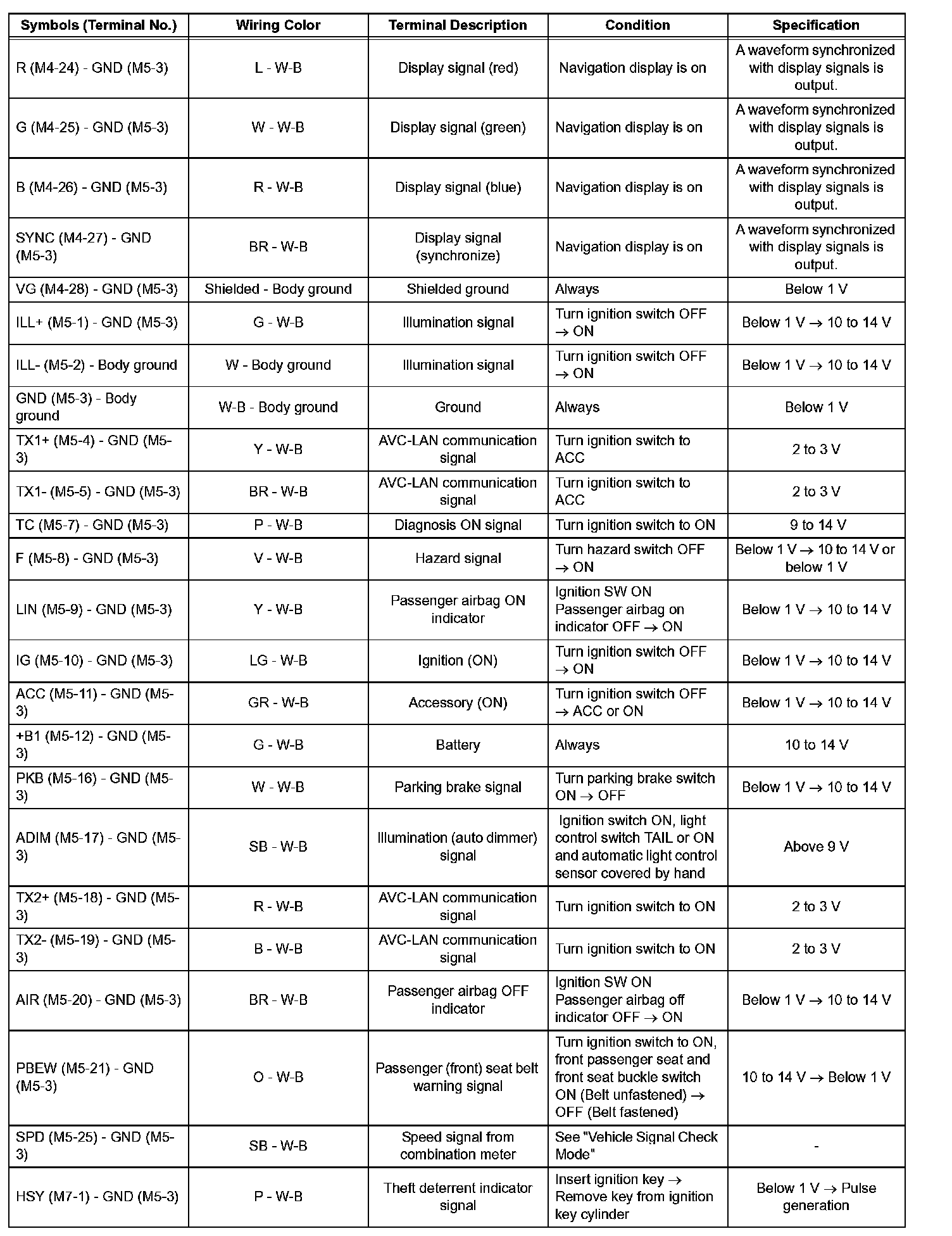

Terminals Of Control Module/Pinouts - Multi-Display (Part 2):

Terminals Of Control Module/Pinouts - Multi-Display (Part 3):

4. MULTI DISPLAY ASSEMBLY (W/ LEXUS NAVIGATION SYSTEM)
