Temperature Gauge: Testing and Inspection

Engine Coolant Temperature Receiver Gauge Malfunction

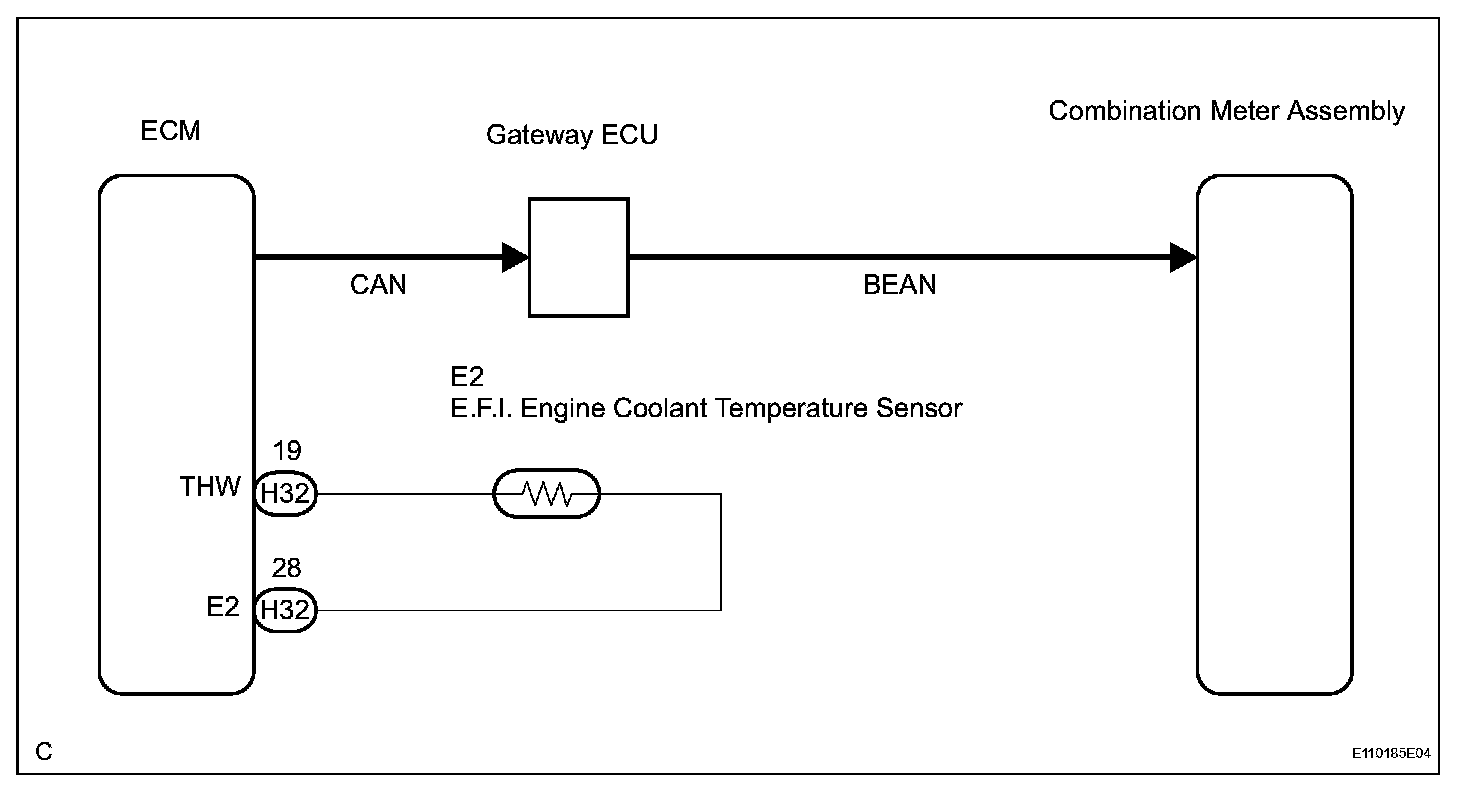

Wiring Diagram:

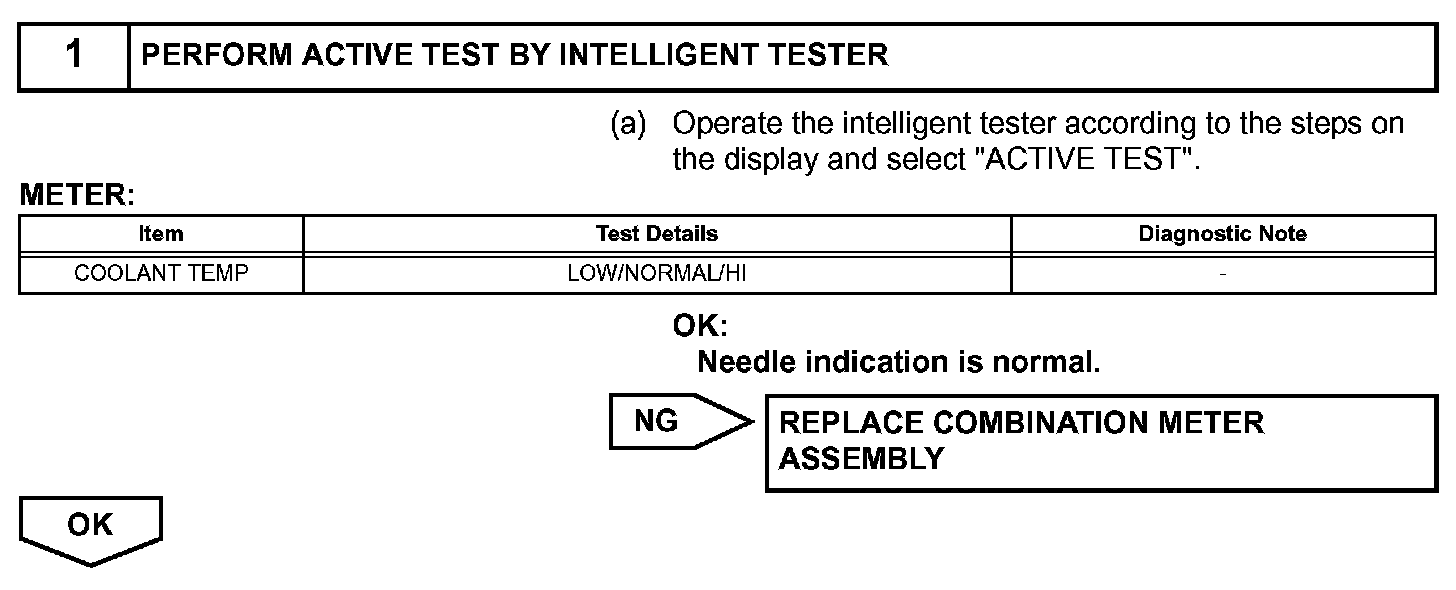

Step 1:

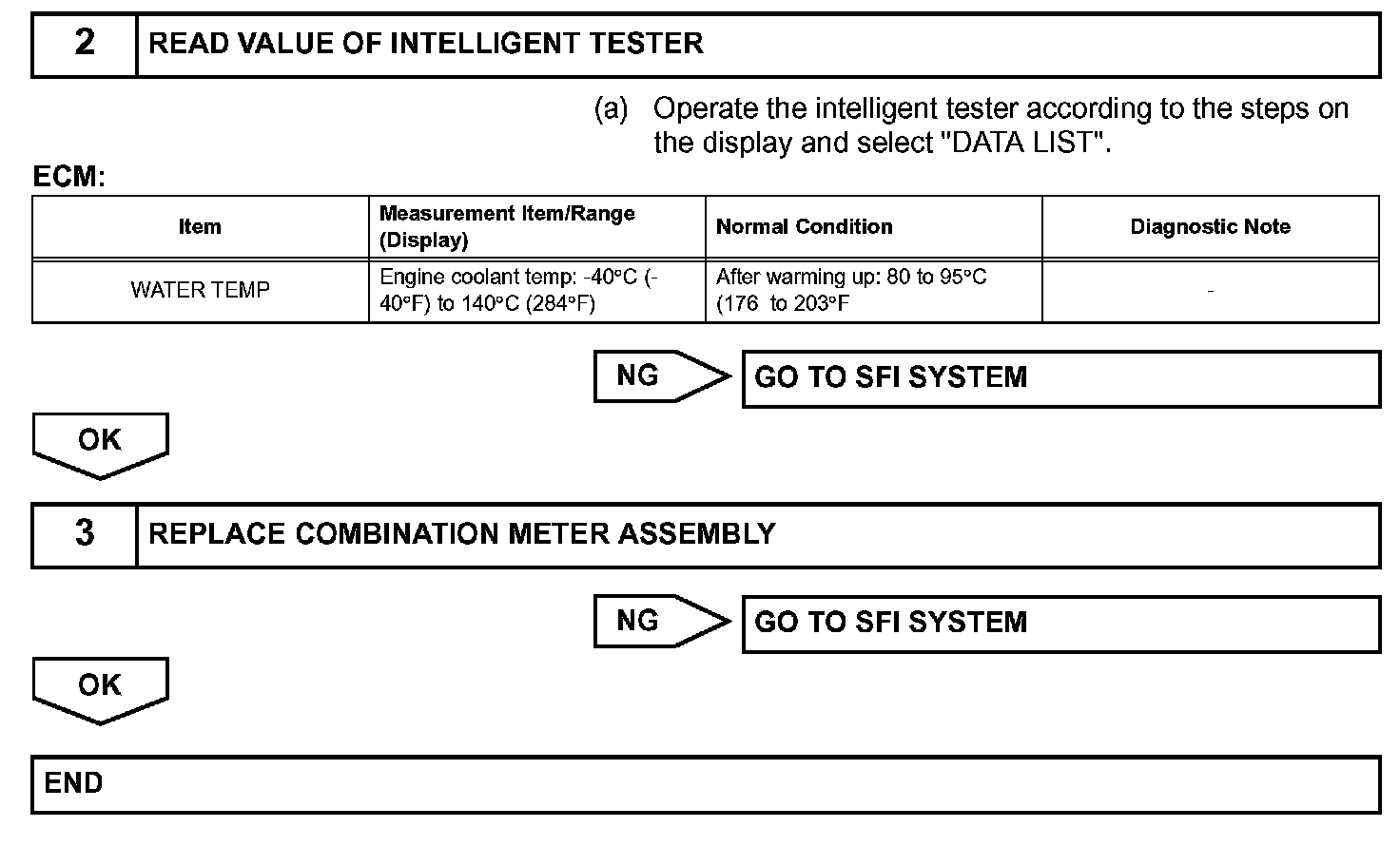

Step 2-3:

INSPECTION PROCEDURE

HINT: If there is an open or short in the engine coolant temperature sensor circuit, the hybrid vehicle control ECU outputs the DTCs. Perform troubleshooting with the "SFI System" at Computers and Control Systems.
