Symptom Related Diagnostic Procedures

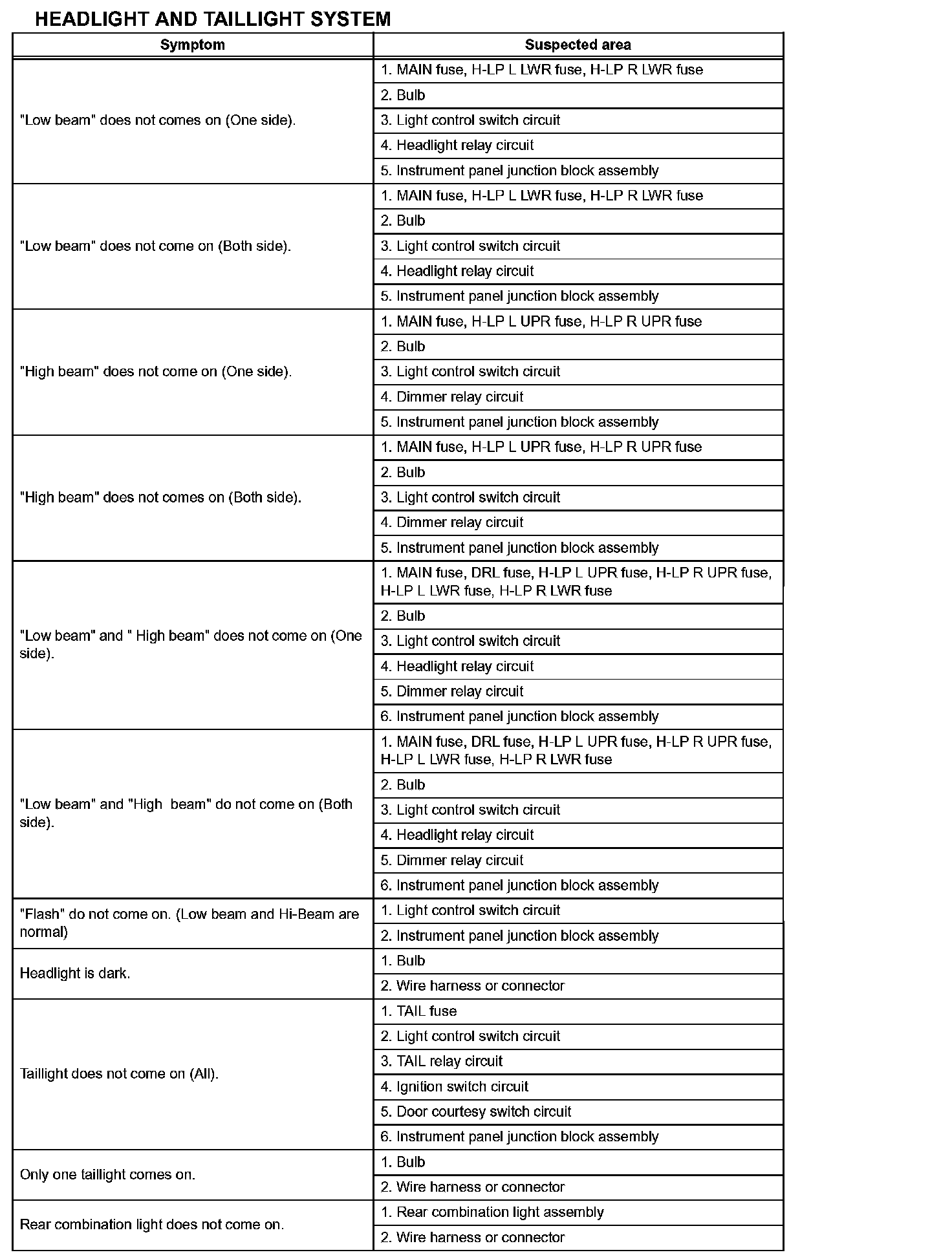

Problem Symptoms Table - Headlight And Taillight System (Part 1):



Problem Symptoms Table - Headlight And Taillight System (Part 2):

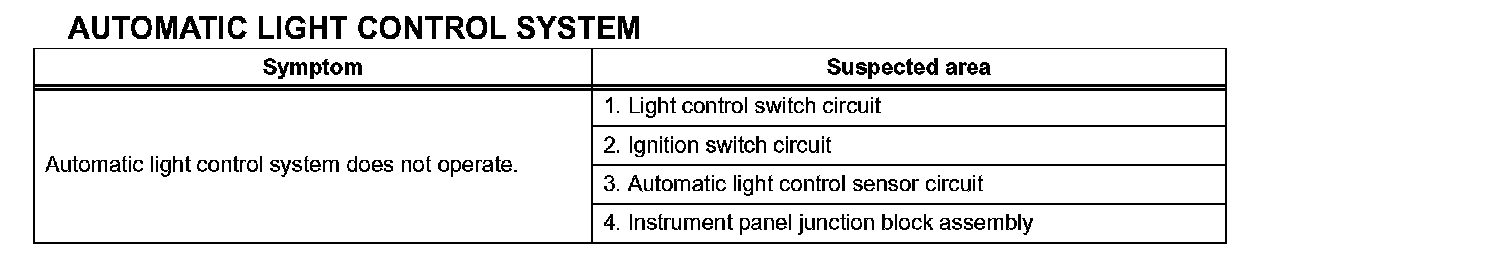

Problem Symptoms Table - Automatic Light Control System:

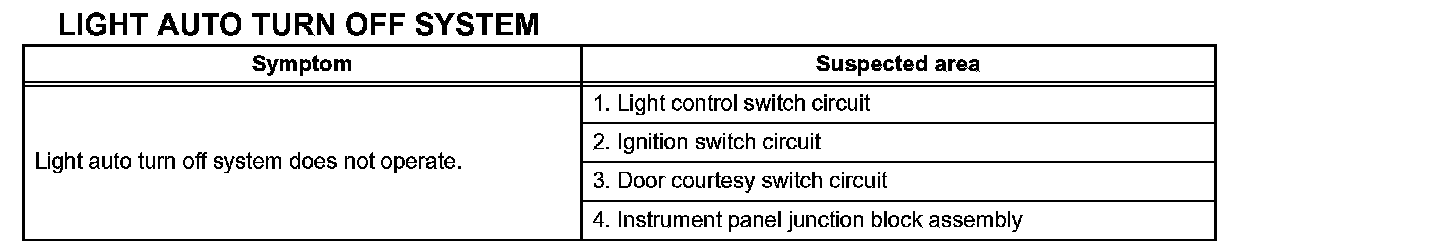

Problem Symptoms Table - Light Auto Turn Off System:

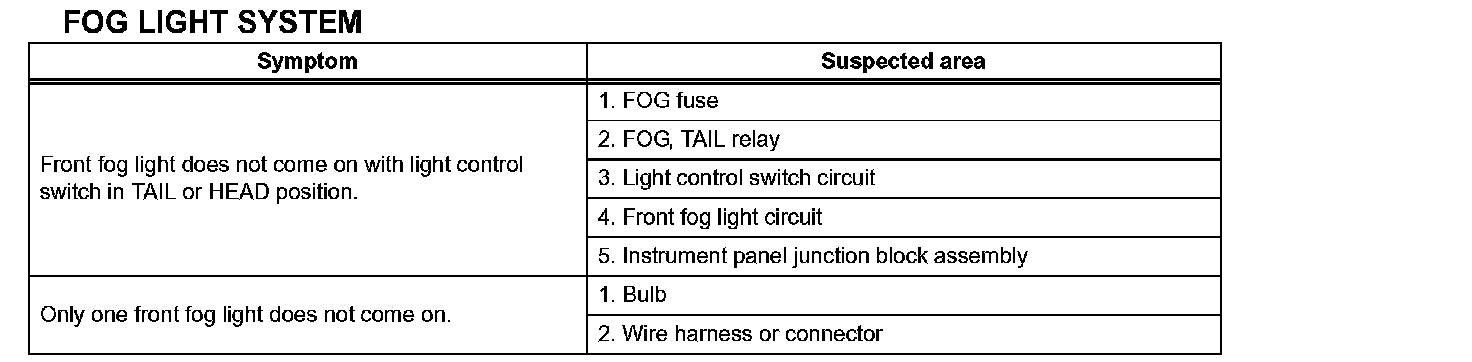

Problem Symptoms Table - Fog Light System:

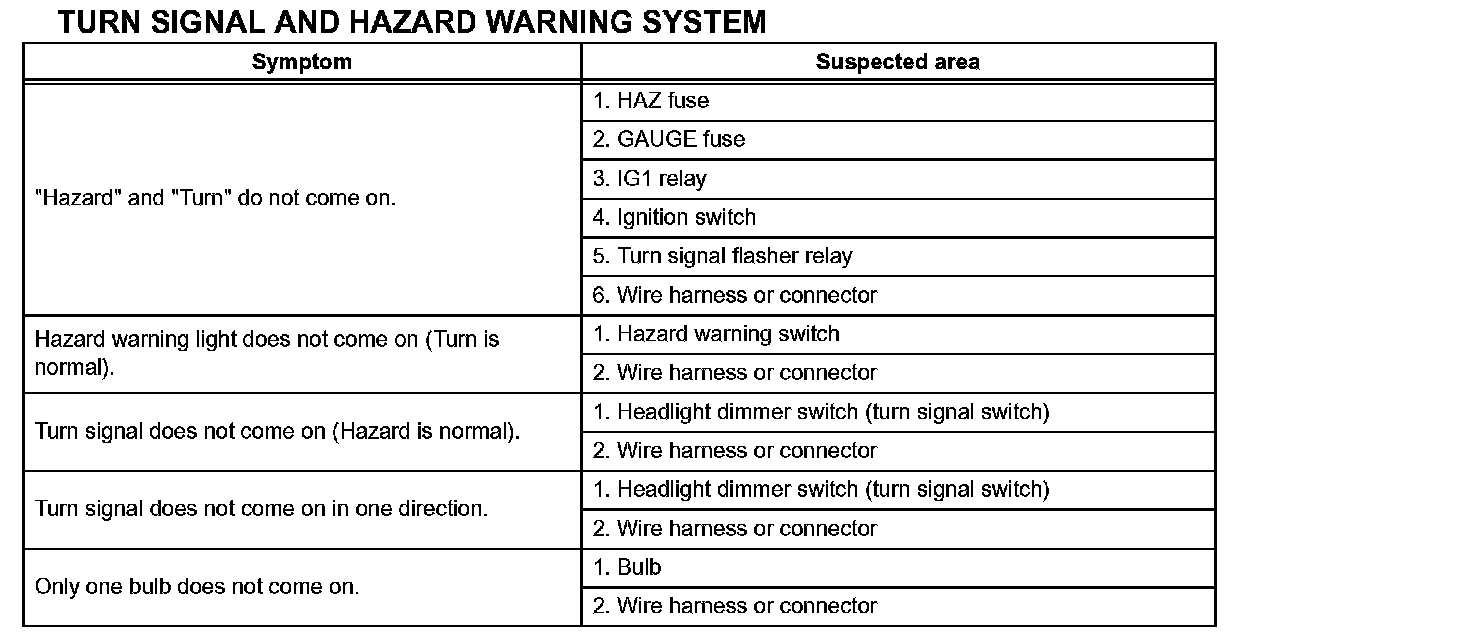

Problem Symptoms Table - Turn Signal And Hazard Warning System:

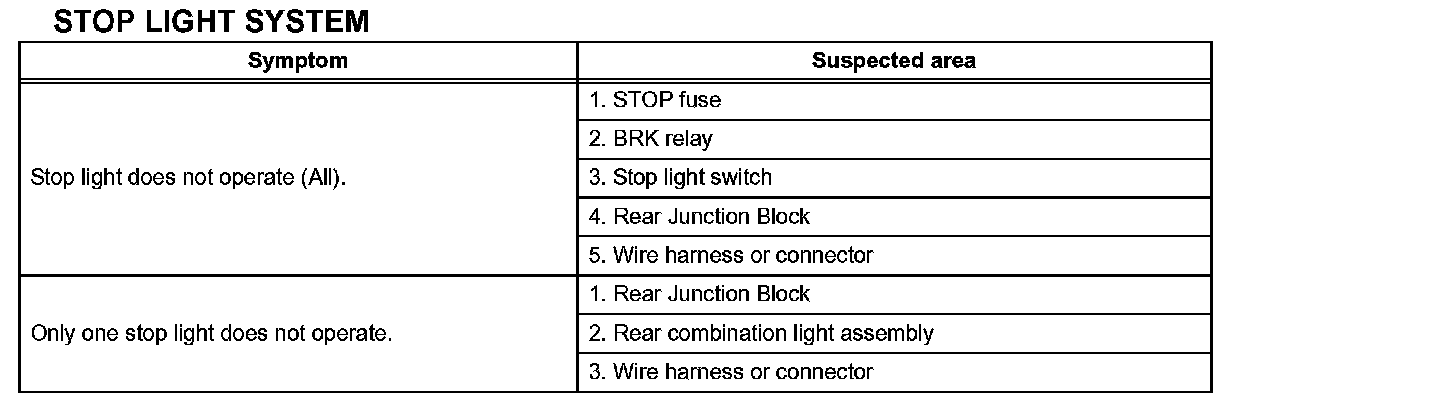

Problem Symptoms Table - Stop Light System:

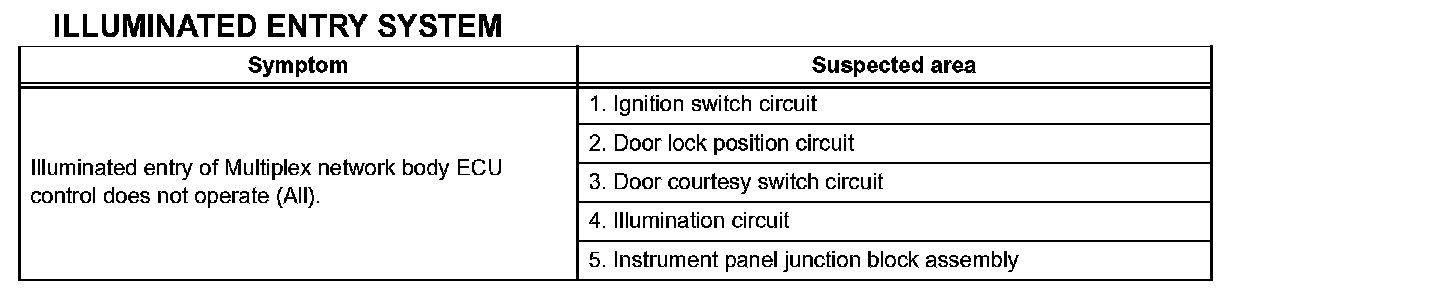

Problem Symptoms Table - Illuminated Entry System:

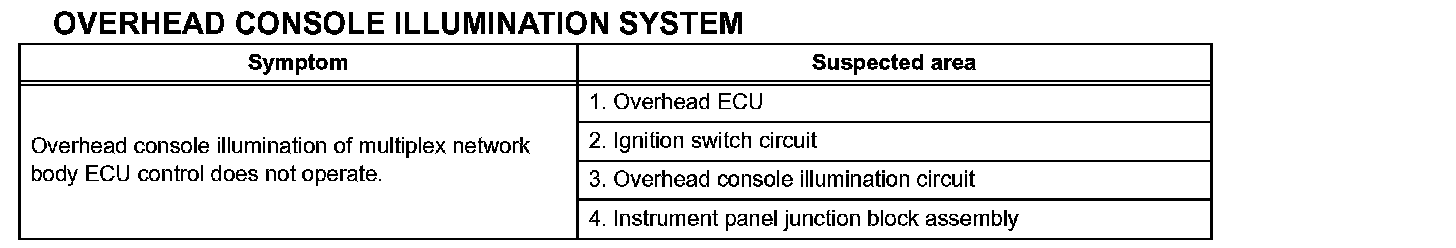

Problem Symptoms Table - Overhead Console Illumination System:

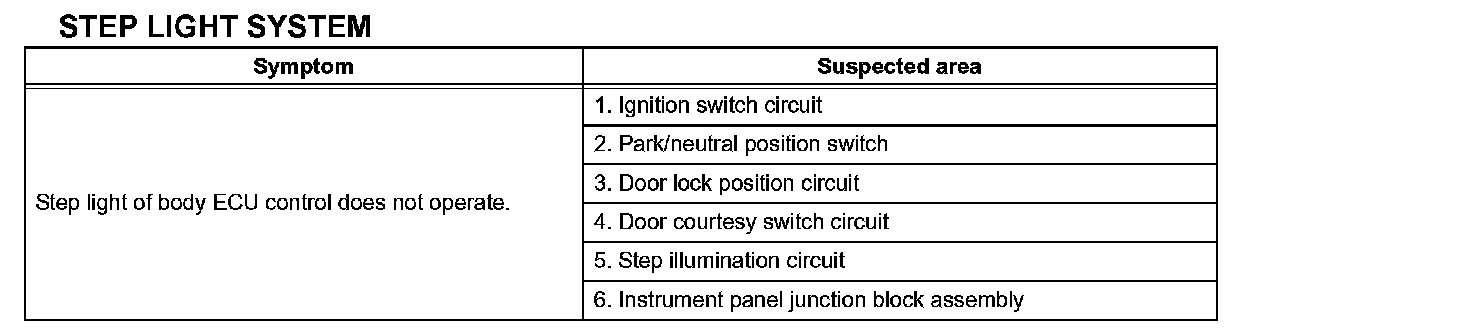

Problem Symptoms Table - Step Light System:



Problem Symptoms Table - Inside Handle Illumination Light System:

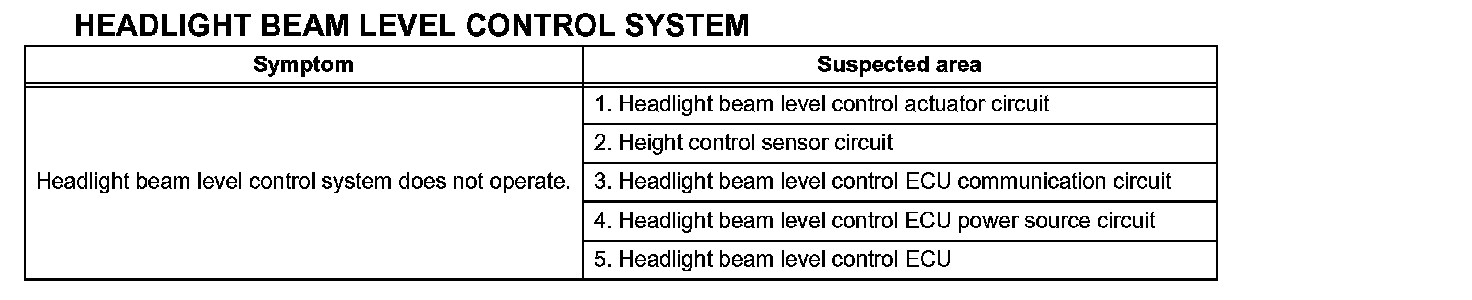

Problem Symptoms Table - Headlight Beam Level Control System (Part 1):

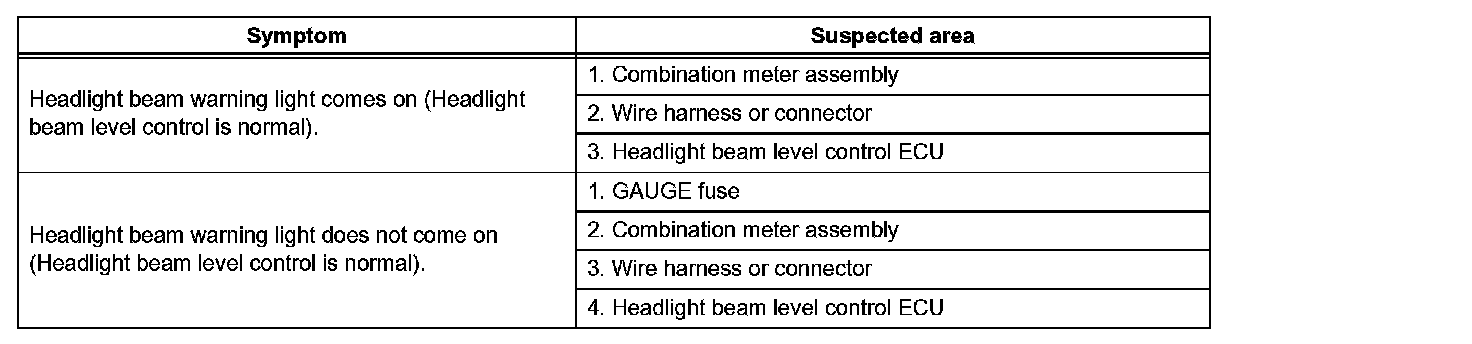

Problem Symptoms Table - Headlight Beam Level Control System (Part 2):

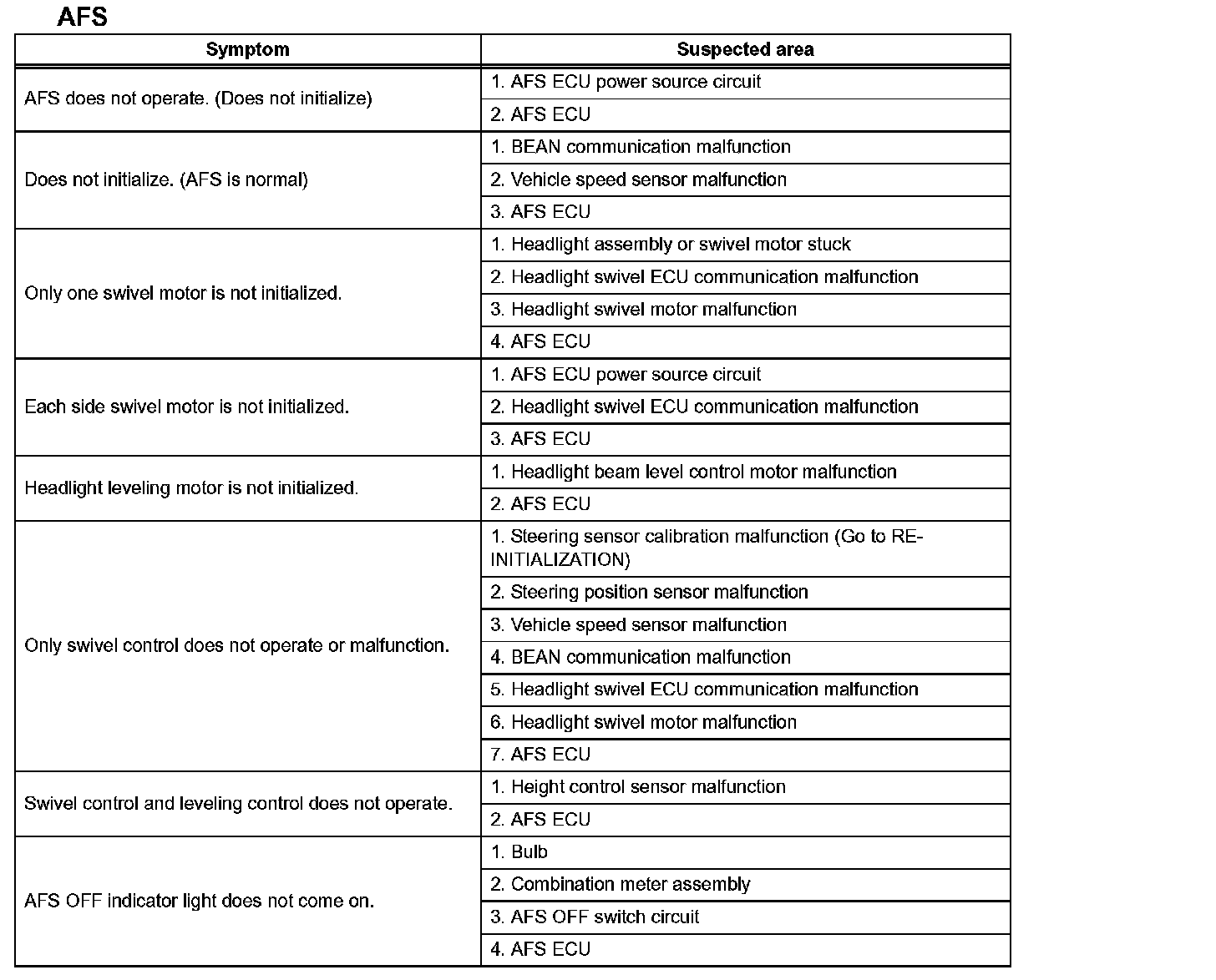

Problem Symptoms Table - AFS:

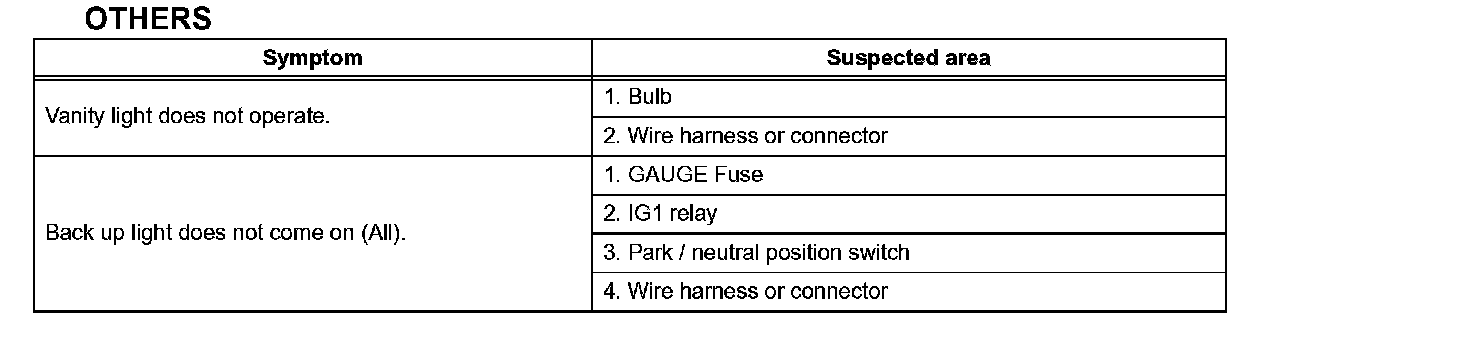

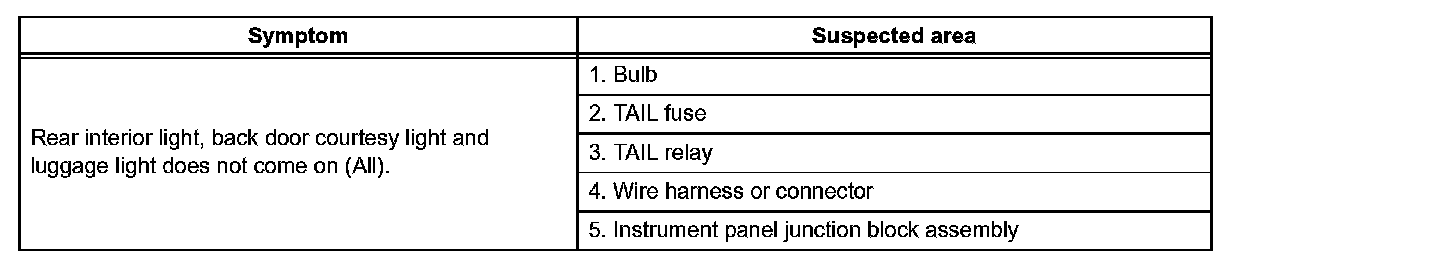

Problem Symptoms Table - Others (Part 1):



Problem Symptoms Table - Others (Part 2):
