Drive Belt: Service and Repair

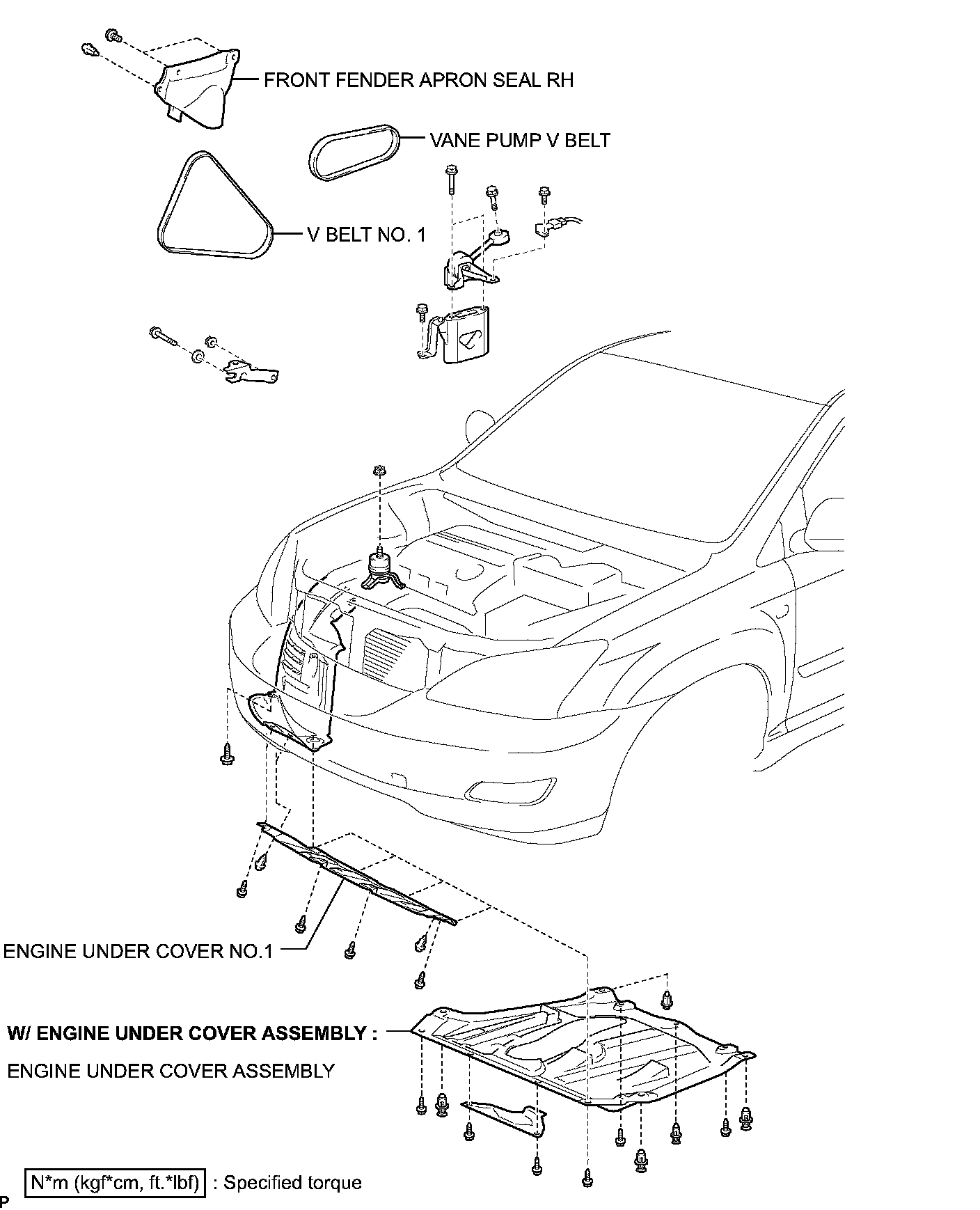

DRIVE BELTCOMPONENTS:
REMOVAL
1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER ASSEMBLY
a. w/engine under cover assembly
3. REMOVE ENGINE UNDER COVER NO. 1
4. REMOVE FRONT FENDER APRON SEAL RH

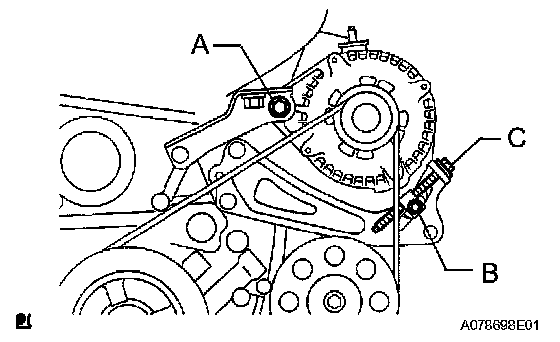

5. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
a. Loosen bolts A and B.
b. Loosen the adjusting bolt C, and remove the V-ribbed belt.

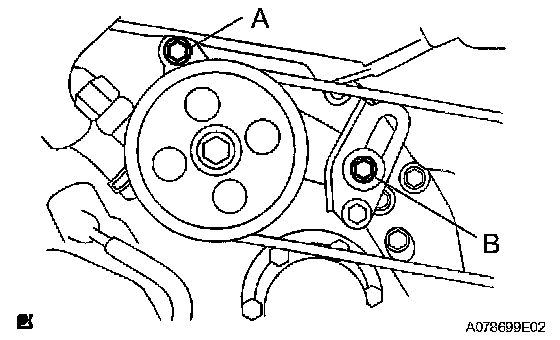

6. REMOVE VANE PUMP V BELT
a. Loosen bolts A and B, and remove the V-ribbed belt.
INSTALLATION

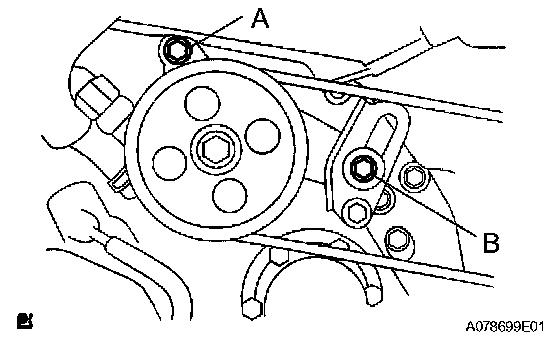

1. INSTALL VANE PUMP V BELT
a. Install the V-ribbed on each pulley.
b. Using a bar, adjust the V-ribbed belt tension and tighten bolt B.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)
c. Tighten bolt A.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)

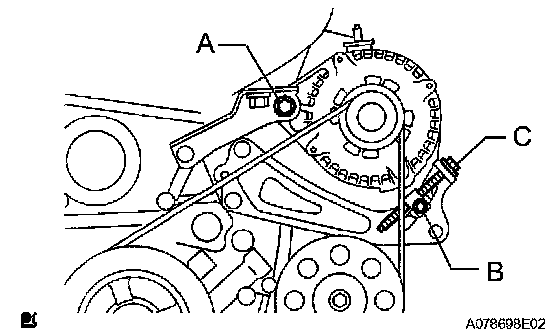

2. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
a. Install the V-ribbed belt on each pulley.
b. Tighten the adjusting bolt C, and adjust the V-ribbed belt tension.
c. First tighten bolt A, then tighten bolt B.
Torque:
Bolt A 58 Nm (591 kgf-cm, 43 ft. lbs.)
Bolt B 18 Nm (184 kgf-cm, 13 ft. lbs.)
3. INSPECT DRIVE BELT DEFLECTION AND TENSION
4. INSTALL ENGINE UNDER COVER NO. 1
5. INSTALL ENGINE UNDER COVER ASSEMBLY
a. w/engine under cover assembly
6. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
