Multiple Junction Connector
>>
Locations
Multiple Junction Connector: Locations
EA1 - EB2, EA - EG:
IA1 - ID3:
IE1 - II1:

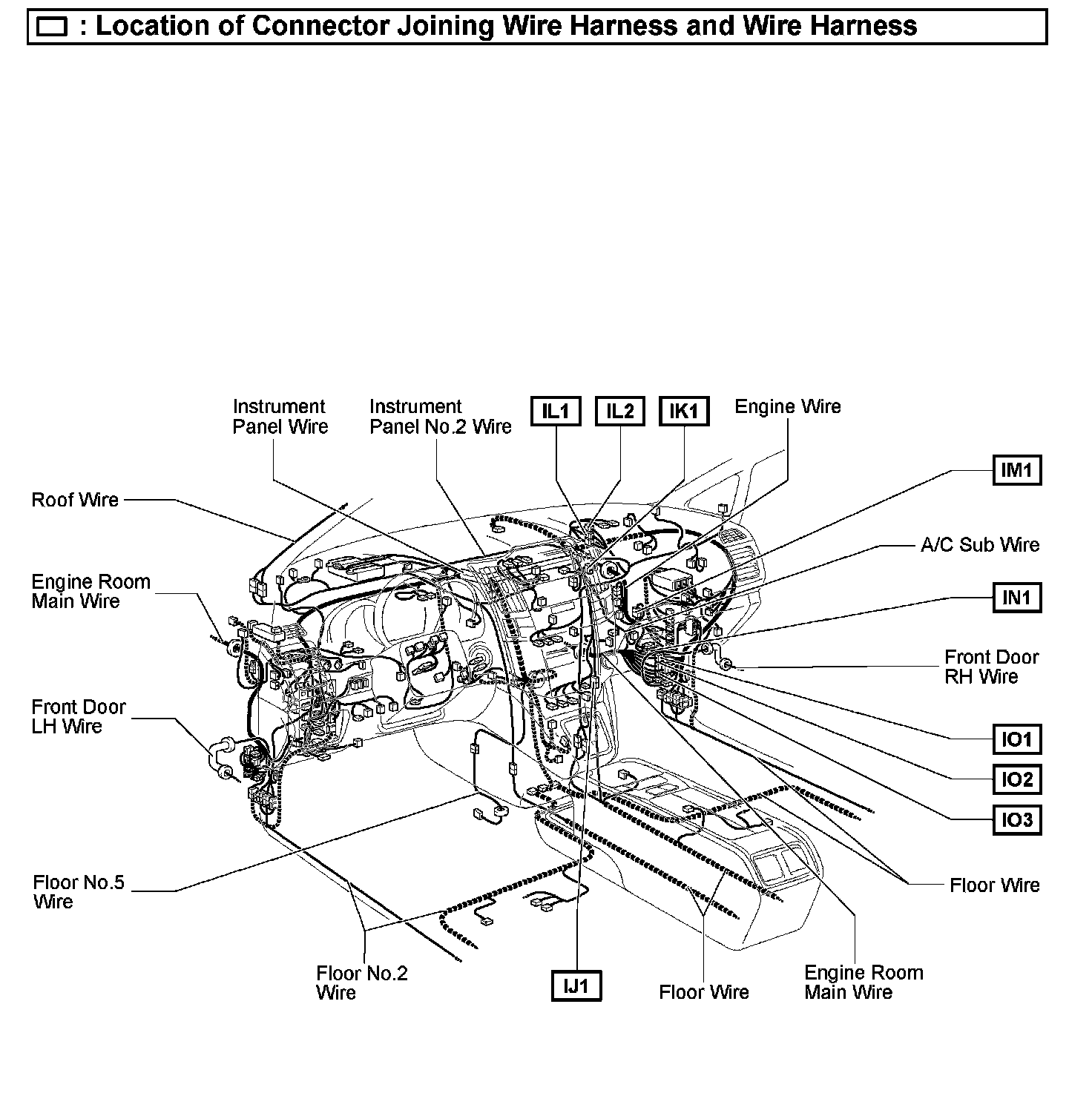

IJ1 - IO3:

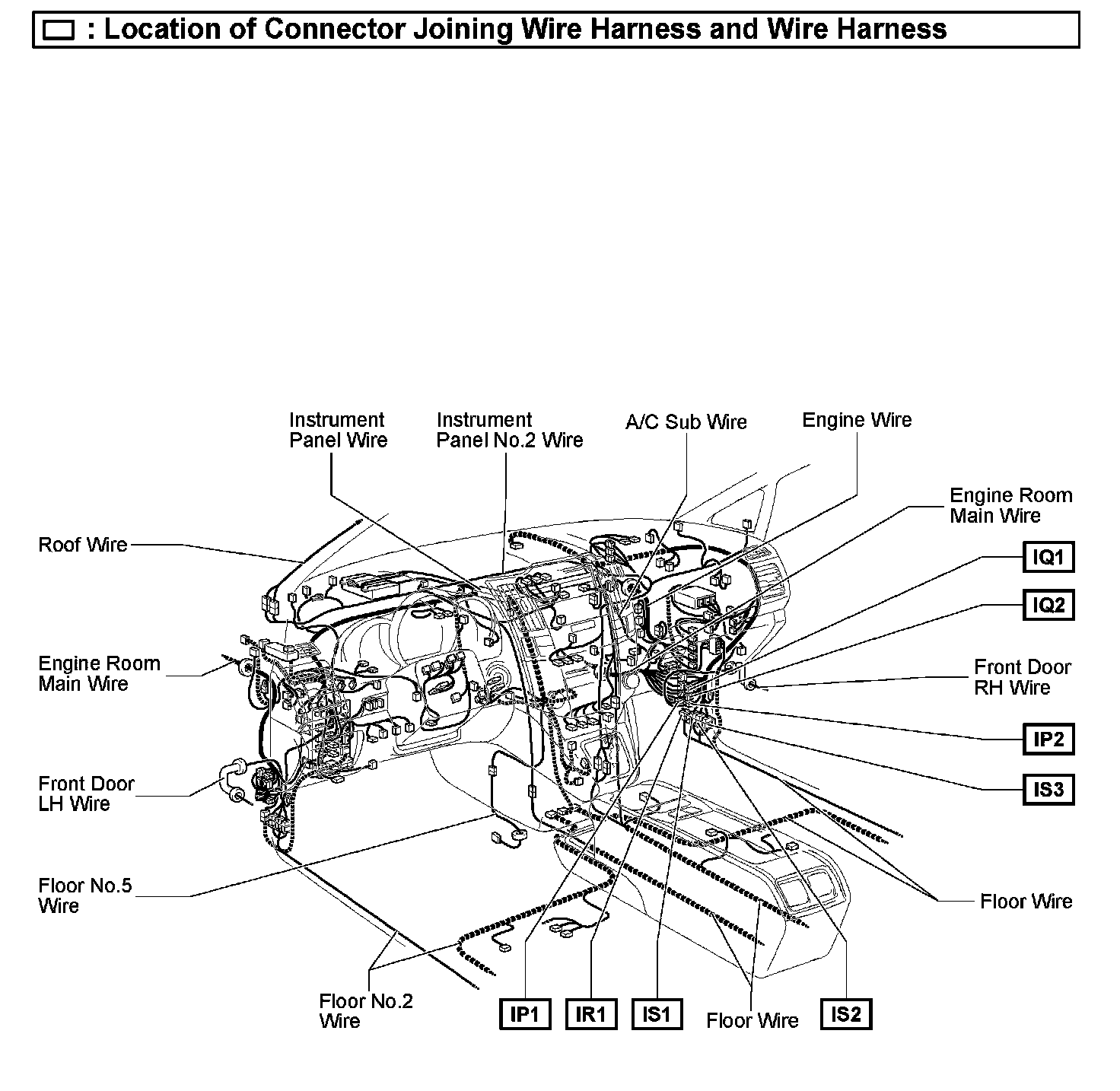

IP1 - IS3:

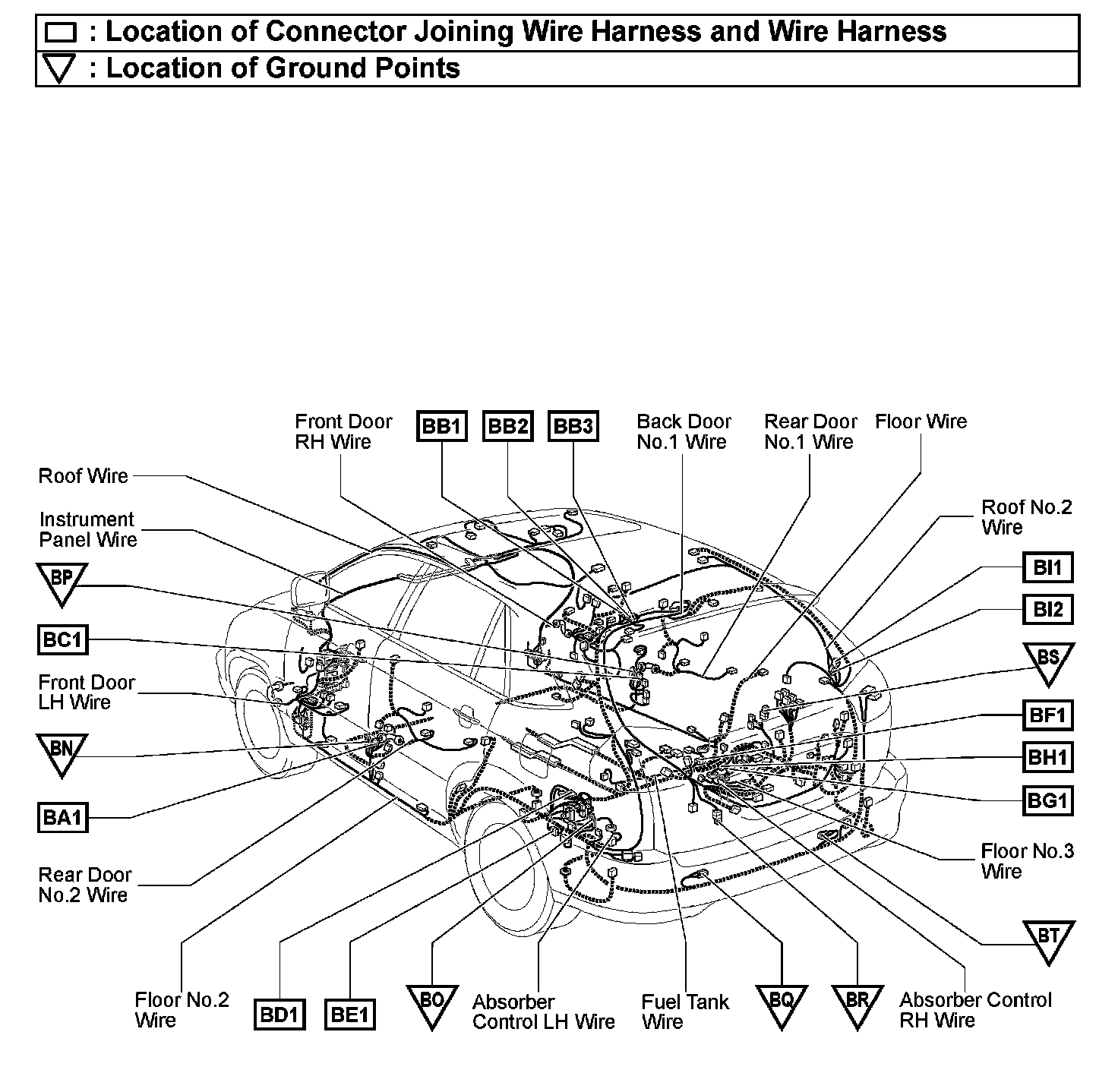

BA1 - BI2, BN - BT:
BJ1:
