Body - Moonroof Initialization Procedure

PRE-DELIVERY SERVICE
PD027-05

August 22, 2005

Title:
INITIALIZATION OF MOON ROOF DURING PDS

Models:
'06 RX 330

Introduction

As a result of the removal of the Short Pin, the "one-touch tilt up and down," "one-touch slide open and close," and "jam protection" functions of the moon roof will be inoperative due to loss of the moon roof position memory stored in the microcomputer.

Initialize the moon roof after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, initialize the moon roof after reconnecting the battery terminal.

Applicable Vehicles
^ 2006 model year RX 330 vehicles.

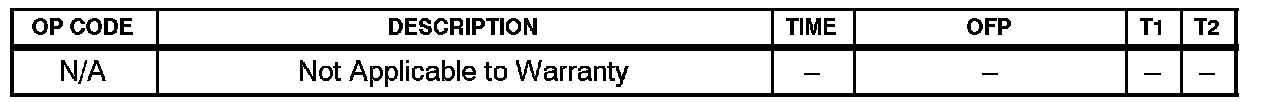

Warranty Information

Initialization Procedure:

Single-Panel Moon Roof

1. Turn the ignition switch to the "ON" position.

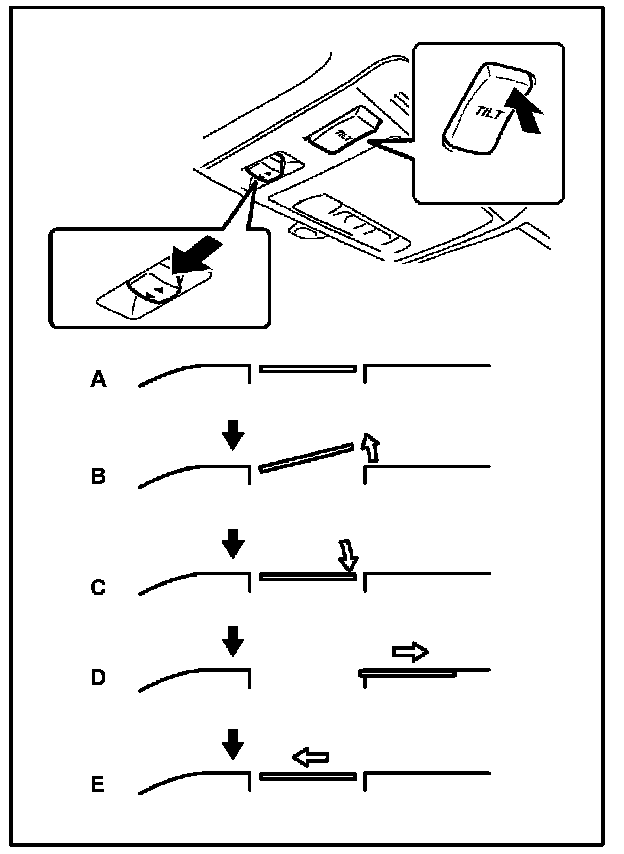

2. Push and hold the moon roof switch to the "TILT UP" side or the "SLIDE-CLOSE" side until the following cycle of the moon roof operation is completed:

A. Closing

B. Fully tilt up

C. Fully tilt down

D. Fully slide open

E. Fully slide close

After the cycle of operation above is completed, the initialization is complete.

3. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the SLIDE OPEN" and TILT UP" positions.

NOTE:
Jam protection function is enabled through the above initialization procedure.

Initialization Procedure:

Multi-Panel Moon Roof

1. Turn the ignition switch to the "ON" position.





2. Push the moon roof switch to the "TILT DOWN side or SLIDE-CLOSE" side until the moon roof closes, and hold it for approximately one second.

3. Check the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE-OPEN" and TILT UP" sides.

NOTE:
Jam protection function is enabled through the above initialization procedure.
