Body - Power Back Door Initialization Procedure

PRE-DELIVERY SERVICE
PD031-05

August 22, 2005

Title:
INITIALIZATION OF POWER BACK DOOR DURING PDS

Models:
'06 RX 330

Introduction





As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the power back door will be inoperative due to loss of the power back door position memory stored in the microcomputer.

Initialize the power back door after installing the Short Pin into its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, initialize the power back door after reconnecting the battery terminal.

Applicable Vehicles
^ 2006 model year RX 330 vehicles.

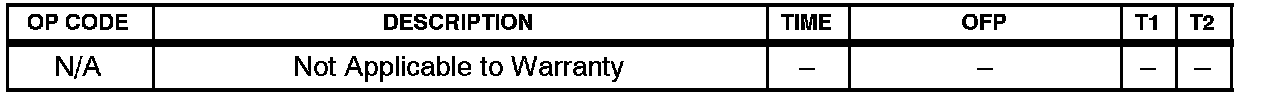

Warranty Information

Initialization Procedure

1. Fully close the power back door.

2. Cycle the power back door to fully open and fully closed positions.

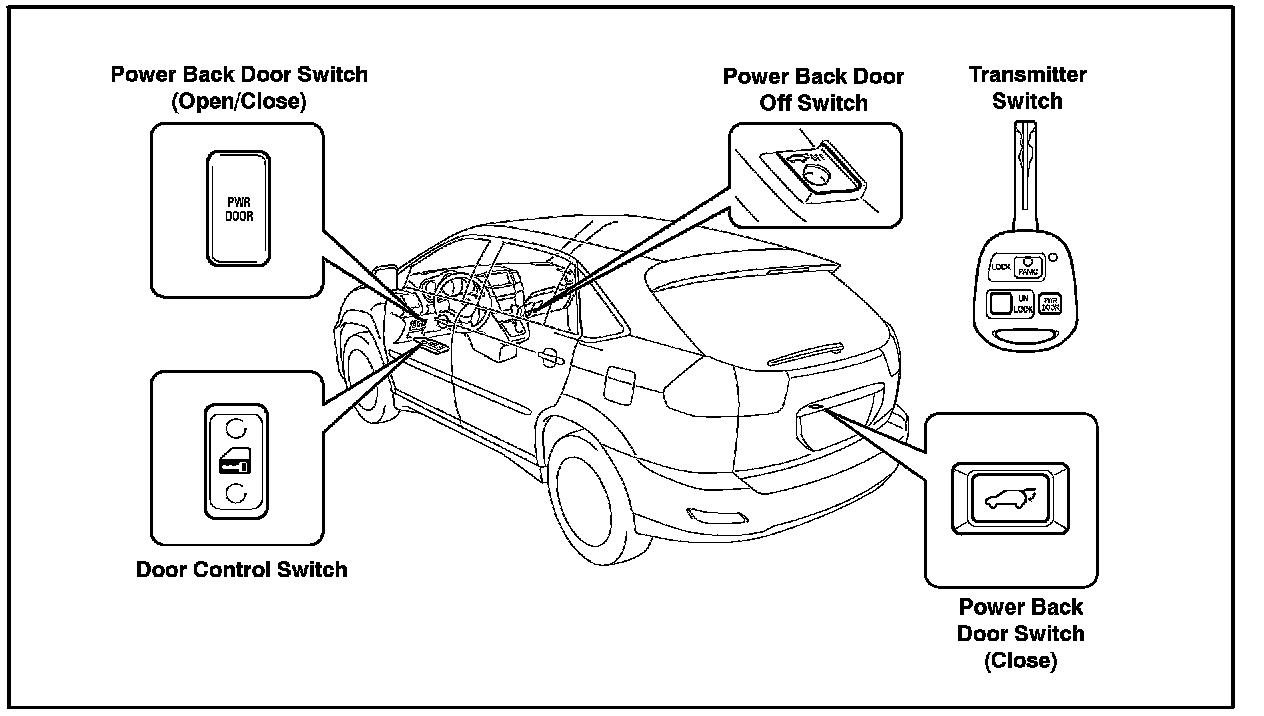

A. Unlock the power back door using the unlock button on the transmitter switch or the door control switch.

B. Check that the ignition switch is in the "OFF" position and make sure the power back door off switch is in the "ON" position.





C. Fully open and fully close the power back door by pushing the power back door switch (open/close) or the "PWR DOOR" button briefly on the transmitter switch.

NOTE:
Jam protection function is enabled through the above initialization procedure.
