Canada - Body - Roof Drip Molding Lifting
BulletinTSB2441
Issue Date
June 18, 2007
Title
ROOF DRIP MOLDING LIFTING
Component
BODY COMPONENTS
Models
'04 - '06 RX 330 (TMMC),'07 RX 350 (TMMC)
INTRODUCTION:
Some owners may experience the roof drip molding lifting from the roof rail body channel. Improved parts are now available to address this condition.
APPLICABLE VEHICLES:
- 2004 - 2006 model year RX 330 and 2007 RX 350 vehicles produced BEFORE the Production Change Effective VINs shown below.

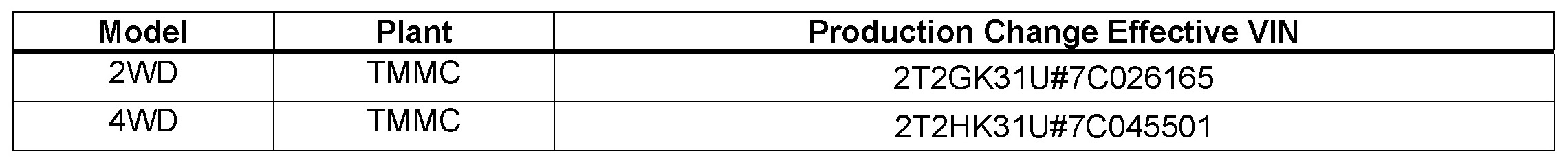

PRODUCTION CHANGE INFORMATION:

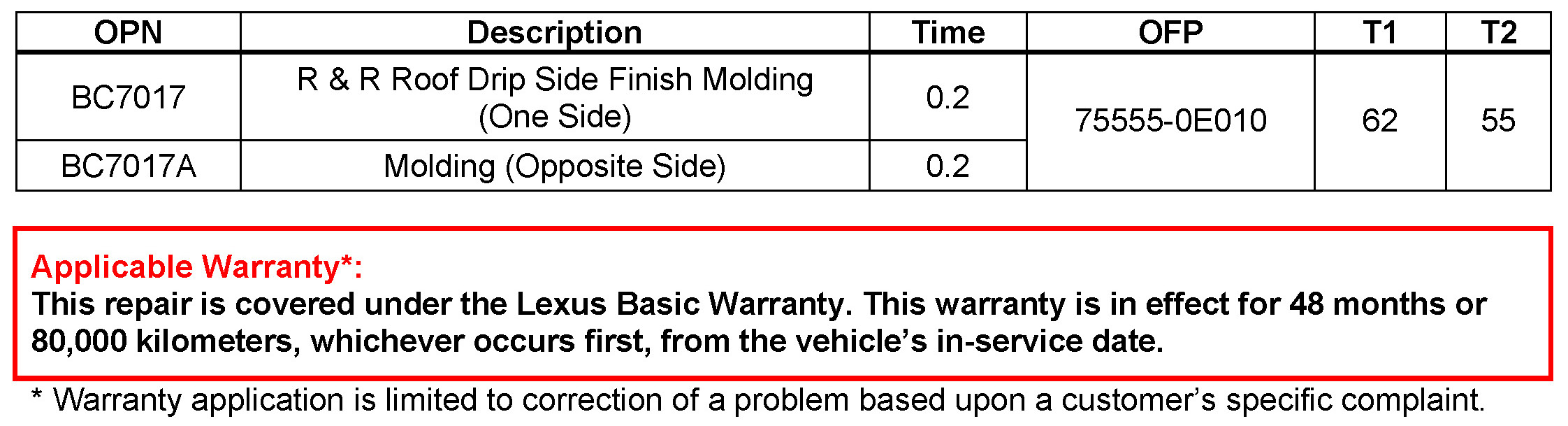

PARTS INFORMATION:
WARRANTY INFORMATION:

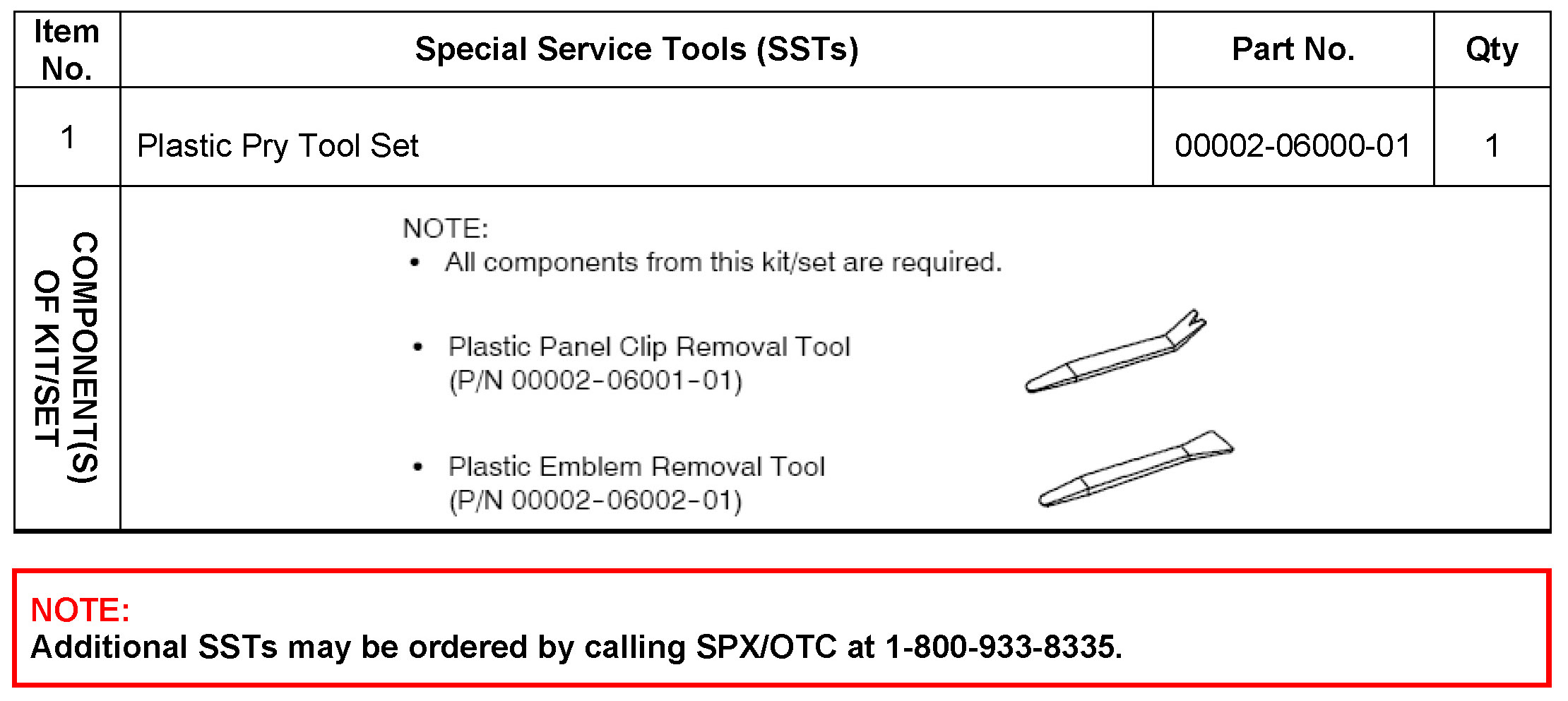

REQUIRED SSTS:

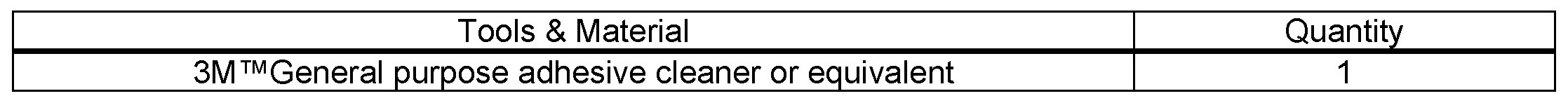

REQUIRED TOOLS & MATERIAL:
REPAIR PROCEDURE:
Remove and replace the Roof Drip Finish Molding.
NOTE:
Installation procedure is the reverse order of disassembly.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Lexus
- Model: RX 330
- Year: 2004 - 2005
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding LH (Standard Type): Replacement
- Division: Lexus
- Model: RX 330
- Year: 2004 - 2005
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding LH (Multi-panel Moon Roof Type): Replacement
- Division: Lexus
- Model: RX 330
- Year: 2006 OR 2007
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding (w/o Sliding Roof): Removal
- Division: Lexus
- Model: RX 330
- Year: 2006 OR 2007
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding (w/ Sliding Roof): Removal
- Division: Lexus
- Model: RX 330
- Year: 2006 OR 2007
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding (w/o Sliding Roof): Removal
- Division: Lexus
- Model: RX 330
- Year: 2006 OR 2007
- Service Category: Vehicle Exterior
- Section: Exterior Panels/Trim
- Keyword: Roof Drip Side Finish Moulding (w/ Sliding Roof): Removal
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
