Lighting - AFS Indicator Lamp Flashing
ELECTRICALEL004-06
REVISED
Title:
AFS INDICATOR LIGHT FLASHING
Models
'06 RX 330 (NAP)
March 14, 2006
TSIB REVISION NOTICE:
March 30, 2006: The Applicable VIN Range has been updated in Applicable Vehicles. Previous versions of this TSIB should be discarded.
Introduction
Some vehicles in colder regions may exhibit a condition where the AFS (Adaptive Front Lighting System) indicator will initially flash when the vehicle is started. Inspect the left headlight assembly and secure the sub-harness as outlined in this TSIB.
Applicable Vehicles
^ 2006 model year NAP-built RX 330 vehicles with Adaptive Front Lighting System (AFS) produced WITHIN the applicable VIN ranges listed below.
Required Tools & Material

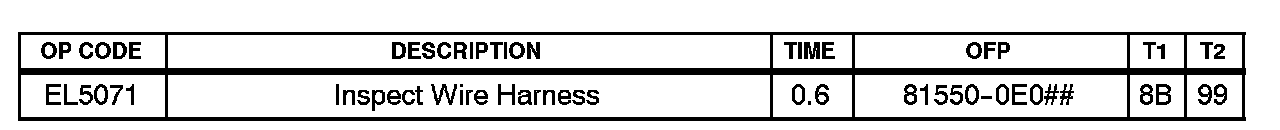

Warranty Information
Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Repair Procedure
1. Remove the left headlamp assembly. For removal procedure, refer to the Technical Information System (TIS), 2006 model year RX 330 Repair Manual: Lighting: Headlamp Assy
2. Inspect the sub-harness to verify the wire is secured in the clip.
3. Secure the sub-harness into place as necessary. If the harness is already clipped into place, diagnose per the Repair Manual.
4. Reassemble the headlamp assembly.
5. Verify that the AFS warning light does NOT stay illuminated with the ignition ON and that the codes stay cleared.
