Lighting - Condensation in The Headlamps

BODY
BO003-07
REVISED

Title:
HEADLAMP CONDENSATION

Models:
'04 - '06 RX 330 (TMMC)

May 18, 2007

TSIB REVISION NOTICE:

^ June 18, 2007: The Parts Information table has been updated.
Previous versions of this TSIB should be discarded.

Introduction

Some customers may experience condensation or moisture forming on the interior of the headlamp of 2004 - 2006 model year RX 330 vehicles. New headlamps are available to address this concern. Use the following repair procedure to replace the headlamp assembly.

Applicable Vehicles

^ 2004 - 2006 model year TMMC-built RX 330 vehicles produced BEFORE the Production Change Effective VINs shown below.

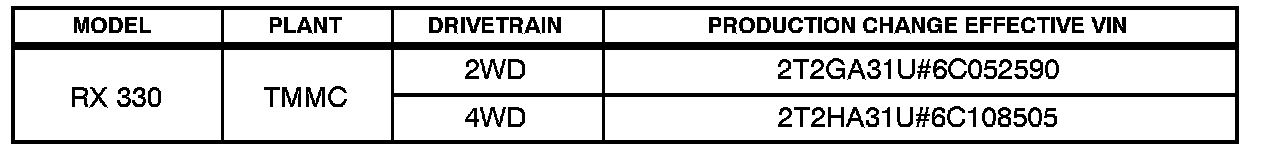

Production Change Information

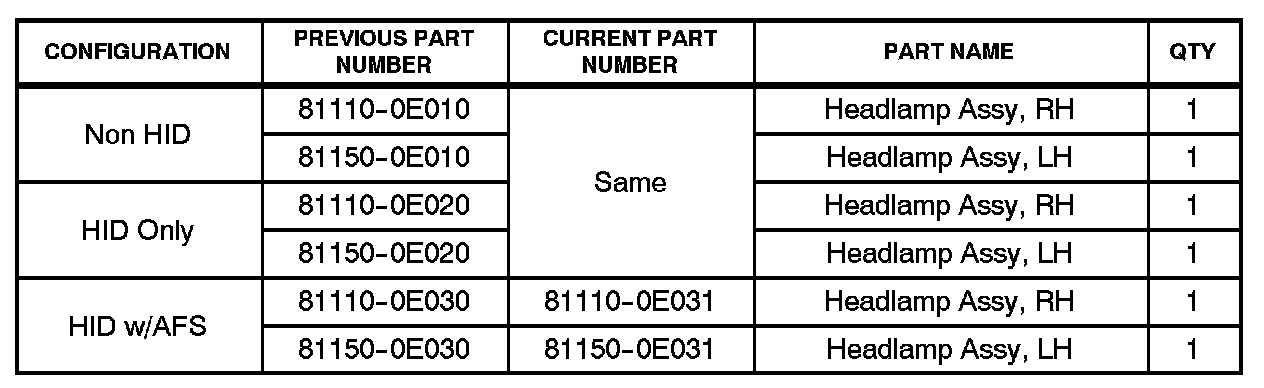

Parts Information





Warranty Information

Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.





Required Tools & Material





Components

Repair Procedure

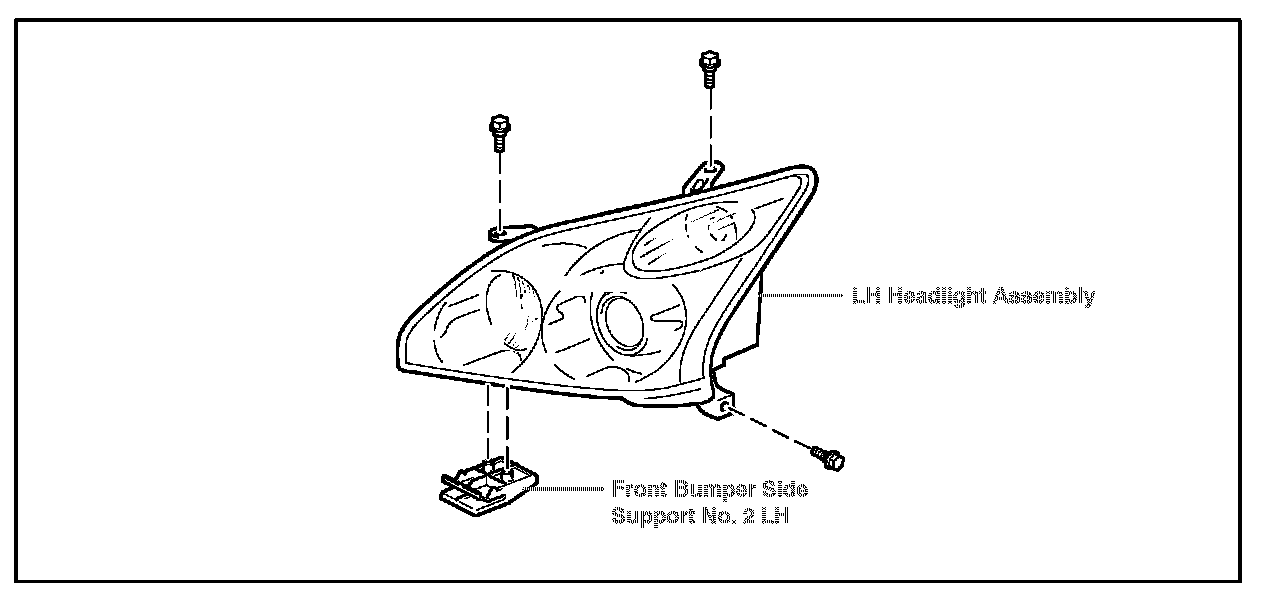

Remove and replace the headlamp assembly.

Refer to the Technical Information System (TIS), 2006 model year RX 330 Repair Manual:

^ Vehicle Exterior - Lighting (ext) - "Lighting: Headlight Assembly: Removal"

^ Vehicle Exterior - Lighting (ext) - "Lighting: Headlight Assembly: Disassembly" Vehicle Exterior - Lighting (ext) - "Lighting: Headlight Assembly: Installation"
