Headlamp Washer Motor: Service and Repair
REMOVAL1. REMOVE FRONT BUMPER STAY CENTER

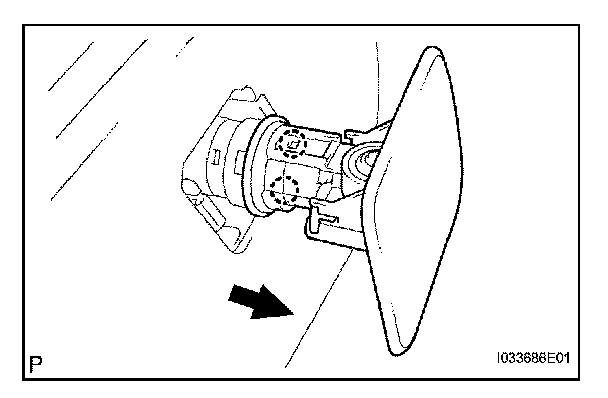

2. REMOVE FRONT BUMPER ASSEMBLY
3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE
a. Extend the headlight cleaner washer nozzle.
b. Disengage the 2 claws and remove the headlight cleaner washer nozzle.

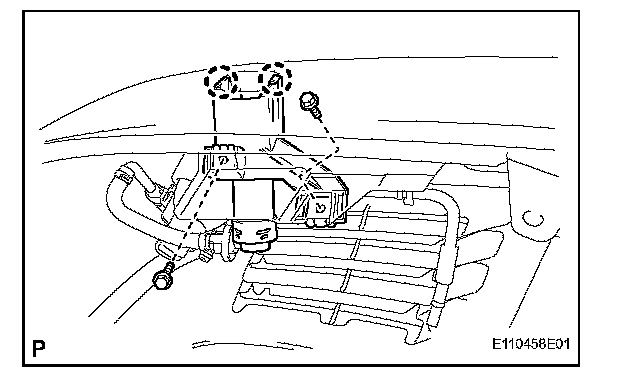

4. REMOVE HEADLIGHT WASHER ACTUATOR
a. Disconnect the headlight washer hose.
b. Remove the 2 bolts.
c. Disengage the 2 claws and remove the headlight cleaner washer actuator sub-assembly.
INSTALLATION
1. INSTALL HEADLIGHT WASHER ACTUATOR
a. Install the headlight washer actuator sub-assembly with the 2 bolts and the 2 claws.
Torque: 4.5 N.m (46 kgf.cm, 40 in.lbf)
b. Connect the headlight washer hose.
2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE
3. INSTALL FRONT BUMPER ASSEMBLY
4. INSTALL FRONT BUMPER STAY CENTER
