Headlamp Washer Motor: Testing and Inspection

HEADLIGHT CLEANER MOTOR

INSPECTION




1. INSPECT HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY
a. Operation Check
1. Fill the washer jar with the washer fluid.

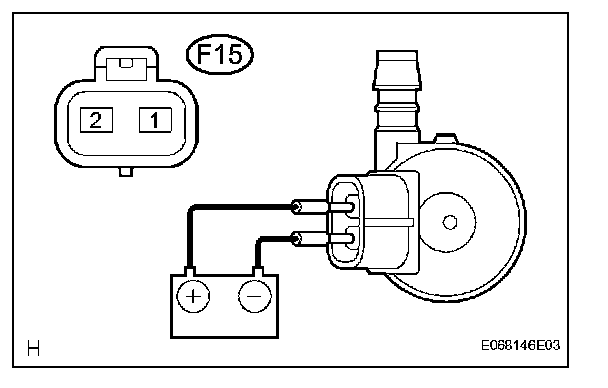

2. Connect the positive battery (+) lead to terminal 1 of the headlight cleaner motor and pump assembly, and the negative battery (-) lead to terminal 2. Check that washer fluid flows from the washer jar.
