Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

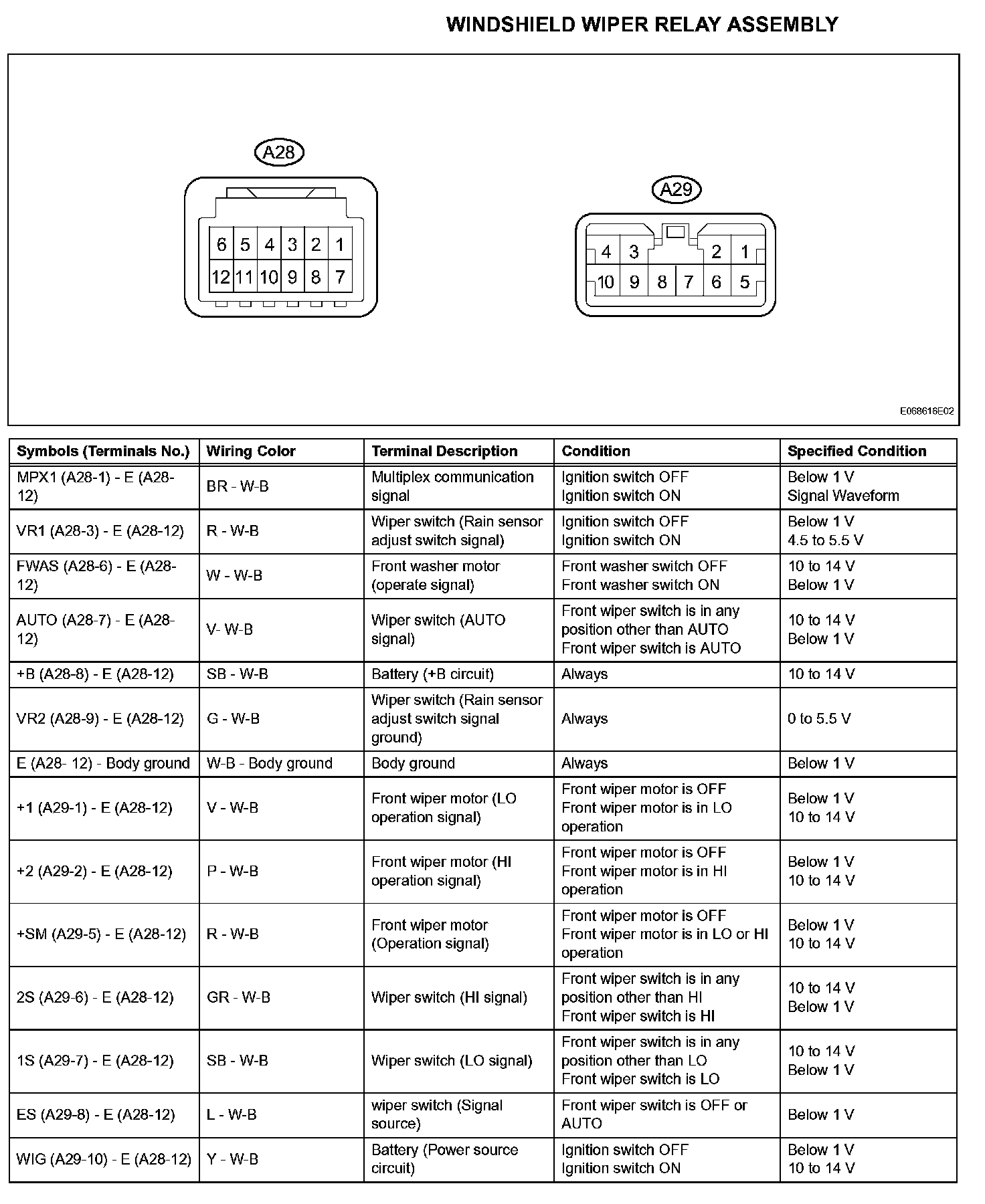

Terminals Of Control Module/Pinouts - Windshield Wiper Relay Assembly:

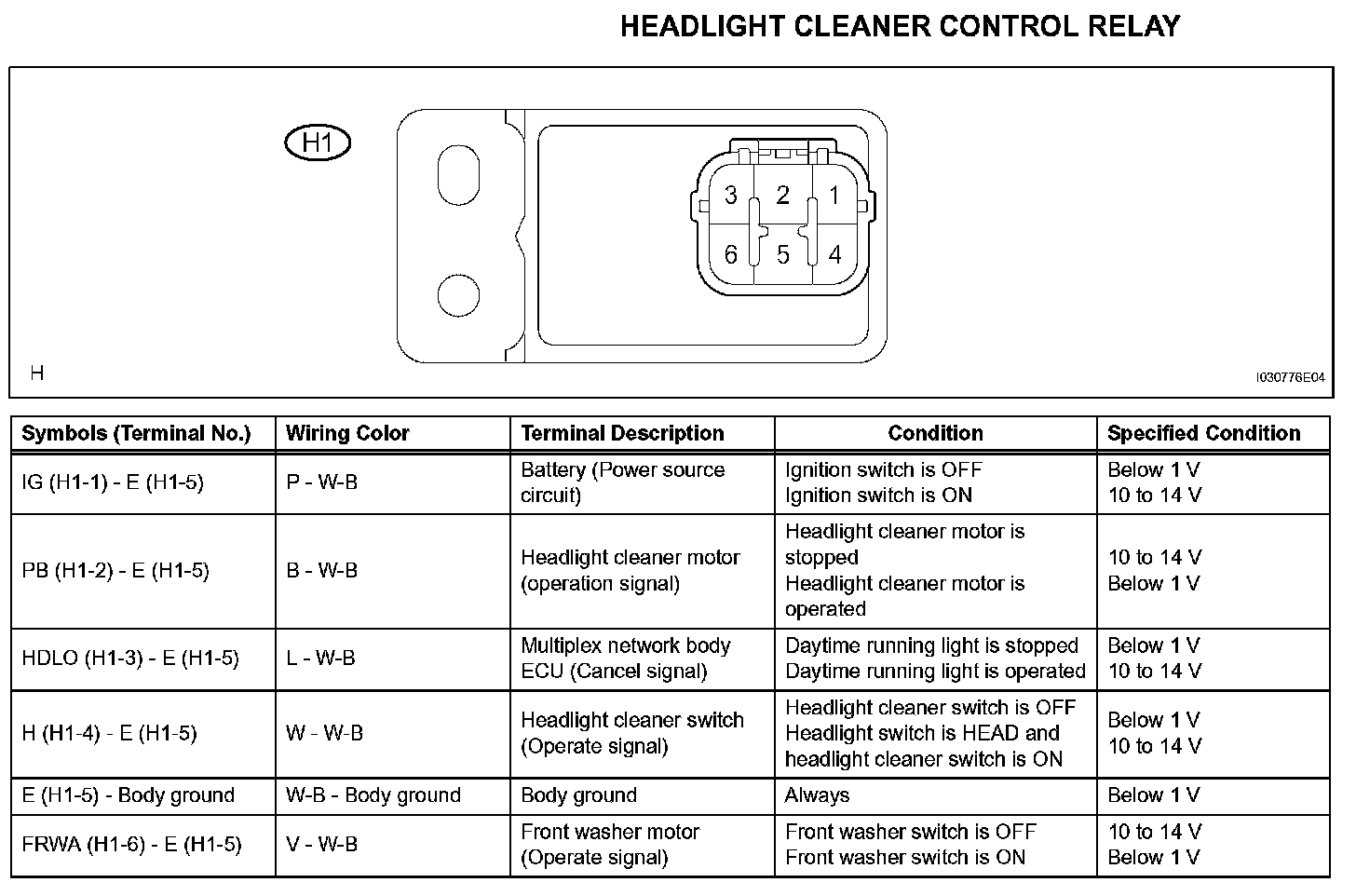

Terminals Of Control Module/Pinouts - Headlight Cleaner Control Relay:
