Windshield Washer Spray Nozzle: Testing and Inspection

WASHER NOZZLE

ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

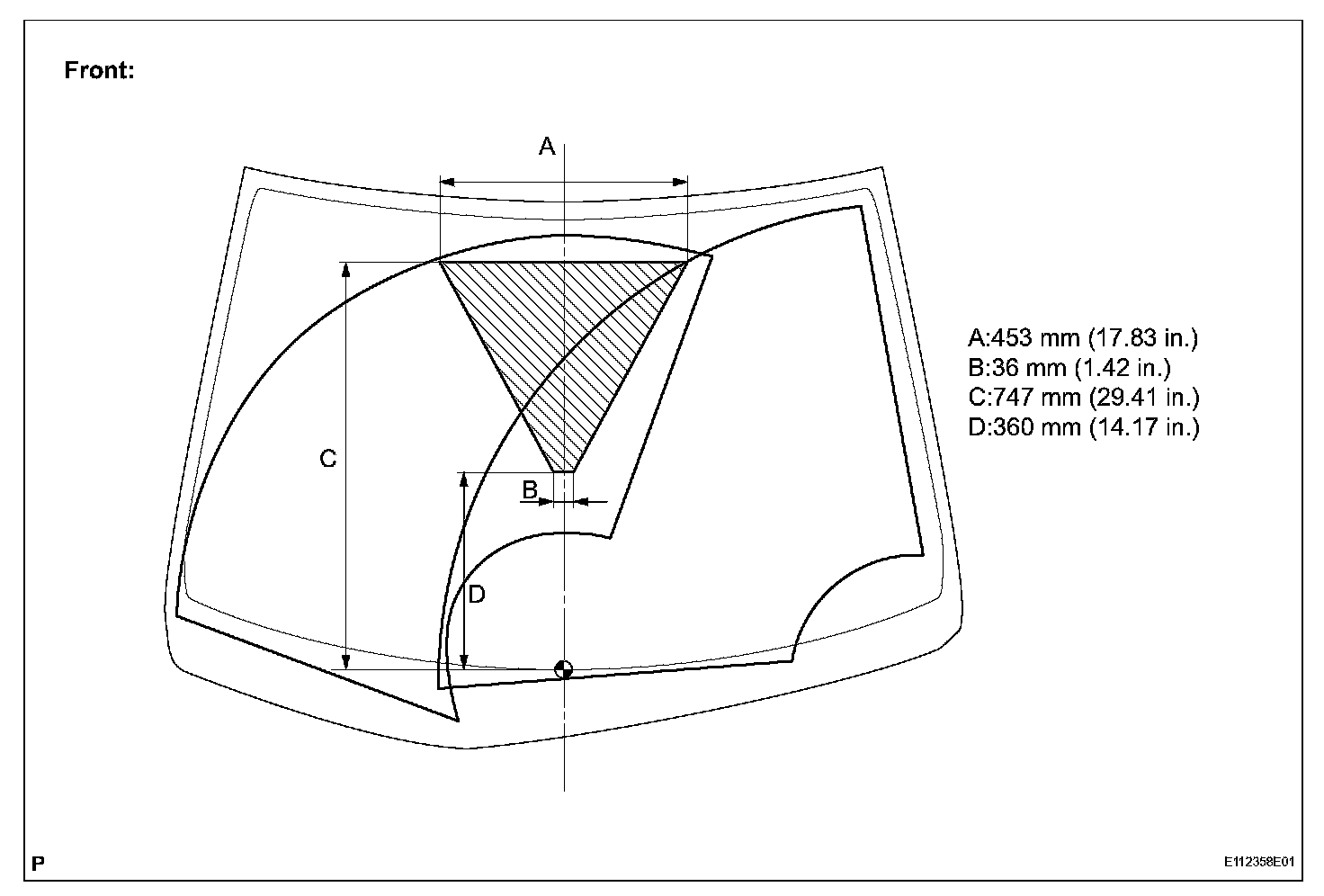

a. With the engine running, check the position that the washer fluid hits the windshield.

Standard: Washer fluid hits the windshield in the areas shown in the illustration.

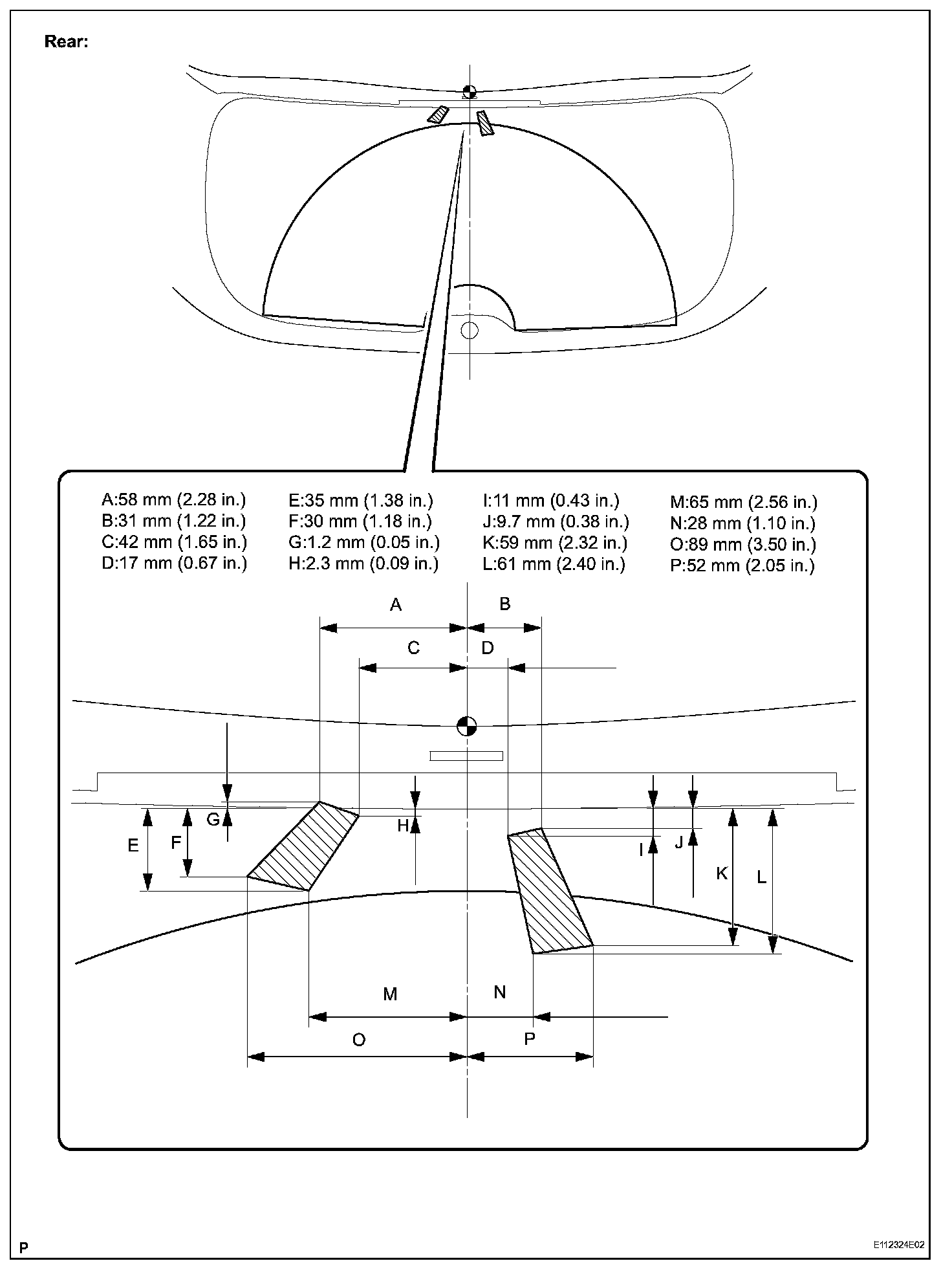

b. With the engine running, check the position that the washer fluid hits the back door glass.

Standard: Washer fluid hits the back door glass in the areas shown in the illustration.
