Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. TELEVISION CAMERA ASSEMBLY
a. Disconnect the T15 camera connector.

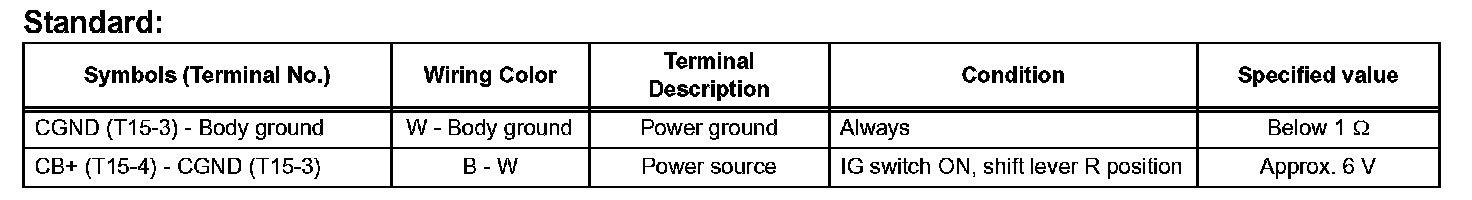

b. Measure the voltage and resistance of each terminal of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T15 camera connector.
d. Measure the voltage and frequency of each terminal of the connector.
If the result is not as specified, the camera may have a malfunction.

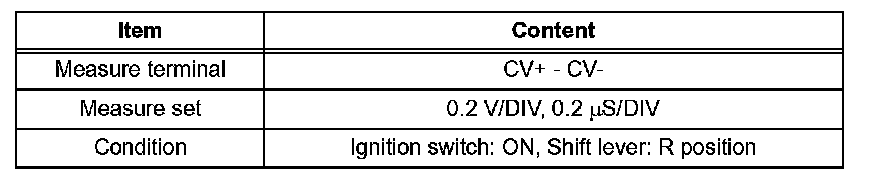

e. Reference:

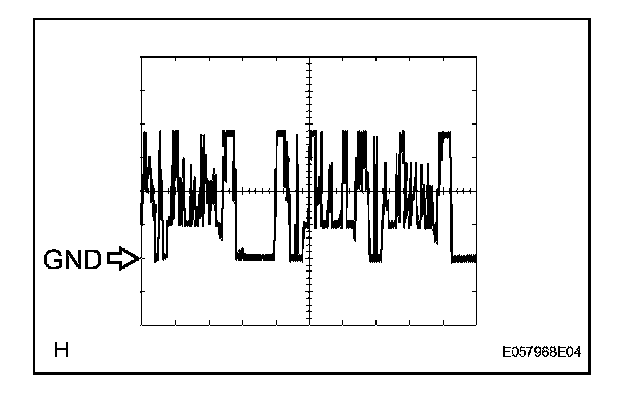

Oscilloscope Waveform:
Oscilloscope waveform
1. Waveform 1
2. TELEVISION CAMERA ECU

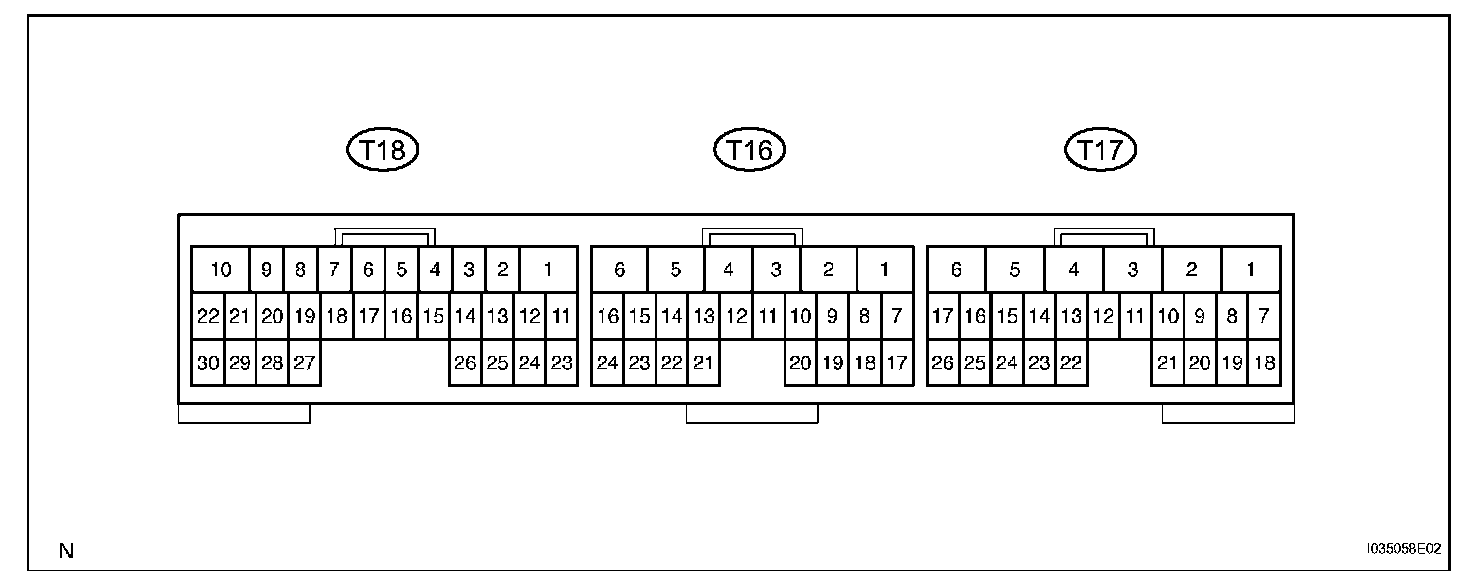

a. Disconnect the T16, T17 and T18 ECU connector.

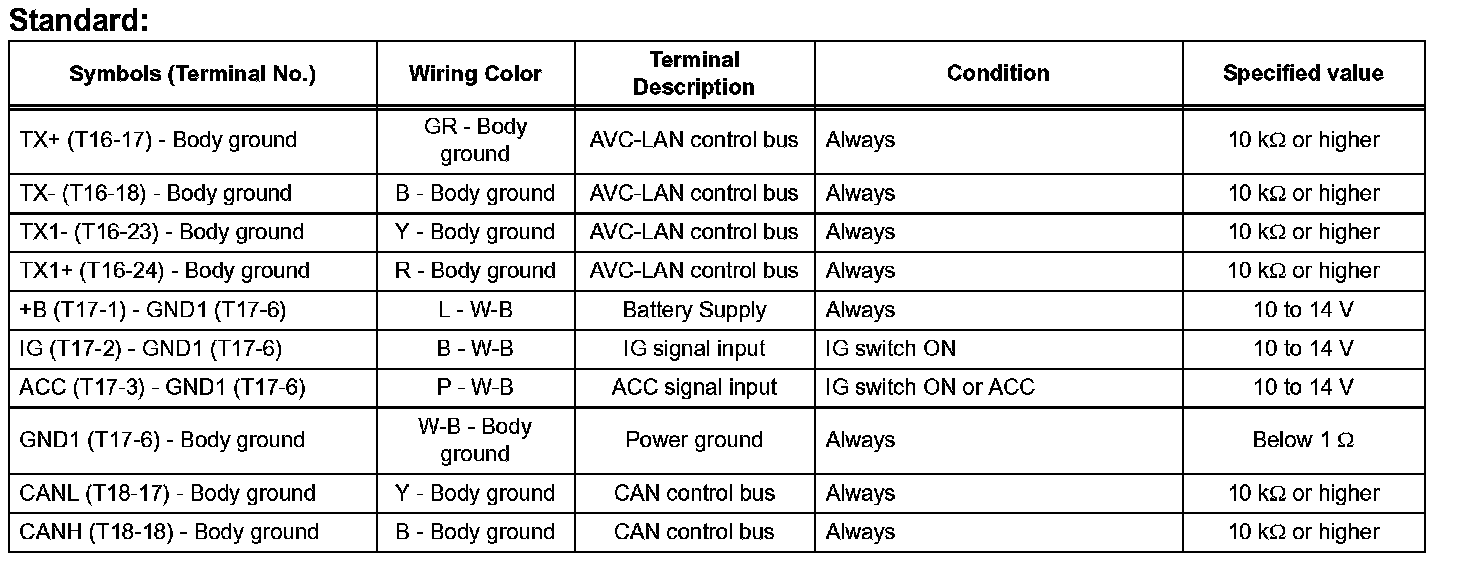

b. Measure the voltage and resistance of each terminal of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
Part 1:

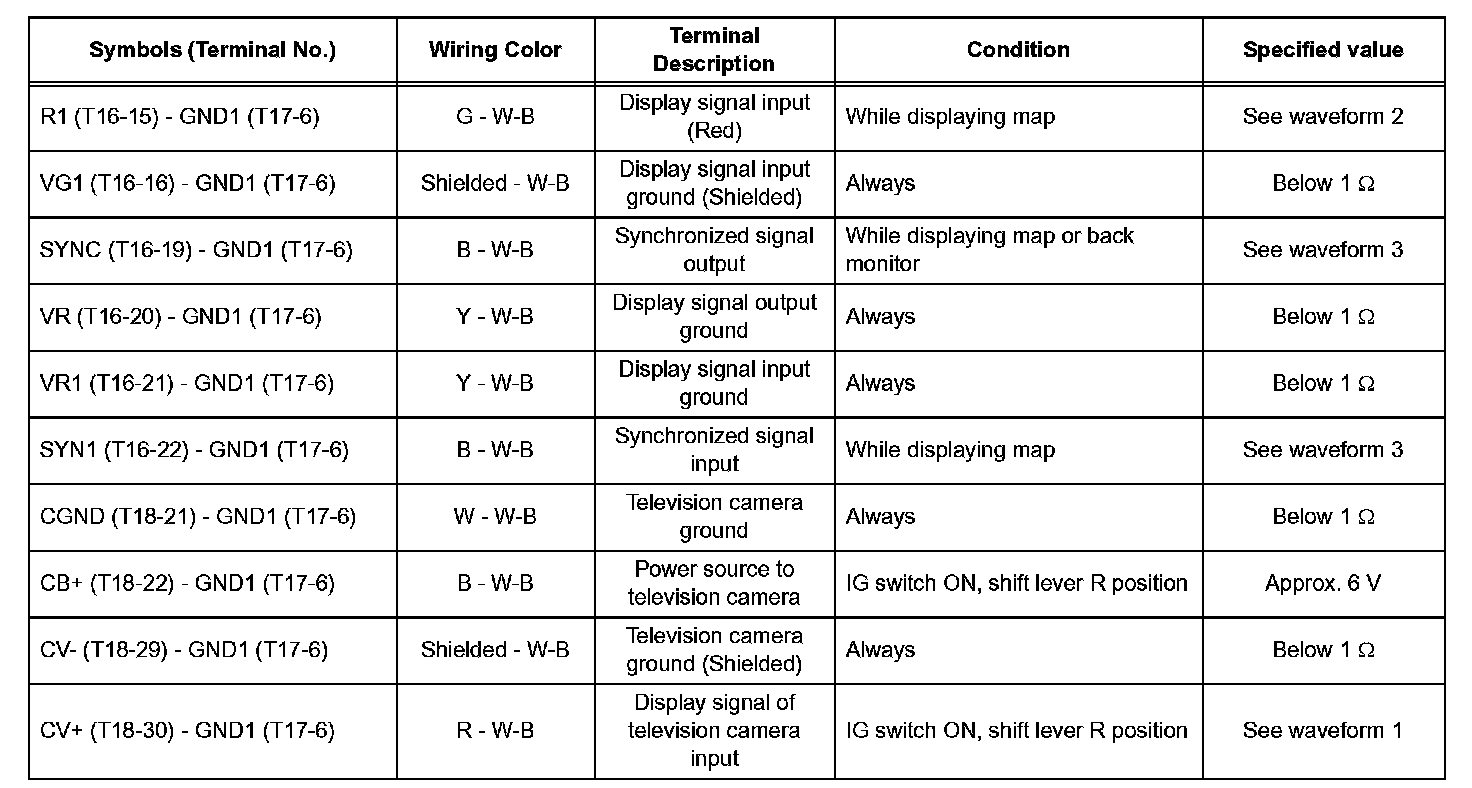

Part 2:
c. Reconnect the T16, T17 and T18 ECU connector.
d. Measure the voltage and frequency of each terminal of the connector.
If the result is not as specified, the television camera ECU may have a malfunction.

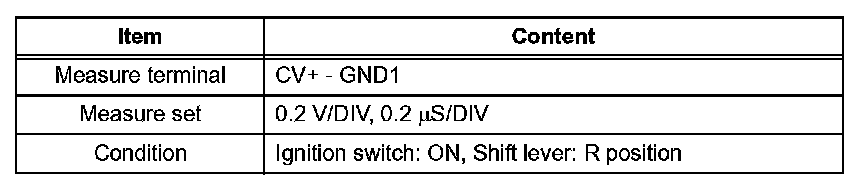

e. Reference:
Oscilloscope waveform
Oscilloscope Waveform:
1. Waveform 1

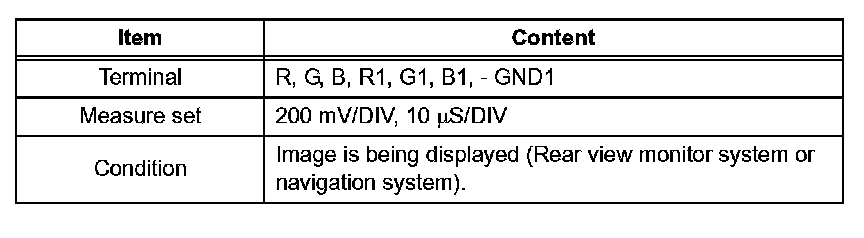

Oscilloscope Waveform:
2. Waveform 2
Oscilloscope Waveform:
2. Waveform 3
