Pinout Values and Diagnostic Parameters

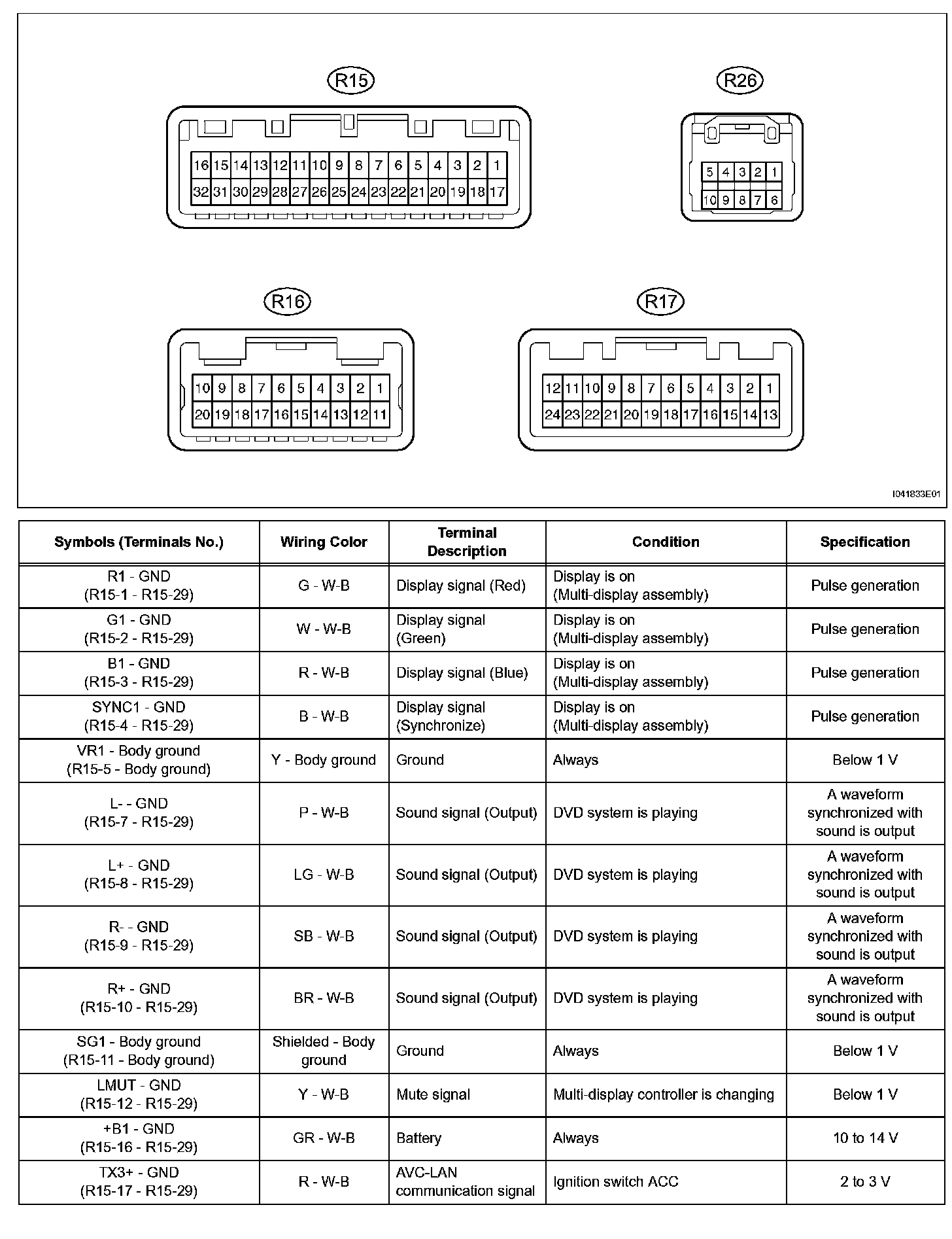

Terminals Of Control Module/Pinouts - Multi-Display Controller (Part 1):

Terminals Of Control Module/Pinouts - Multi-Display Controller (Part 2):

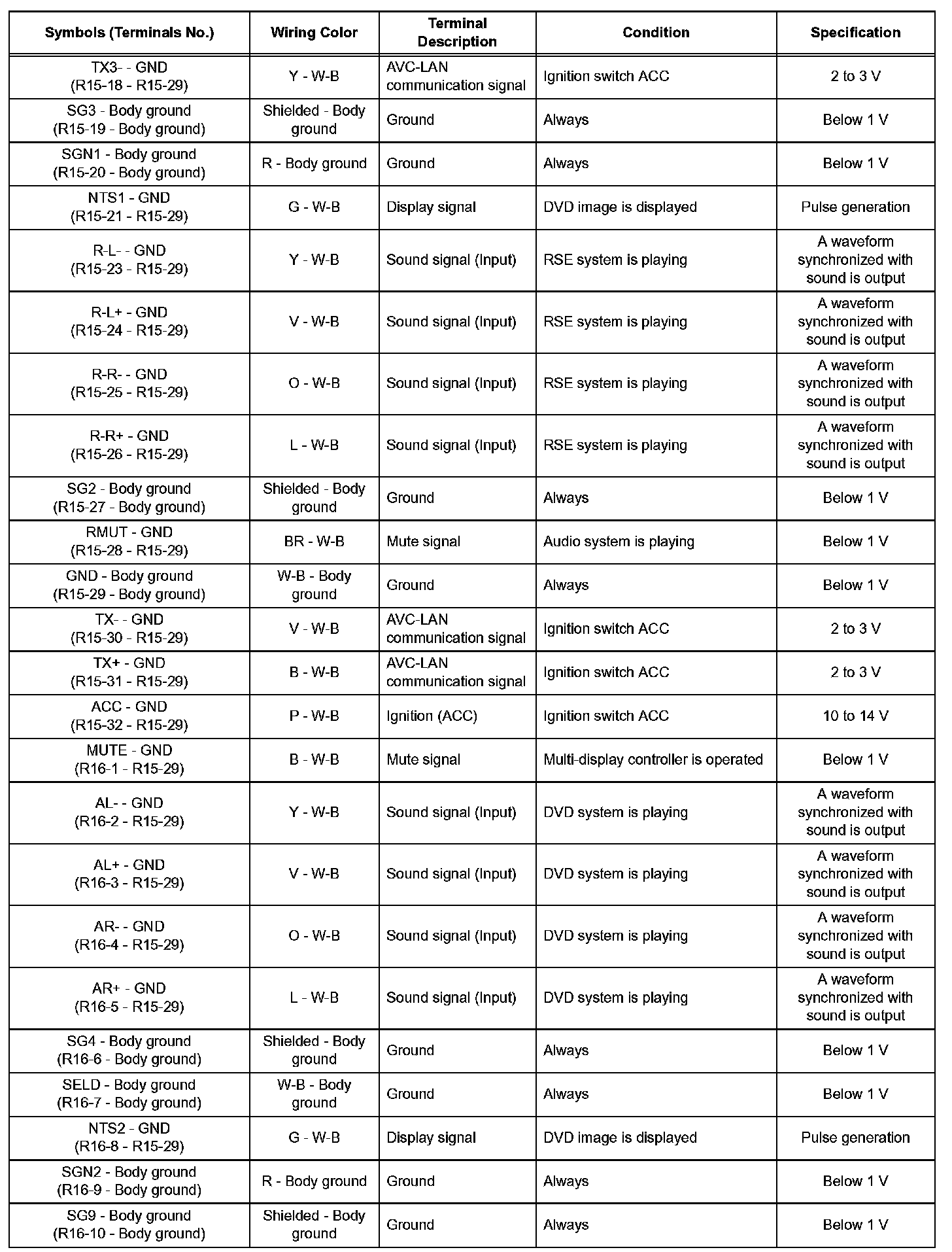

Terminals Of Control Module/Pinouts - Multi-Display Controller (Part 3):

Terminals Of Control Module/Pinouts - Multi-Display Controller (Part 4):

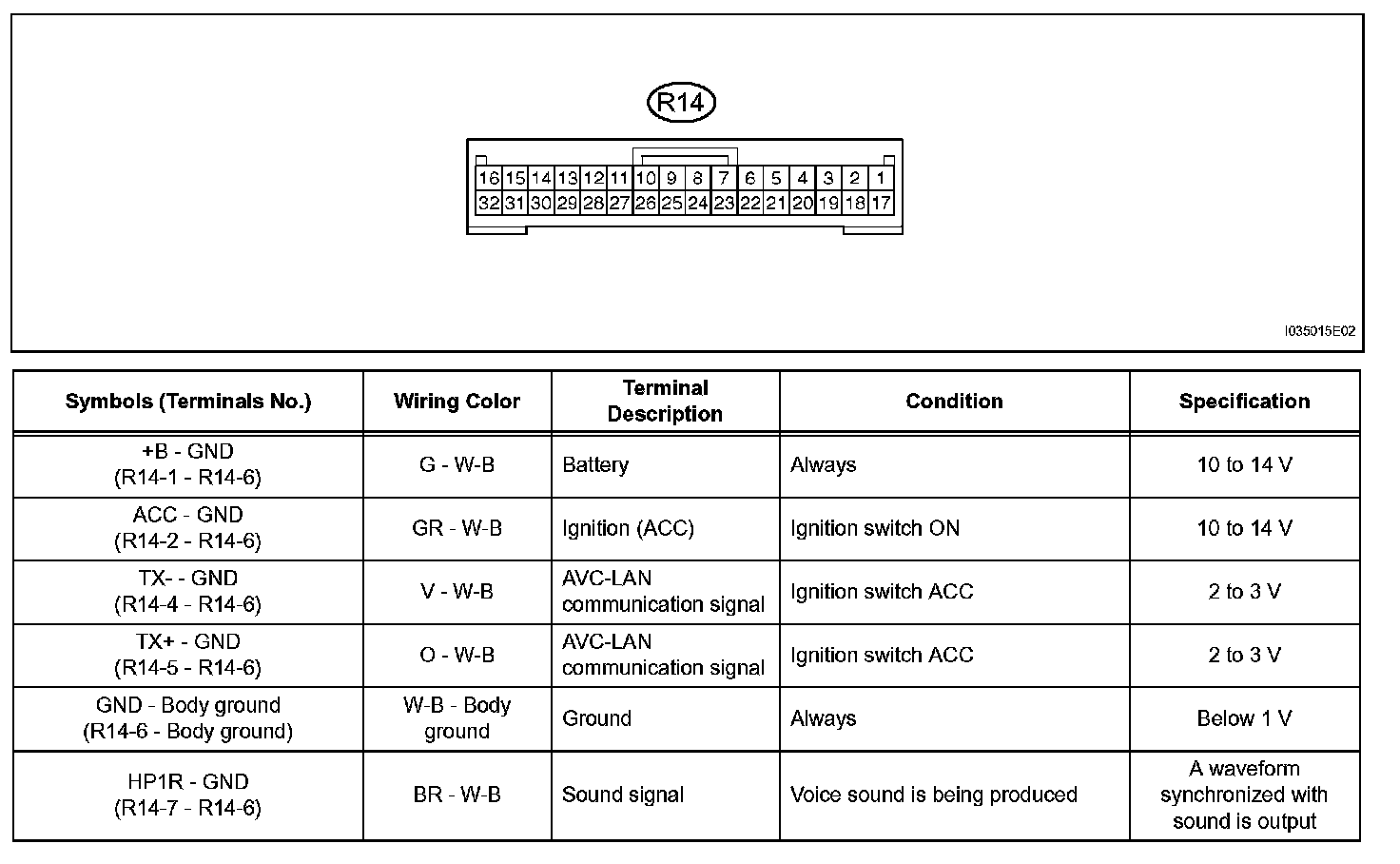

Terminals Of Control Module/Pinouts - Rear Display Assembly (Part 1):

Terminals Of Control Module/Pinouts - Rear Display Assembly (Part 2):

Terminals Of Control Module/Pinouts - Rear Display Assembly (Part 3):
