Front Pillar Upper Cover
REMOVAL1. REMOVE FRONT PILLAR UPPER COVER

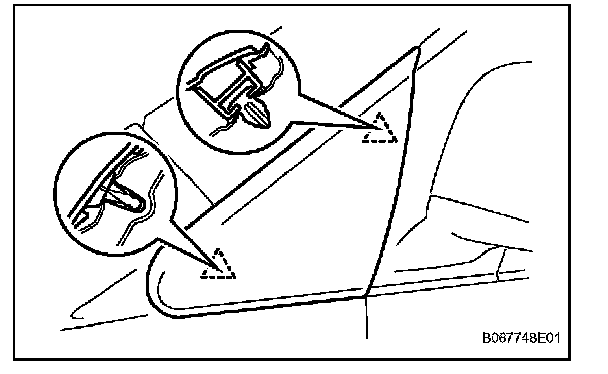

a. Using a screwdriver, disengage the 2 clips and remove the front pillar upper cover.
HINT: Tape the screwdriver tip before use.
INSTALLATION
1. INSTALL FRONT PILLAR UPPER COVER
1. REMOVE FRONT PILLAR UPPER COVER
a. Using a screwdriver, disengage the 2 clips and remove the front pillar upper cover.
HINT: Tape the screwdriver tip before use.
INSTALLATION
1. INSTALL FRONT PILLAR UPPER COVER
