Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. CHECK OUTER MIRROR CONTROL ECU LH
a. Disconnect the R27 connector.

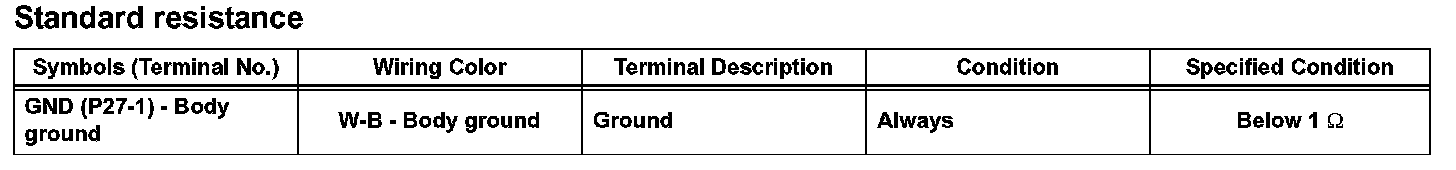

b. Measure the voltage and resistance according to the value(s) in the table given.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the R27 connector.

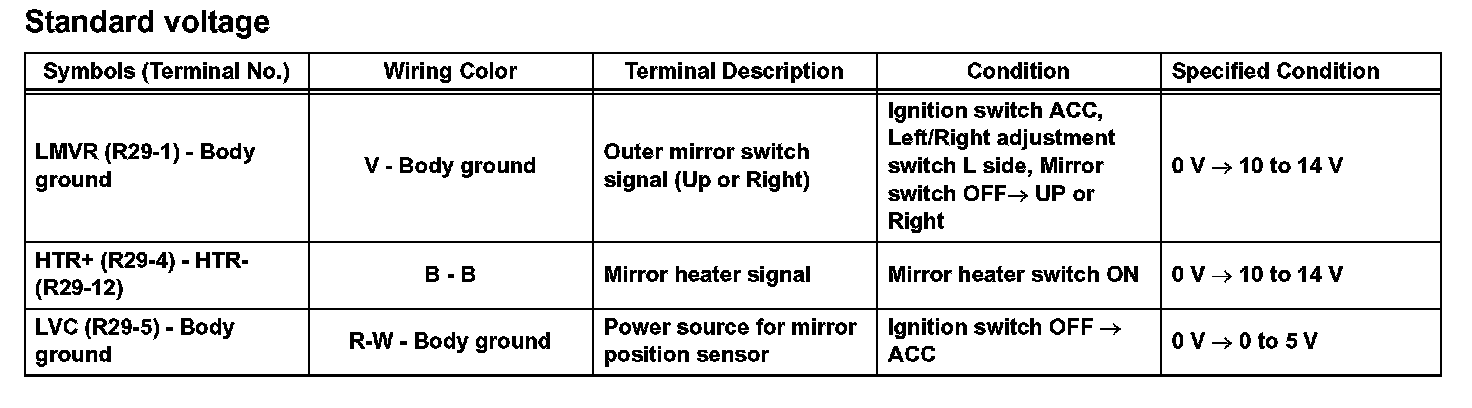

d. Measure the voltage according to the value(s) in the table given.
2. CHECK OUTER MIRROR CONTROL ECU RH
a. Disconnect the R28 connector.

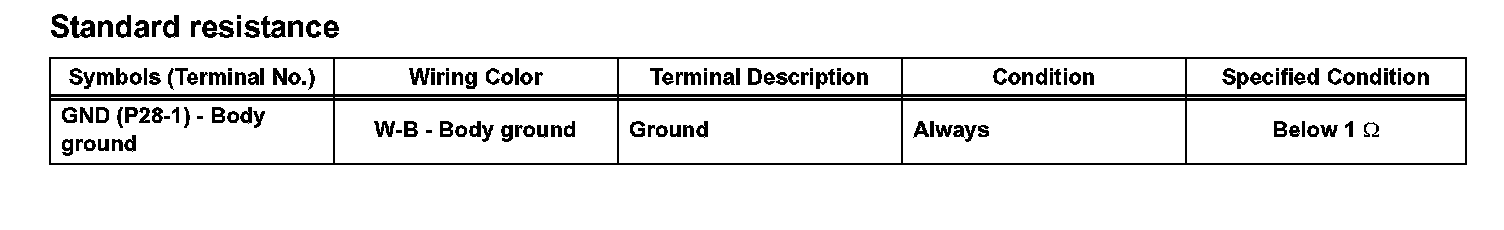

b. Measure the voltage and resistance according to the value(s) in the table given.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the R28 connector.

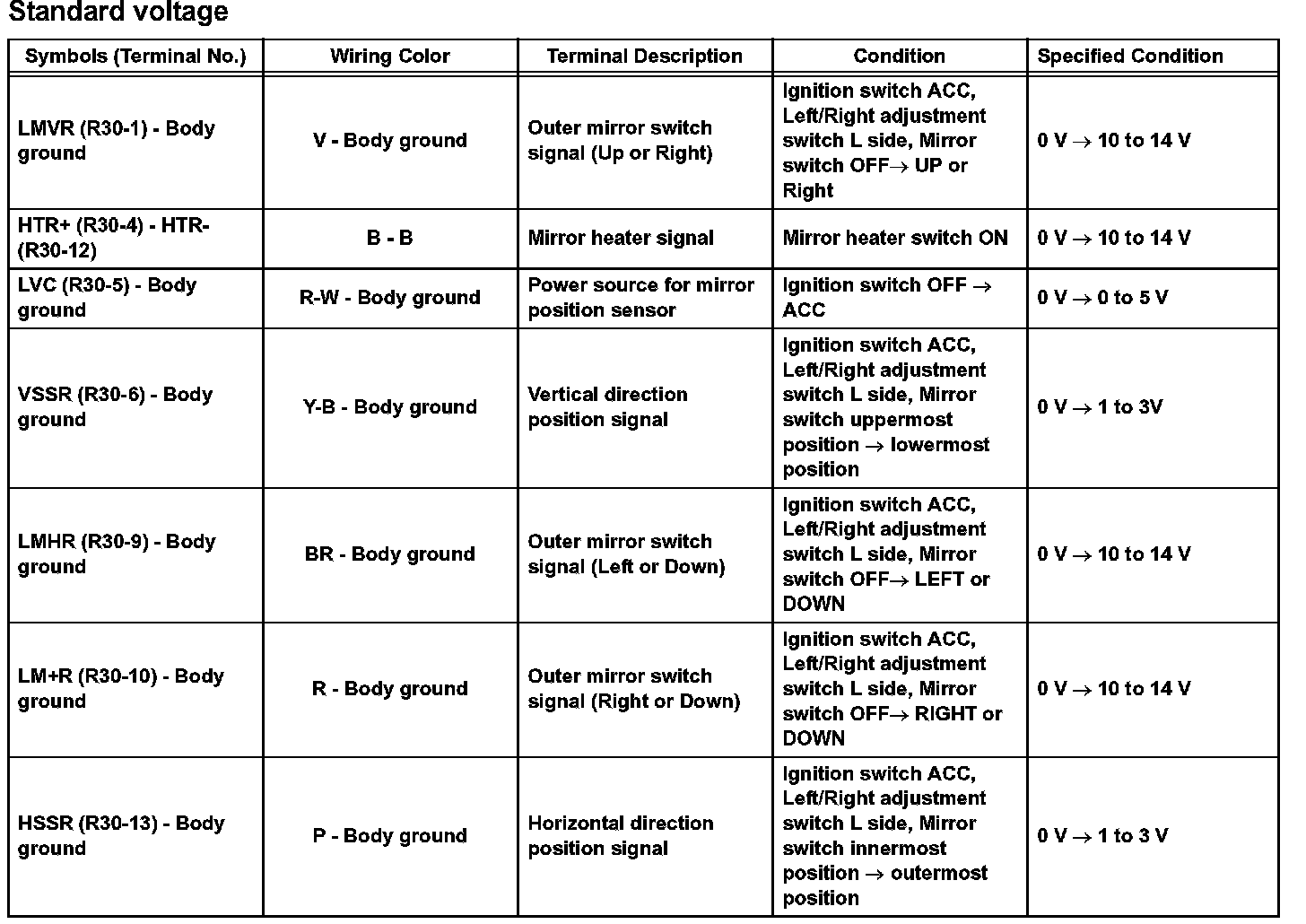

d. Measure the voltage according to the value(s) in the table given.
