Hybrid System

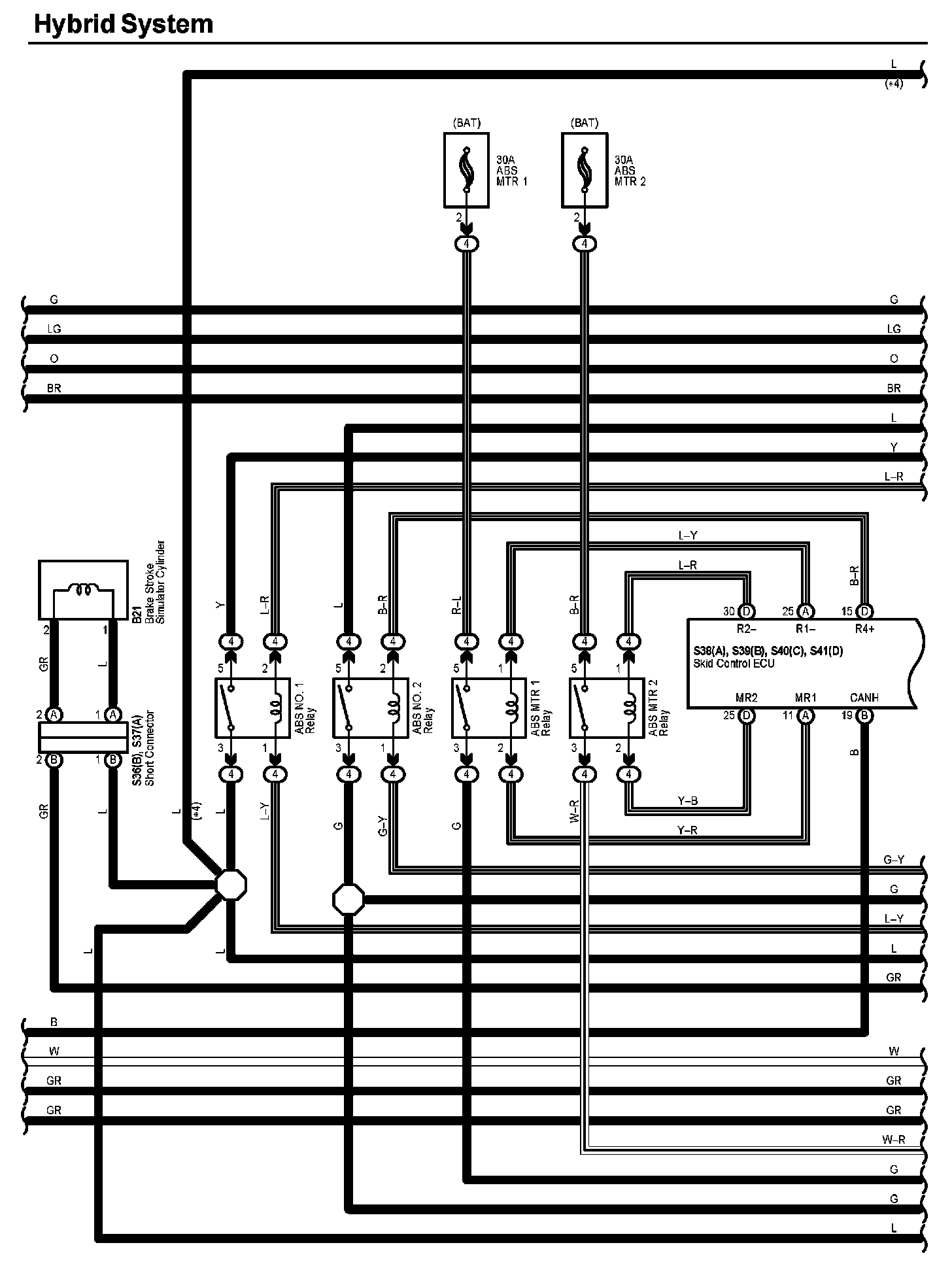

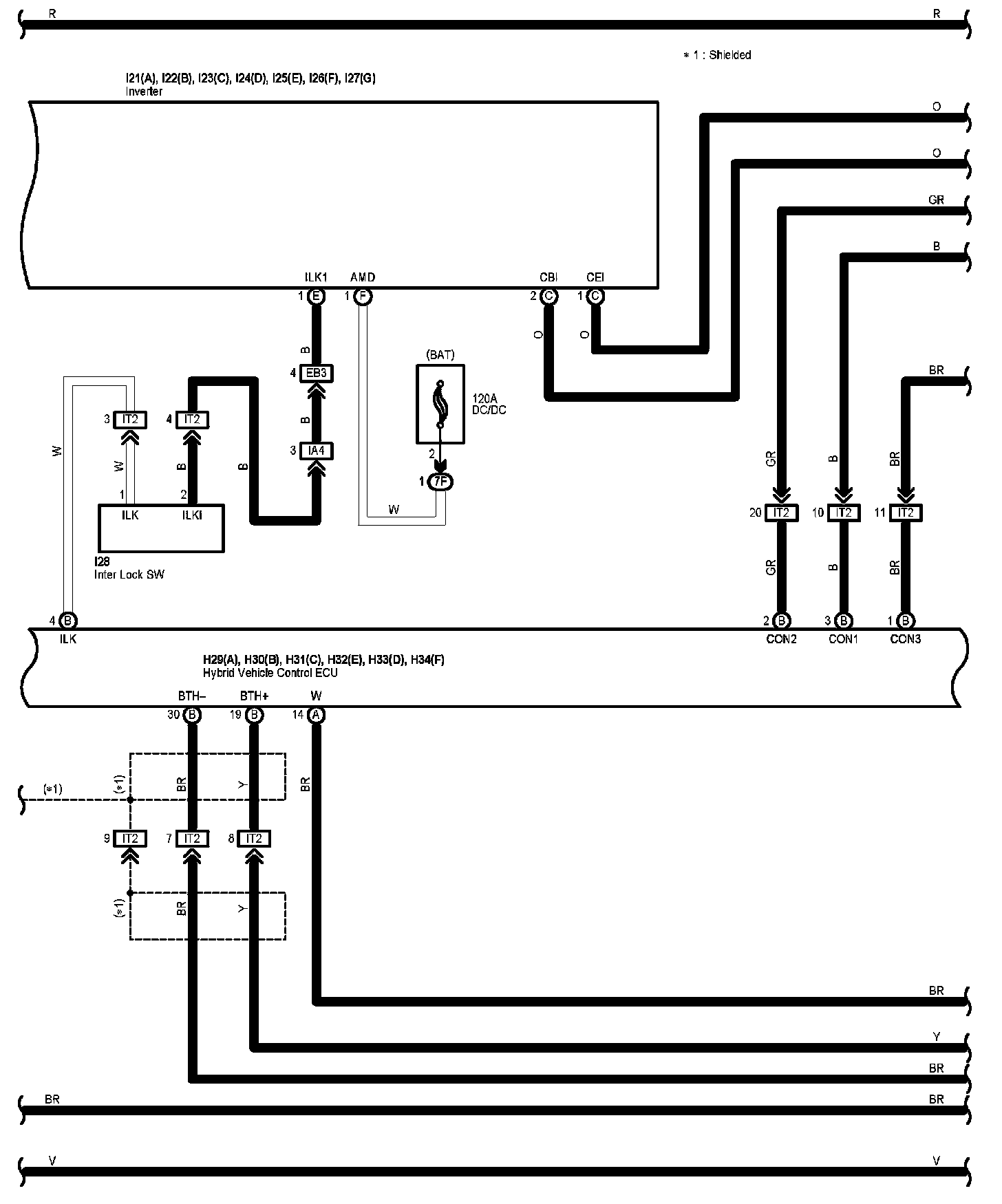

Hybrid System (Part 1):

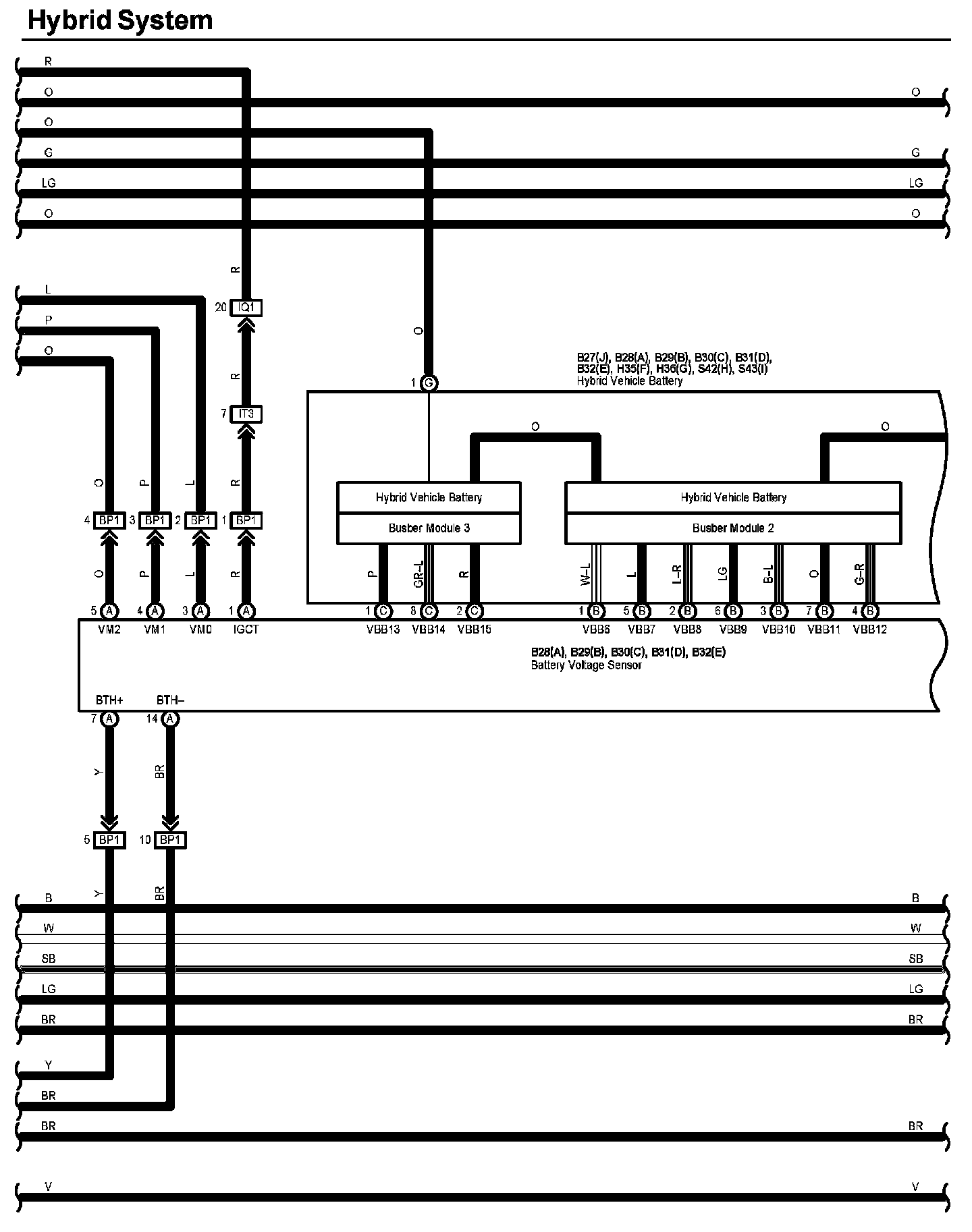

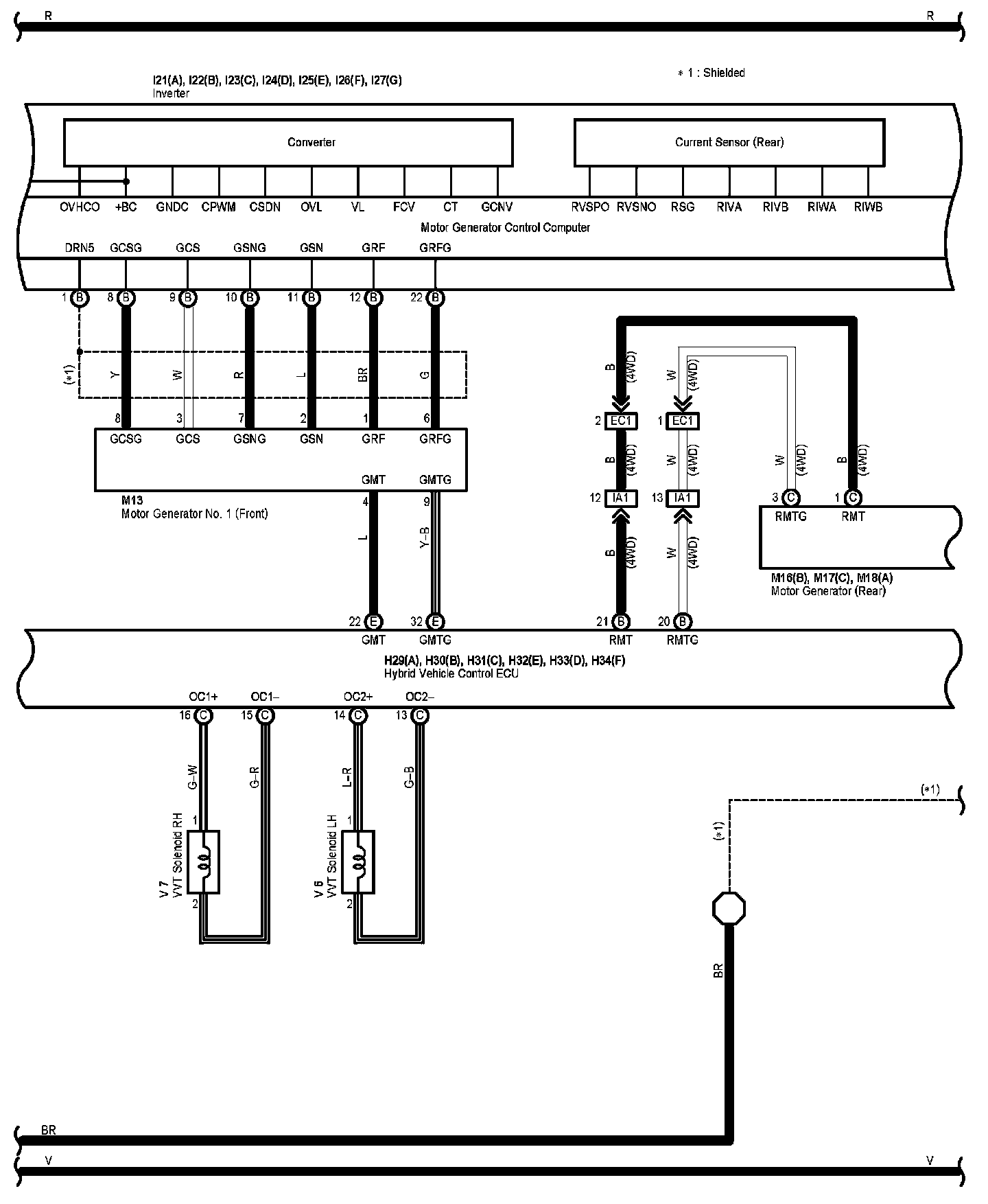

Hybrid System (Part 2):

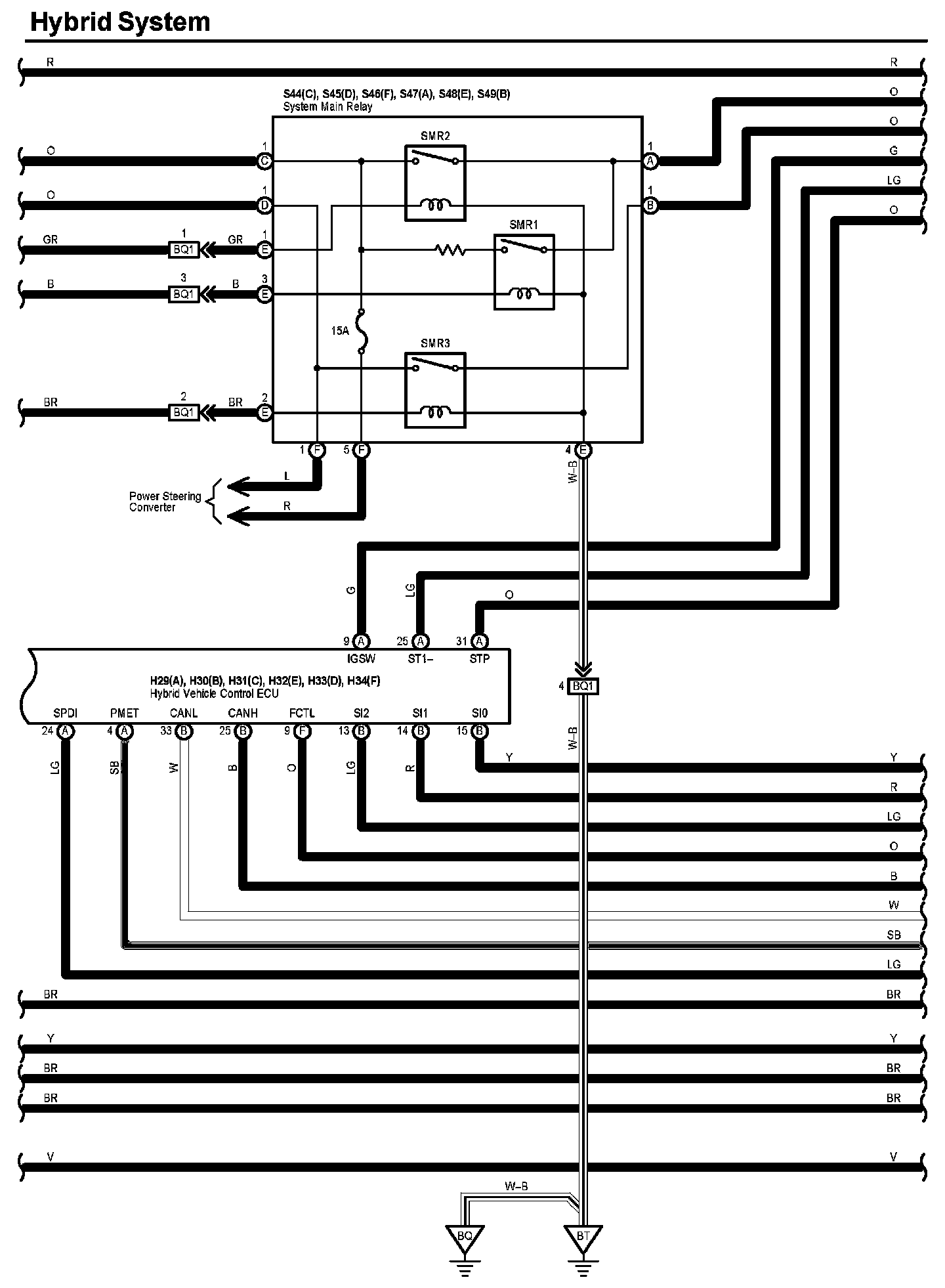

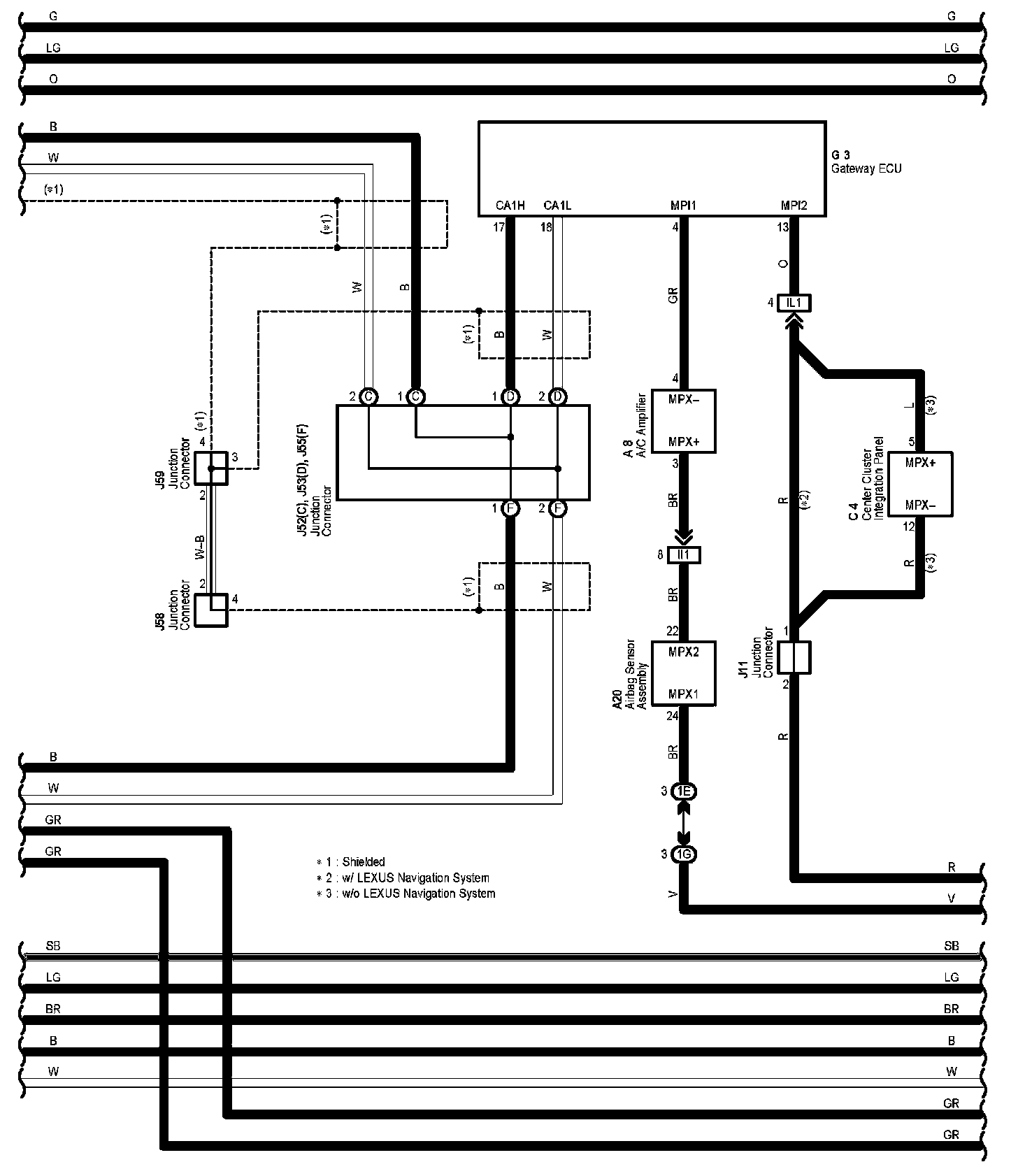

Hybrid System (Part 3):

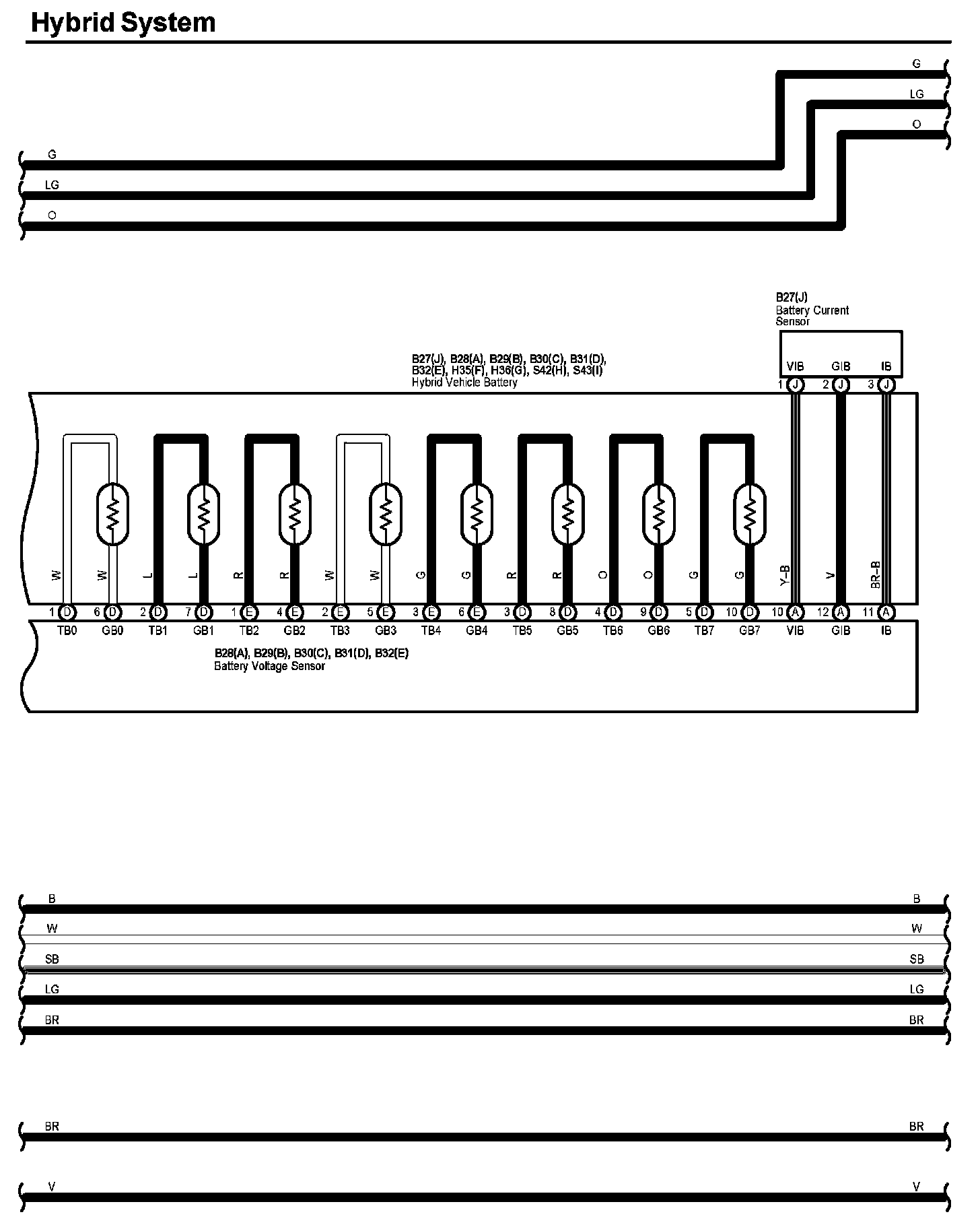

Hybrid System )Part 4):

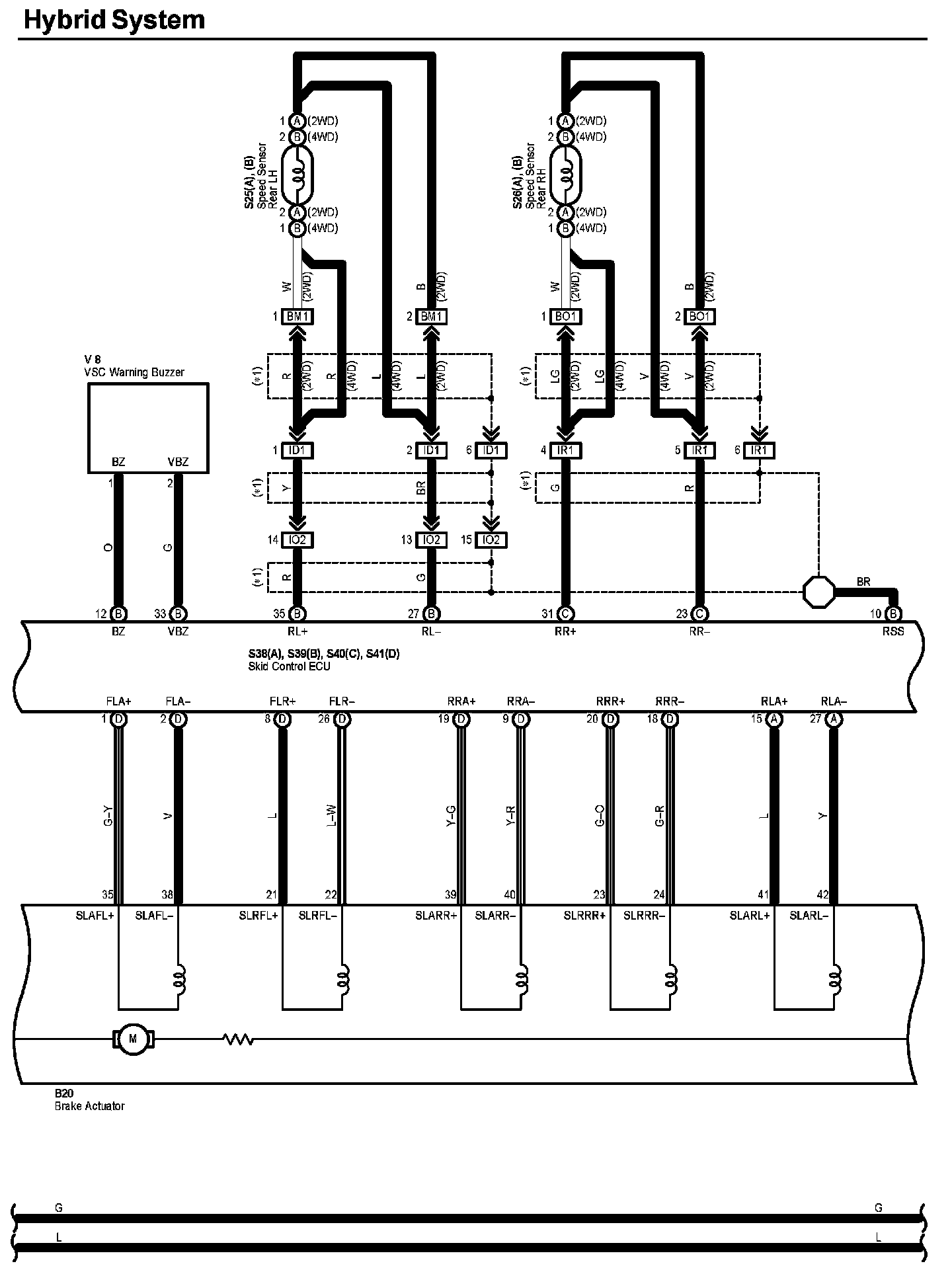

Hybrid System (Part 5):

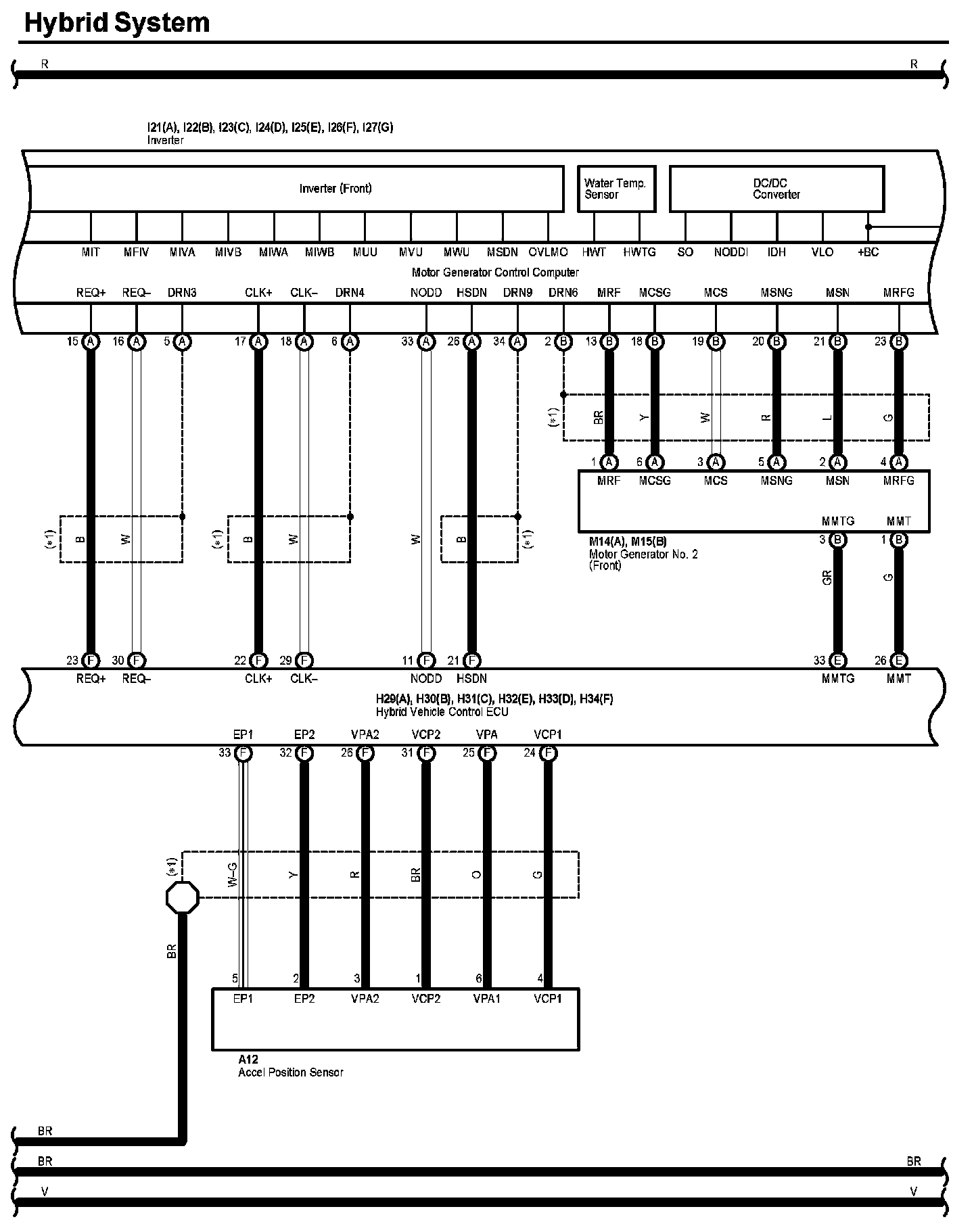

Hybrid System (Part 6):

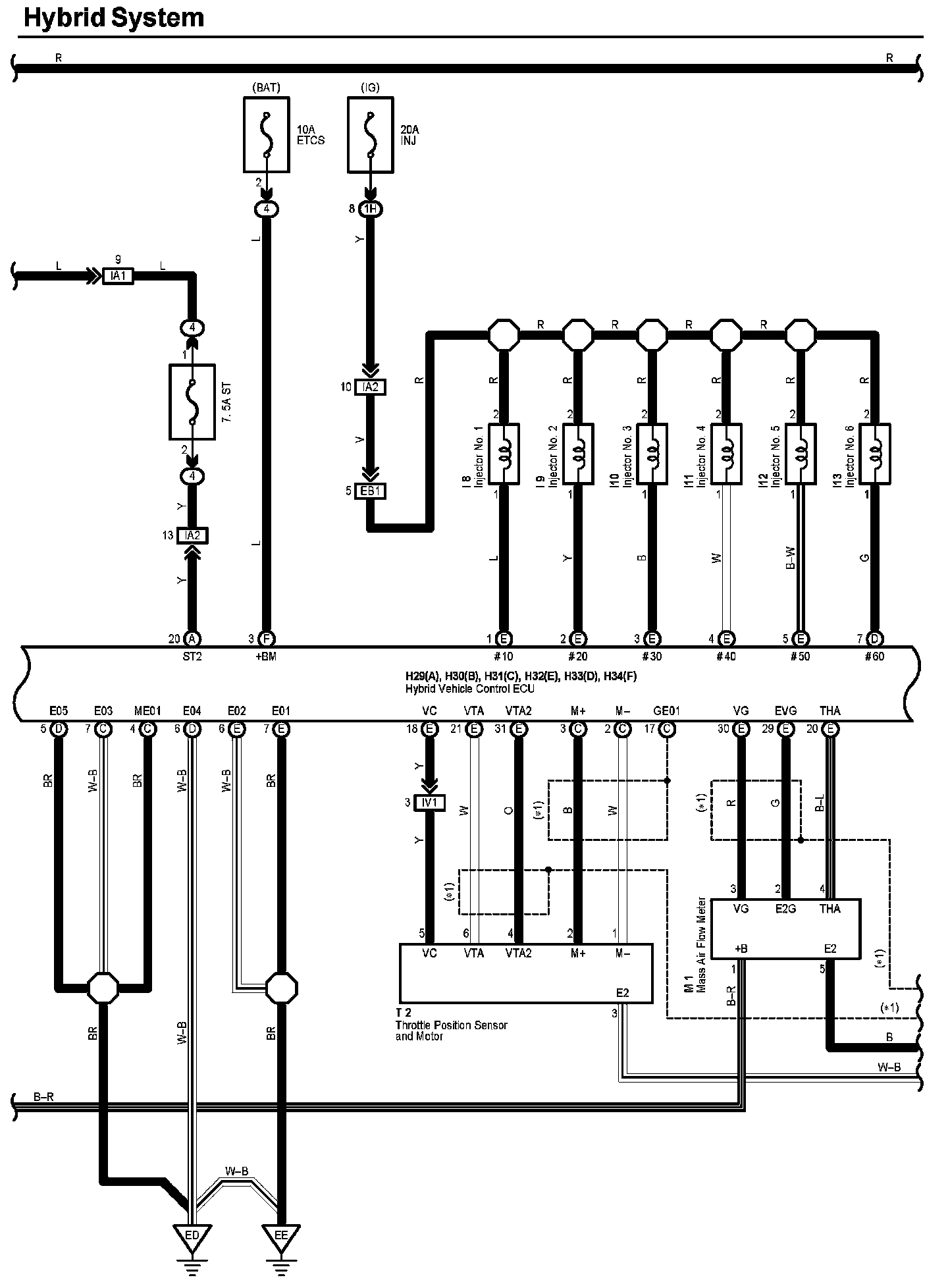

Hybrid System (Part 7):

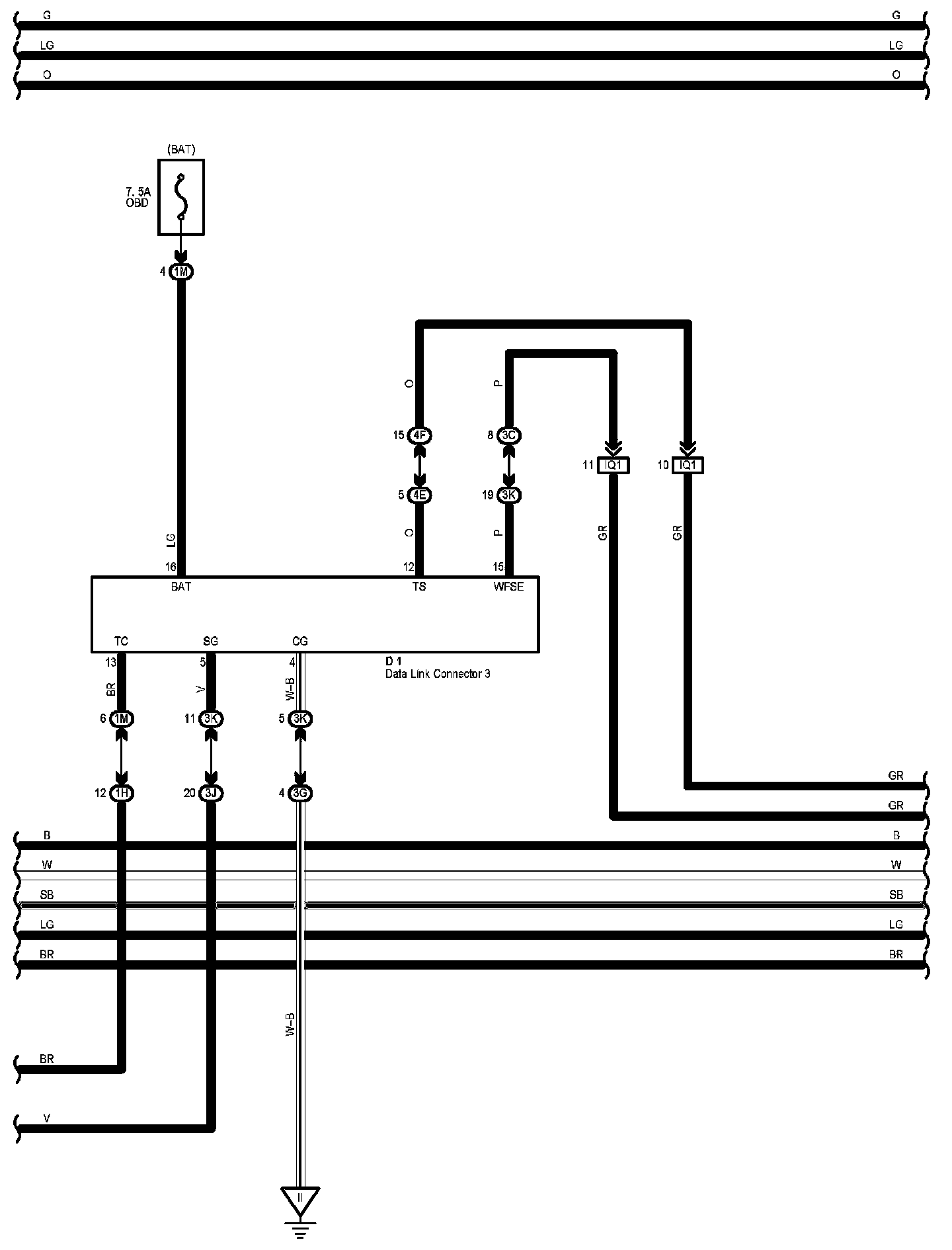

Hybrid System (Part 8):

Hybrid System (Part 9):

Hybrid System (Part 10):

Hybrid System (Part 11):

Hybrid System (Part 12):

Hybrid System (Part 13):

Hybrid System (Part 14):

Hybrid System (Part 15):

Hybrid System (Part 16):

Hybrid System (Part 17):

Hybrid System (Part 18):

Hybrid System (Part 19):

Hybrid System (Part 20):

Hybrid System (Part 21):

Hybrid System (Part 22):

Hybrid System (Part 23):

Hybrid System (Part 24):

Hybrid System (Part 25):

Diagram Legend (Part 1):

Diagram Legend (Part 2):

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
