Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2006
>>
RX 400h AWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Trunk / Liftgate
>>
Trunk / Liftgate Shock / Support
Trunk / Liftgate Shock / Support

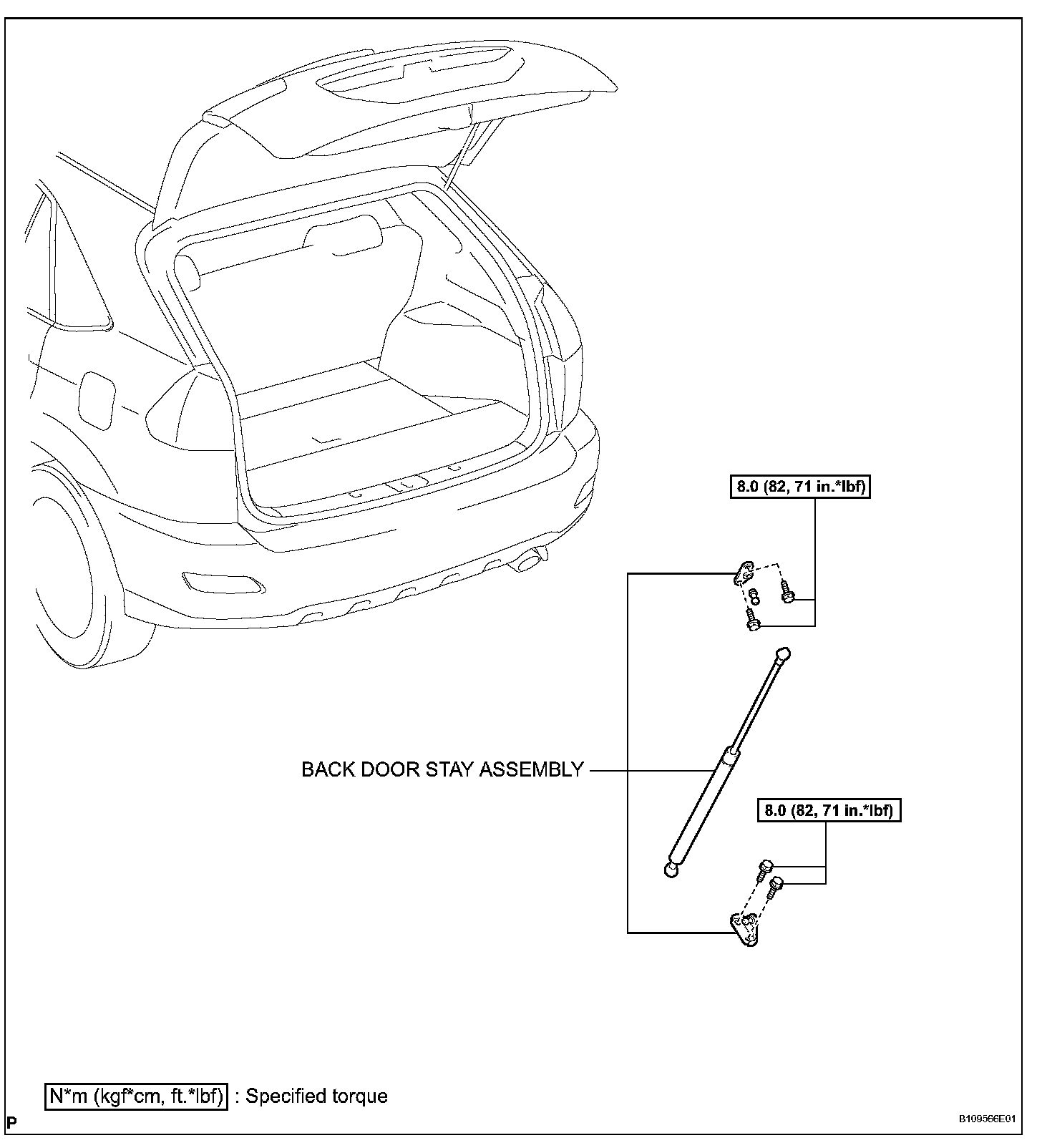

Back Door Support:
