Back-Up Lamp Circuit

Back-up Light Circuit

DESCRIPTION
The HV control ECU receives shift position R signal and controls the back-up light relay. The back-up light relay installed in the power distributor.
System diagram of the power distributor.
System description of the power distributor.

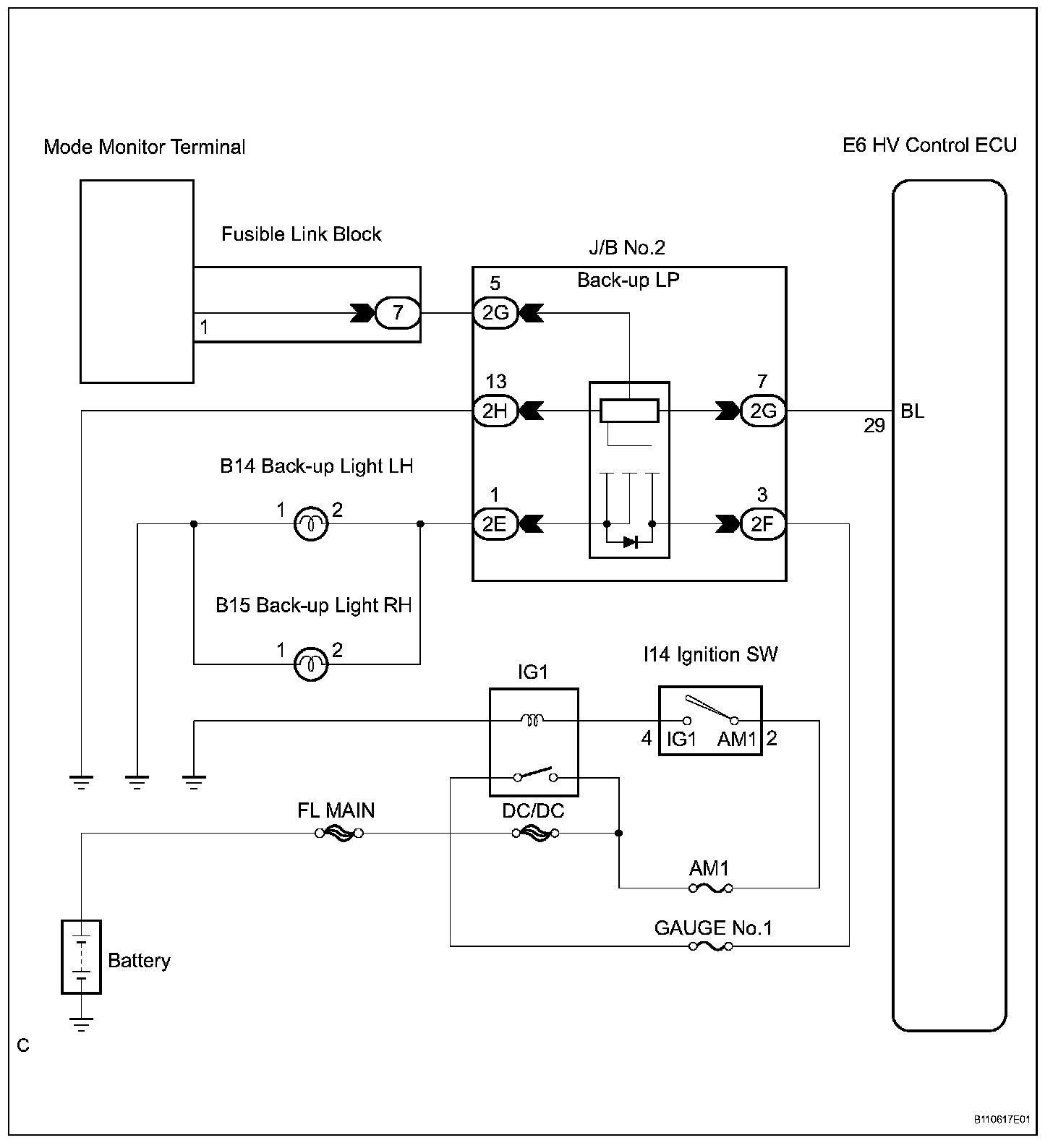

Wiring Diagram:

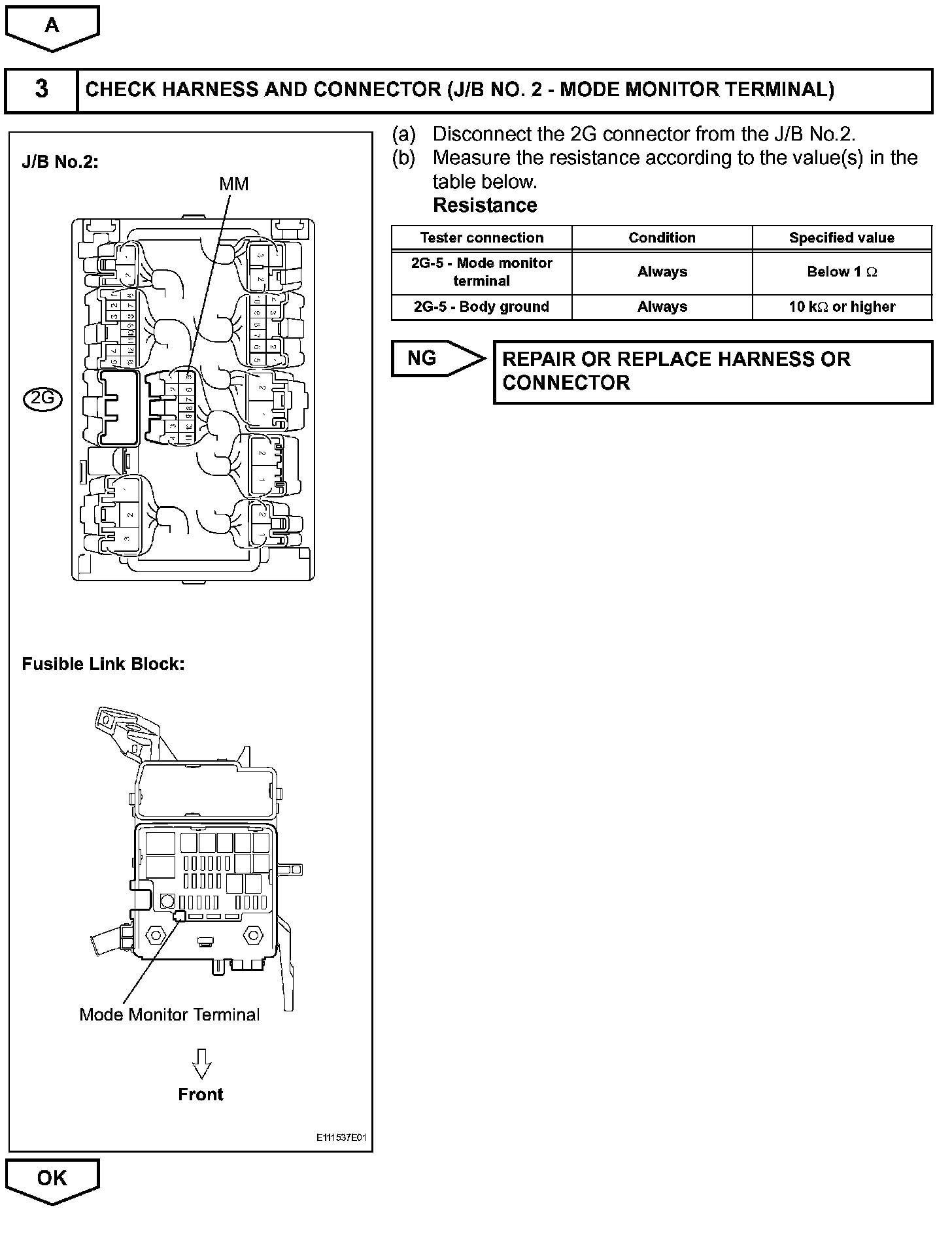

Step 1-2:

Step 2(Continued)-3:

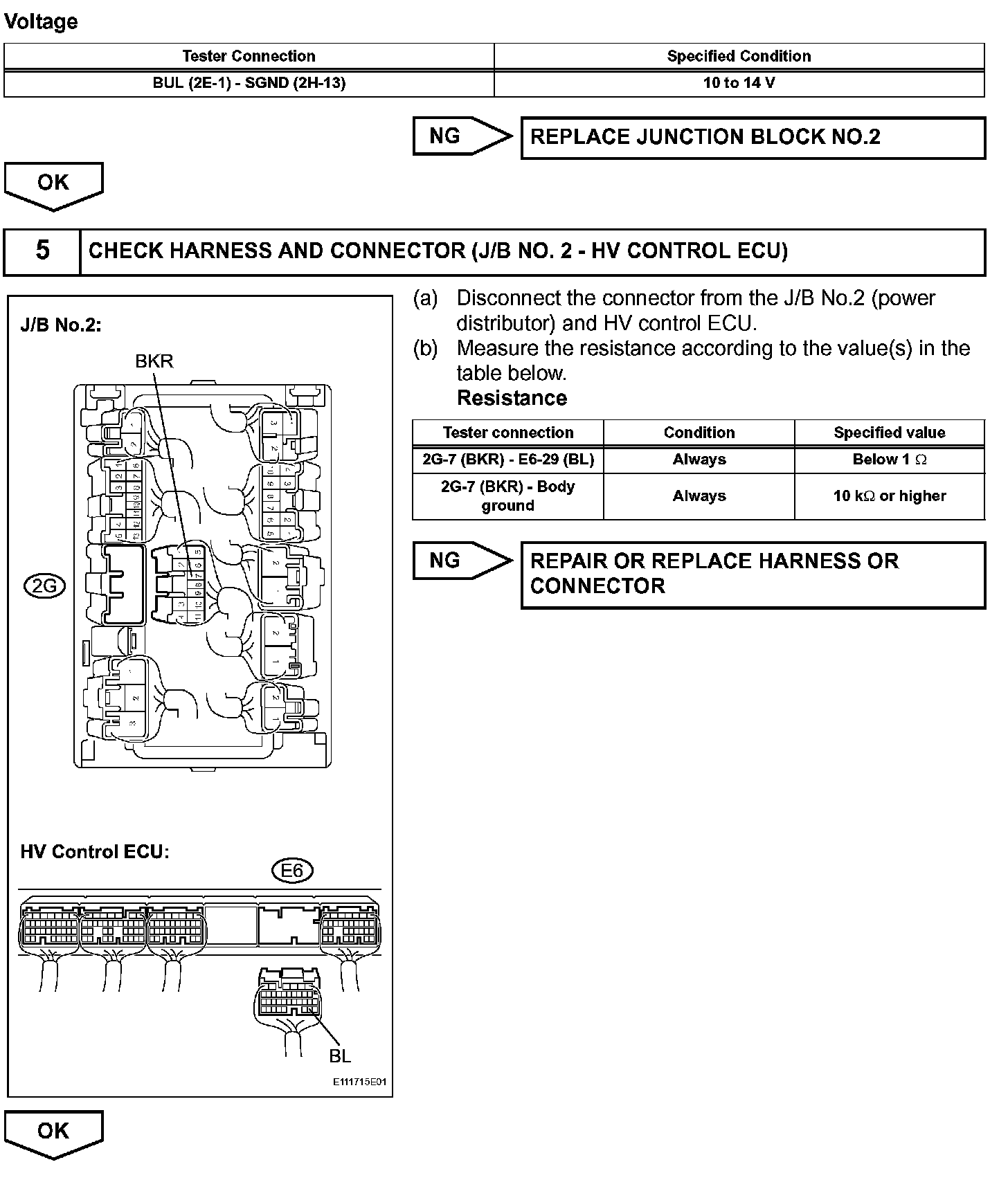

Step 4:

Step 4(Continued)-5:

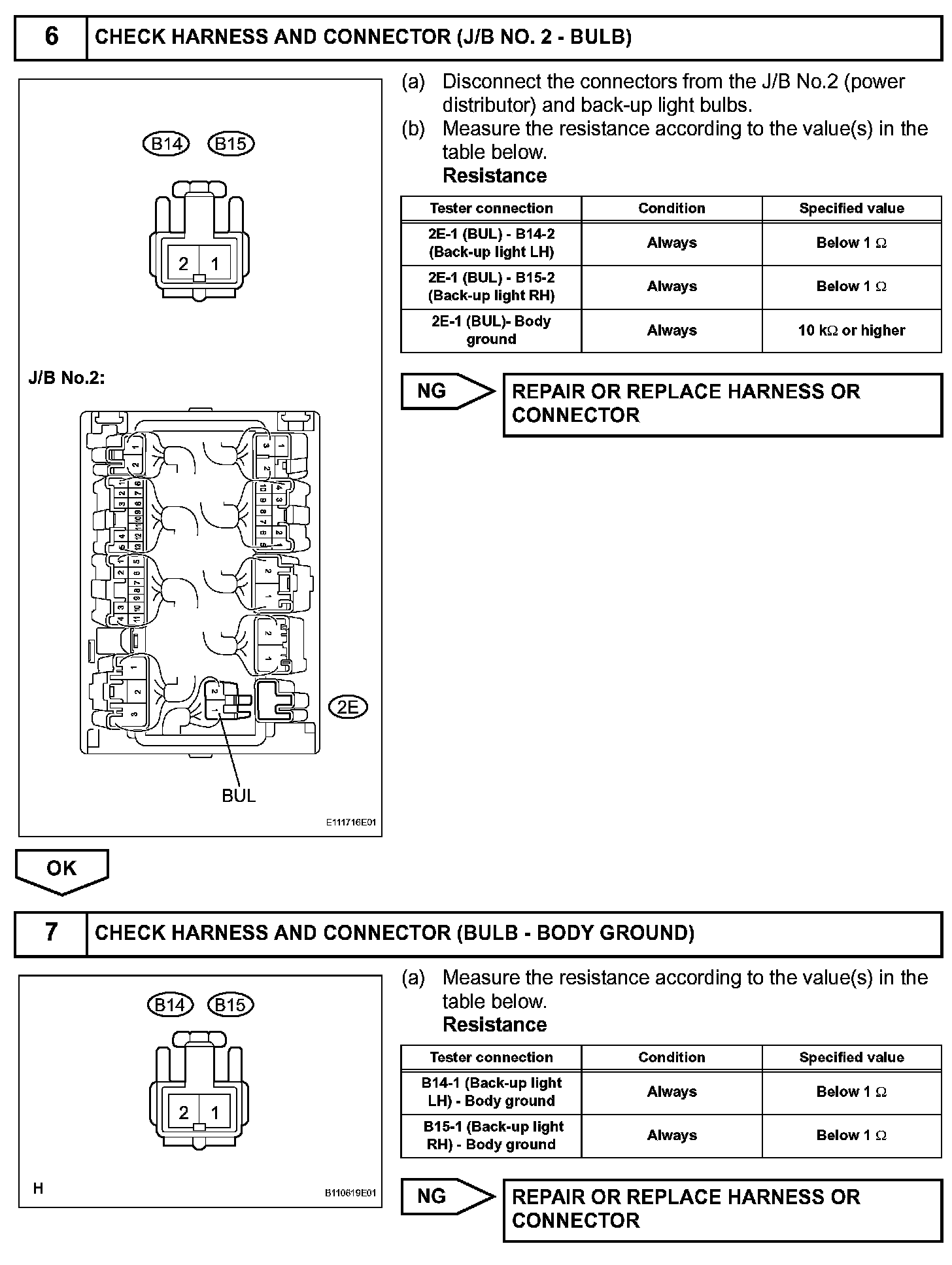

Step 6-7:

Step 7(Continued)-8:

INSPECTION PROCEDURE
