Front Fog Lamp Circuit

Front Fog Light Circuit

DESCRIPTION
The body ECU controls FOG relay when signal is received from headlight dimmer switch assembly.

Wiring Diagram:

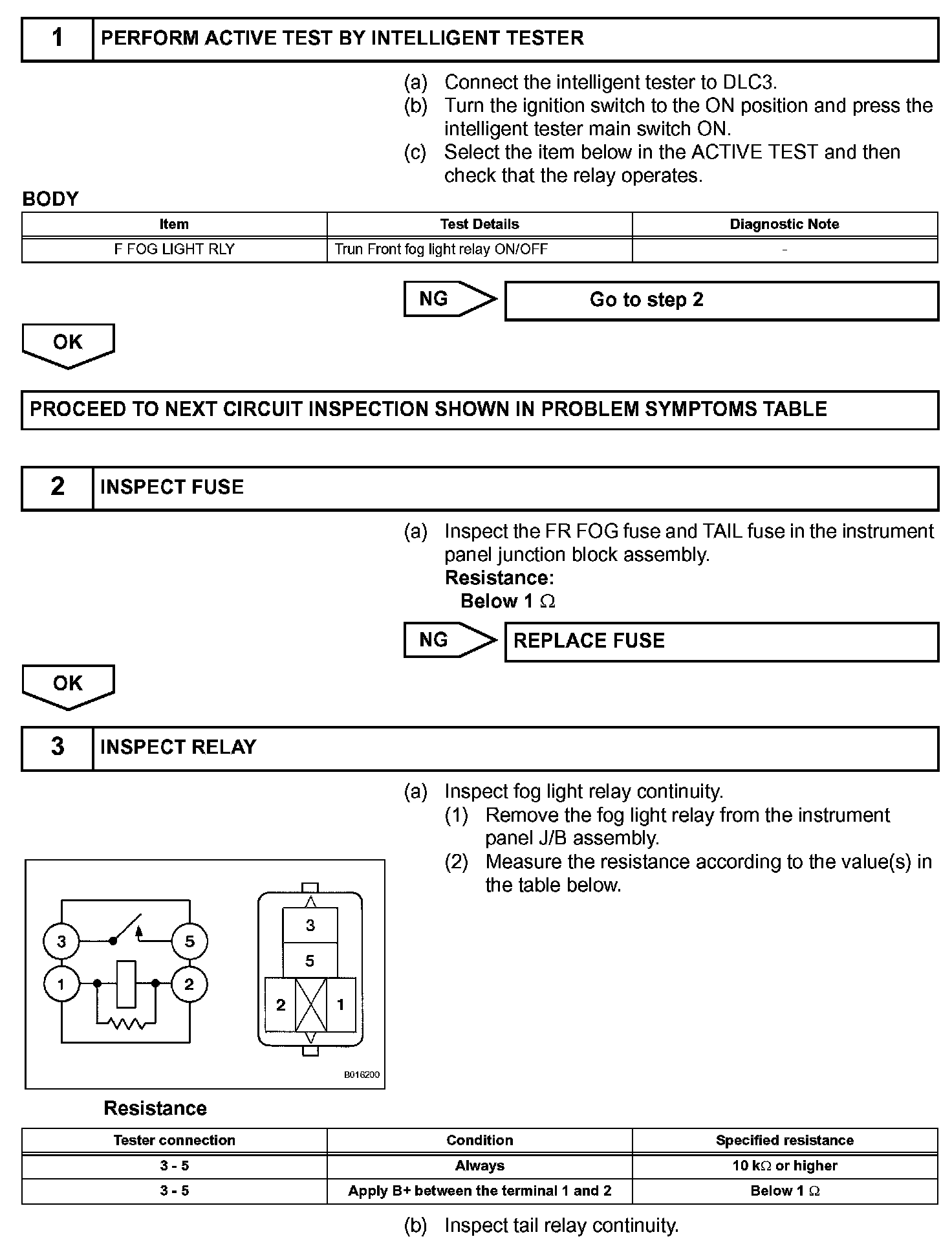

Step 1-3:

Step 3(Continued)-4:

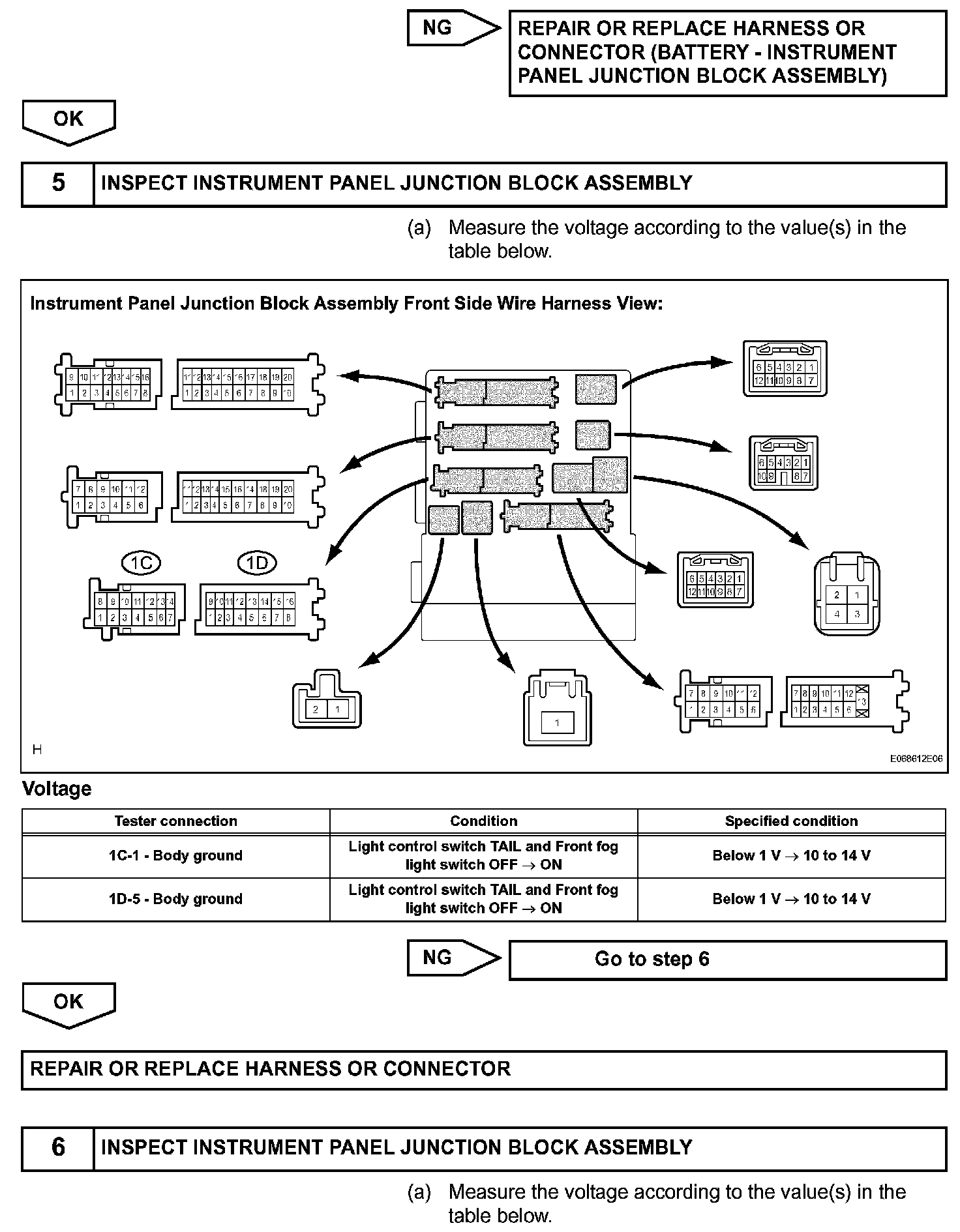

Step 4(Continued)-6:

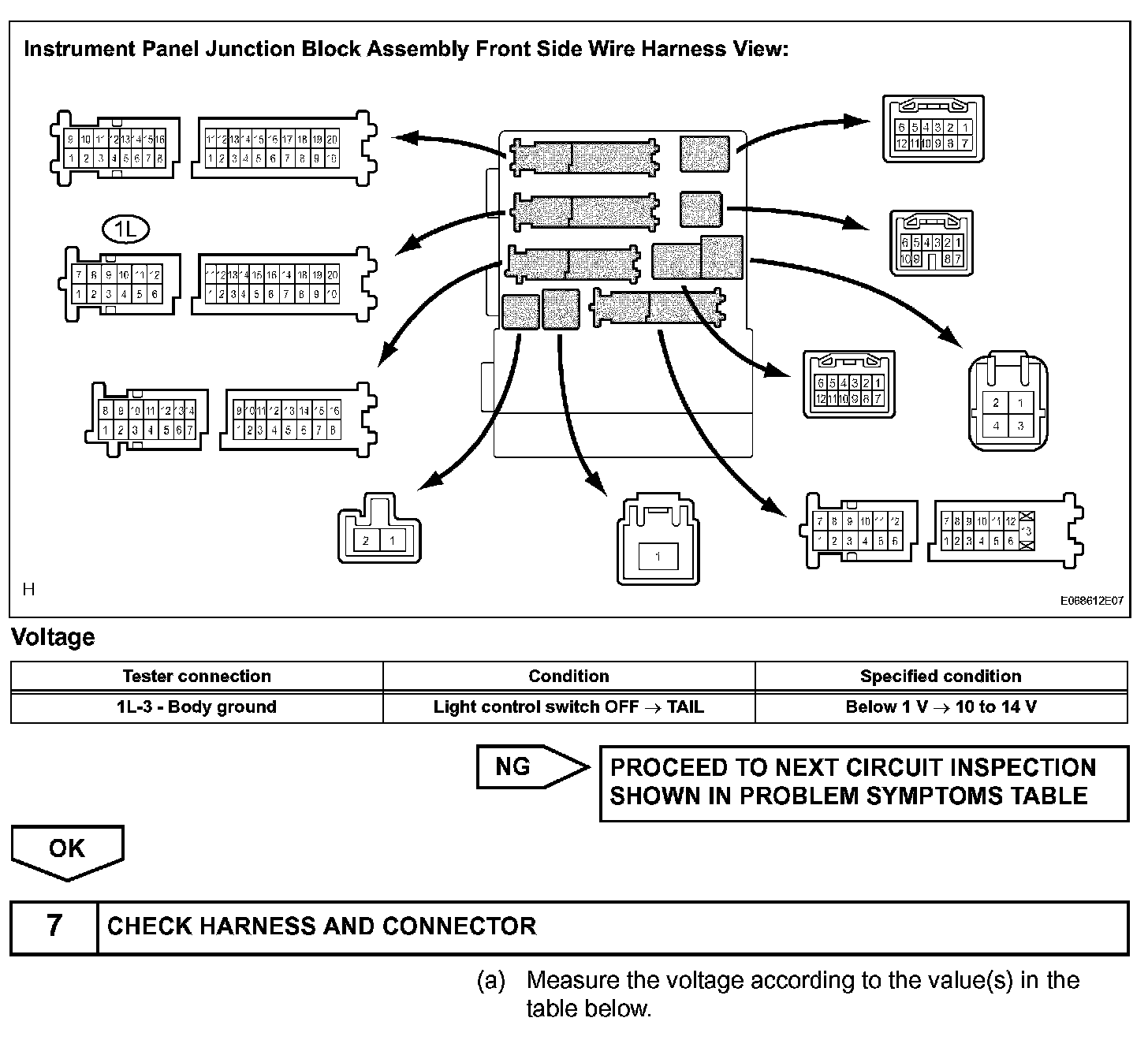

Step 6(Continued)-7:

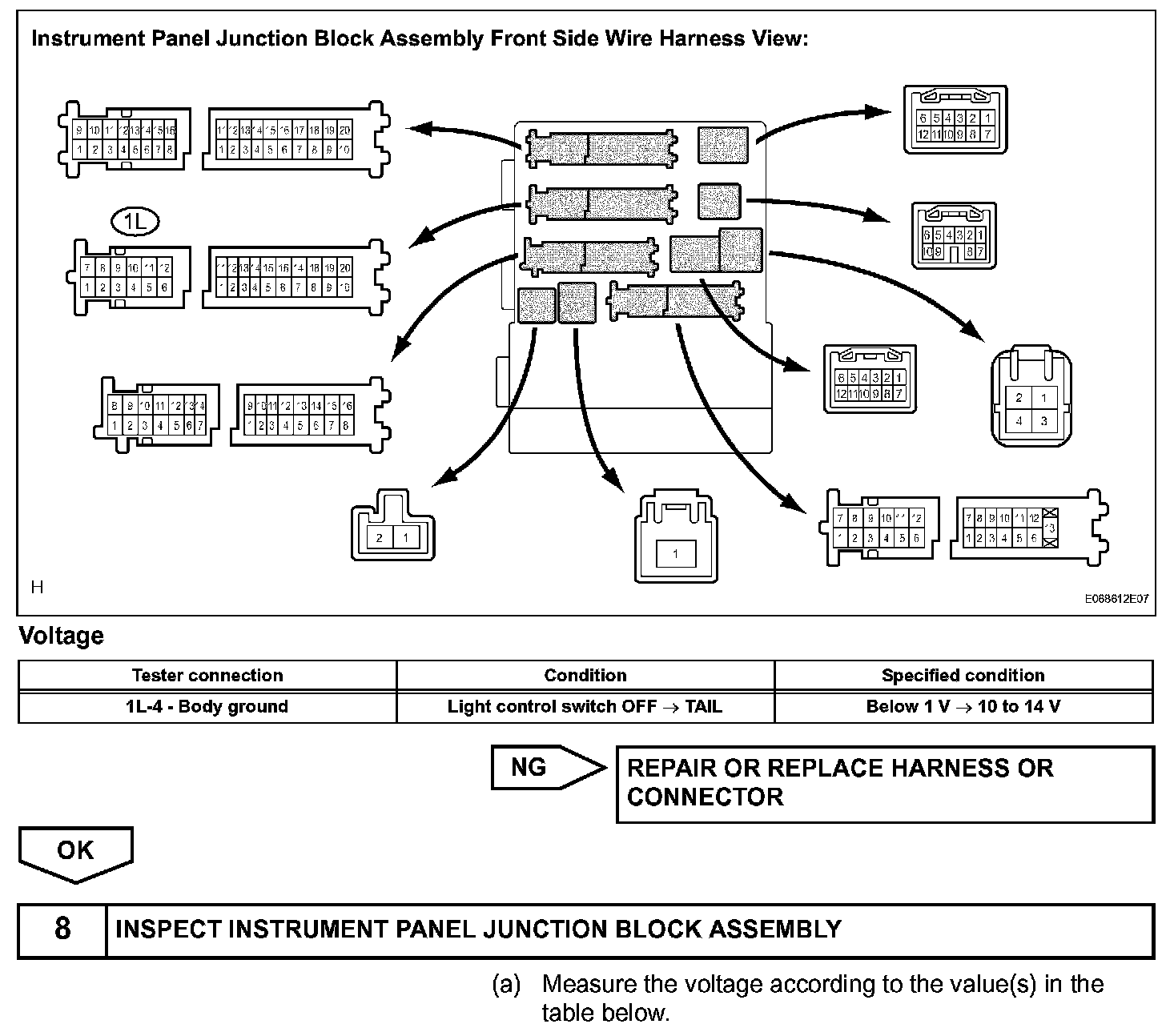

Step 7(Continued)-8:

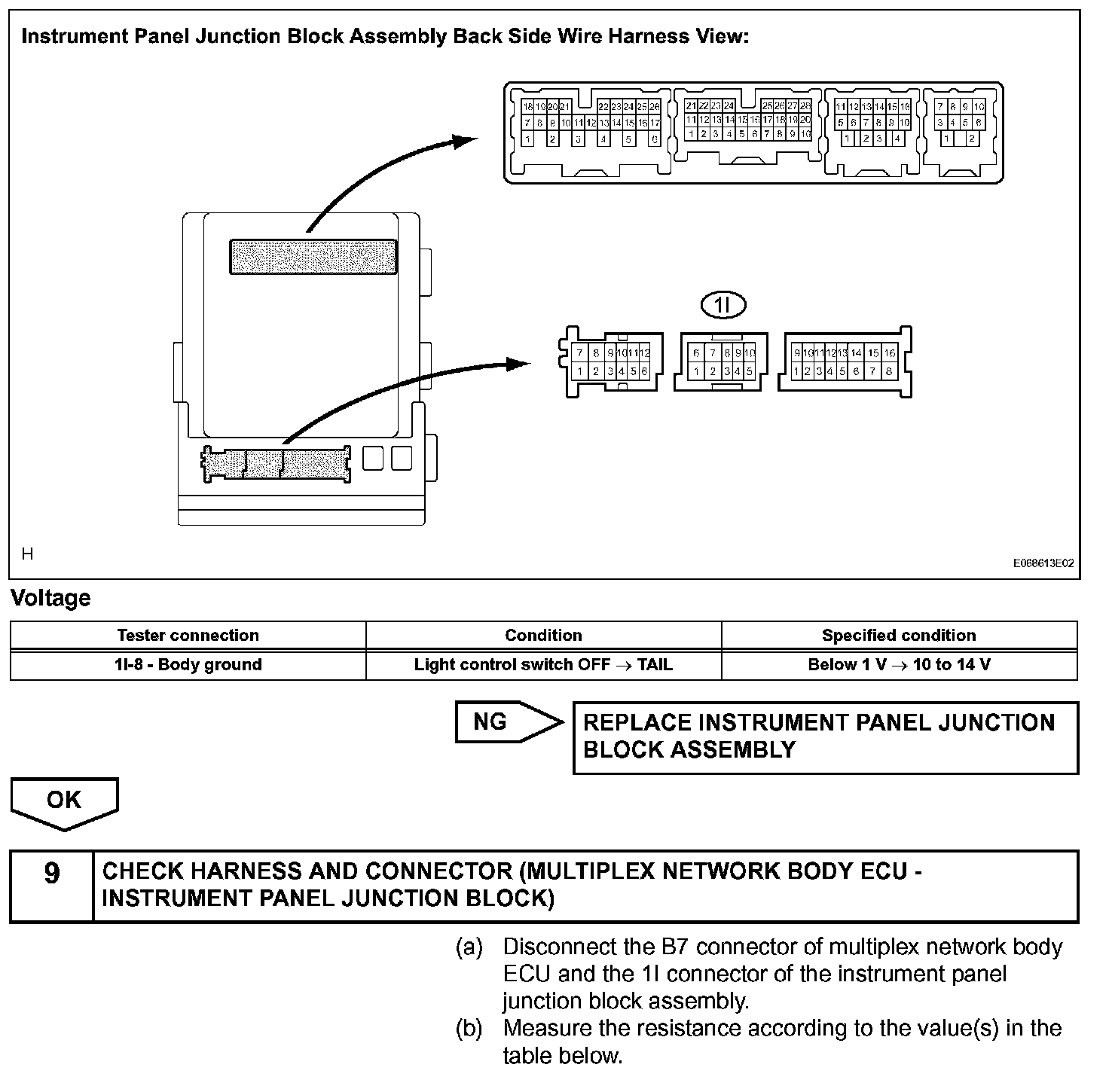

Step 8(Continued)-9:

Step 9(Continued):

INSPECTION PROCEDURE
