Personal Light Assembly
PERSONAL LIGHT ASSEMBLYINSPECTION
1. INSPECT PERSONAL LIGHT ASSEMBLY
a. Remove the personal light assembly.

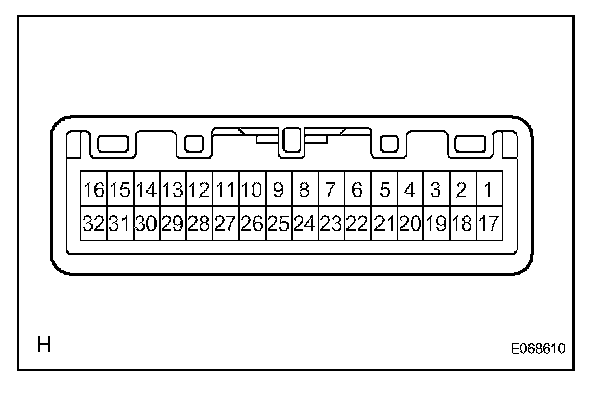

b. Connect the battery positive (+) lead to terminal 17 and negative (-) lead to terminal 6.
c. Turn the personal light switch in DOOR position.
d. Check that the light comes on.
e. Connect the battery positive (+) lead to terminal 17 and negative (-) lead to terminal 5.
f. Turn the personal light switch in ON position.
g. Check that the light comes on.
