Component Tests and General Diagnostics
INSPECTION1. INSPECT TIRE
a. Check the tires for wear and proper inflation pressure.
Cold Tire Inflation Pressure:
b. Using a dial indicator, check the tire runout (vertical and horizontal).
Tire runout: 1.4 mm (0.055 inch) or less
2. ROTATE TIRES

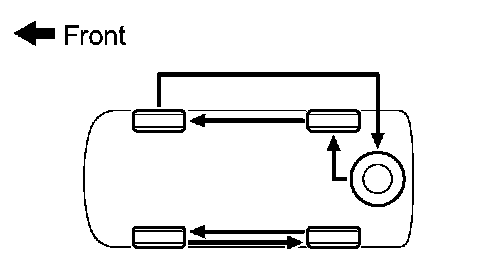

a. See the illustration for where to rotate each tire.
3. INSPECT WHEEL BALANCE
a. Check and adjust the off-the-car balance.
b. If necessary, check and adjust the on-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lbs.) or less
4. INSPECT BEARING LOOSENESS
5. INSPECT AXLE HUB RUNOUT
