Component Tests and General Diagnostics

INSPECTION

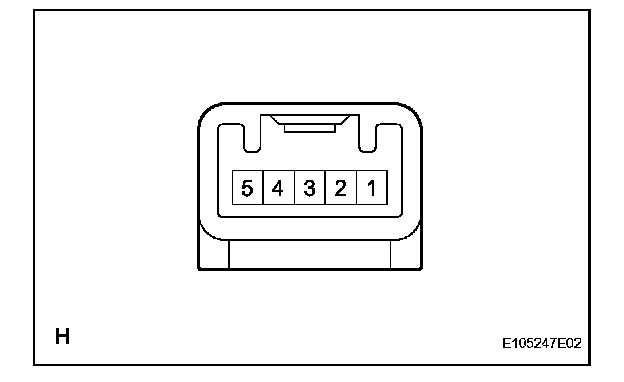

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
a. Disconnect the front seat inner belt assembly.







b. Measure the resistance of each terminal of the switch when the switch is operated.

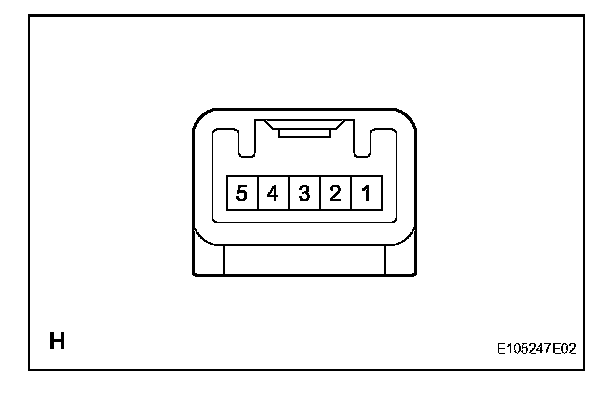

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
a. Disconnect the front seat inner belt assembly.







b. Measure the resistance of each terminal of the switch when the switch is operated.
