Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

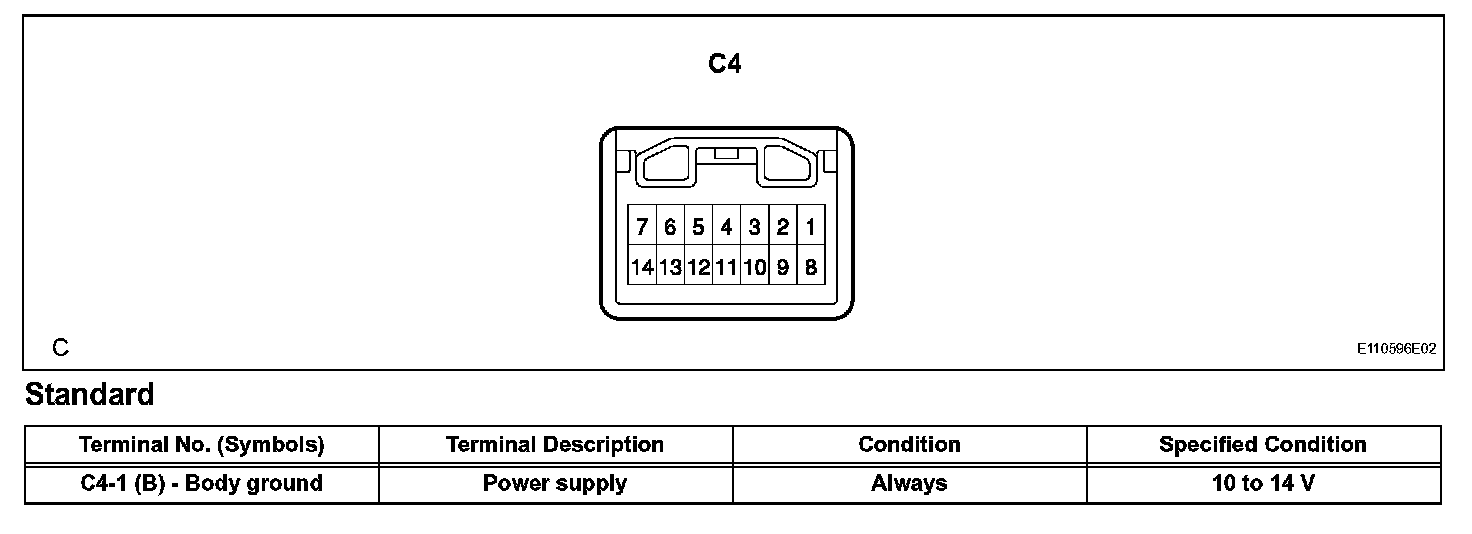

Terminals Of Control Module/Pinouts-Combination Meter Assembly:

1. COMBINATION METER ASSEMBLY
*1: w/ Navigation system

Terminals Of Control Module/Pinouts-Multi-Display Assembly(W/Navigation):

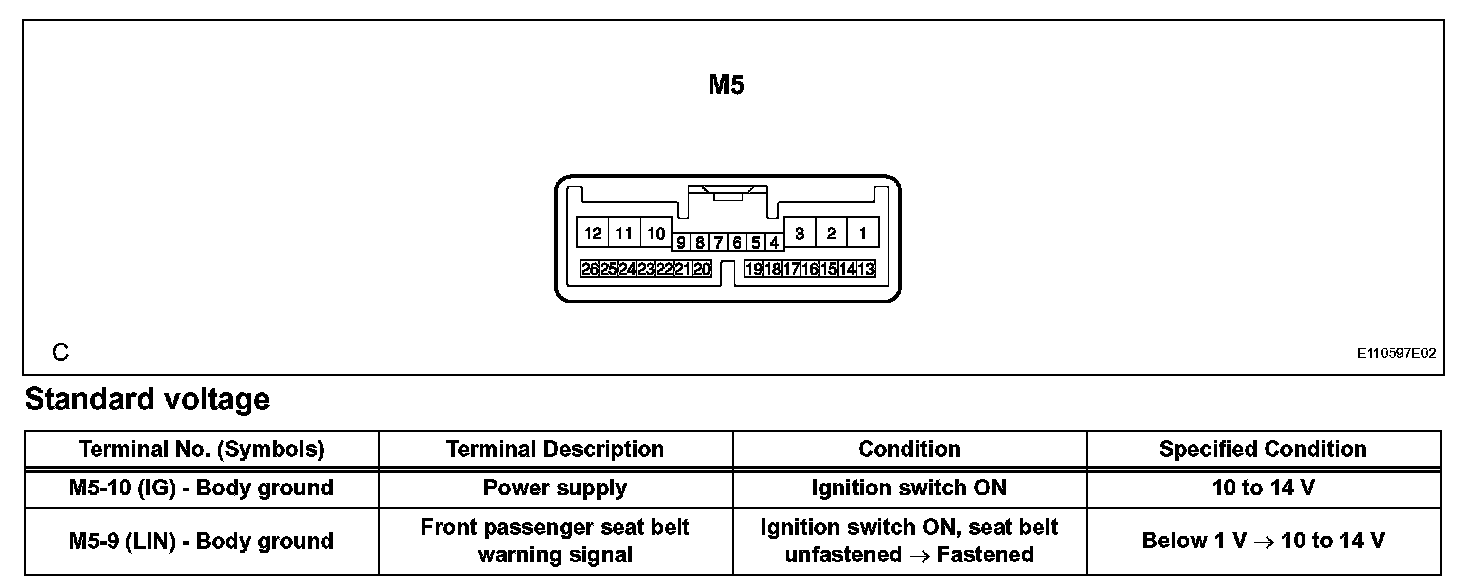

2. MULTI-DISPLAY ASSEMBLY (W/ NAVIGATION SYSTEM)

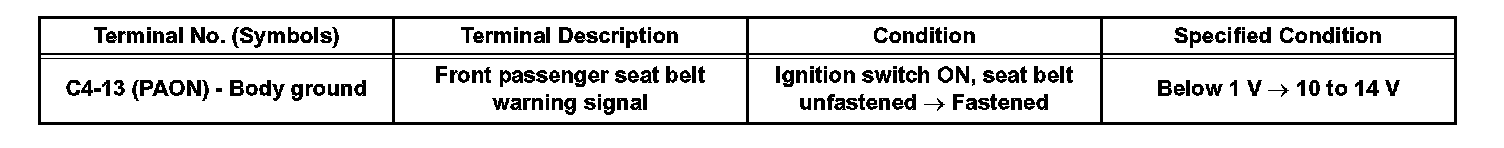

Terminals Of Control Module/Pinouts-Center Integration Control Panel(W/O Navigation System)-Part 1:

Terminals Of Control Module/Pinouts-Center Integration Control Panel(W/O Navigation System)-Part 2:

3. CENTER INTEGRATION CONTROL PANEL (W/O NAVIGATION SYSTEM)
