Torque Specifications

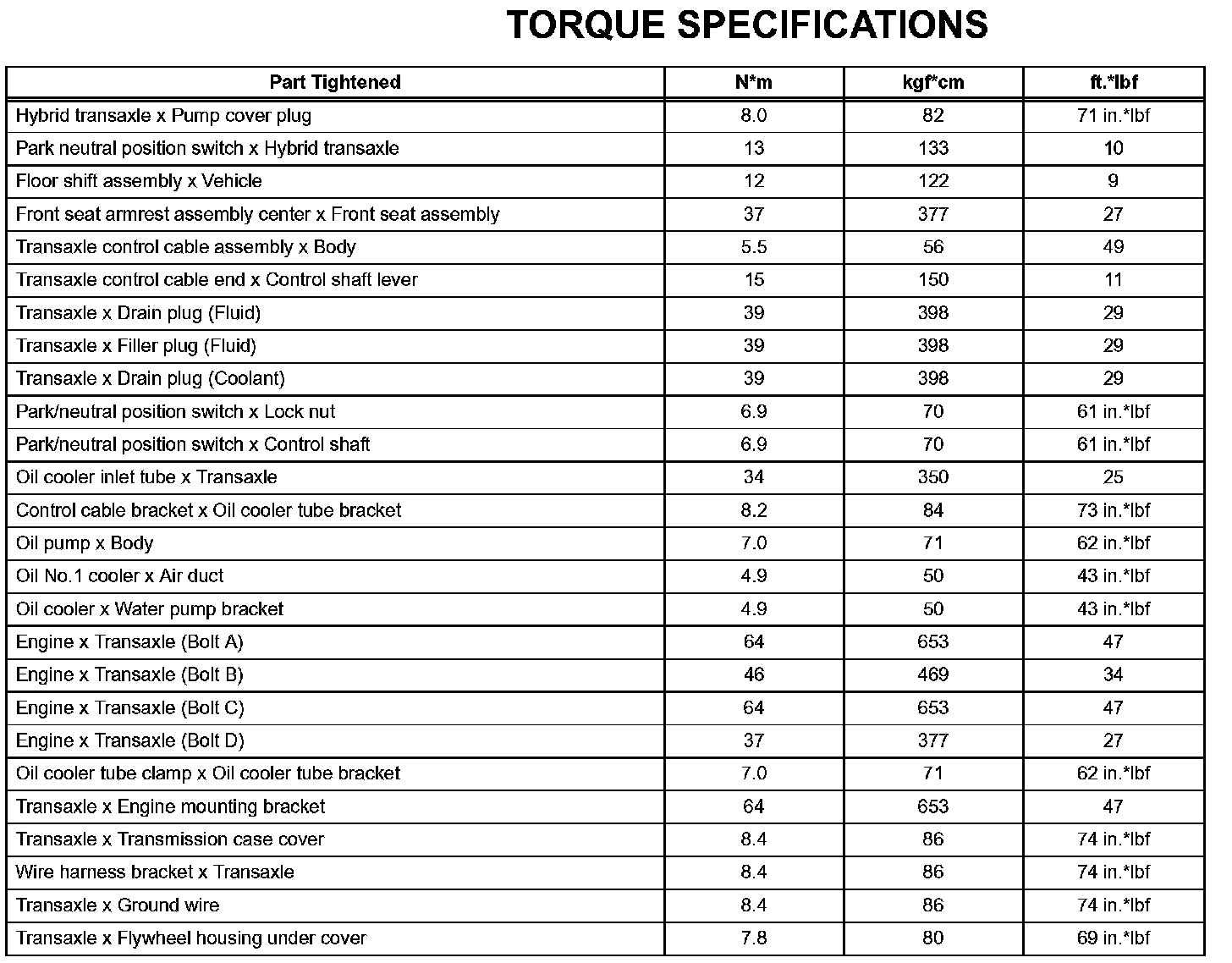

Hybrid Transaxle-Torque Specifications:



Hybrid Transaxle-Torque Specifications:
