Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

HINT: Inspect the connector from the backside while connector is connected.








1. SKID CONTROL ECU

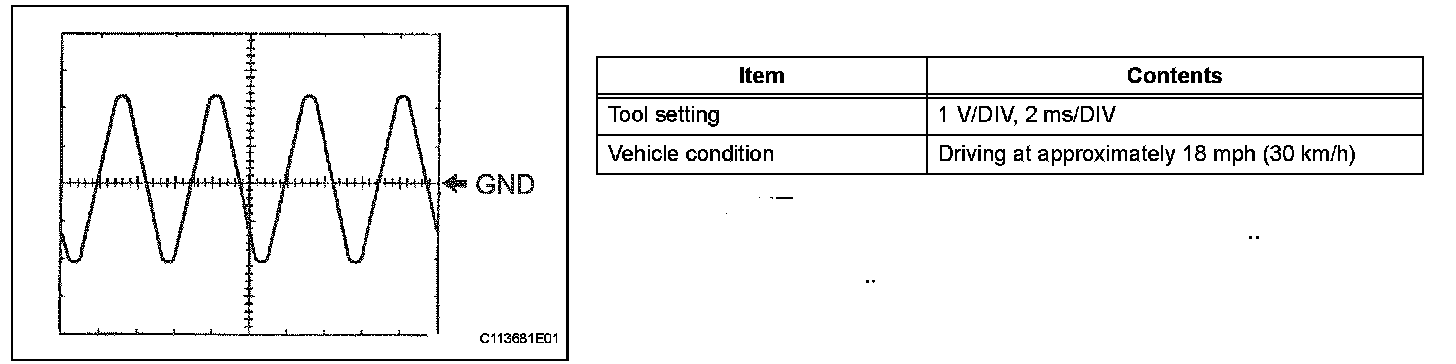

Wave Form 1: (reference):

HINT: As vehicle speed (wheel rotation speed) increases, the width of the waveform narrows.
