Front Wiper Motor Circuit
Front Wiper Motor CircuitDESCRIPTION
The windshield wiper relay assembly controls the front wiper motor. Even if the windshield wiper relay assembly is in failure, its circuit structure enables operation of the front wiper.

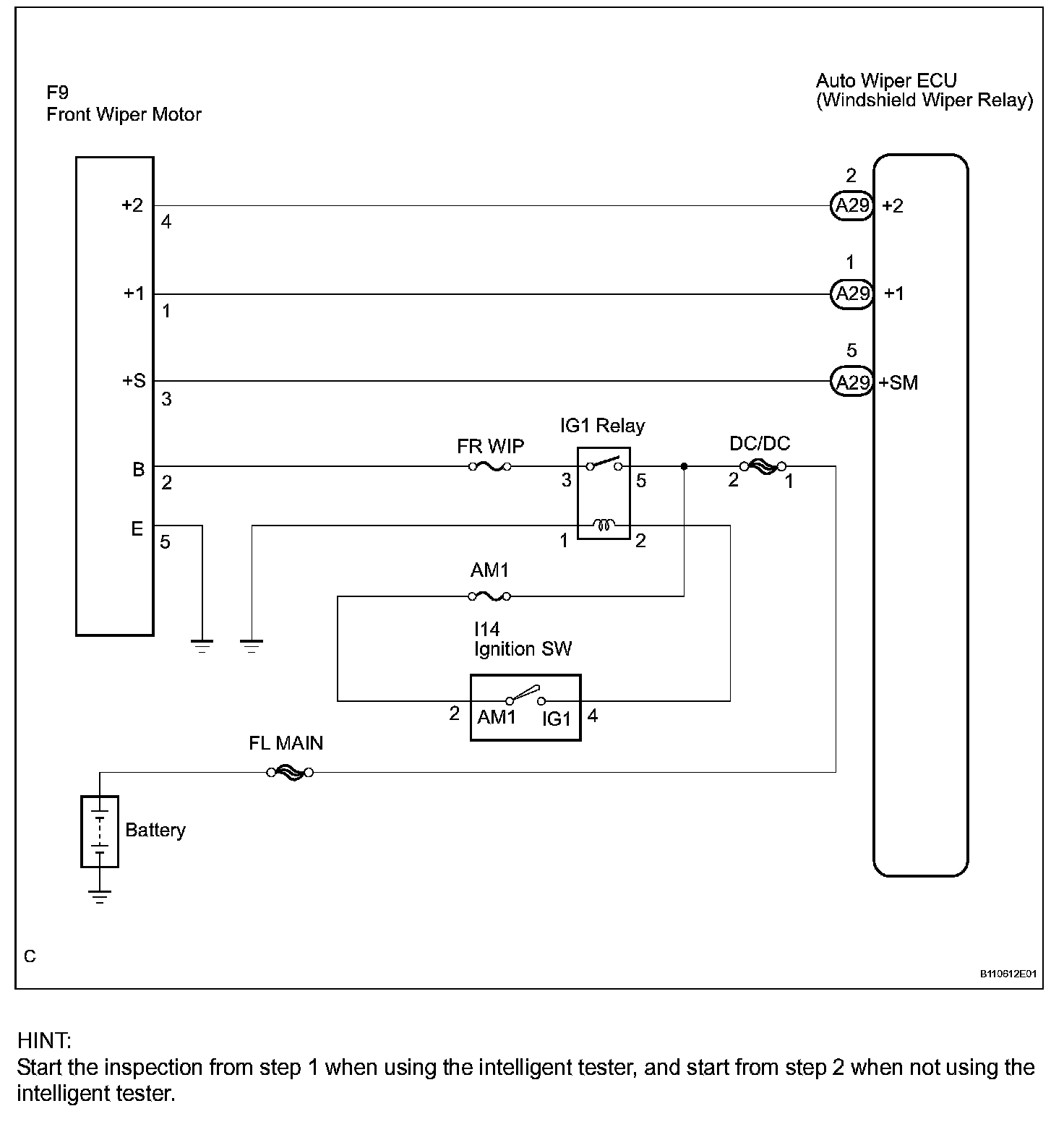

Wiring Diagram:

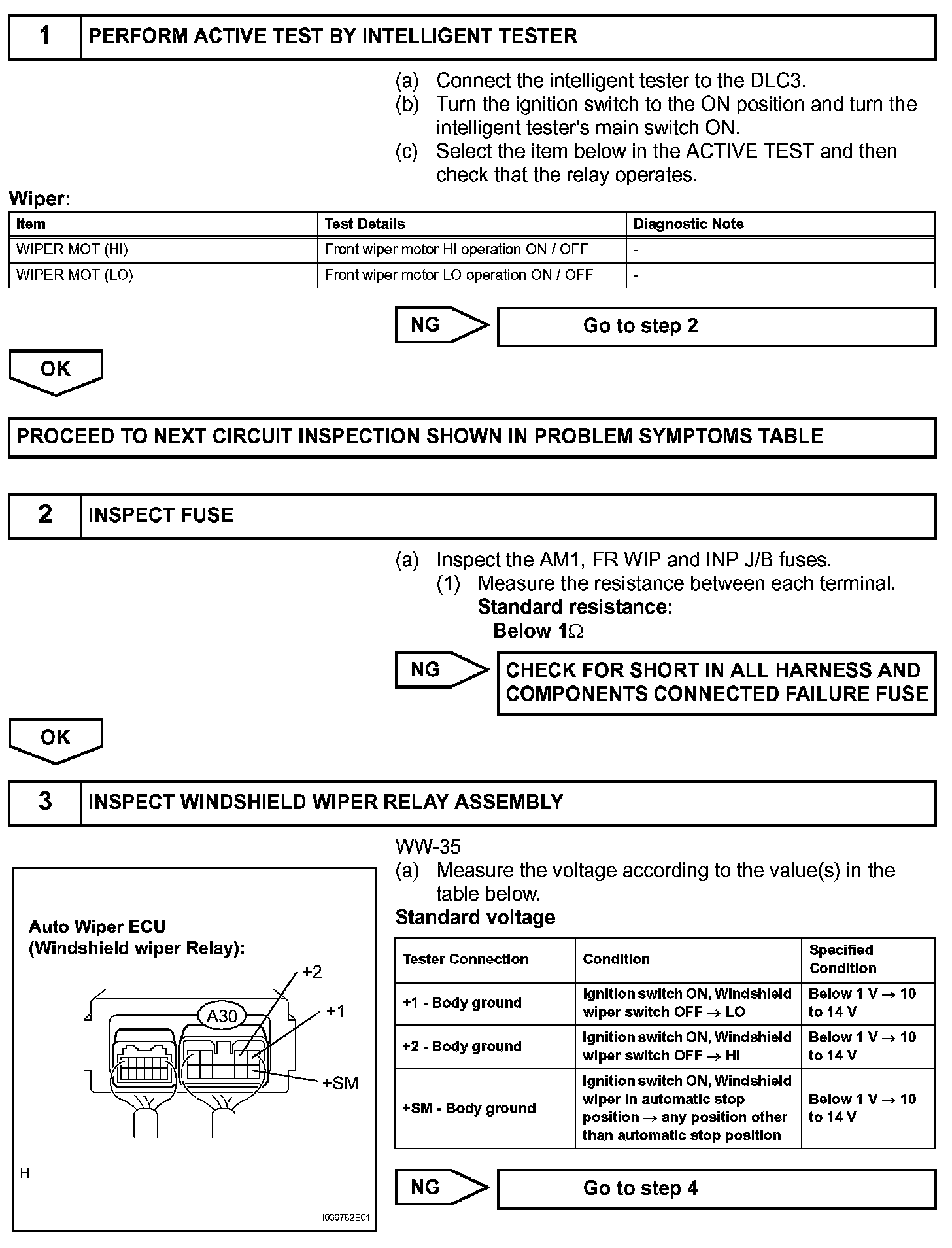

Step 1-3:

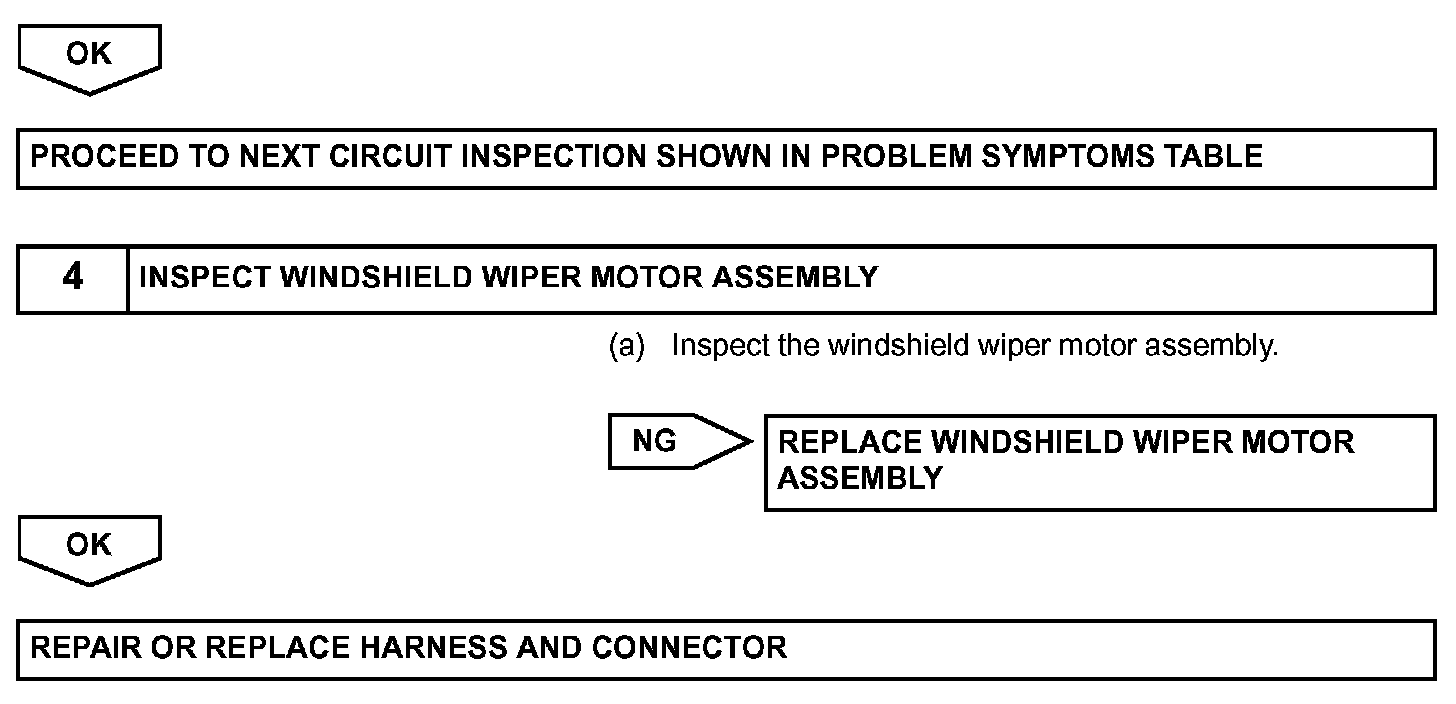

Step 4:
INSPECTION PROCEDURE
