Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

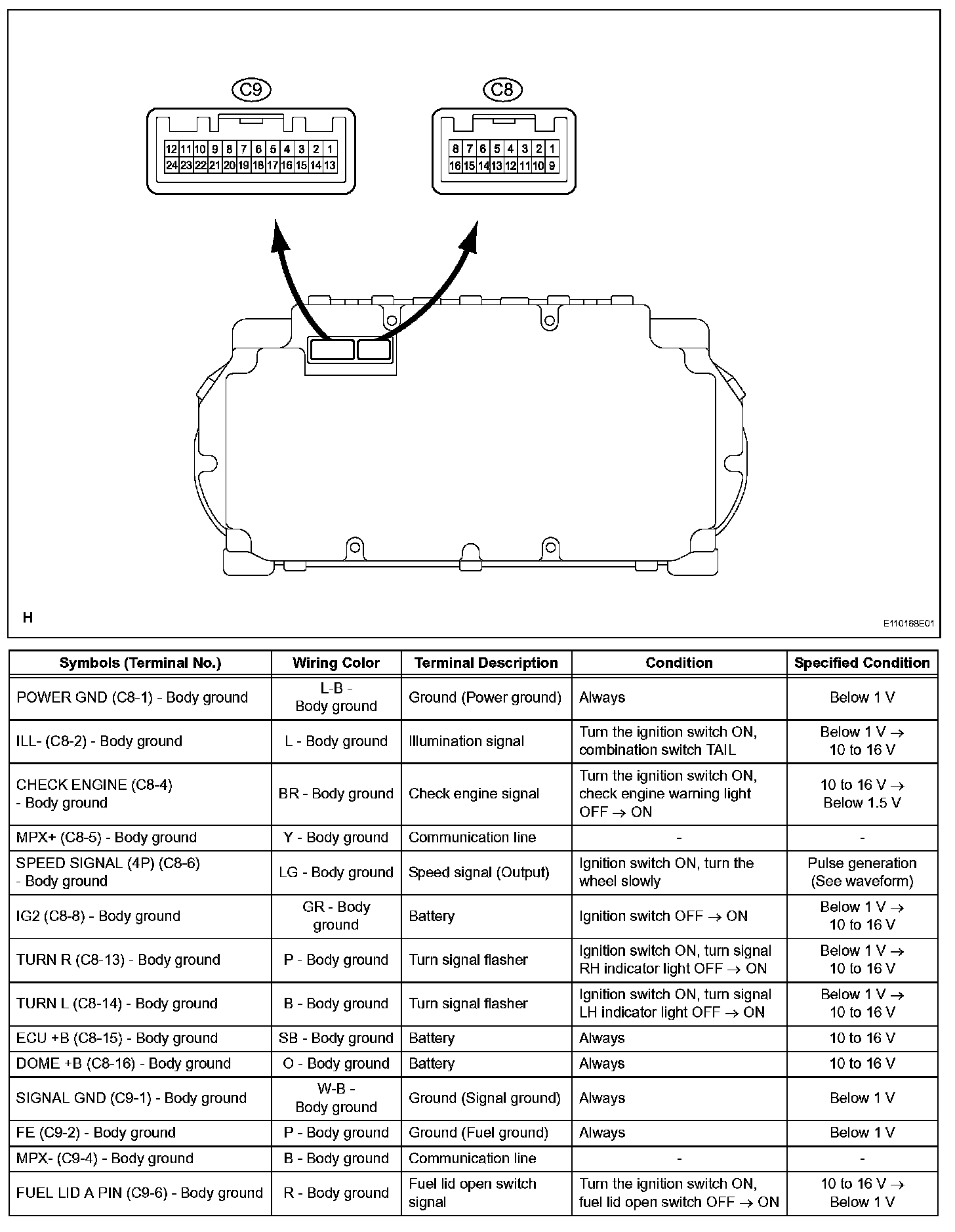

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Part 1):

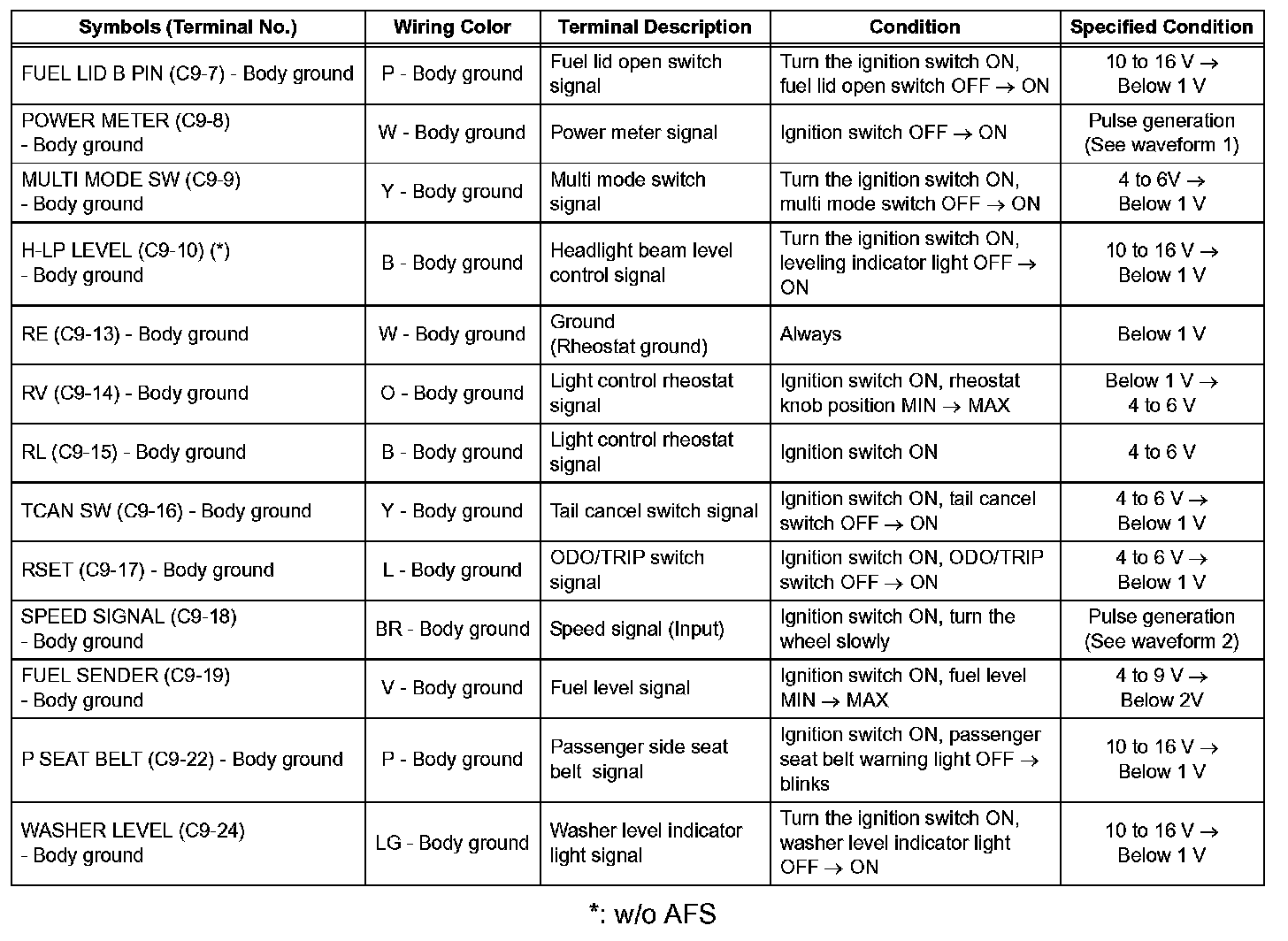

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Part 2):

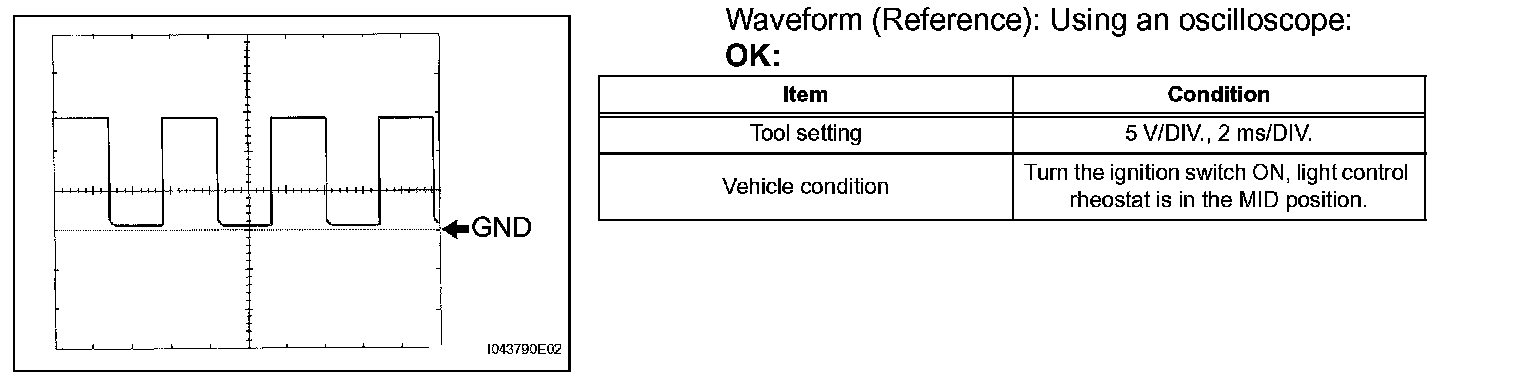

Oscilloscope Waveforms:

1. Combination Meter Assembly

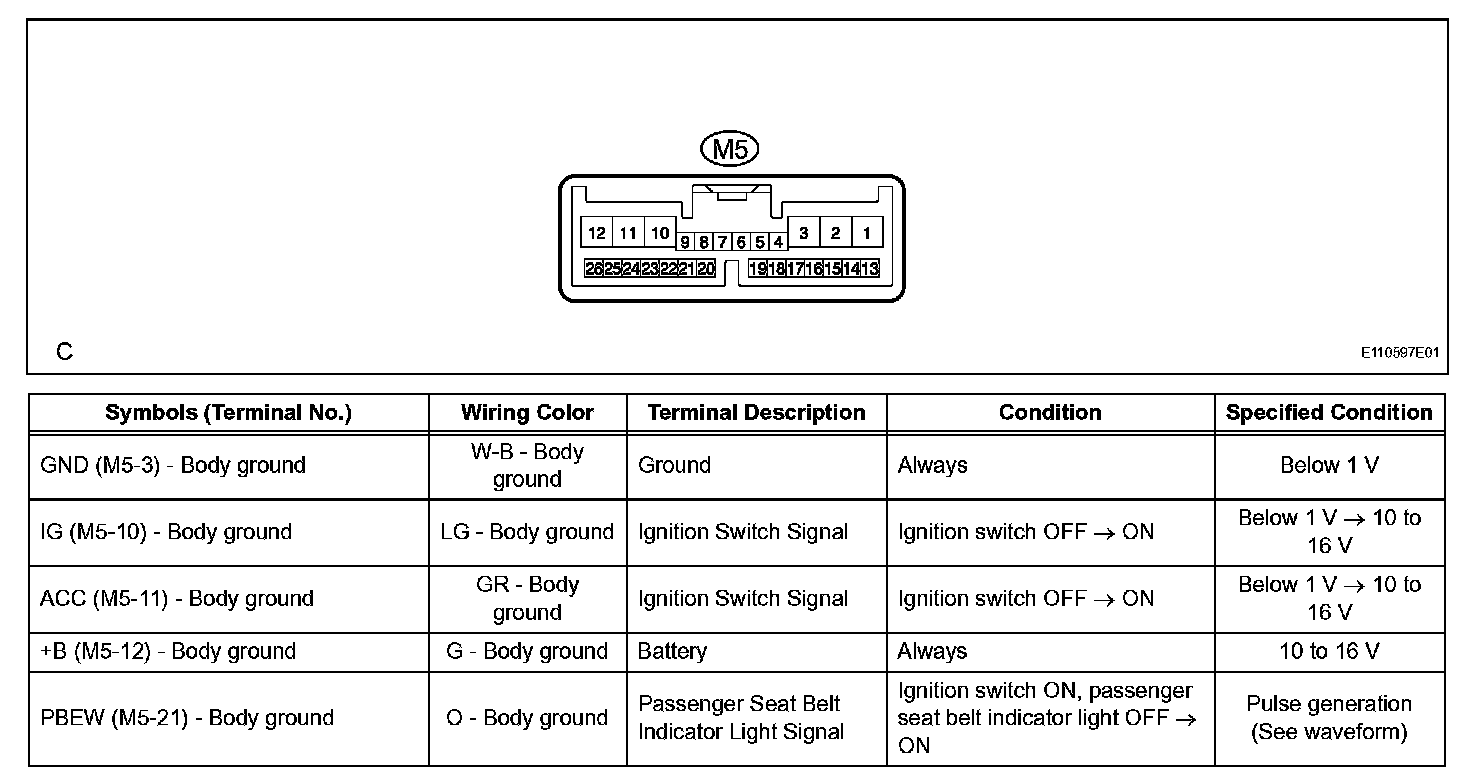

Terminals Of Control Module/Pinouts - Integration Control & Panel Assembly (w/o Navigation System):

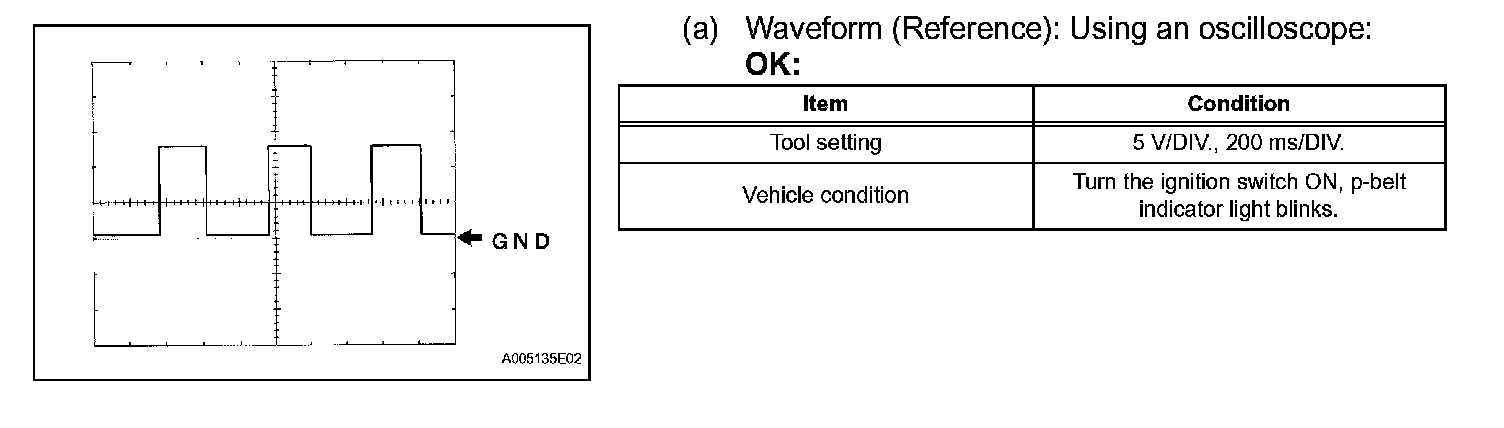

Oscilloscope Waveform:

2. Integration Control & Panel Assembly (w/o Navigation System)

Terminals Of Control Module/Pinouts - Multi-Display Assembly (w/ Navigation System):

Oscilloscope Waveform:

3. Multi-Display Assembly (w/ Navigation System)

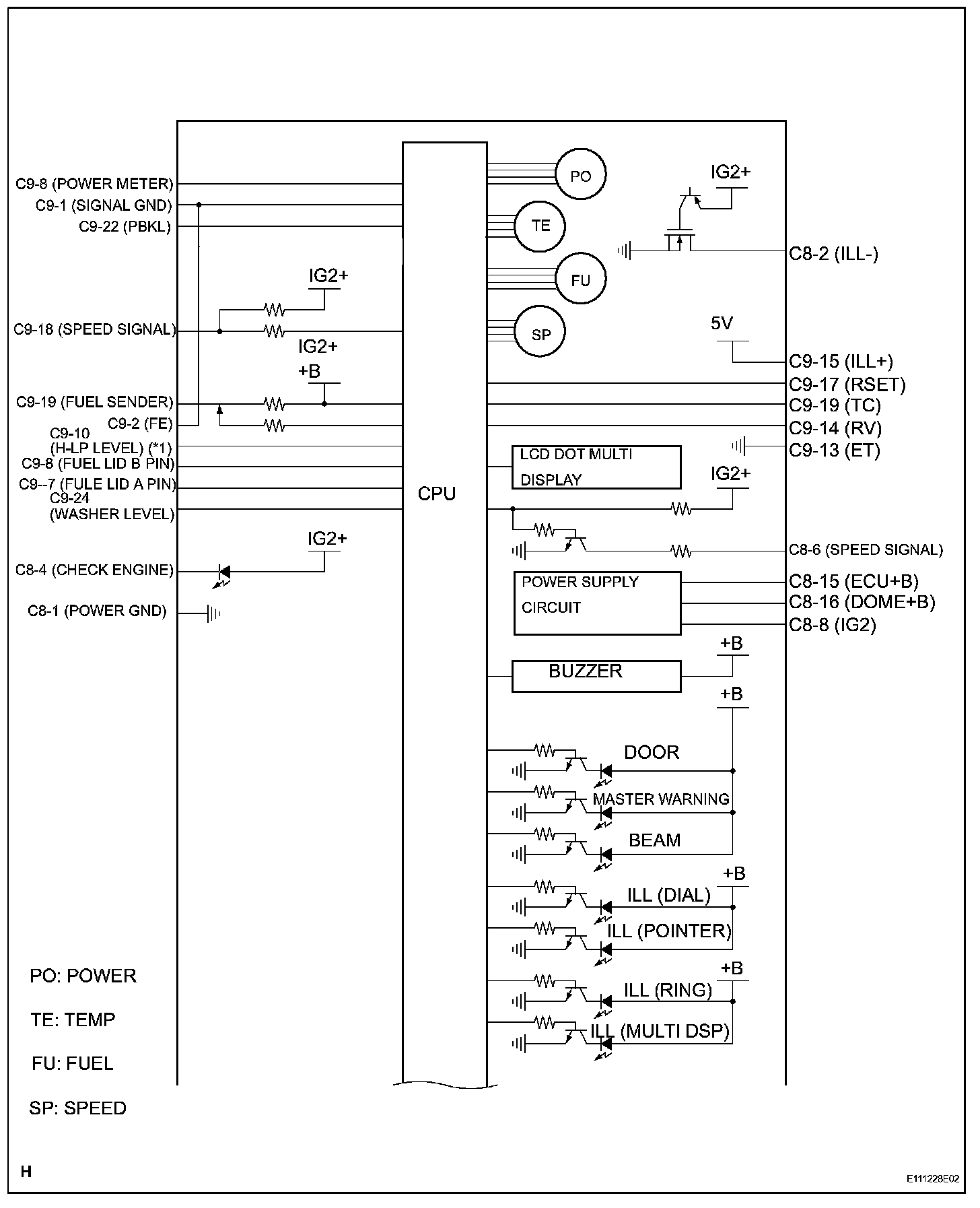

4. COMBINATION METER INNER CIRCUIT
