Pinout Values and Diagnostic Parameters

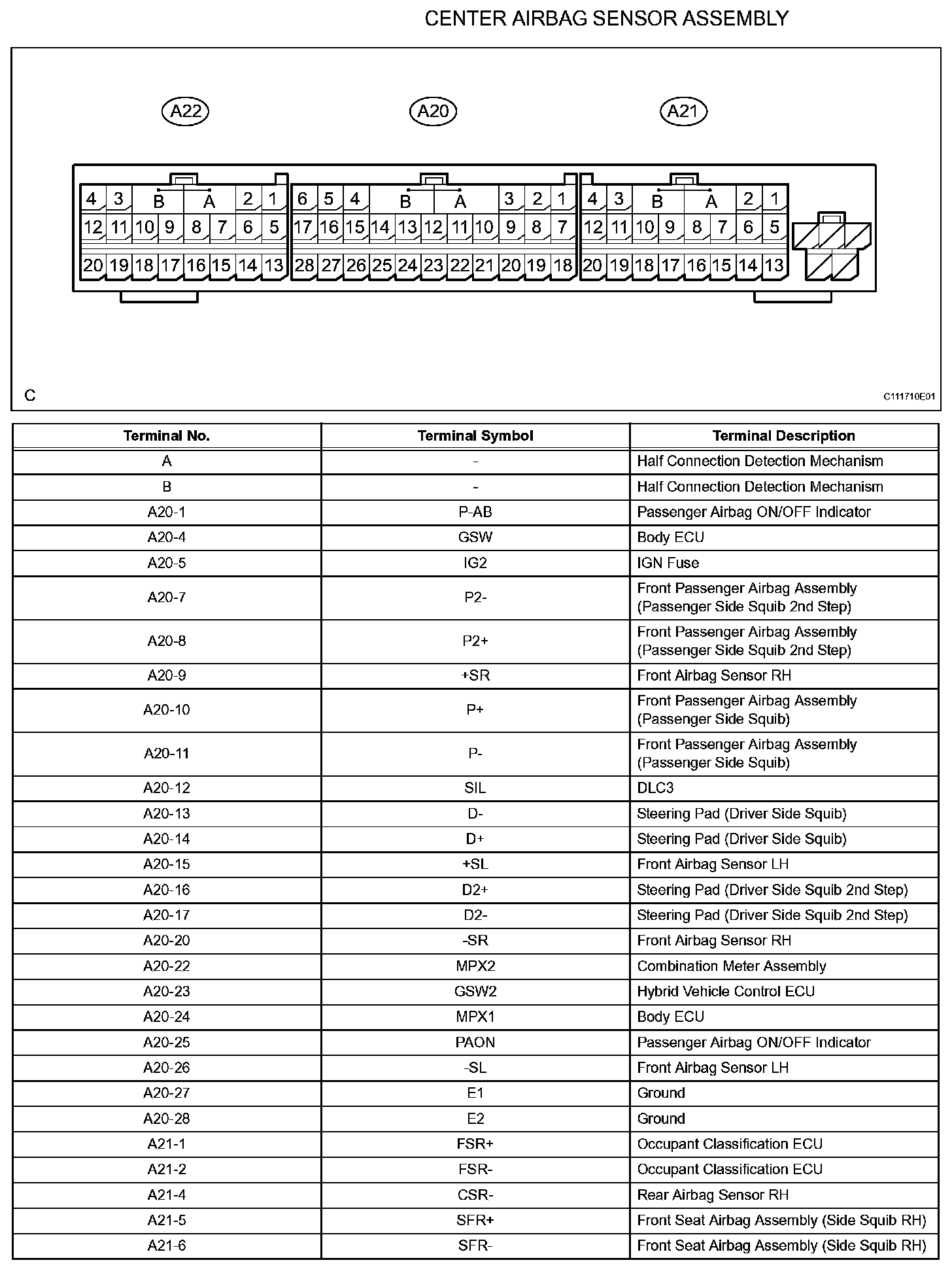

Terminals Of Control Modules/Pinouts(Part 1):

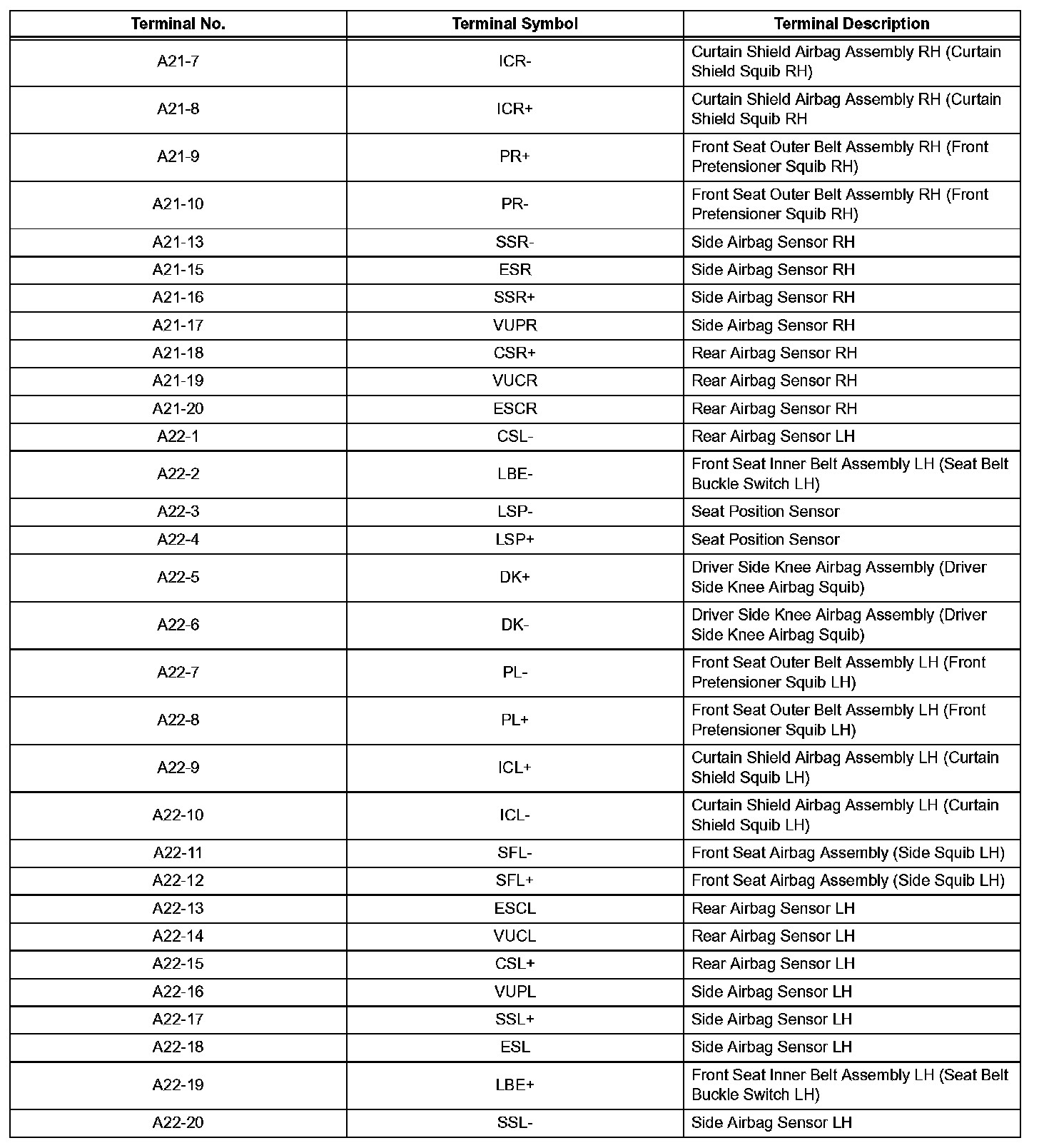

Terminals Of Control Modules/Pinouts(Part 2):
