DTC B0100/13 Short in Driver Side Squib Circuit

DESCRIPTION

DTC Detection Condition:

The driver side squib circuit consists of the center airbag sensor, the spiral cable and the steering wheel pad.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0100/13 is recorded when a short is detected in the driver side squib circuit.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1-2:

Step 3:

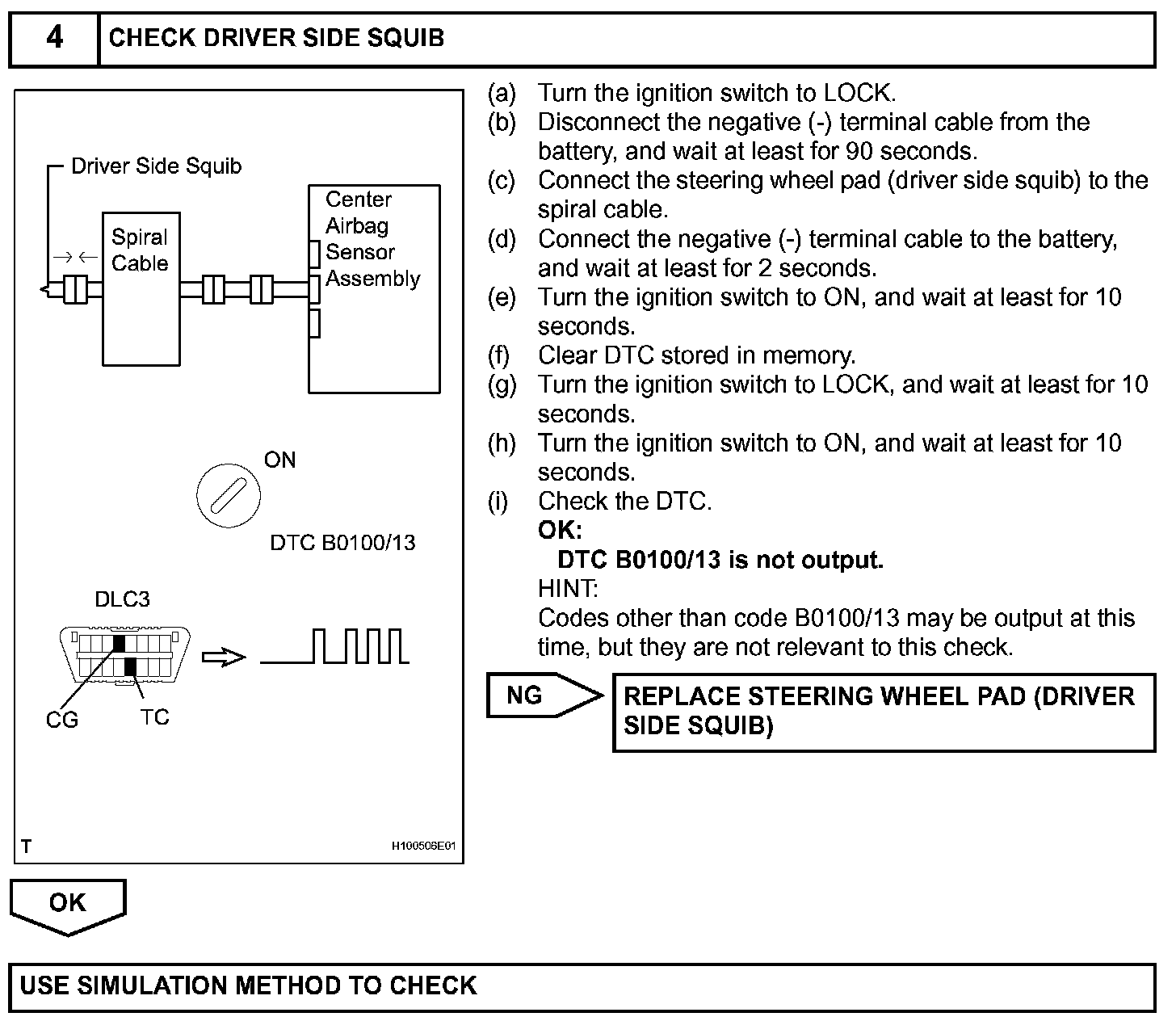

Step 4:

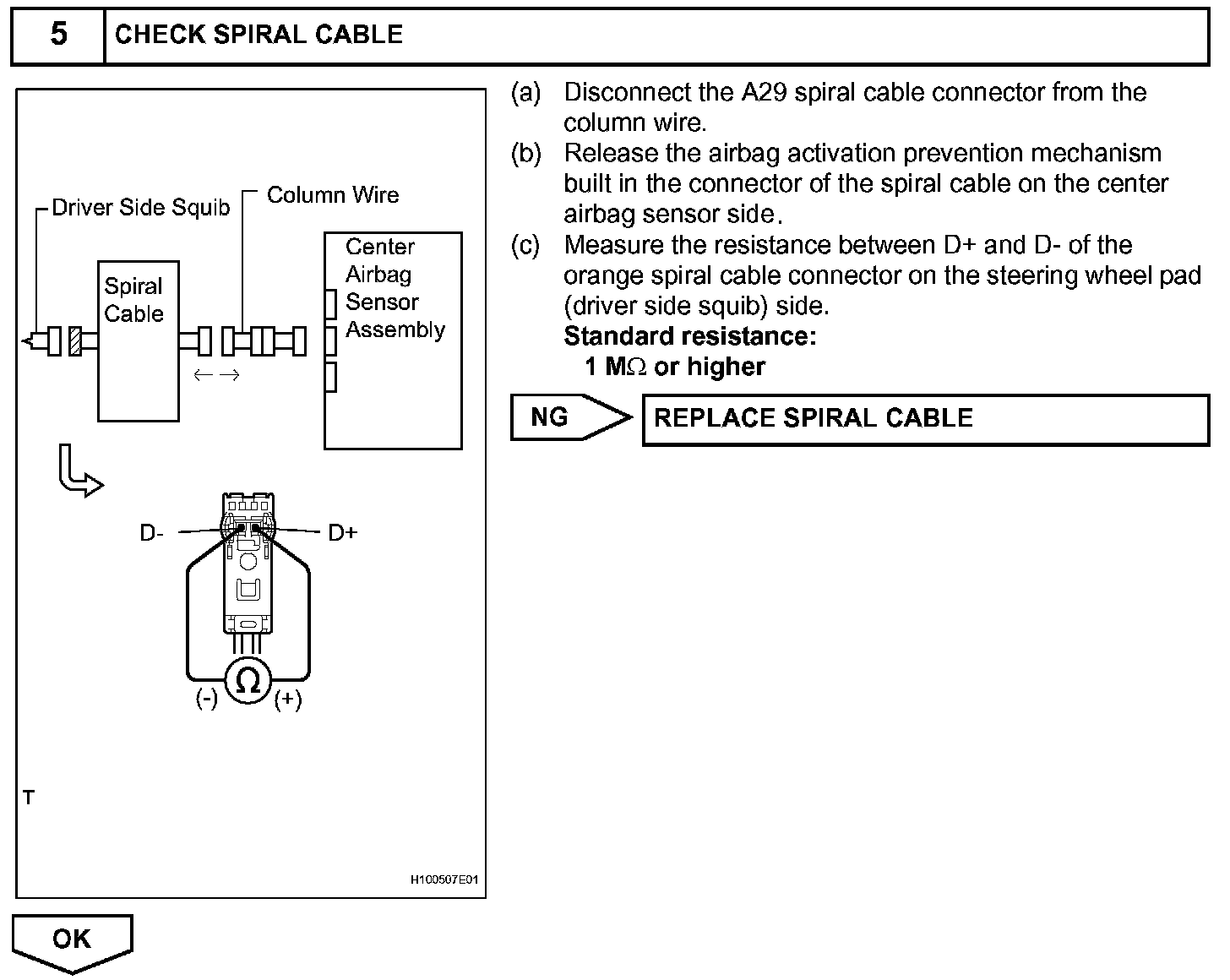

Step 5:

Step 6-7:

Step 7 (Continued):
